Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the console bezel. Refer to Bezel Replacement - Floor Console (Luxury) .
  2. Remove the Driver Information Center (DIC). Refer to Driver Information Center Replacement .
  3. Remove the CD player. Refer to REMOTE CD PLAYER REPLACEMENT .
  4. Remove the console bin. Refer to Console Storage Bin Replacement (Non-Luxury)  or Console Storage Bin Replacement (Luxury)  .

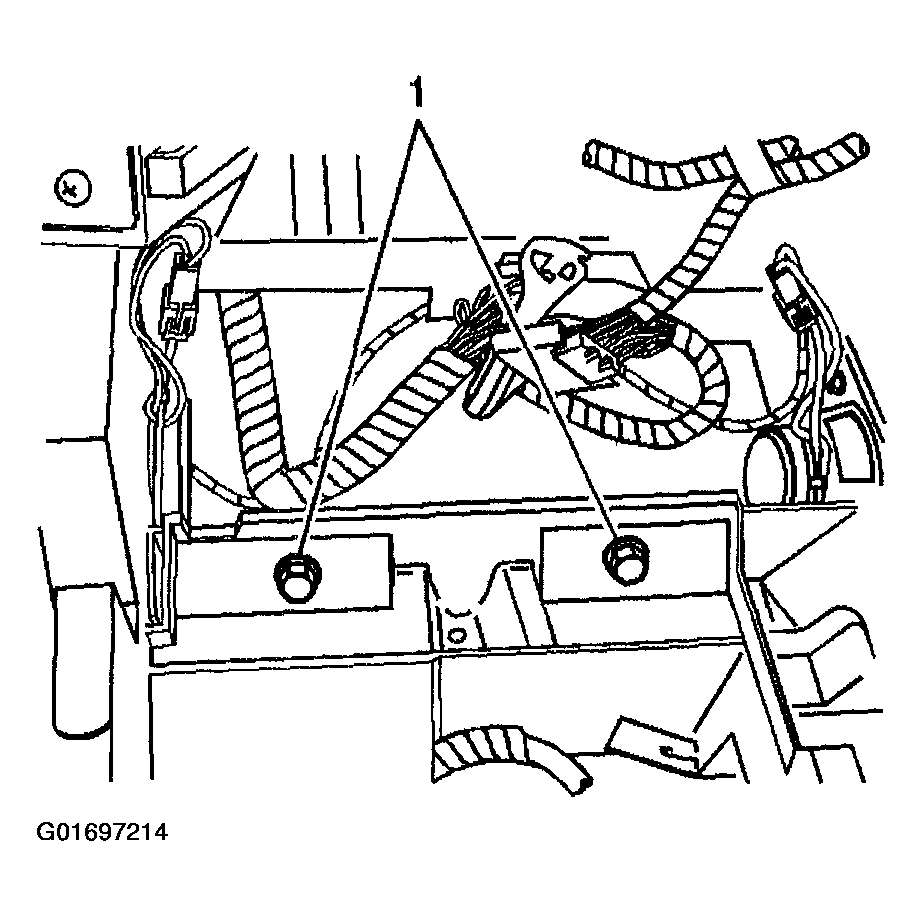

    5. Fig 1: Locating Console Retaining Bolts
    G01697214Courtesy of GENERAL MOTORS CORP.
  5. Remove the amplifier, if equipped. Refer to AMPLIFIER REPLACEMENT (BASE) or AMPLIFIER REPLACEMENT (DENALI YUKON) or AMPLIFIER REPLACEMENT (DENALI SUBURBAN) or AMPLIFIER REPLACEMENT (ESCALADE EXT) .
  6. Remove the bolts retaining the console to the mounting bracket.
  7. Remove the 2 bolts (1) retaining the console to the extension.
  8. Carefully lift the front of the console up and then rearwards.
  9. Disconnect any wire connections that prevents further rearward movement.
  10. Move the console rearwards in order to make room for the IP extension to be removed.
  11. Disconnect the wire connector to the extension.
  12. Remove the 4 screws (1) that retains the extension to the IP.
  13. Ensure all wires are disconnected from the extension.
  14. Remove the extension from the vehicle.
  15. Remove the speakers from the extension, if equipped.
  16. Remove the DIC and power outlet bracket from the extension.

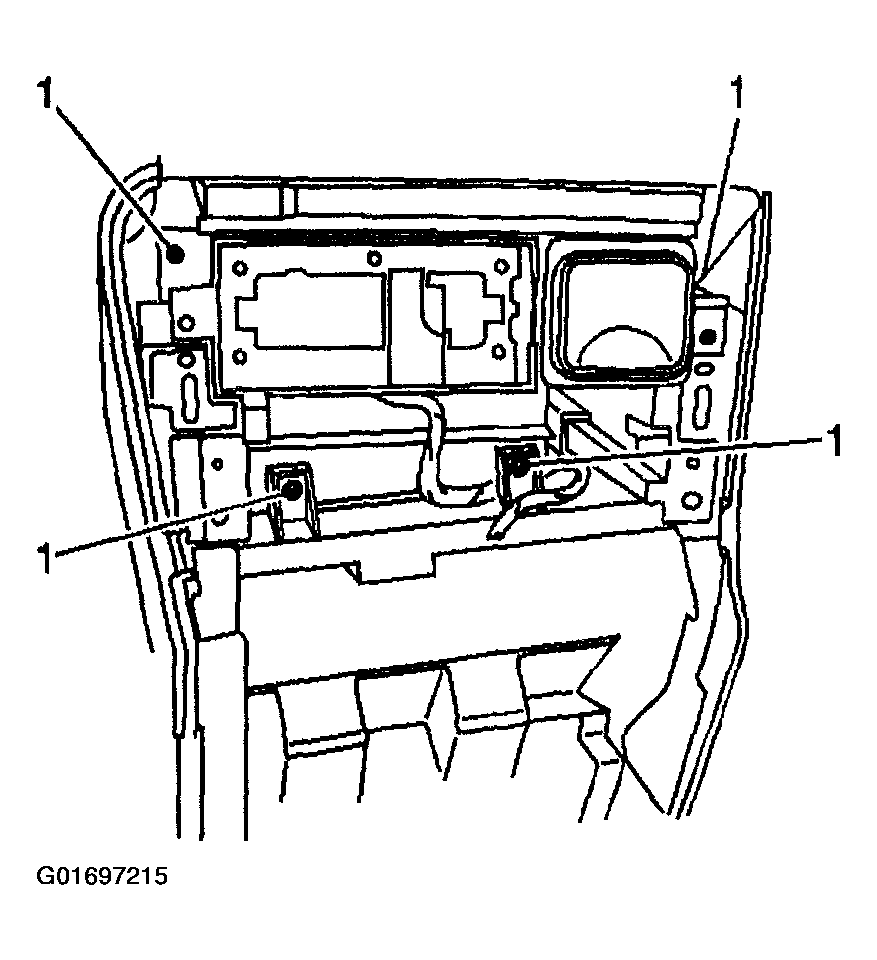

    17. Fig 2: Locating IP Extension Screws
    G01697215Courtesy of GENERAL MOTORS CORP.
