Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the air deflector into the opening in the instrument panel.

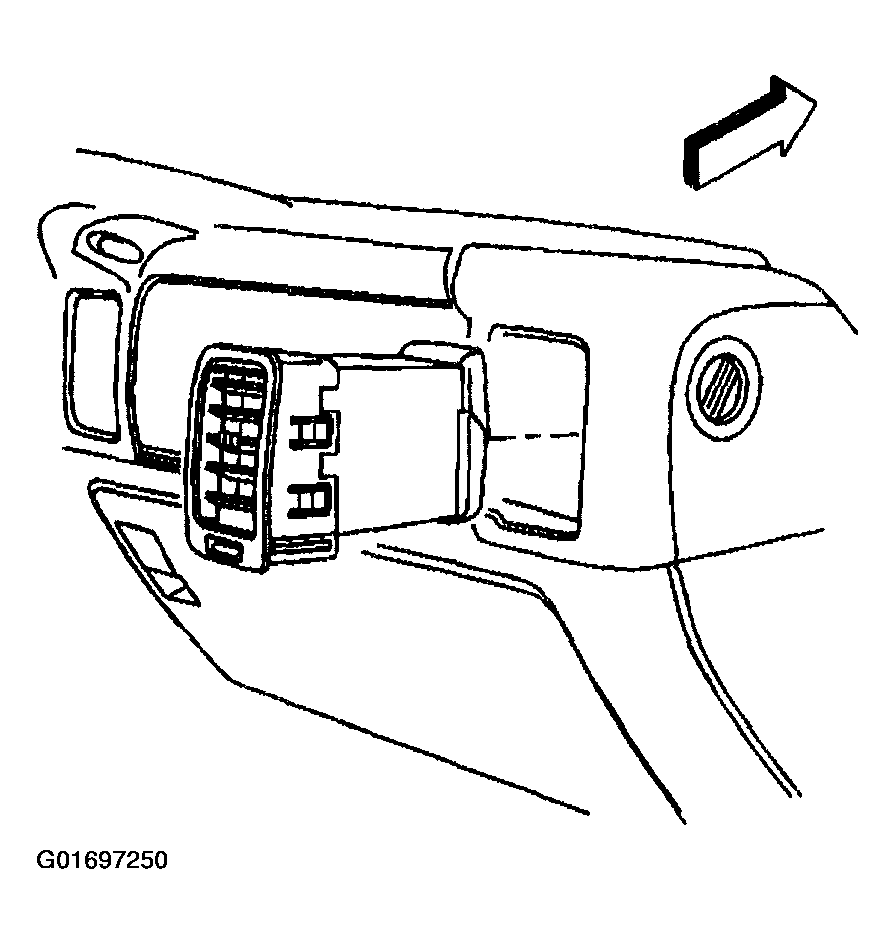

    2. Fig 1: Right Side Air Deflector Installation
    G01697250Courtesy of GENERAL MOTORS CORP.
  2. Push the air outlet into the instrument panel until the deflector snaps into place.
