Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel (IP) bezel. Refer to Bezel Replacement - IP Cluster .
  2. Remove the IP trim panel. Refer to Trim Panel Replacement - Instrument Panel (IP) Upper .
  3. Remove the air outlet mounting screws.

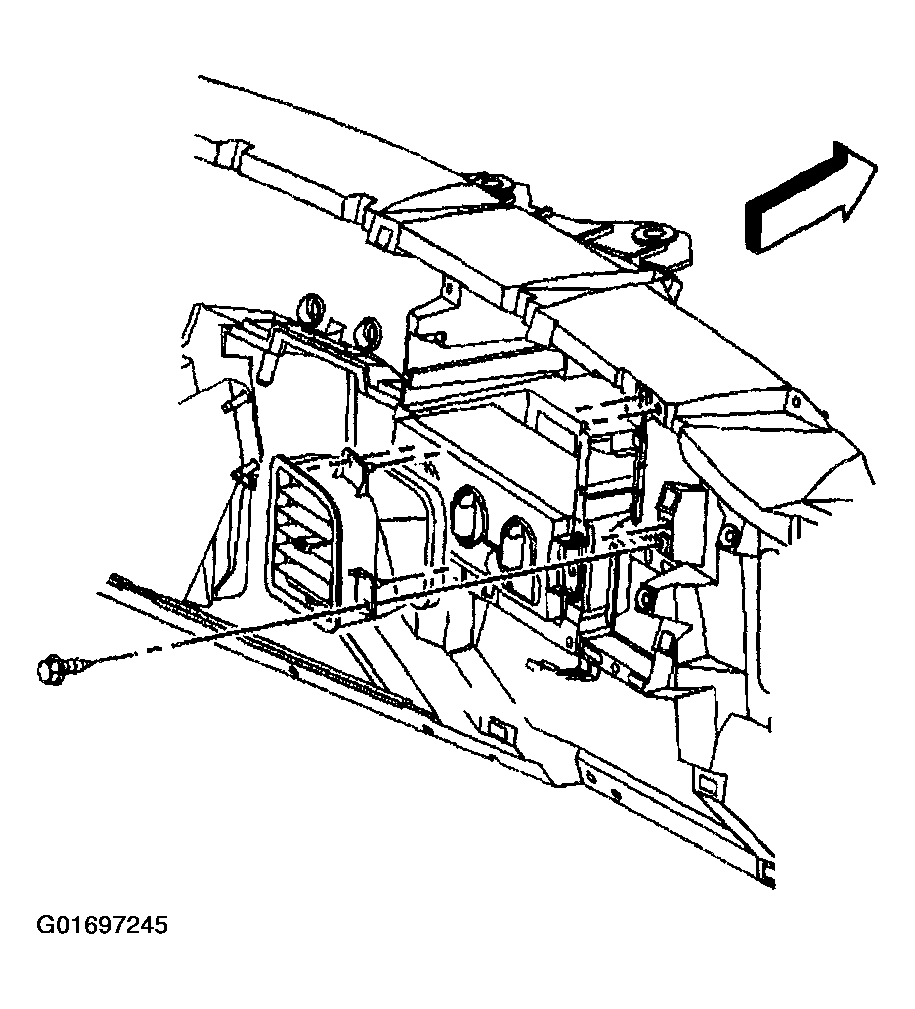

    4. Fig 1: Locating Air Outlet Mounting Screws
    G01697245Courtesy of GENERAL MOTORS CORP.
  4. Remove the air outlet from the IP.
