Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the cup holder by pulling down from the rear of the floor console.

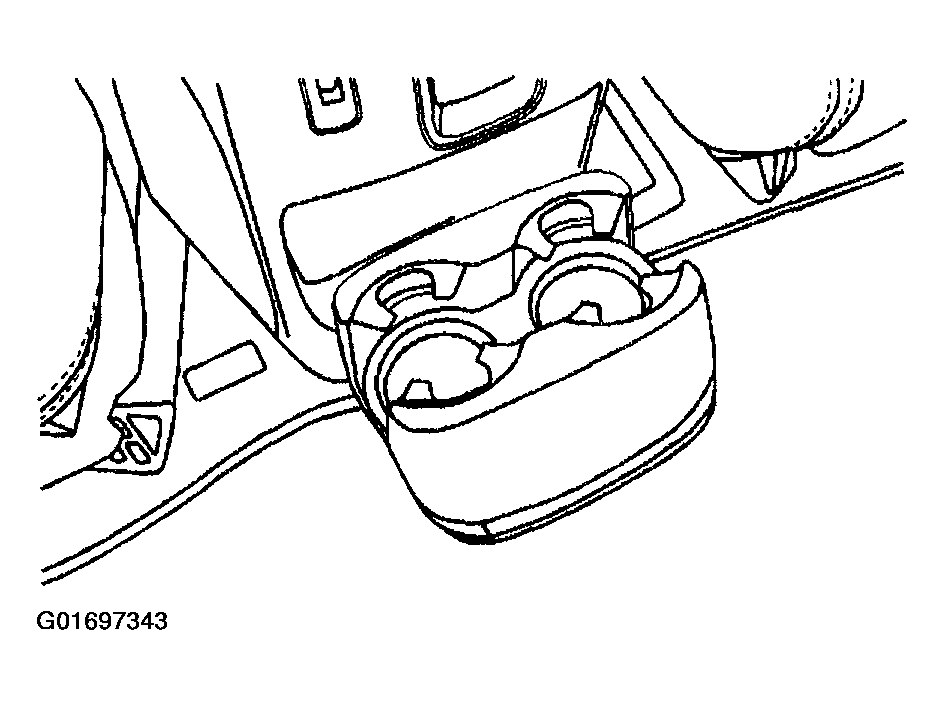

    2. Fig 1: Locating Front Floor Console Cupholder
    G01697343Courtesy of GENERAL MOTORS CORP.
  2. Remove the tabs (1) that connect the cupholder to the floor console by gently prying apart with a flat bladed tool.
  3. Remove the cup holder from the vehicle.

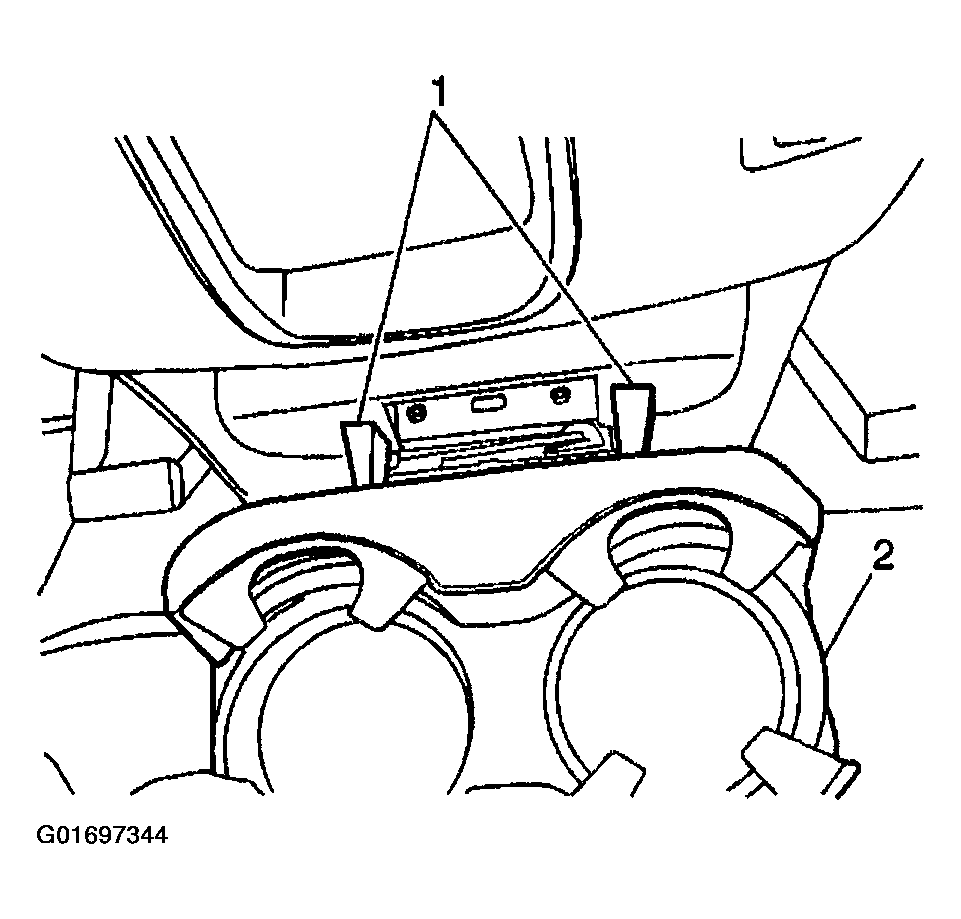

    4. Fig 2: Locating Cupholder Retaining Tabs
    G01697344Courtesy of GENERAL MOTORS CORP.
