Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Partially install the bin into the console.
  2. Connect the electrical connectors.
  3. Allow the storage bin to seat in the console.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the retaining screws (1). Tighten the retaining screws to 1.6 N.m (14 lbs in).

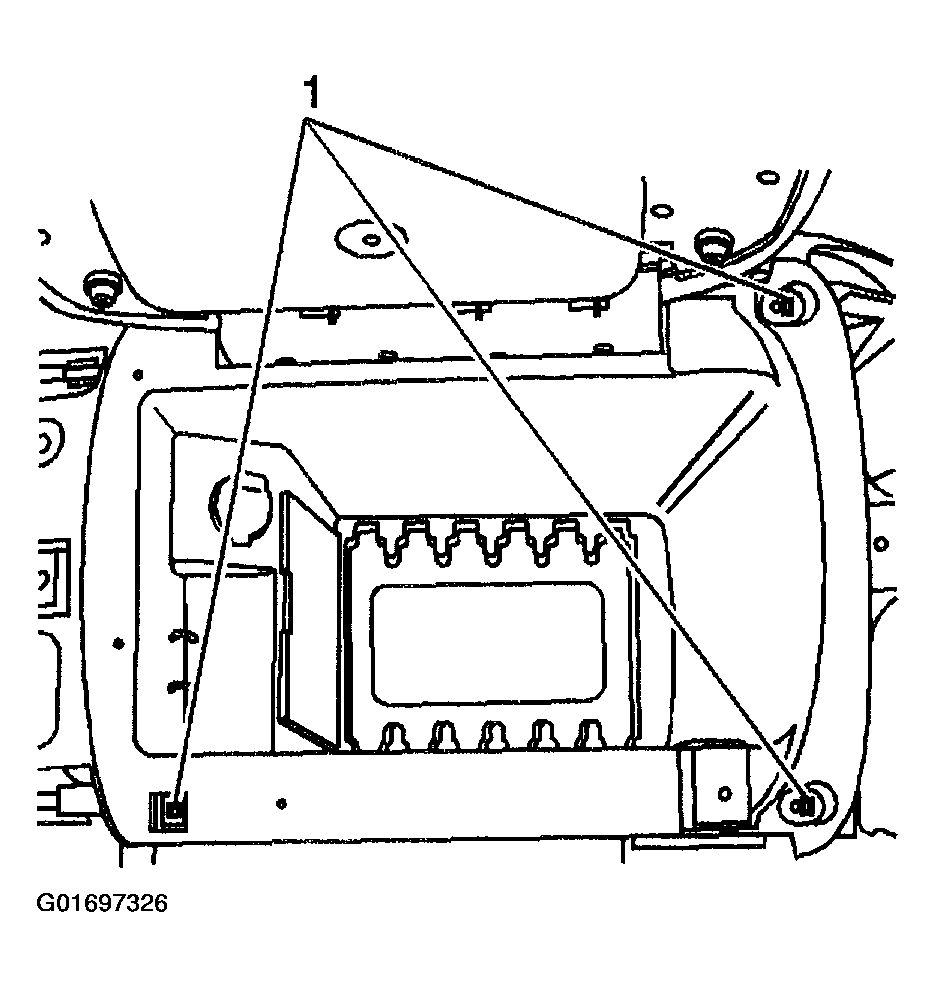

    5. Fig 1: Installing Storage Bin Retaining Screws
    G01697326Courtesy of GENERAL MOTORS CORP.
  5. Close the console lid.
