Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Remove the floor console upper bezel by firmly pulling on the corners.

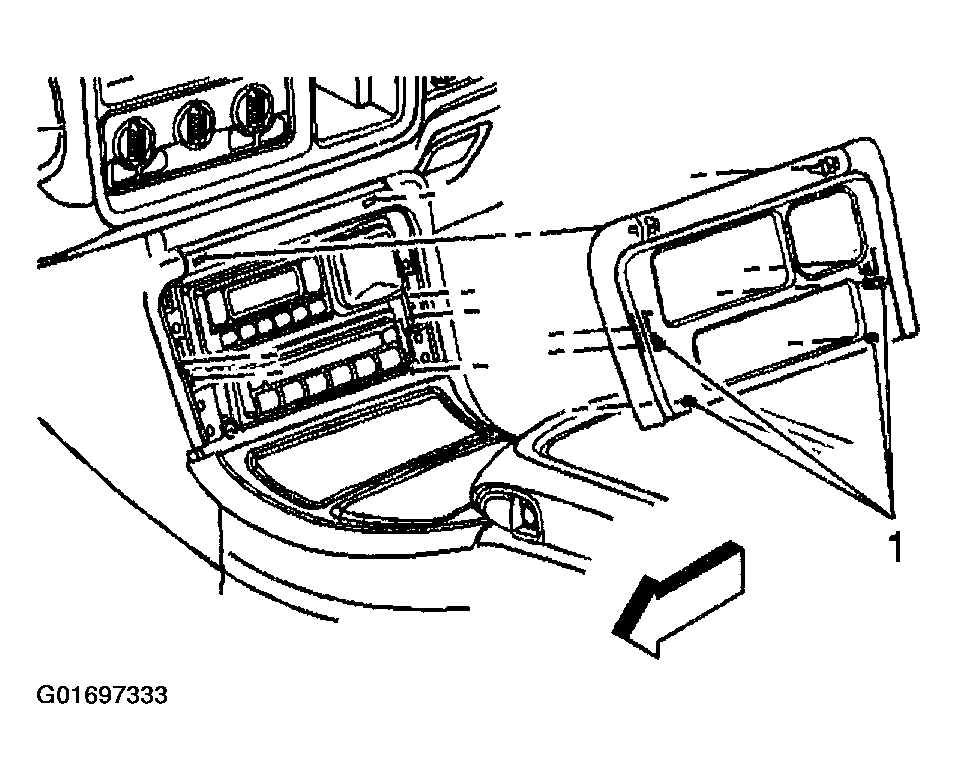

Fig 1: Removing Floor Console Upper Bezel
Courtesy of GENERAL MOTORS CORP.

NOTE: The ashtray lid and cupholder lid must be in the open position.
Open the ashtray lid (1) and cupholder lid (2)
Open the center console storage lid.
Gently pull on the front part of the bezel to release the retainers.
Pull out the bezel partially to gain access to the wire connectors.
Disconnect the wire connectors.
Remove the lower bezel from the center console.

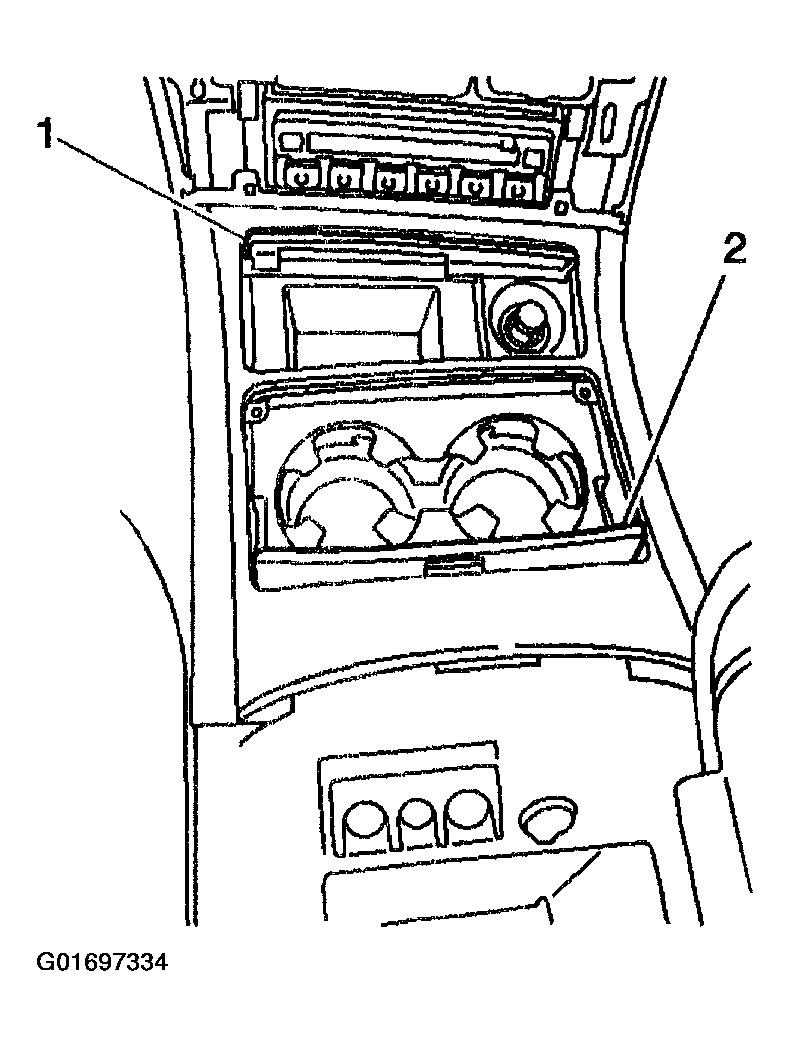

Fig 2: Locating Ashtray & Cupholder Lids

Courtesy of GENERAL MOTORS CORP.
