Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the ashtray from the Instrument Panel (IP) by depressing the tab and sliding the ashtray rearward.

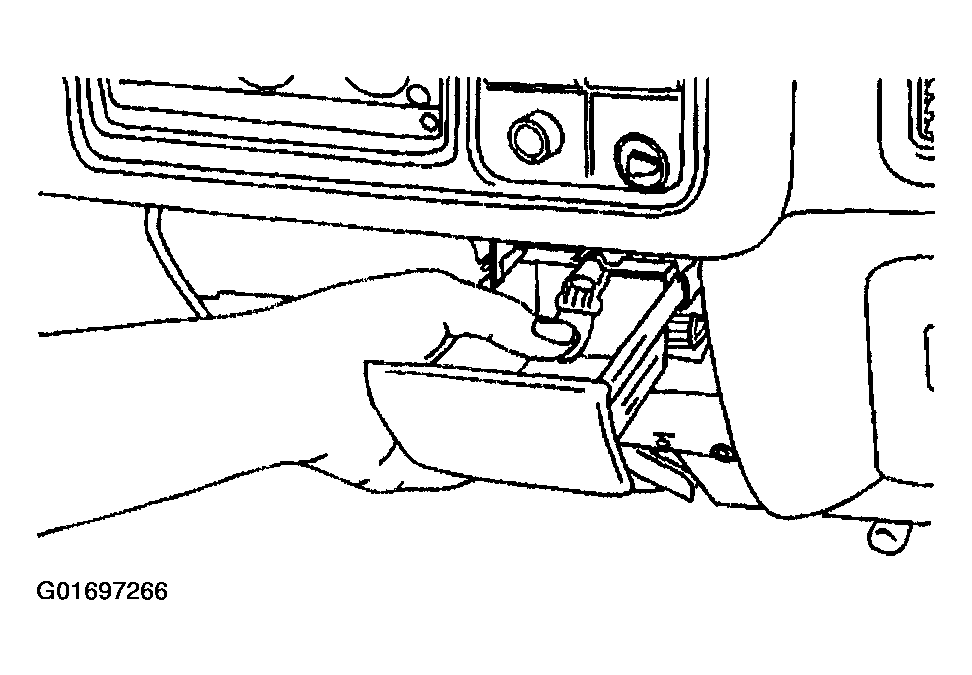

    2. Fig 1: Ashtray Removal
    G01697266Courtesy of GENERAL MOTORS CORP.
  2. Remove the lower IP trim panel. Refer to IP Trim Panel Replacement - Lower .

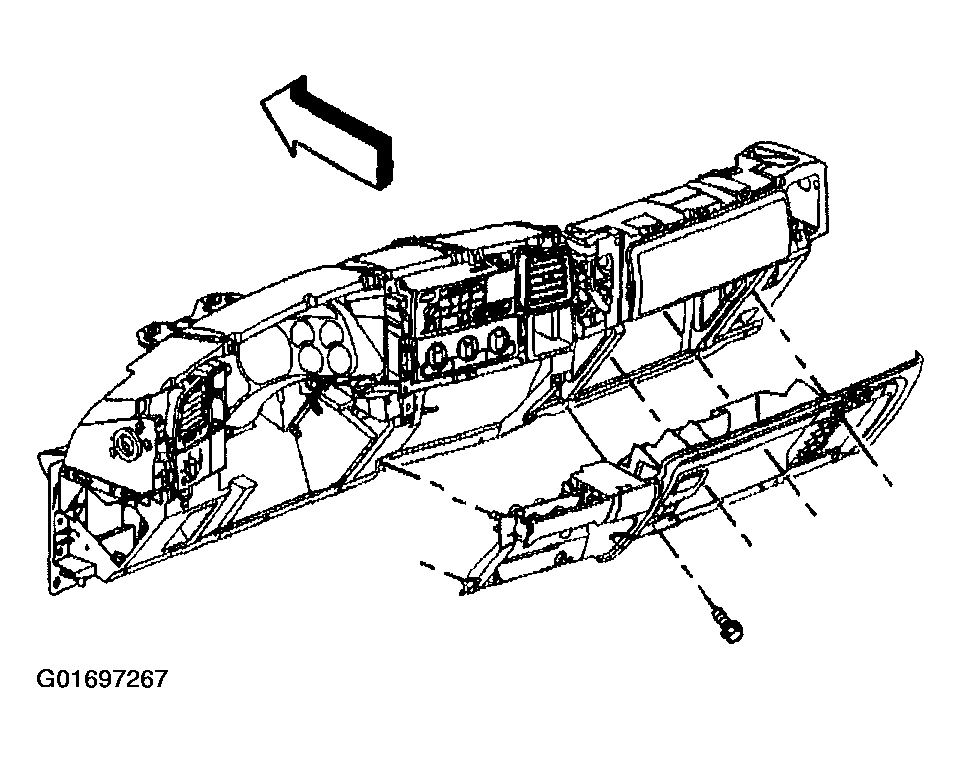

    3. Fig 2: Removing Lower IP Trim Panel
    G01697267Courtesy of GENERAL MOTORS CORP.
  3. Remove the ashtray lamp wiring harness from the ashtray housing.

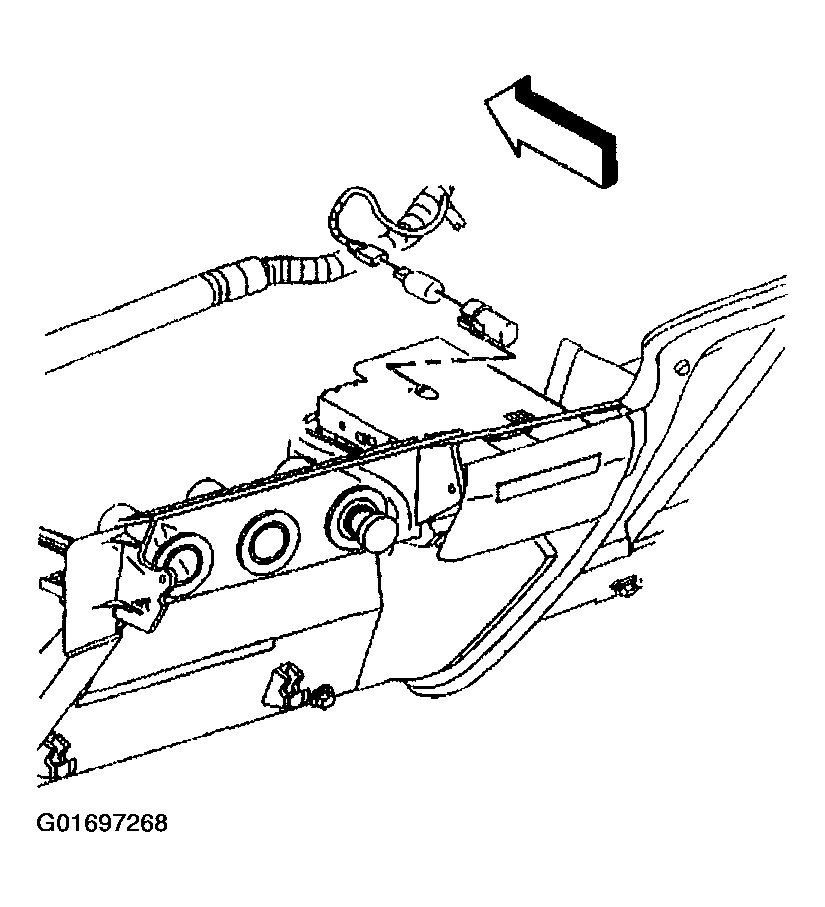

    4. Fig 3: Locating Ashtray Lamp Wiring Harness
    G01697268Courtesy of GENERAL MOTORS CORP.
  4. Remove the screws holding the ashtray housing to the rear of the IP lower trim panel.
  5. Remove the ashtray housing from the lower trim housing.

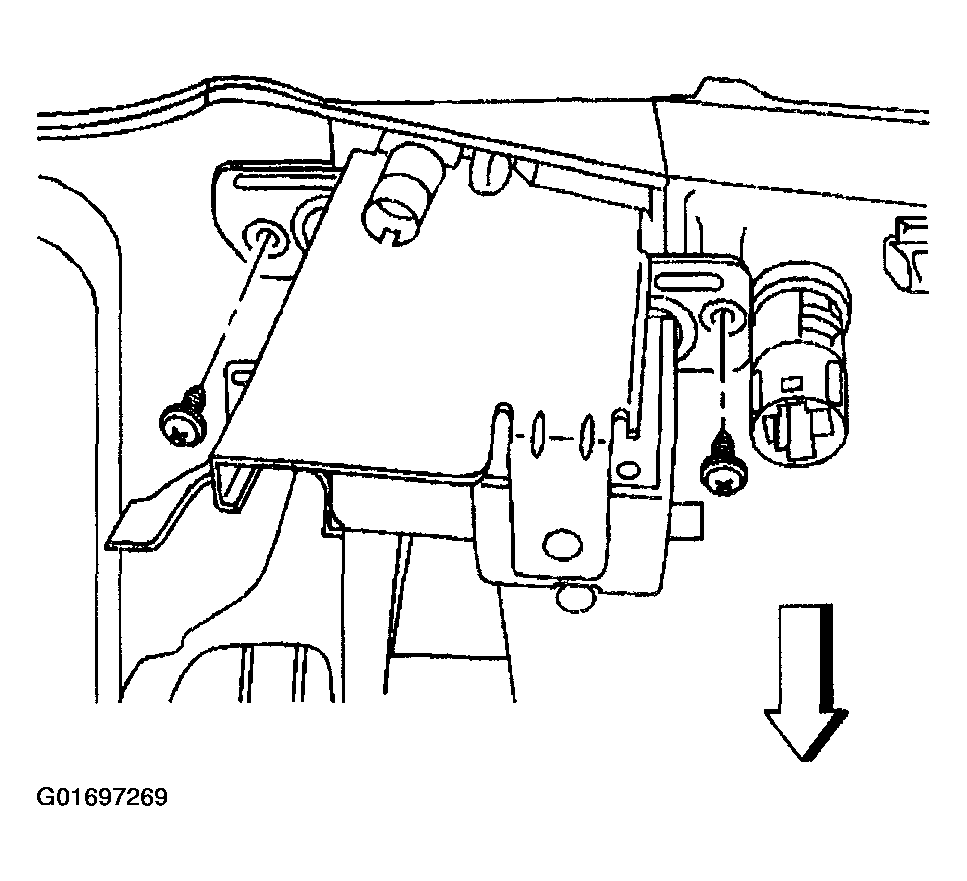

    6. Fig 4: Removing Ashtray Housing Screws
    G01697269Courtesy of GENERAL MOTORS CORP.
