Circuit Description

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

When the engine oil level is in the normal range, the engine oil level switch is a closed switch and the engine oil level switch signal is low.

When a low engine oil level condition is present, the engine oil level switch is an open switch and the engine oil level switch signal is high. The IPC receives a class 2 message from the PCM requesting illumination of the CHECK ENG OIL LEVEL indicator.

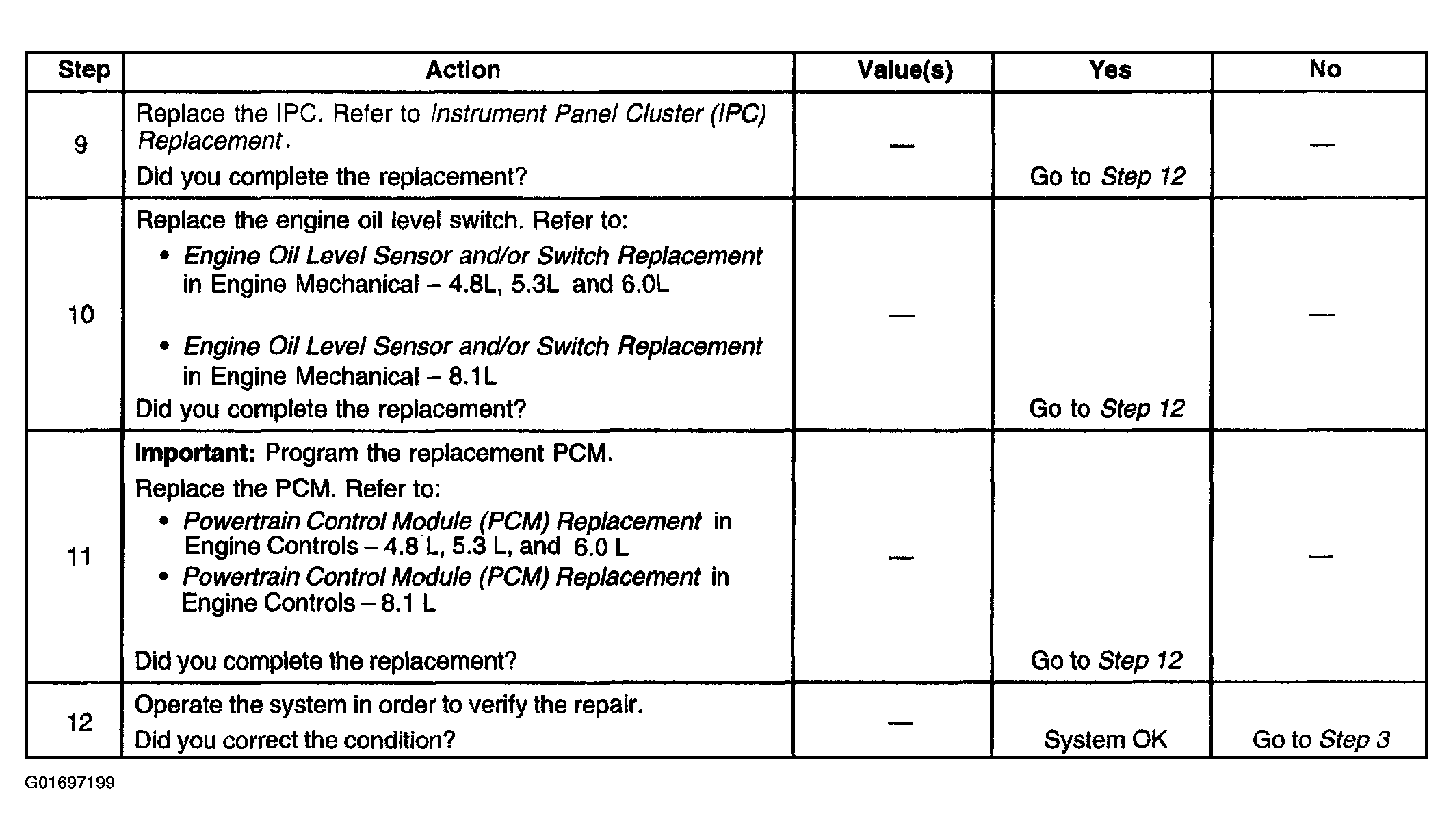

Fig 1: Low Engine Oil Level Indicator Always On (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

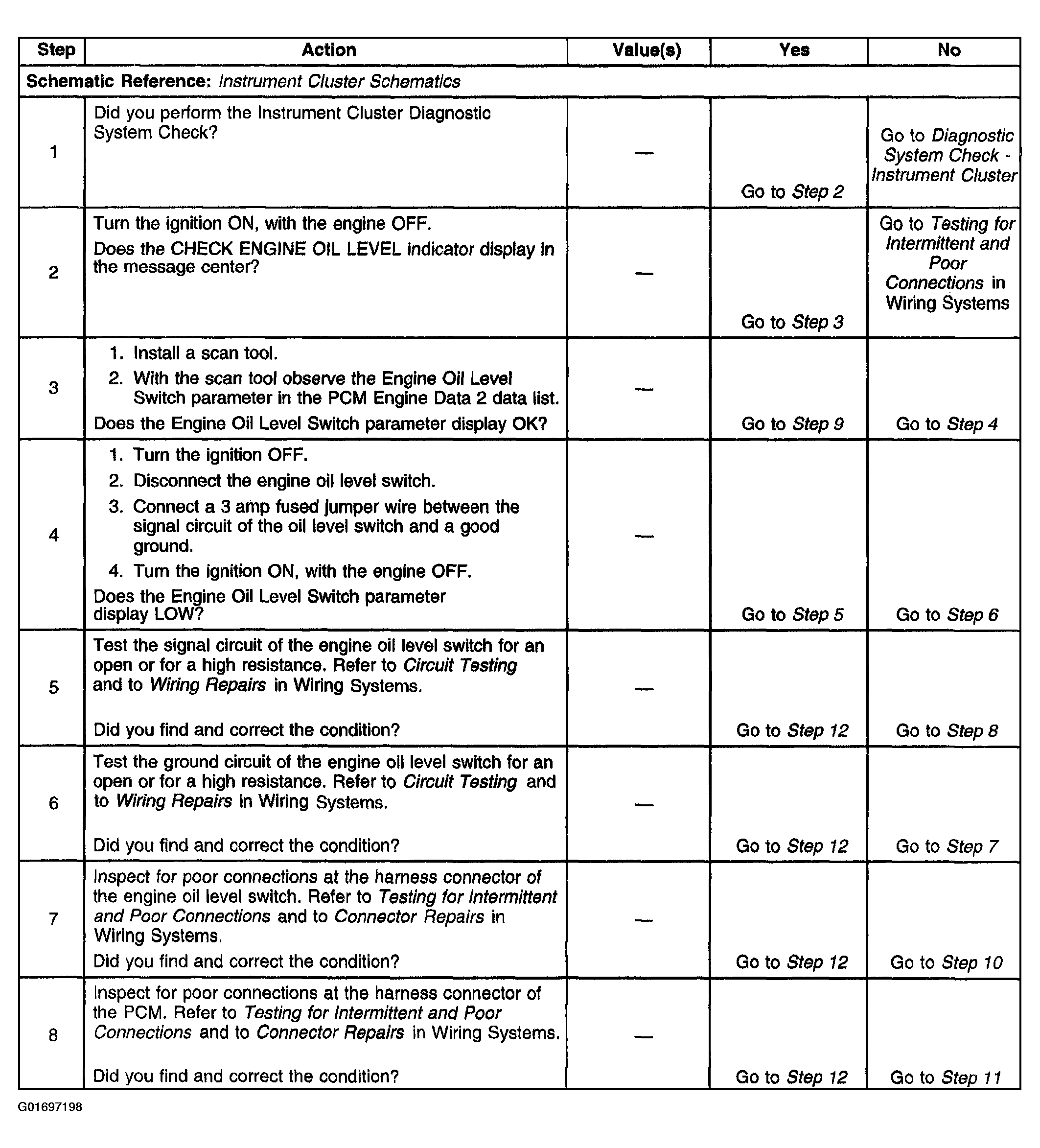

Fig 2: Low Engine Oil Level Indicator Always On (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
