DTC B2961

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

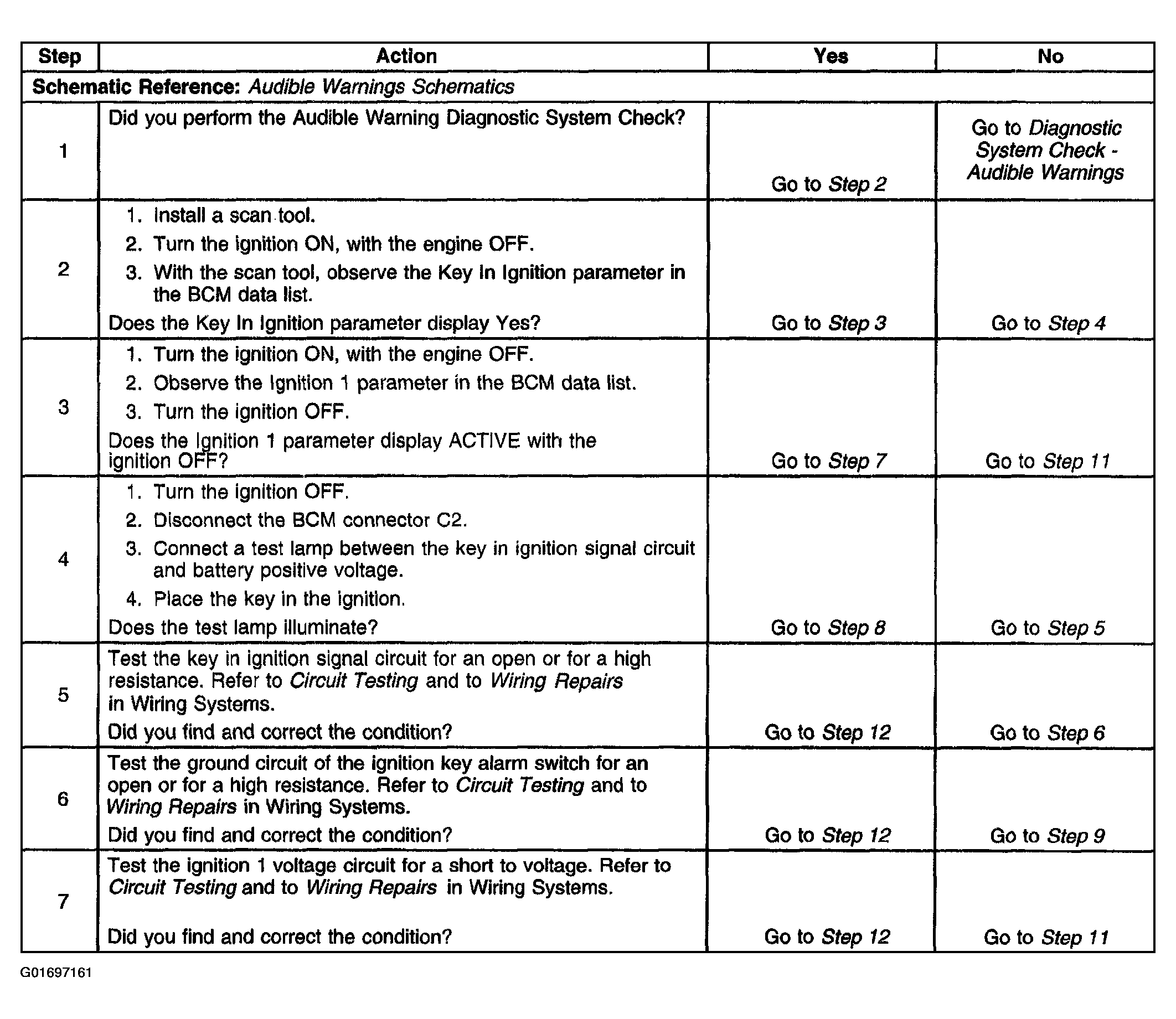

Fig 1: DTC B2961: Ignition 1 Input Is Active - Key In Ignition Switch Signal Circuit Is Inactive - Signal Circuit Is High (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

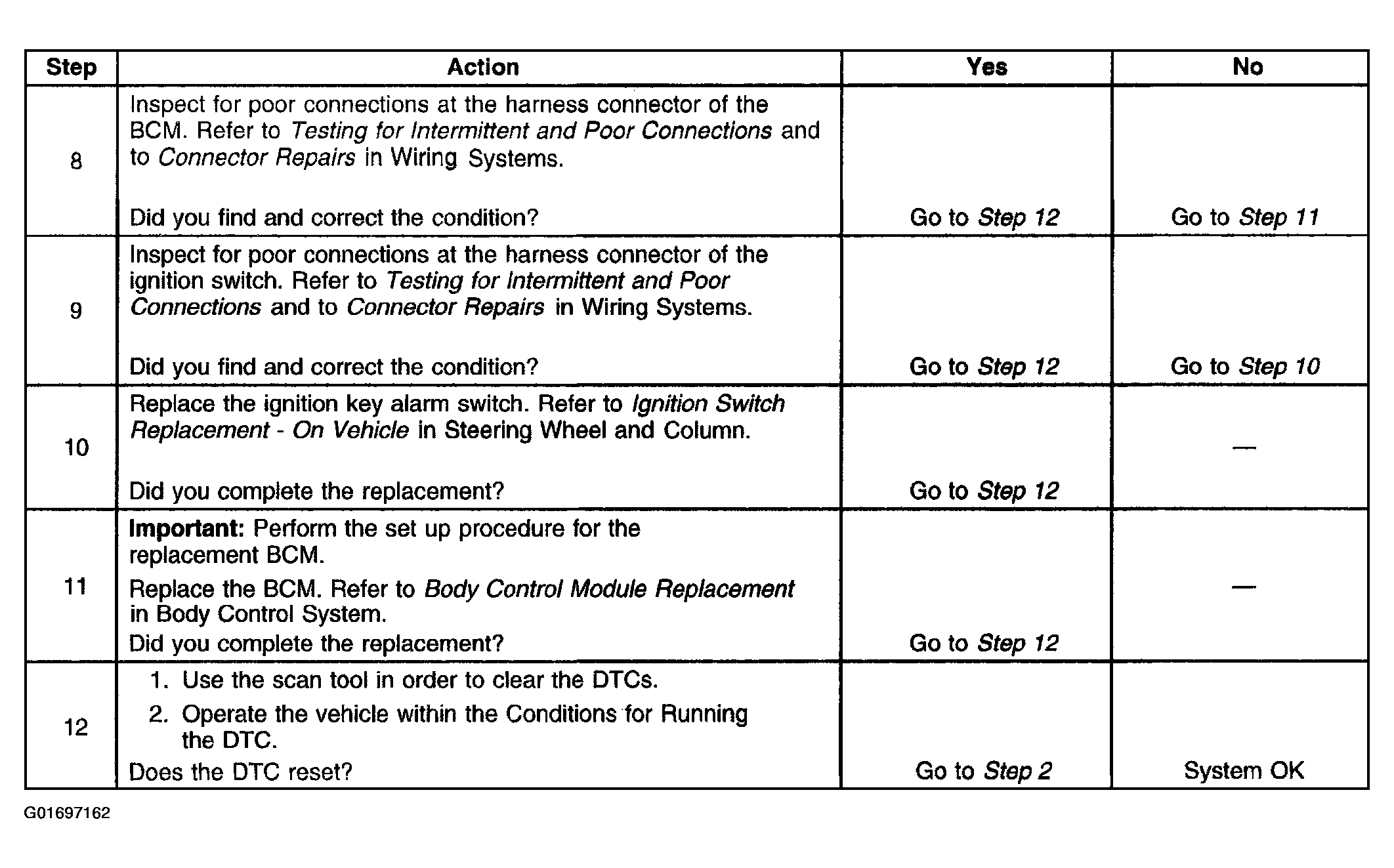

Fig 2: DTC B2961: Ignition 1 Input Is Active - Key In Ignition Switch Signal Circuit Is Inactive - Signal Circuit Is High (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
