Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bolt (1) retaining the outboard edge of the front bumper fascia lower grille to the front bumper fascia (2).
  2. Pull the outer edge of the front bumper fascia lower grille forward and outboard to remove.

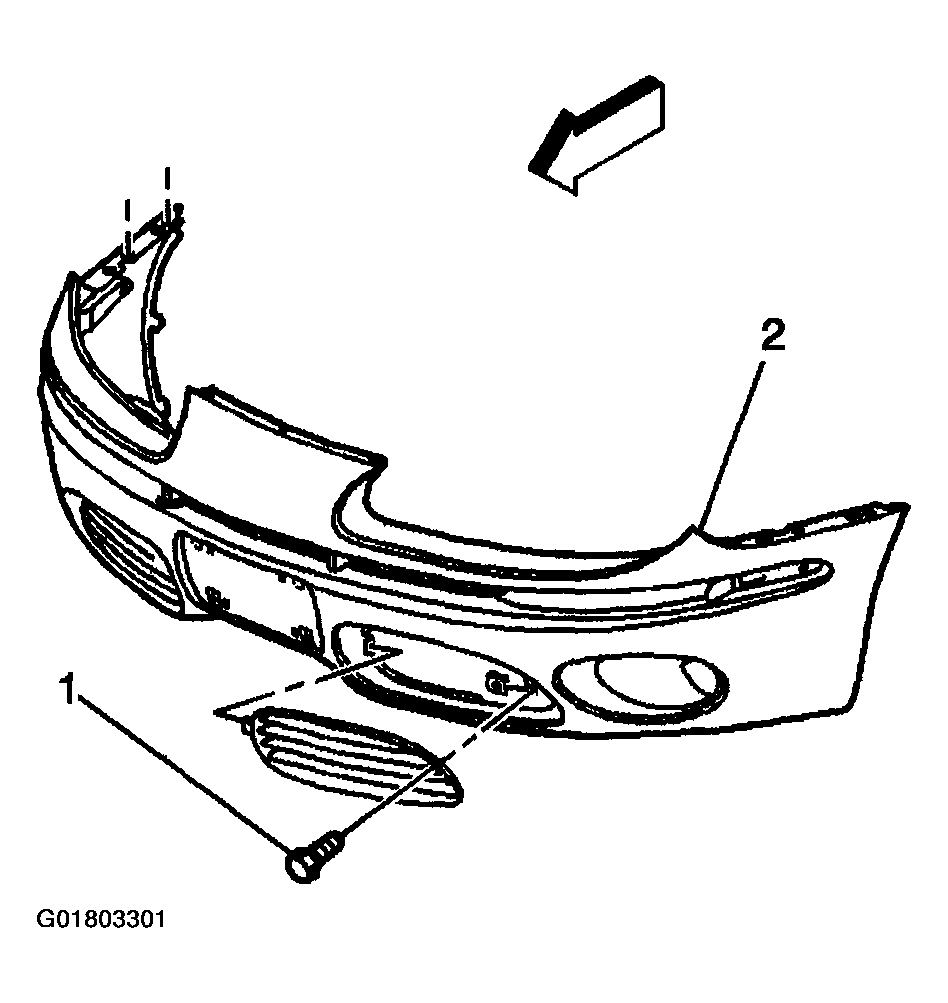

    Fig 1: Removing Fascia Grille - Front
    G01803301Courtesy of GENERAL MOTORS CORP.
