Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headlamp/fascia panel support bracket fasteners (1).
  2. Remove the headlamp/fascia panel support brackets (5).
  3. Remove the radiator support brackets (4). Refer to Radiator Support Replacement  .
  4. Remove the air cleaner assembly.
  5. Position the power control module (PCM) out of the way.
  6. Remove the upper tie bar fasteners (2).
  7. Remove the upper tie bar (3) from the vehicle.

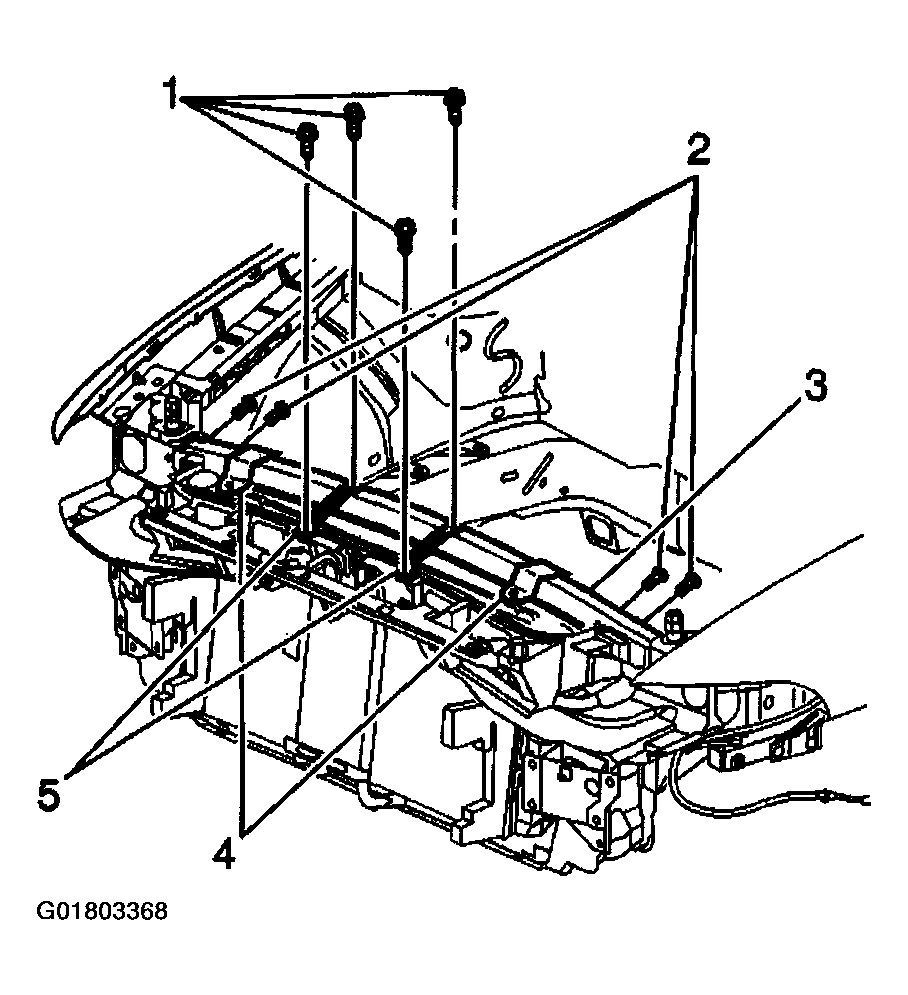

    Fig 1: Removing Upper Tie Bar
    G01803368Courtesy of GENERAL MOTORS CORP.
