Fore and Aft Adjustment

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the lower hood hinge fasteners (1). Oversized holes allow fore and aft adjustment of the hood.
  2. Install the lower hood hinge fasteners (1).

    Tighten

    Tighten the fasteners to 24 N.m (18 ft lbs).

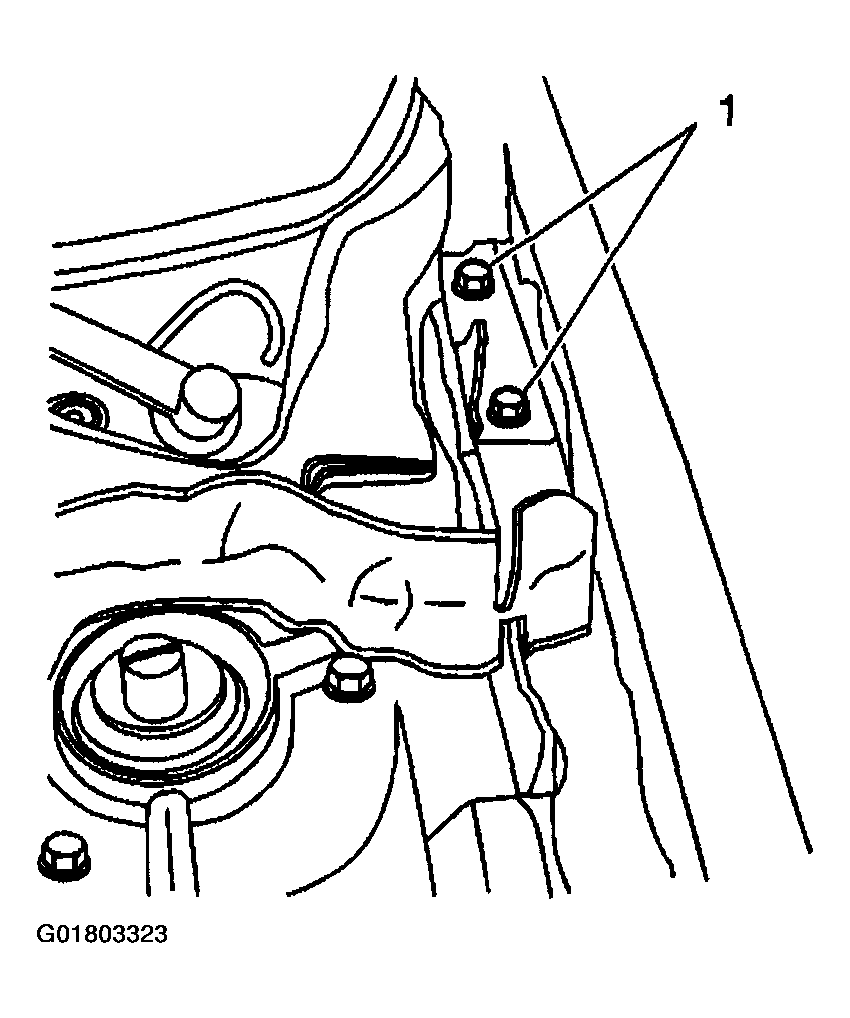

    Fig 1: Locating Lower Hood Hinge Fasteners
    G01803323Courtesy of GENERAL MOTORS CORP.
