Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the headlamp/fascia mounting panel to the vehicle.

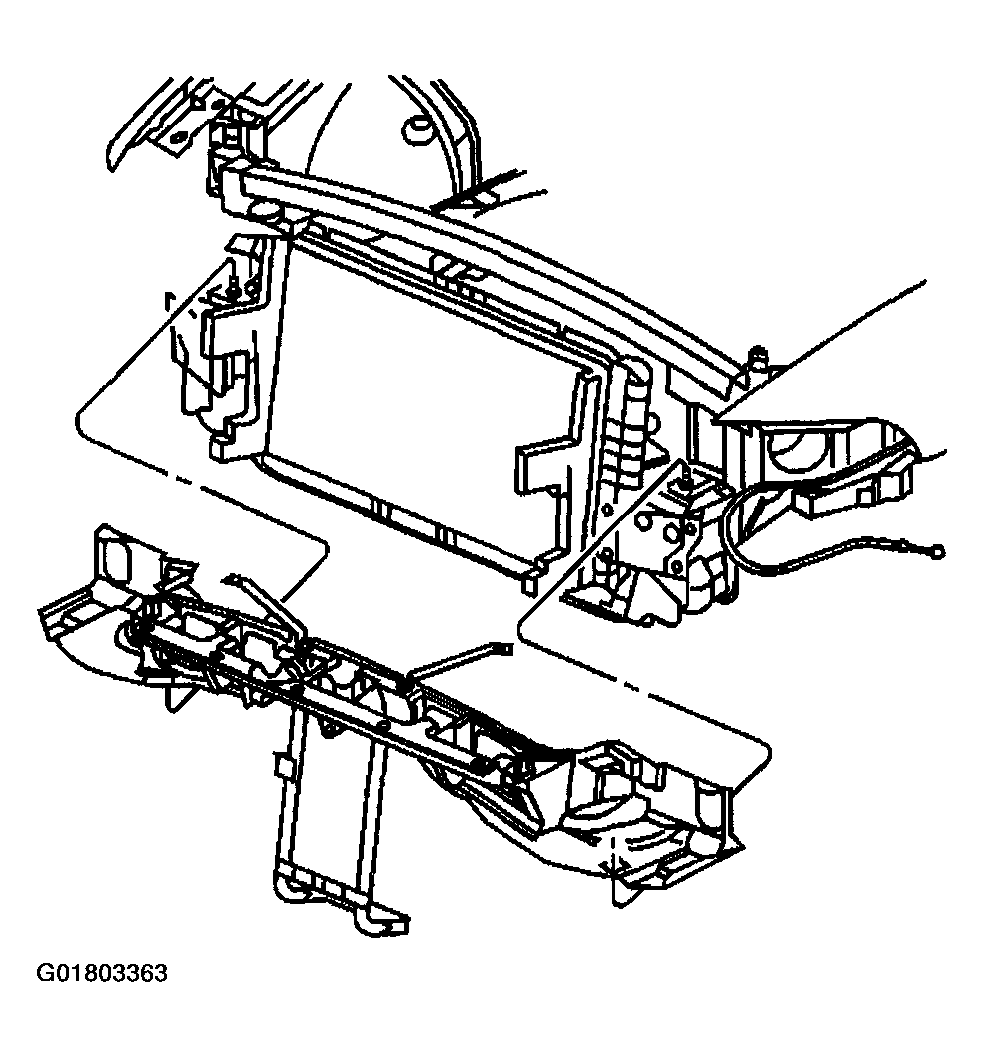

    Fig 1: Installing Headlamp/Fascia Mounting Panel
    G01803363Courtesy of GENERAL MOTORS CORP.
  2. Install the headlamp/fascia mounting panel fasteners to the vehicle.
    CAUTION: Refer to FASTENER NOTICE .

    Tighten

    Tighten the mounting fasteners to 9 N.m (80 in lbs).

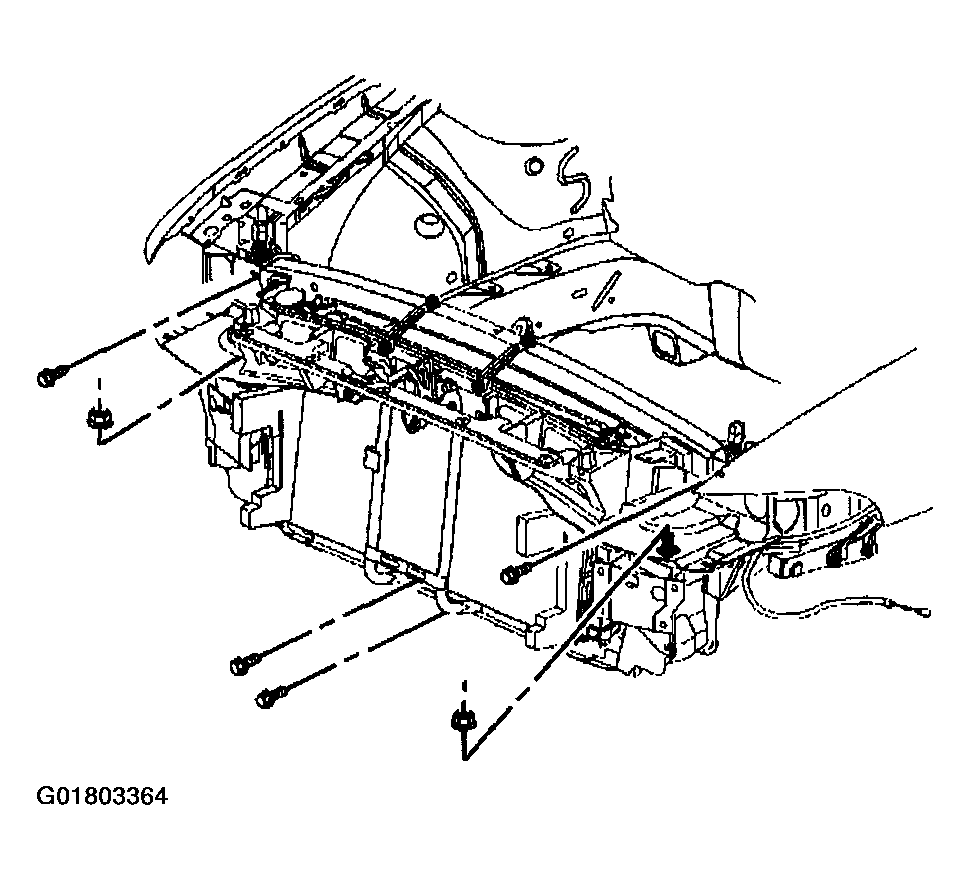

    Fig 2: Installing Headlamp/Fascia Mounting Panel Fasteners
    G01803364Courtesy of GENERAL MOTORS CORP.
  3. Install the headlamp/fascia mounting panel stabilizer bars and fasteners to the vehicle.

    Tighten

    Tighten the stabilizer fasteners to 9 N.m (80 in lbs).

  4. Connect the hood release cable to the hood latch. Refer to Hood Latch Release Cable Replacement  .
  5. Install both headlamps. Refer to HEADLAMP REPLACEMENT .
  6. Install the front fascia. Refer to FASCIA REPLACEMENT -- FRONT BUMPER .

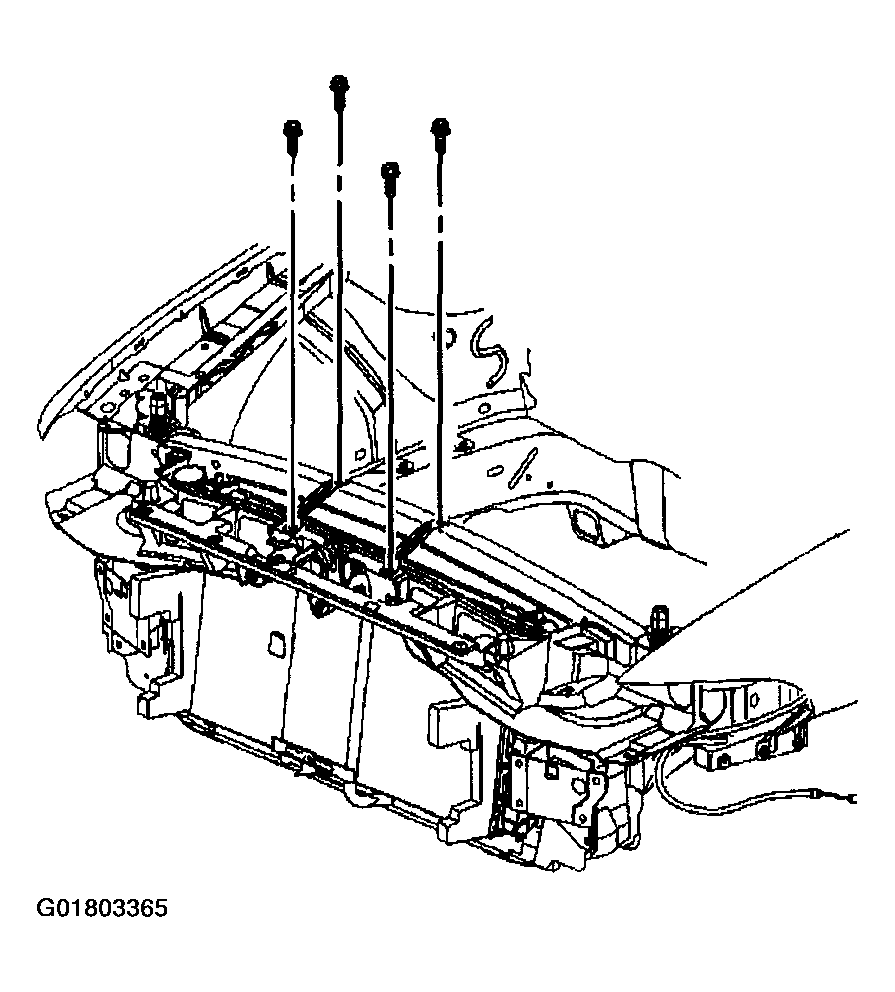

    Fig 3: Installing Headlamp Fascia Mounting Panel Stabilizer Bars
    G01803365Courtesy of GENERAL MOTORS CORP.
