Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat from the vehicle. Refer to the following procedures:
  2. Remove the front seat back from the front seat. Refer to Seat Back Replacement - Front (Split Bench)  or Seat Back Replacement - Front (Bucket Seat)  .
  3. Remove the front seat cushion cover from the front seat cushion. Refer to Seat Cushion Cover Replacement - Front (Split Bench)  or Seat Cushion Cover Replacement - Front (Bucket Seat)
  4. Remove the front seat cushion from the front seat frame. Refer to Seat Cushion Replacement - Front .
  5. Remove the front seat recliner assembly from the front seat cushion frame. Refer to Seat Back Recliner Replacement - Front .
  6. Remove the bolts from the front bucket seat cushion frame to the front seat track adjusters.

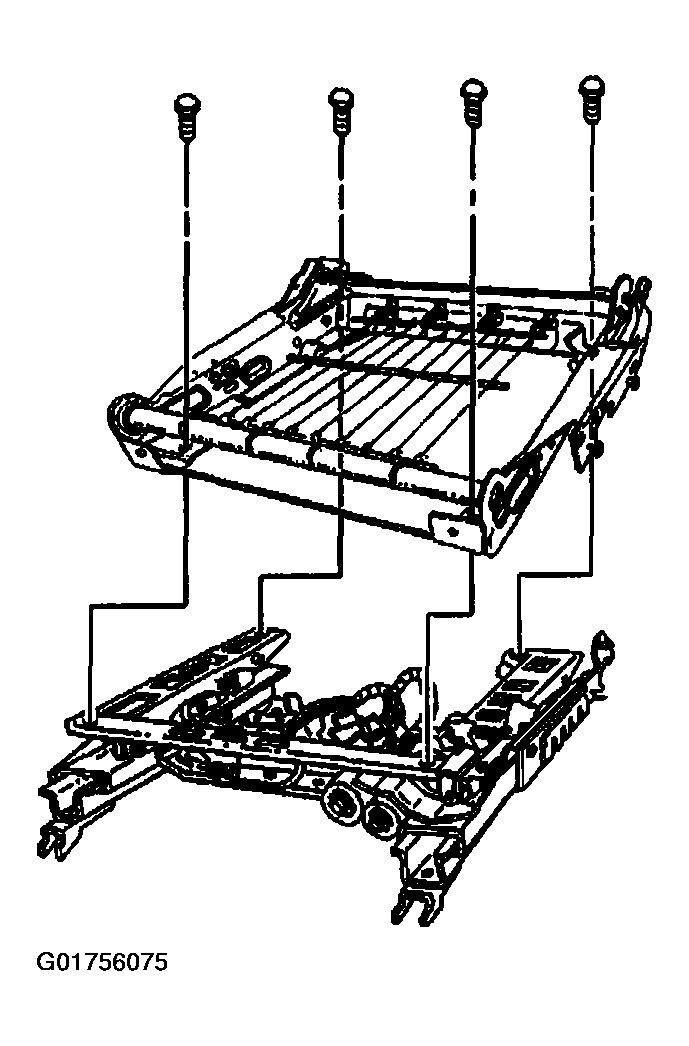

    7. Fig 1: Identifying Seat Cushion Frame-To-Seat Track Adjusters Bolts
    G01756075Courtesy of GENERAL MOTORS CORP.
  7. Remove the front seat cushion frame from the front seat track adjusters.
  8. Remove the bolts from the front split bench seat frame to the front seat track adjusters.

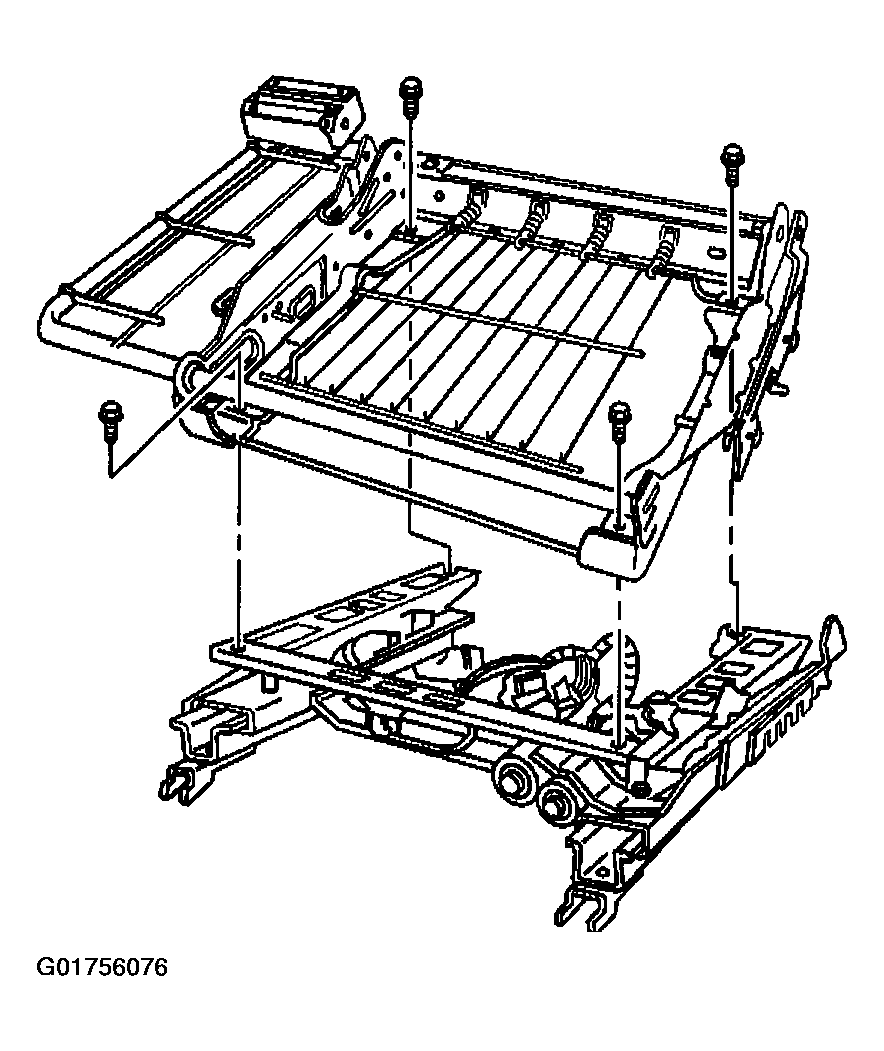

    9. Fig 2: Identifying Seat Frame-To-Seat Track Adjusters Bolts
    G01756076Courtesy of GENERAL MOTORS CORP.
  9. Remove the front seat cushion frame from the front seat track adjusters.
