Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat from the vehicle. Refer to Seat Replacement - Front Bucket .
  2. Remove the front seat trim panel. Refer to Trim Panel Replacement - Front Seat .
  3. Disconnect the electrical connector for the heated seat, if equipped.

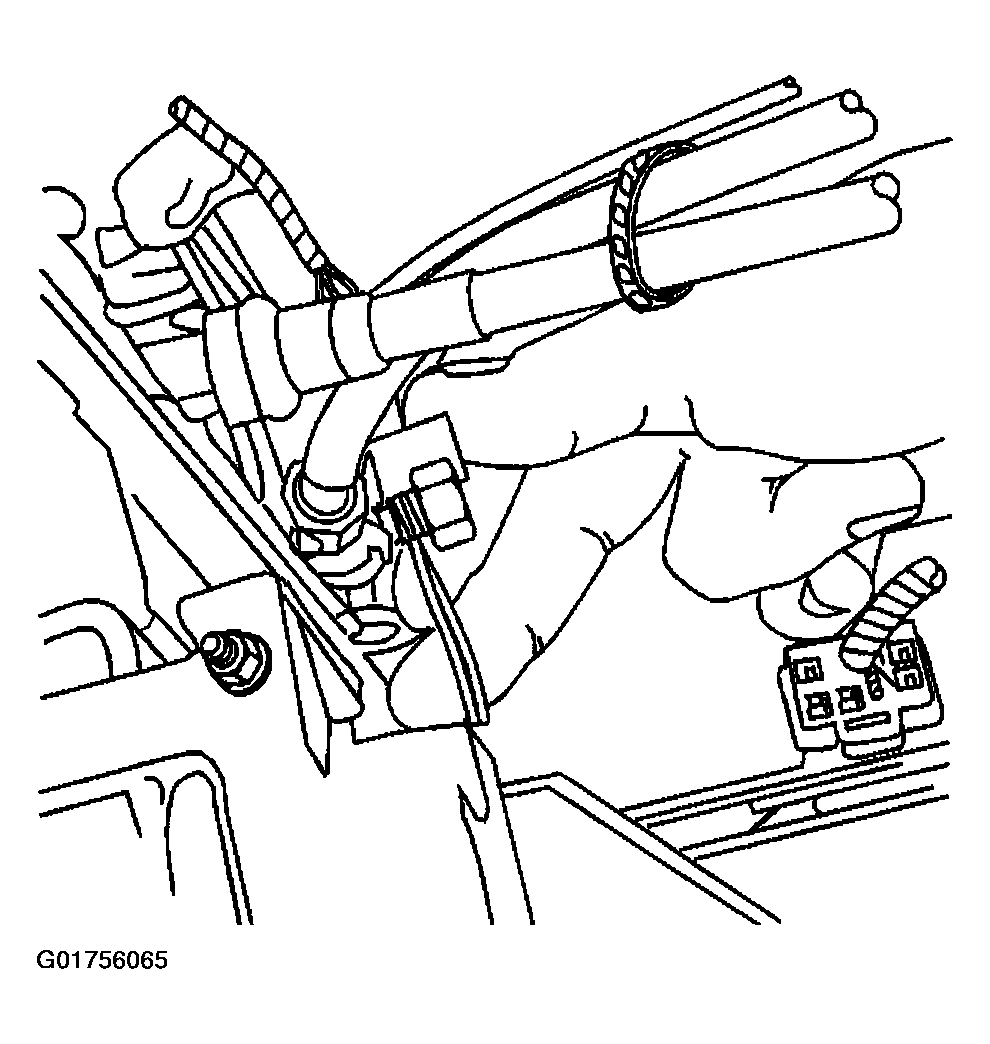

    Fig 1: Identifying Heated Seat Electrical Connector
    G01756065Courtesy of GENERAL MOTORS CORP.
  4. Unfasten the J-hook retainers on all sides of the seat cushion cover.

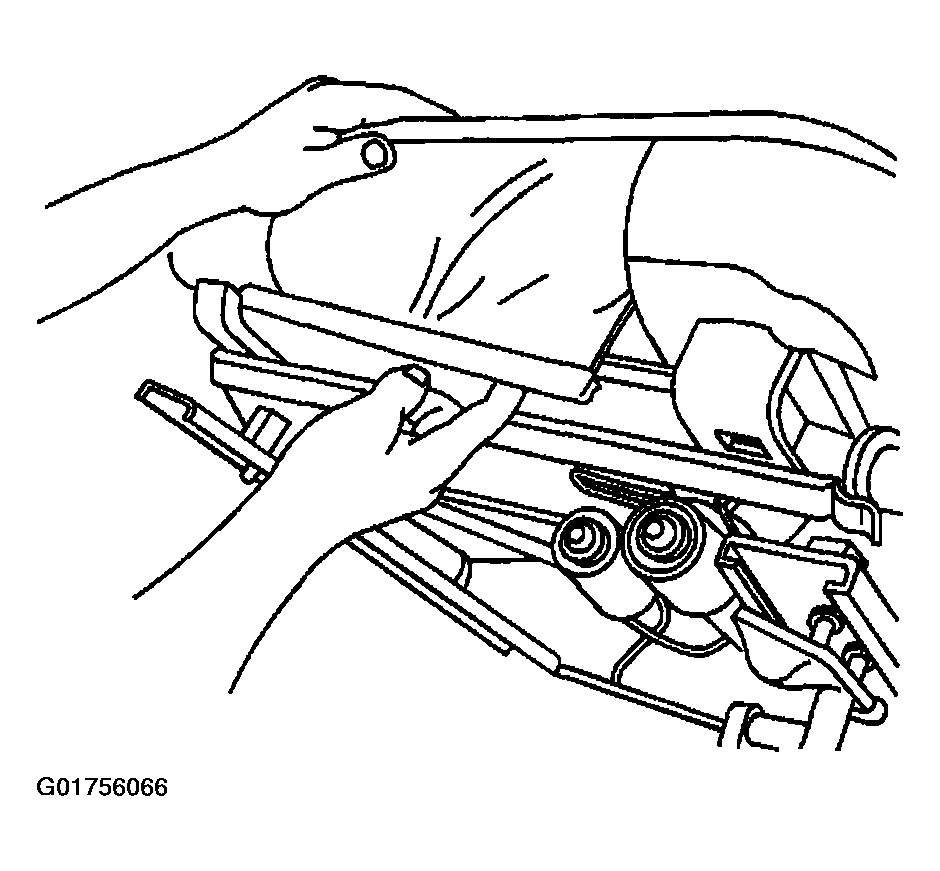

    Fig 2: Identifying Front Seat Cushion Cover J-Hook Retainers
    G01756066Courtesy of GENERAL MOTORS CORP.
  5. Unfasten the hook and the loop retainers that secure the seat cushion cover to the cushion.
  6. Remove the seat cushion cover from the seat cushion.

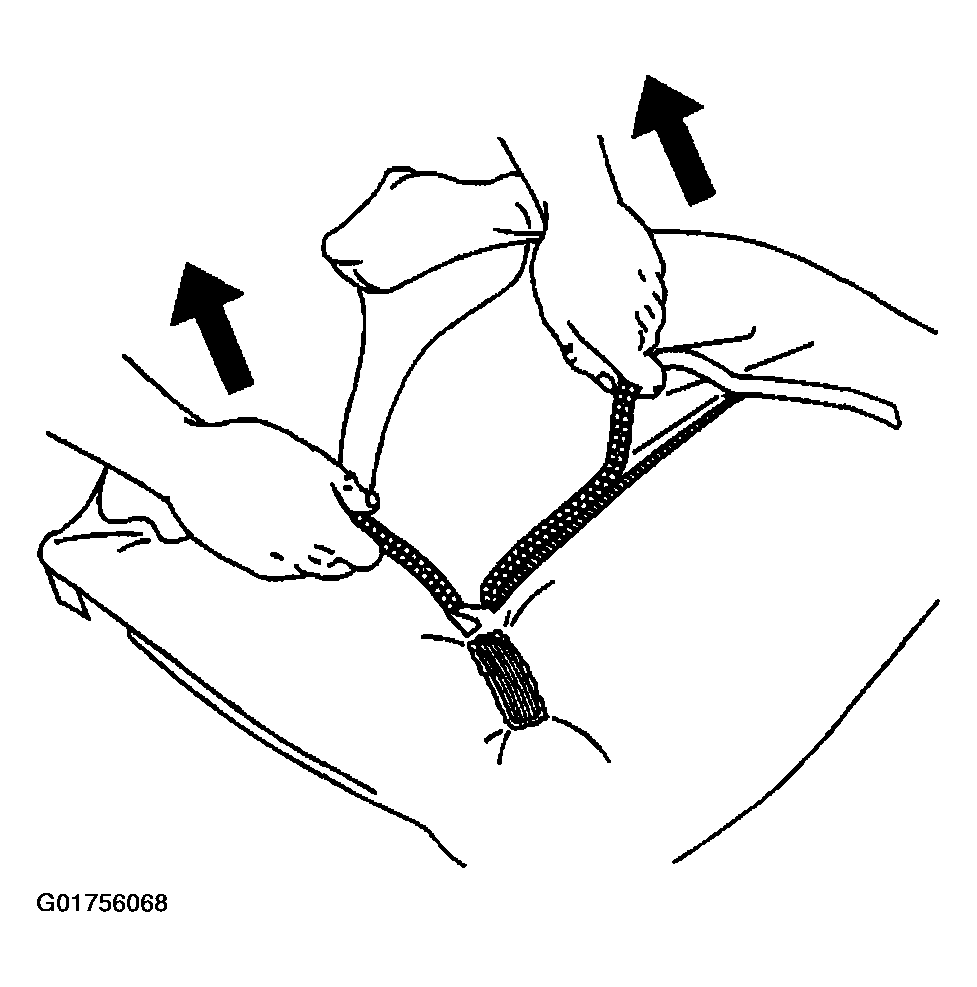

    Fig 3: Removing Front Seat Cushion Cover From Seat Cushion
    G01756068Courtesy of GENERAL MOTORS CORP.
