Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat back. Refer to Seat Back Replacement - Rear (Non-Folding)  or Seat Back Replacement - Rear (Folding)  .
  2. Remove the right and/or left rear seat back cover. Refer to Seat Back Cover Replacement - Rear Folding .
  3. Remove the right and/or left rear seat back frame from the rear seat back pad.

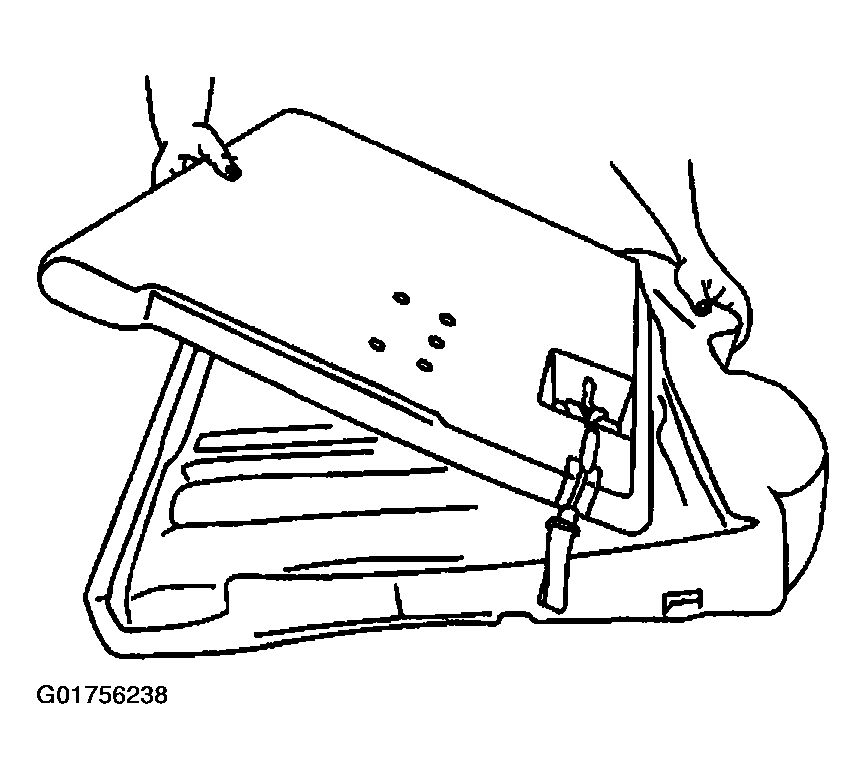

    Fig 1: Identifying Rear (Folding) Seat Back Frame & Pad
    G01756238Courtesy of GENERAL MOTORS CORP.
