Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear seat back frame to the rear seat back pad.

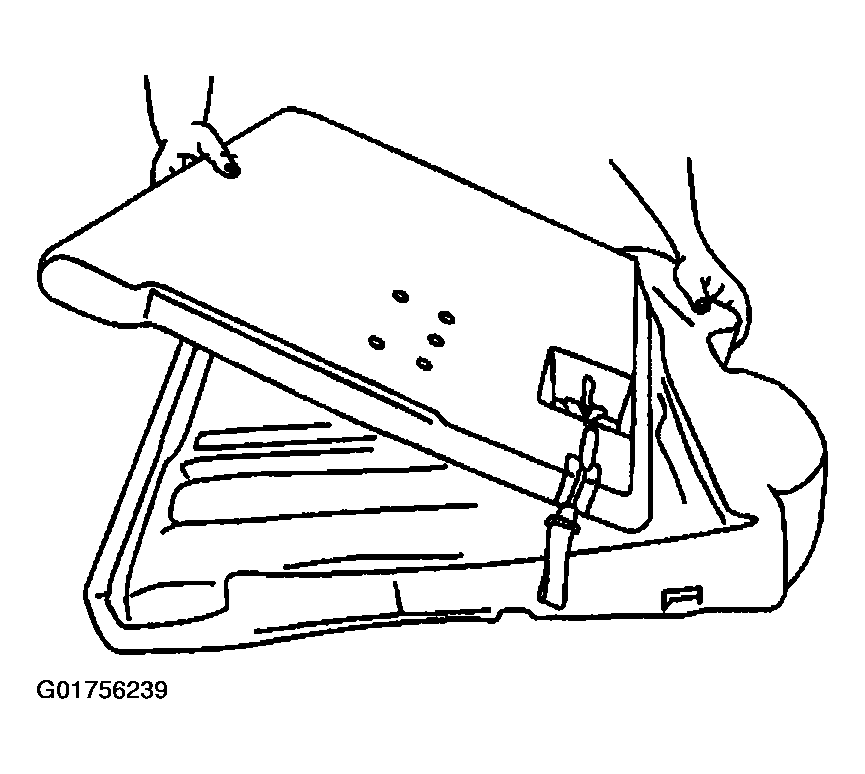

    2. Fig 1: Identifying Rear (Folding) Seat Back Frame & Pad
    G01756239Courtesy of GENERAL MOTORS CORP.
  2. Reposition the rear seat back release cable pull strap to the right rear seat back pad.
  3. Install the right and/or left rear seat back cover. Refer to Seat Back Cover Replacement - Rear Folding .
  4. Install the rear seat back. Refer to Seat Back Replacement - Rear (Non-Folding)  or Seat Back Replacement - Rear (Folding)  .
