Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat back. Refer to Seat Back Replacement - Rear (Non-Folding)  or Seat Back Replacement - Rear (Folding)  .
  2. Pull back the trim on the right rear seat bolster in order to expose the rear compartment release handle cable, if equipped.

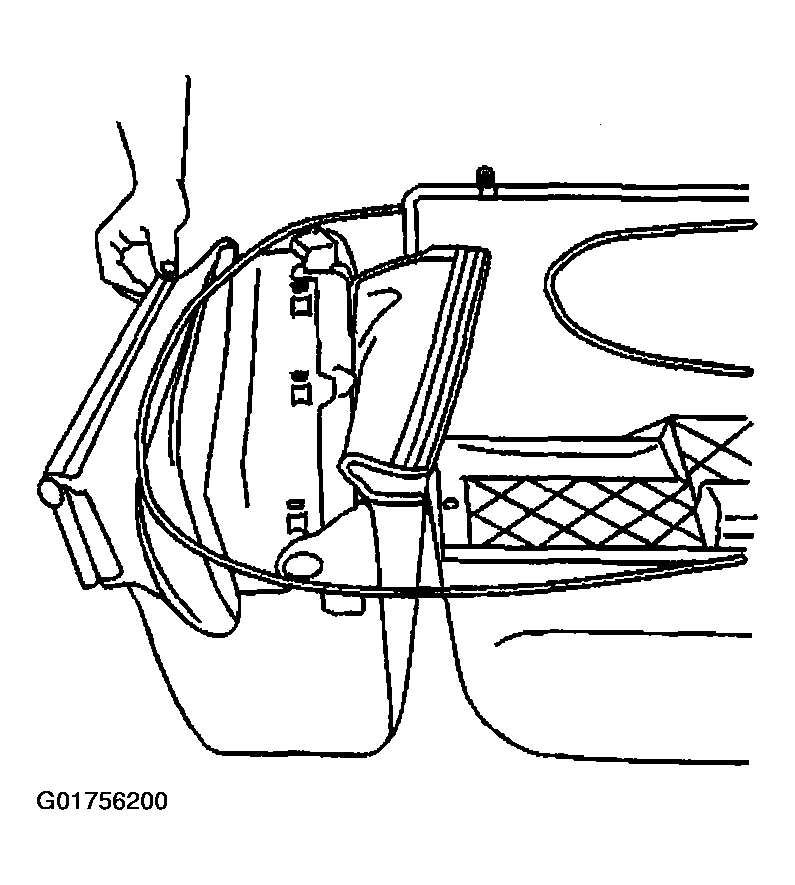

    3. Fig 1: Identifying Right Rear Seat Bolster Trim
    G01756200Courtesy of GENERAL MOTORS CORP.
  3. Reposition the rear compartment release handle cable from the right rear seat bolster, if equipped.
  4. Pull back the rear seat bolster trim to expose the bolts to the rear seat frame.
  5. Remove the bolts from the left and/or right rear seat bolster.

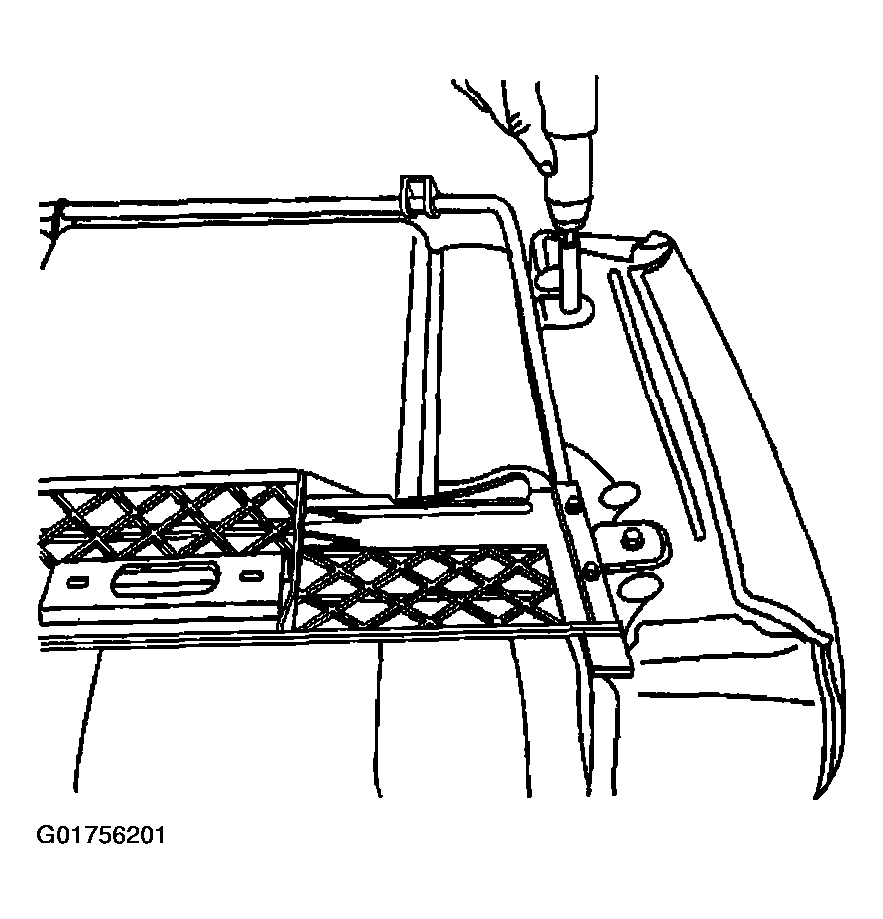

    6. Fig 2: Identifying Rear Seat Bolster Bolts
    G01756201Courtesy of GENERAL MOTORS CORP.
  6. Remove the left and/or right rear seat bolster from the rear seat back frame.
  7. Remove the push-in retainers from the center of the rear seat bolsters.

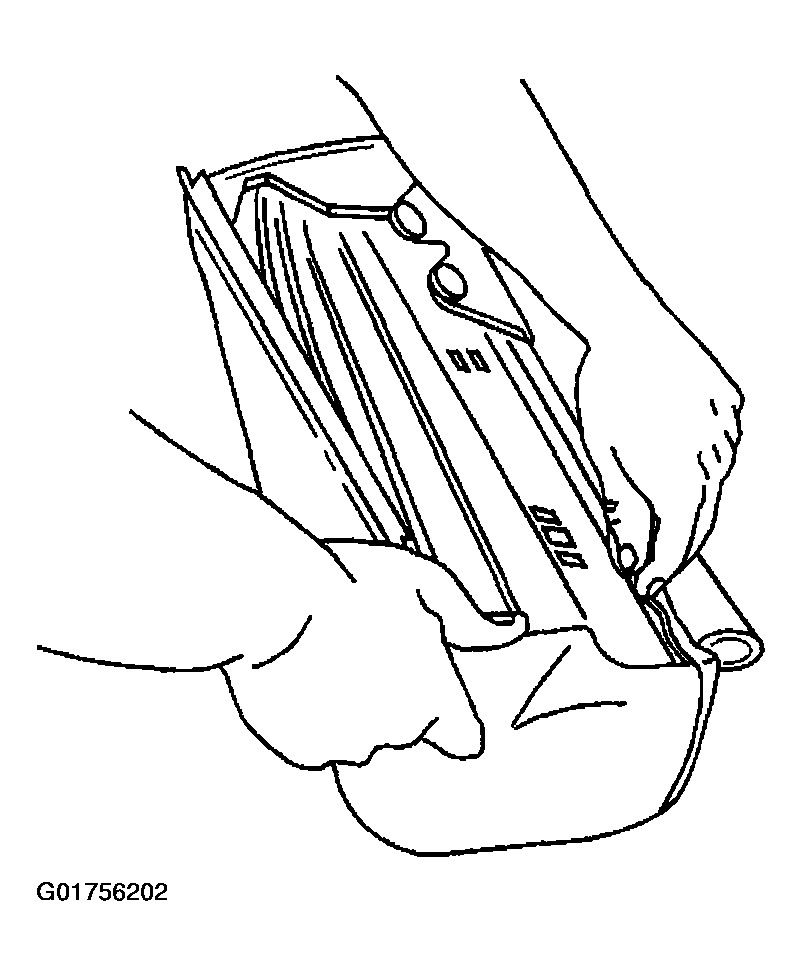

    Fig 3: Identifying Rear Seat Bolsters Center Push-In Retainers
    G01756202Courtesy of GENERAL MOTORS CORP.
  8. Remove the push-in tab from the end of the rear seat bolsters.

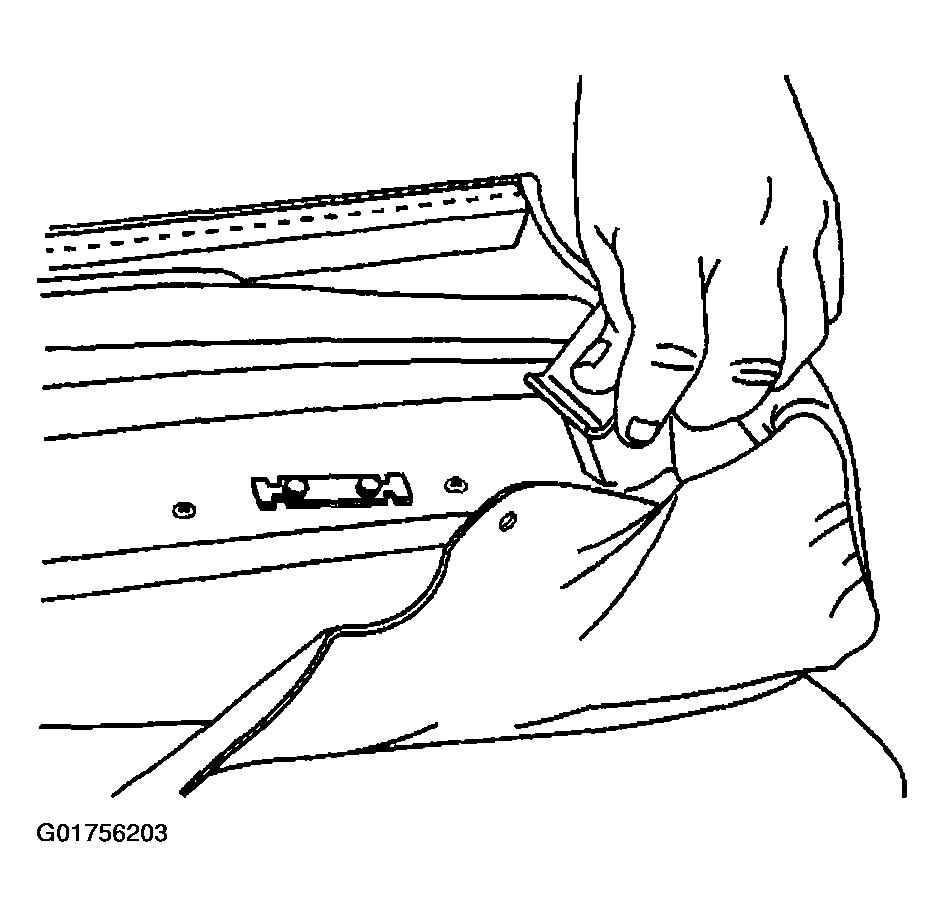

    Fig 4: Identifying Rear Seat Bolsters End Push-In Tab
    G01756203Courtesy of GENERAL MOTORS CORP.
  9. Remove the push-in J-hook retainers from the rear seat bolsters.

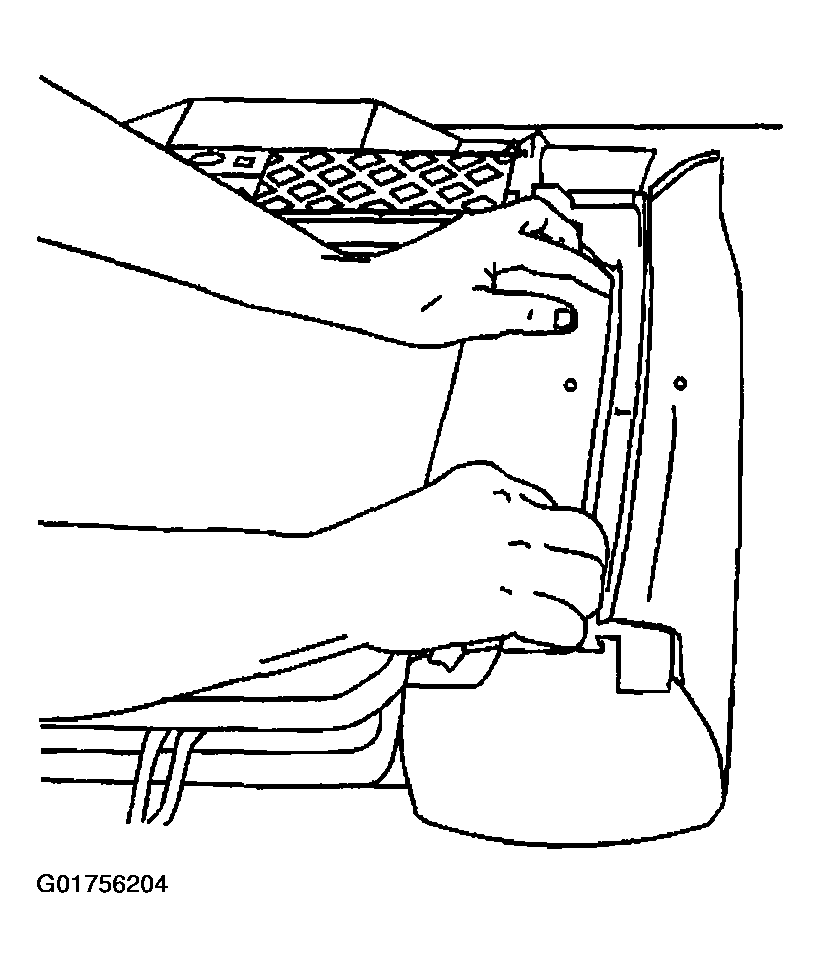

    Fig 5: Identifying Rear Seat Bolsters Push-In J-Hook Retainers
    G01756204Courtesy of GENERAL MOTORS CORP.
  10. Remove the rear seat bolsters trim cover from the rear seat bolsters pads.

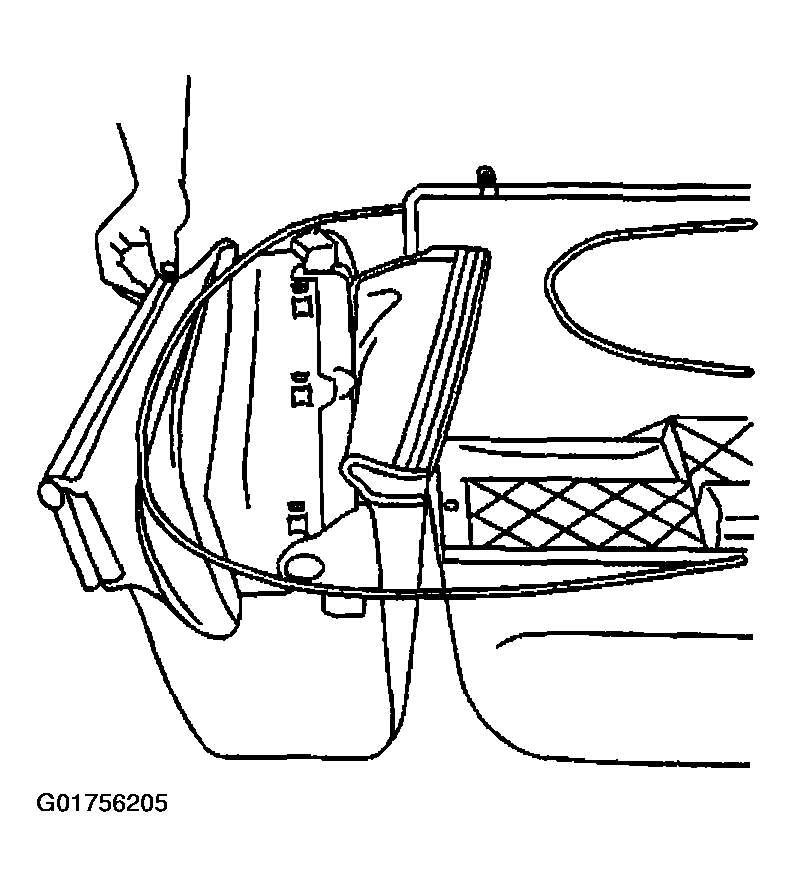

    Fig 6: Identifying Rear Seat Bolsters Trim Cover
    G01756205Courtesy of GENERAL MOTORS CORP.
