Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the ashtray.
  2. Depress the ashtray retainer.

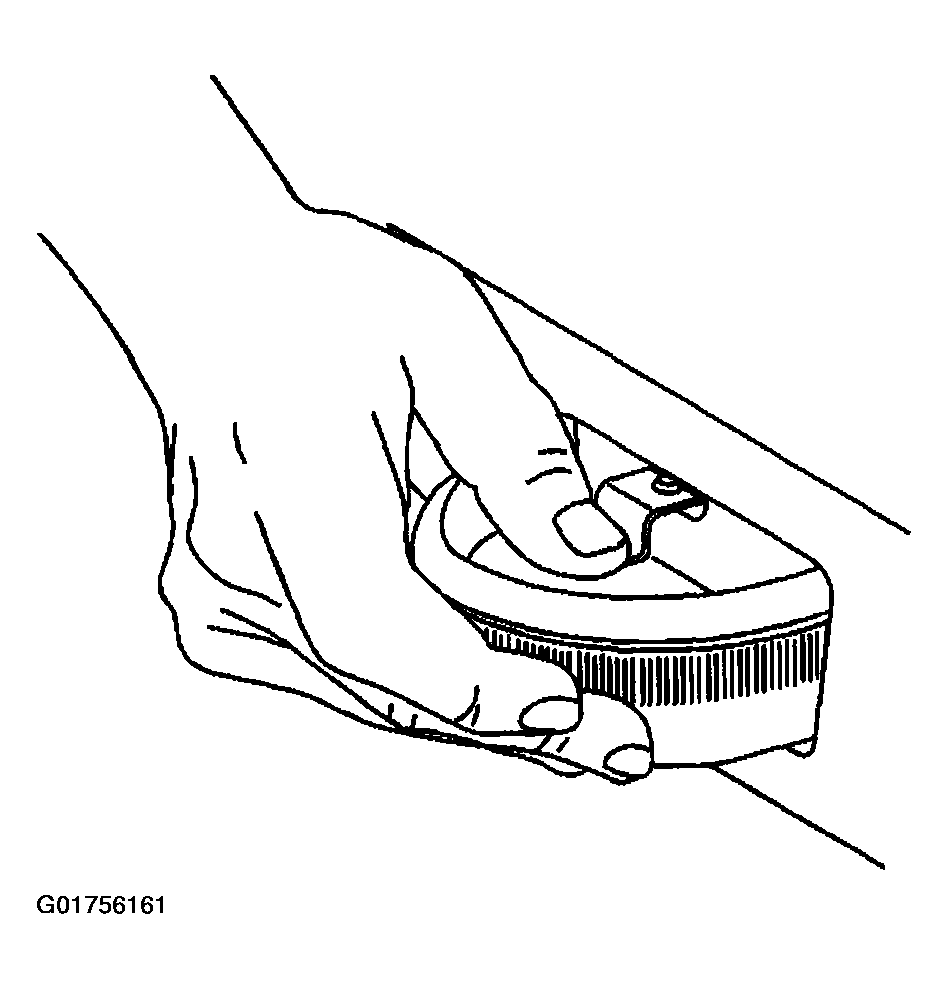

    3. Fig 1: Removing Ashtray
    G01756161Courtesy of GENERAL MOTORS CORP.
  3. Remove the ashtray from the ashtray housing.
  4. Remove the ashtray housing, by pressing down with your thumbs and pulling out from the armrest housing base.
    Fig 2: Removing Ashtray Housing
    G01756162Courtesy of GENERAL MOTORS CORP.
