Transfer Case Disassembled View

WARNING: This page is about a different car, the 2001 Oldsmobile Bravada, 2001 GMC Safari, and 2001 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

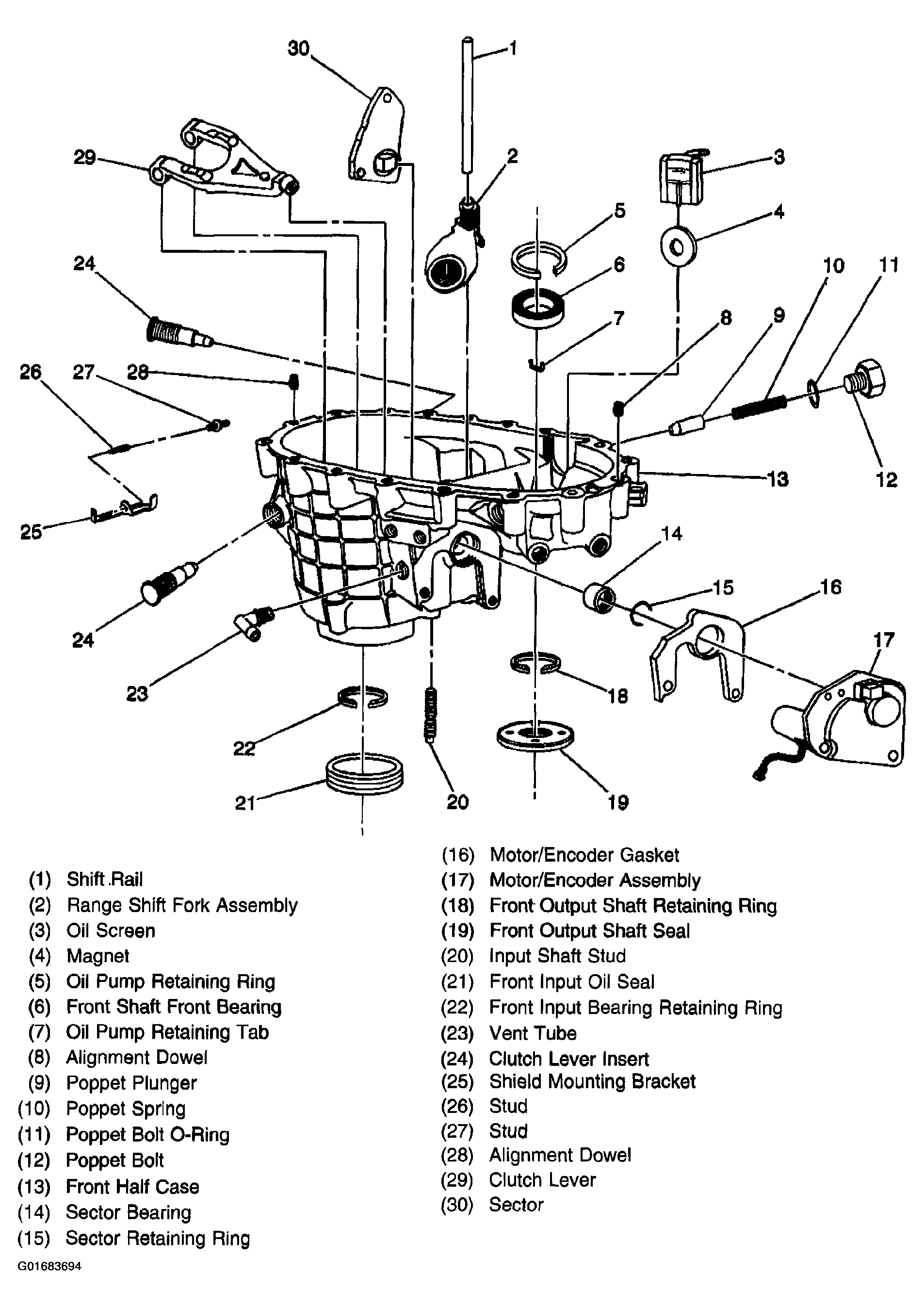

Fig 1: NVG 136 Front Case Expanded View
G01683694

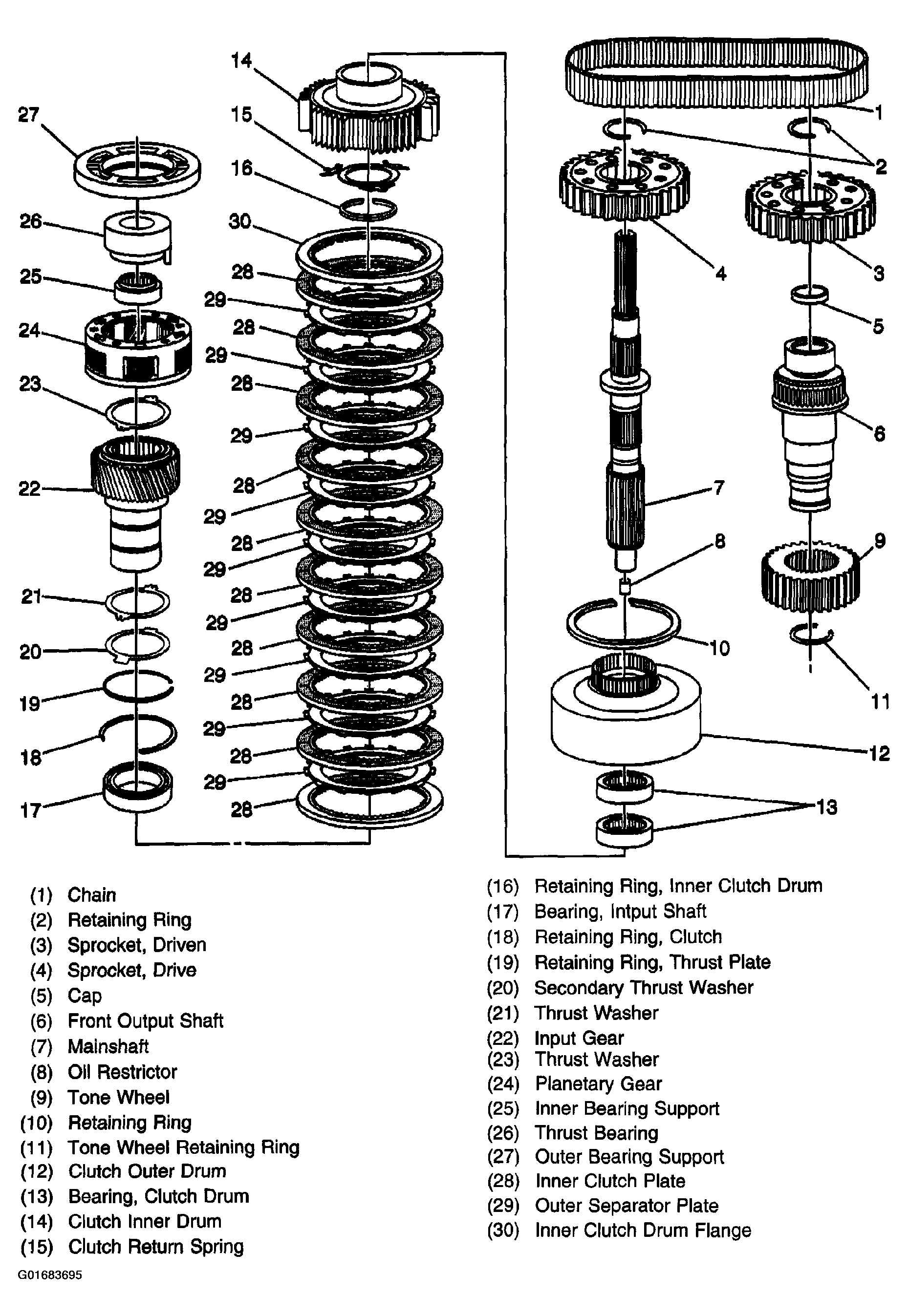

Fig 2: NVG 136 Drive Components
G01683695

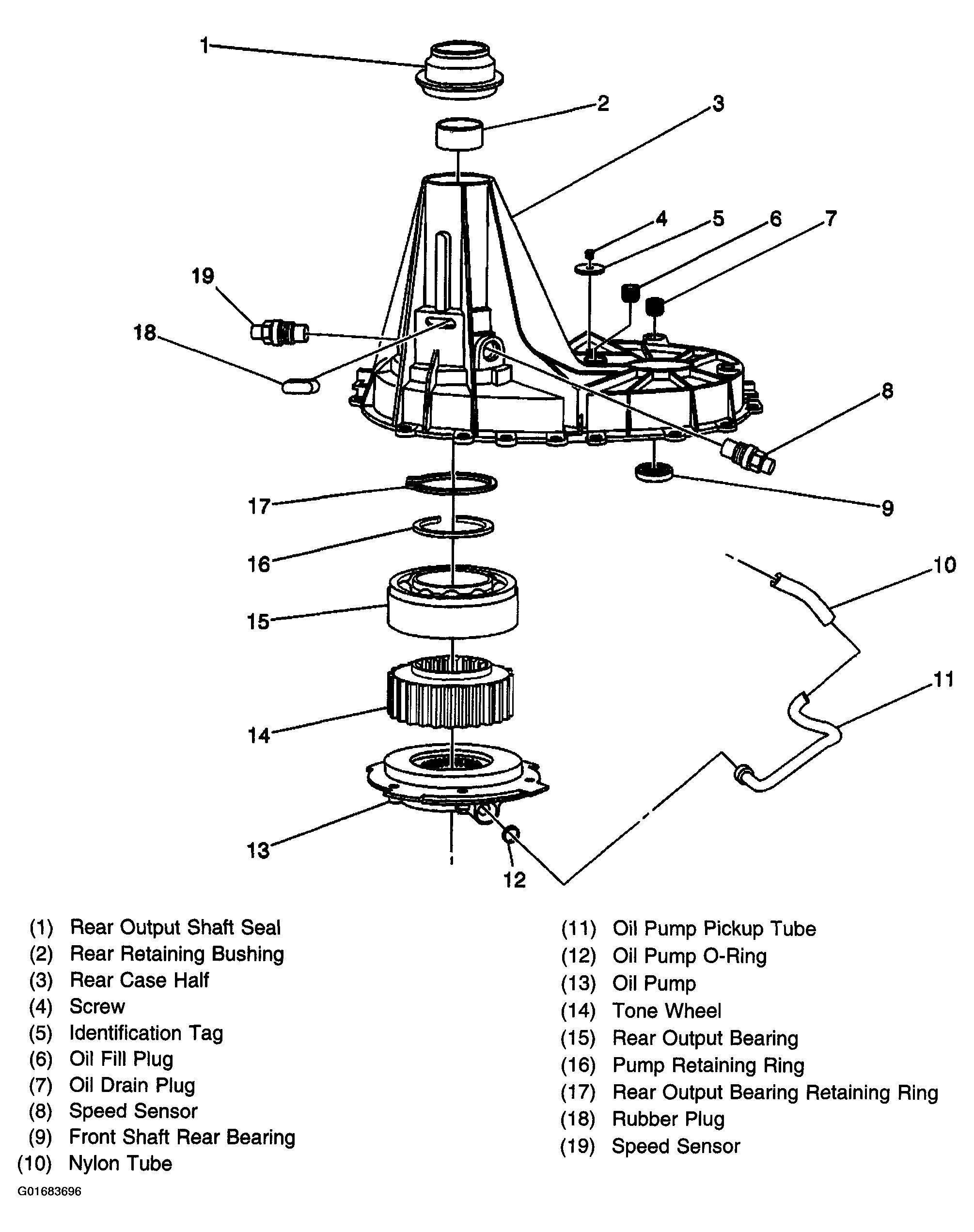

Fig 3: NVG 136 Rear Case Half
G01683696
