Transfer Case Assemble

WARNING: This page is about a different car, the 2001 Oldsmobile Bravada, 2001 GMC Safari, and 2001 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

  1. Install the mounting studs 1.16 to 1.20 inch in height.

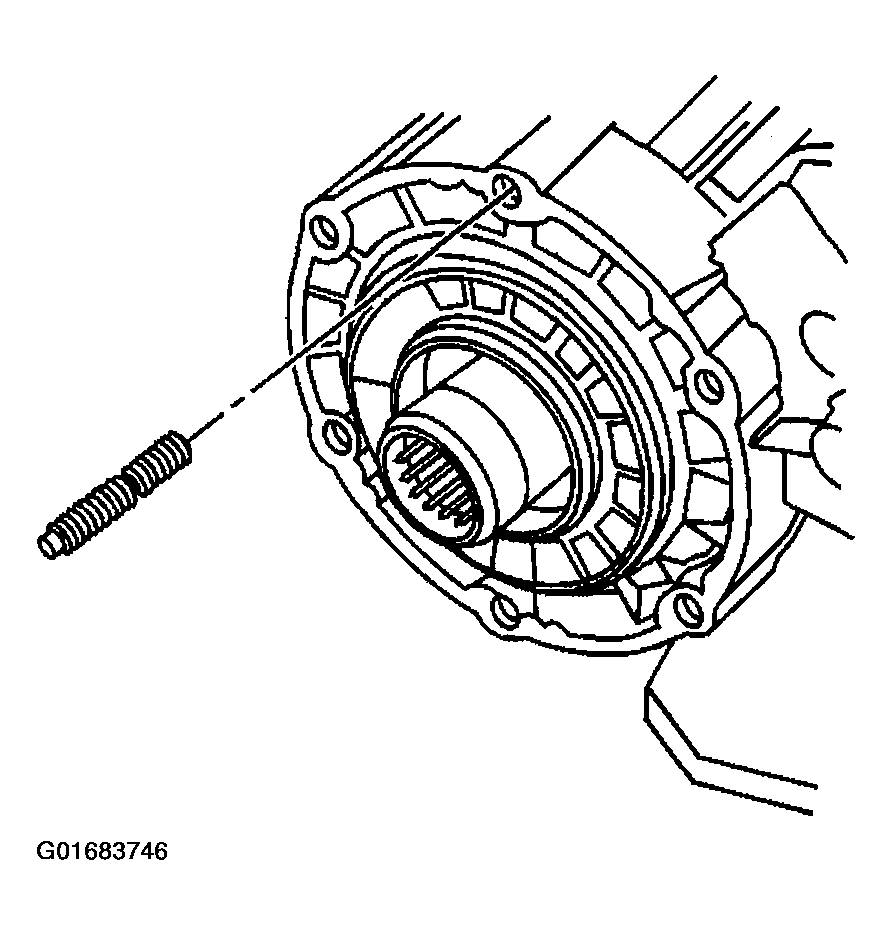

    Fig 1: Installing Mounting Studs
    G01683746

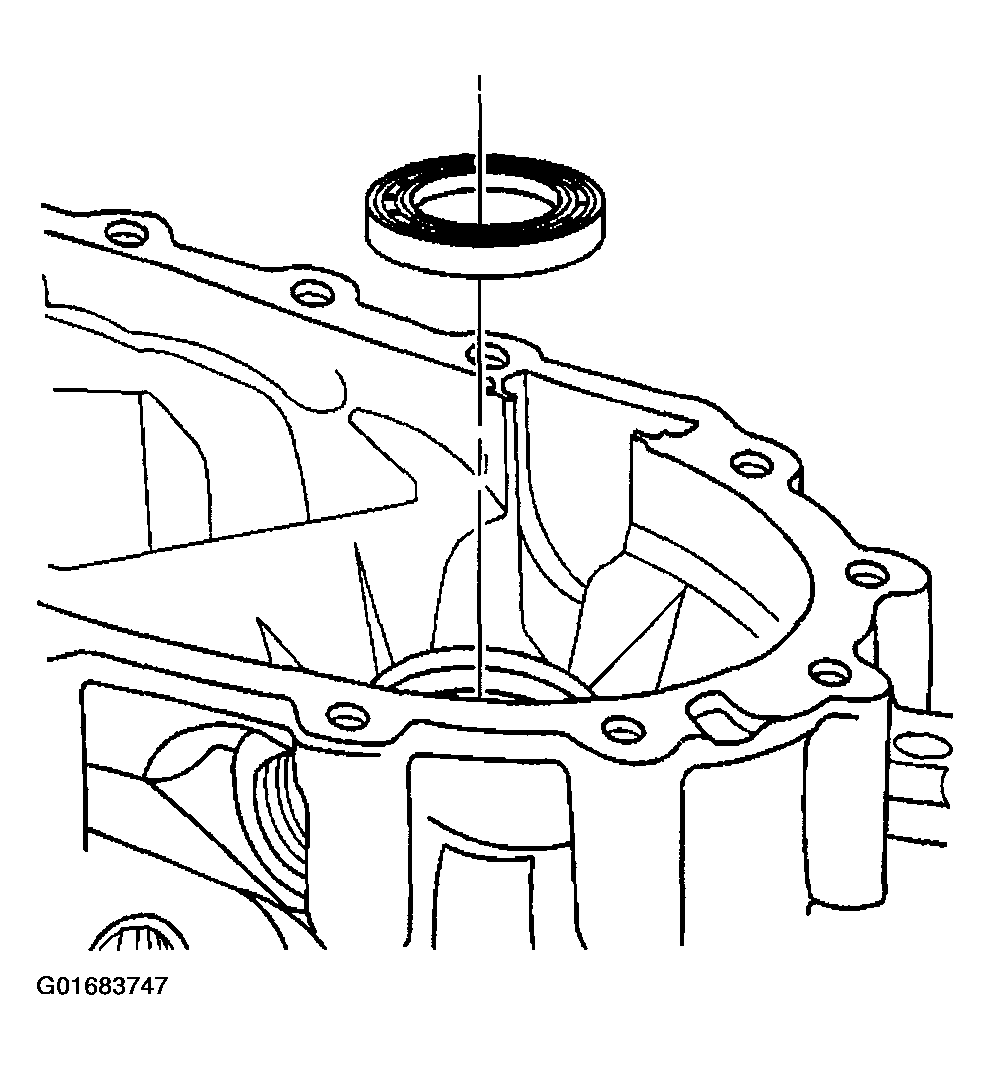

  2. Install the front output shaft bearing.
    Fig 2: Installing Front Output Shaft Bearing
    G01683747

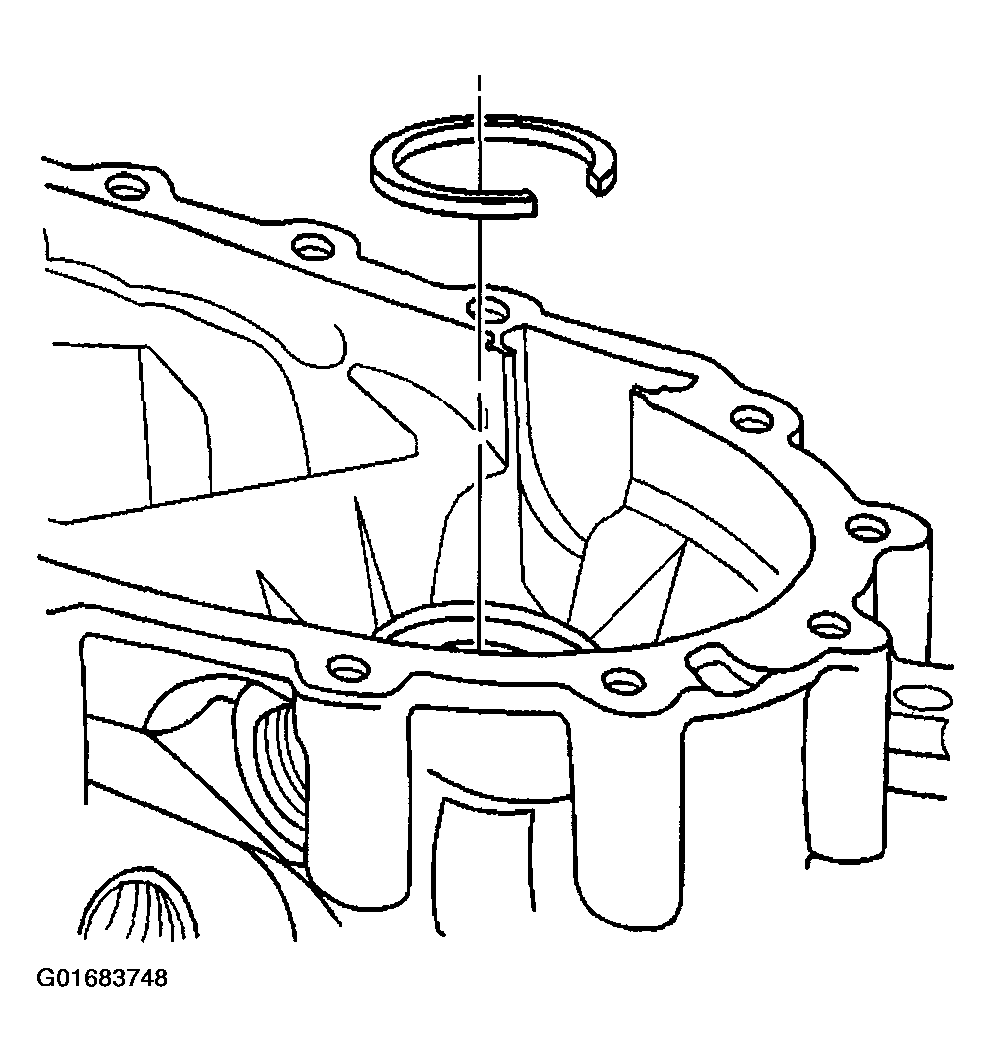

  3. Install the front output shaft bearing retaining ring.
    Fig 3: Installing Front Output Shaft Bearing Retaining Ring
    G01683748

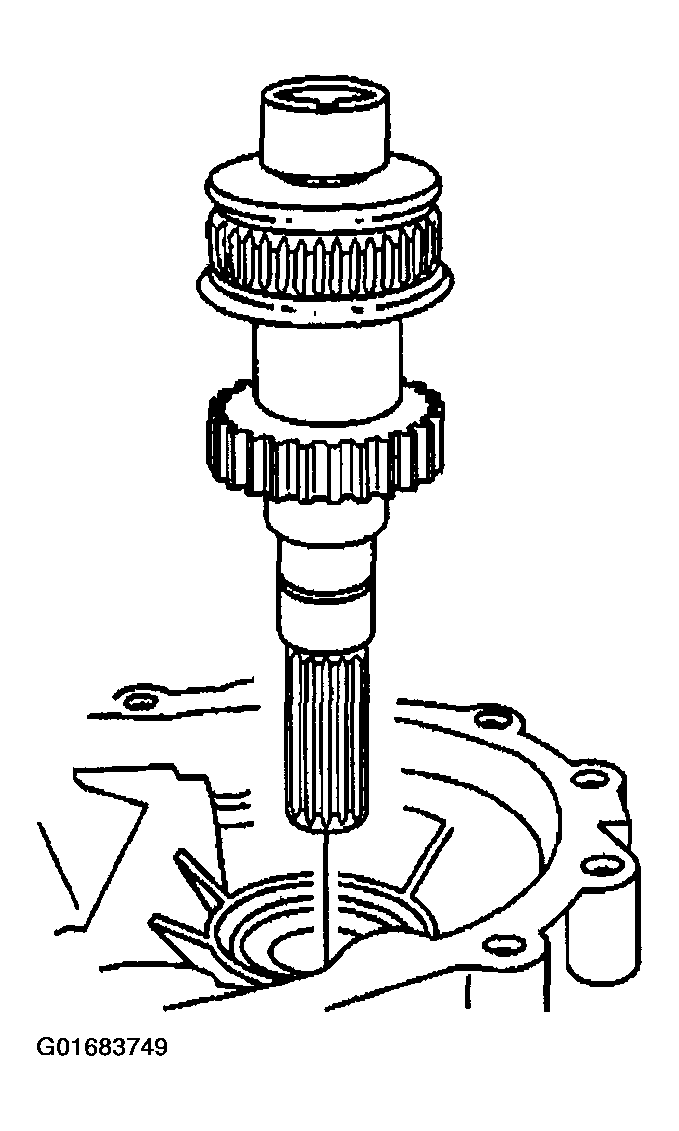

  4. Install the front output shaft assembly.
    Fig 4: Installing Front Output Shaft Assembly
    G01683749
  5. Install the front input shaft retaining ring.

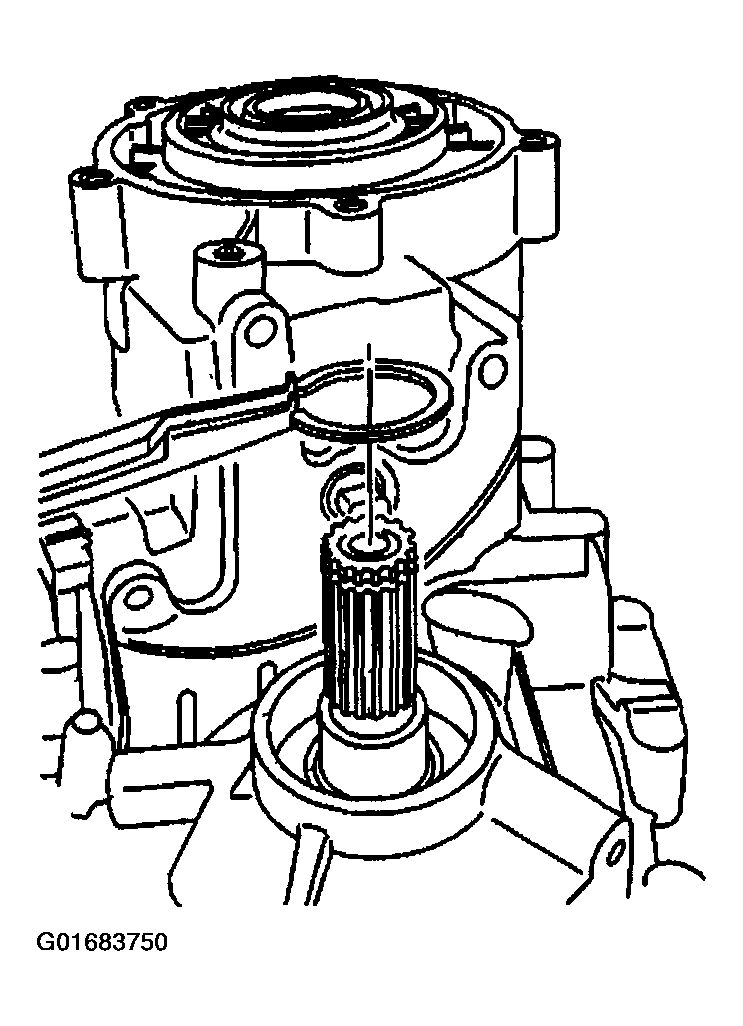

    Fig 5: Installing Front Input Shaft Retaining Ring
    G01683750
  6. Install the input shaft bearing.

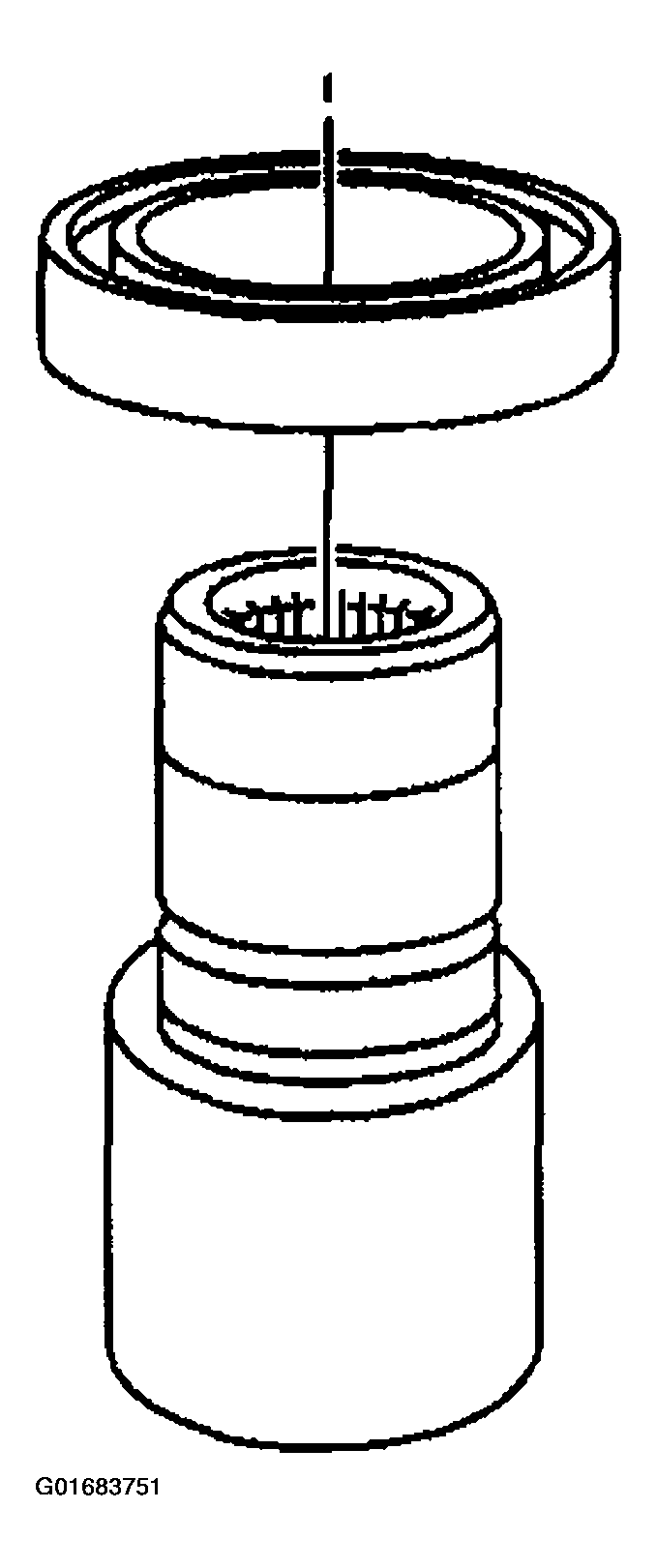

    Fig 6: Installing Input Shaft Bearing
    G01683751
  7. Install the input shaft bearing retaining ring.
    Fig 7: Installing Input Shaft Bearing Retaining Ring
    G01683752
  8. Install the input shaft assembly.

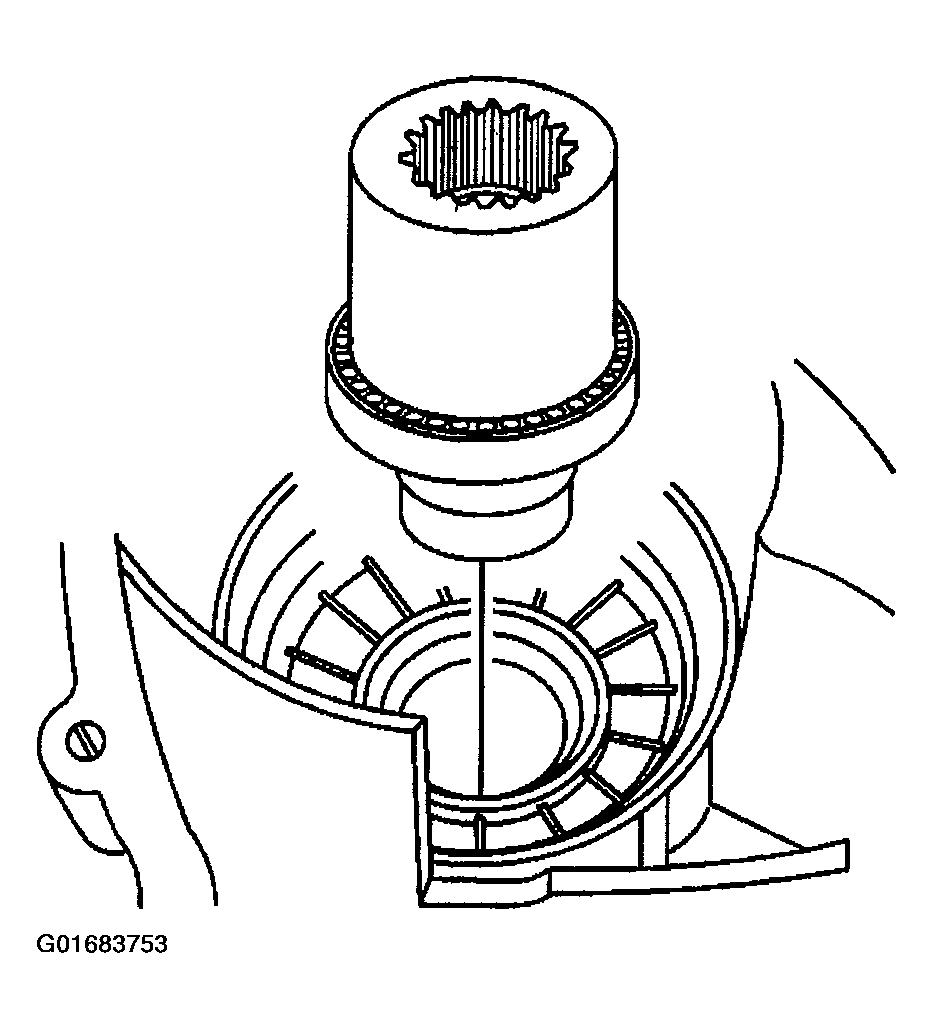

    Fig 8: Installing Input Shaft Assembly
    G01683753
  9. Install the input shaft bearing retaining ring.

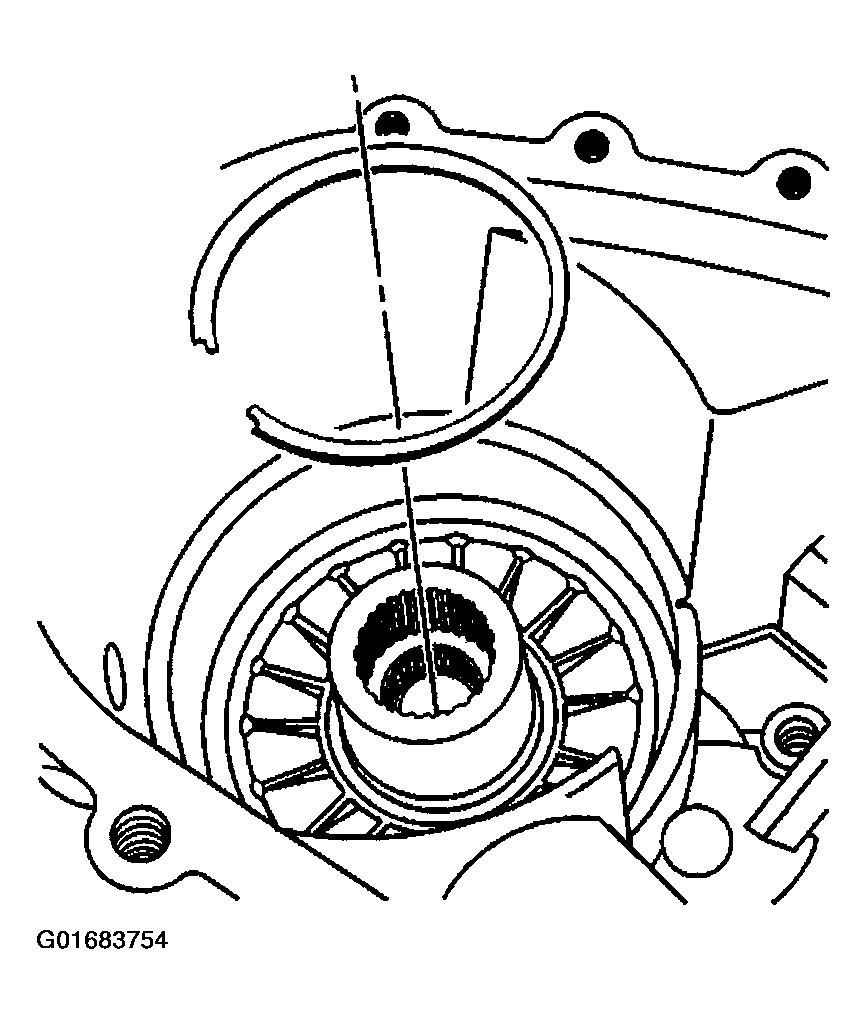

    Fig 9: Installing Input Shaft Bearing Retaining Ring
    G01683754
  10. Install the clutch lever assembly.

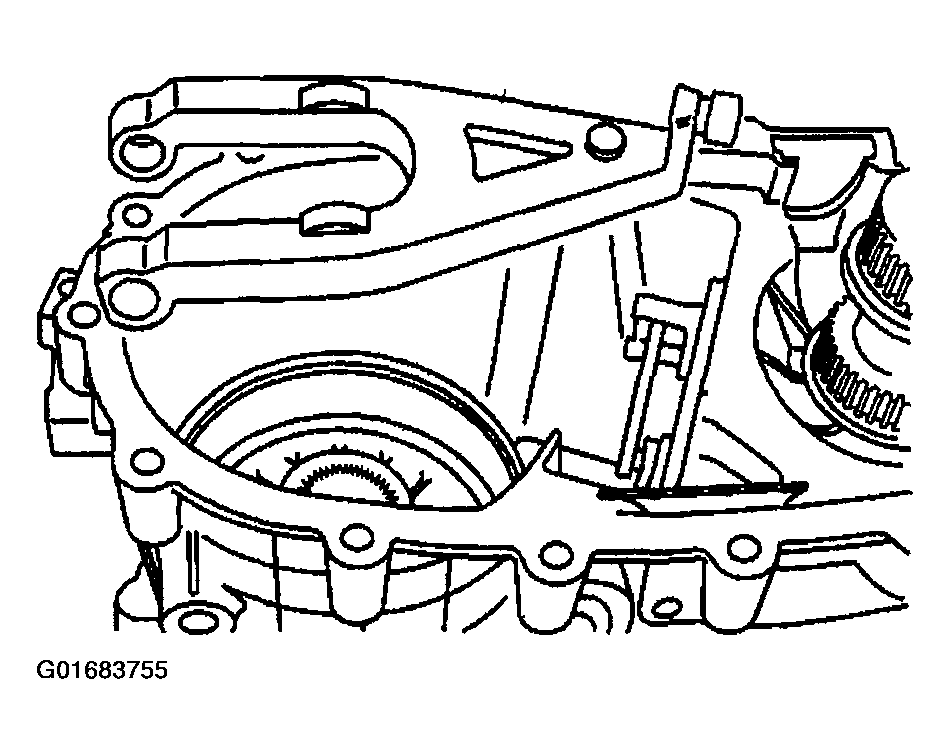

    Fig 10: Installing Clutch Lever Assembly
    G01683755
  11. Install the clutch inserts. See Figure.

    Tighten

    Tighten the clutch lever inserts to 40 N.m (29 ft lbs)

  12. Install the outer drum on the mainshaft.

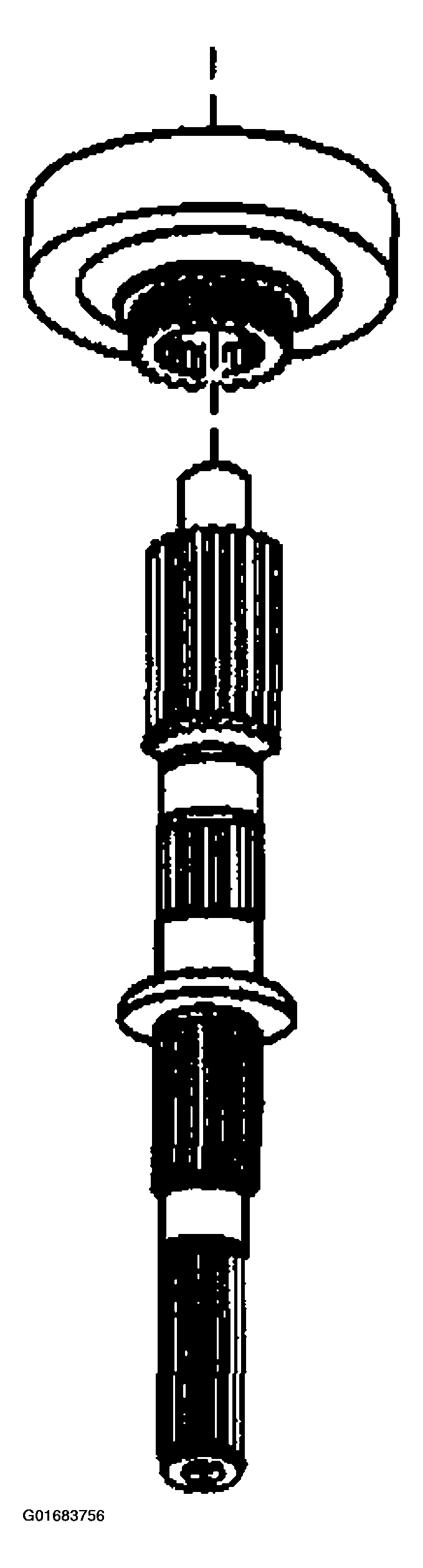

    Fig 11: Installing Outer Drum On Mainshaft
    G01683756
  13. Install the inner drum.

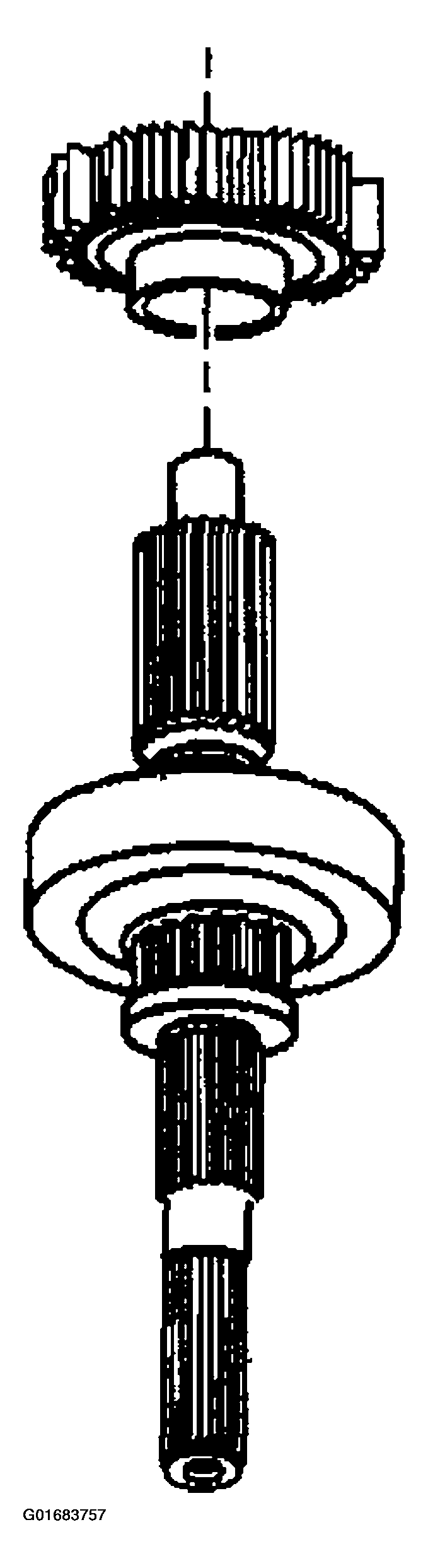

    Fig 12: Installing Inner Drum
    G01683757

    Important:  When installing the clutch spring, make sure that the fingers of the spring are pointing up non load only.

  14. Install the clutch spring.

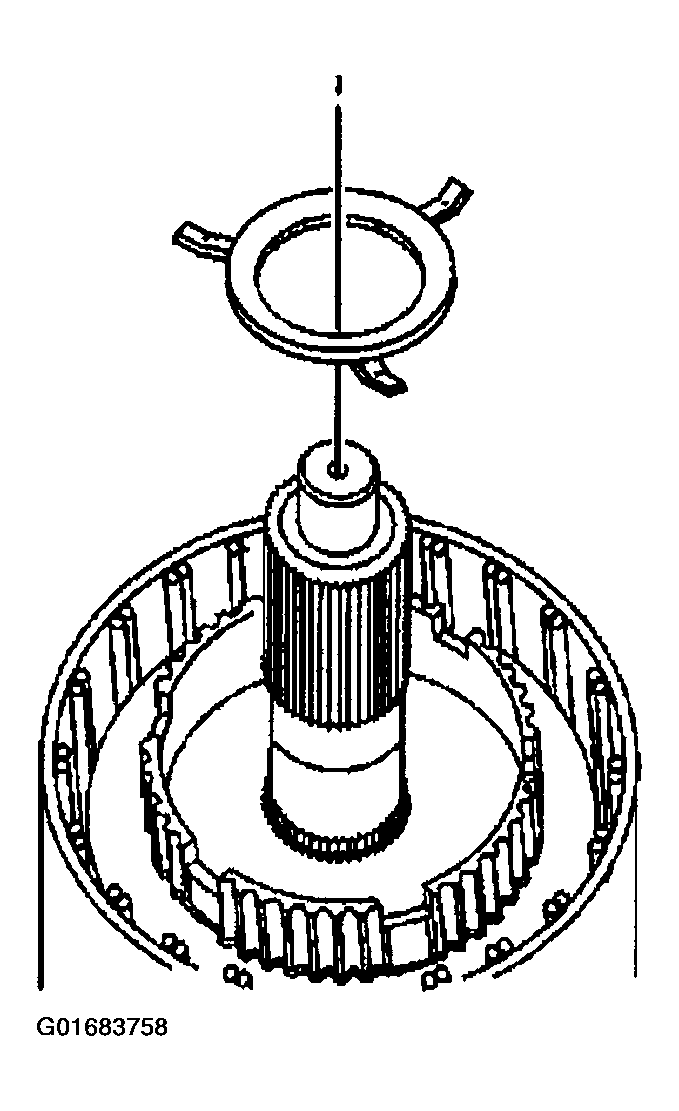

    Fig 13: Installing Clutch Spring
    G01683758
  15. Install the inner drum retaining ring.

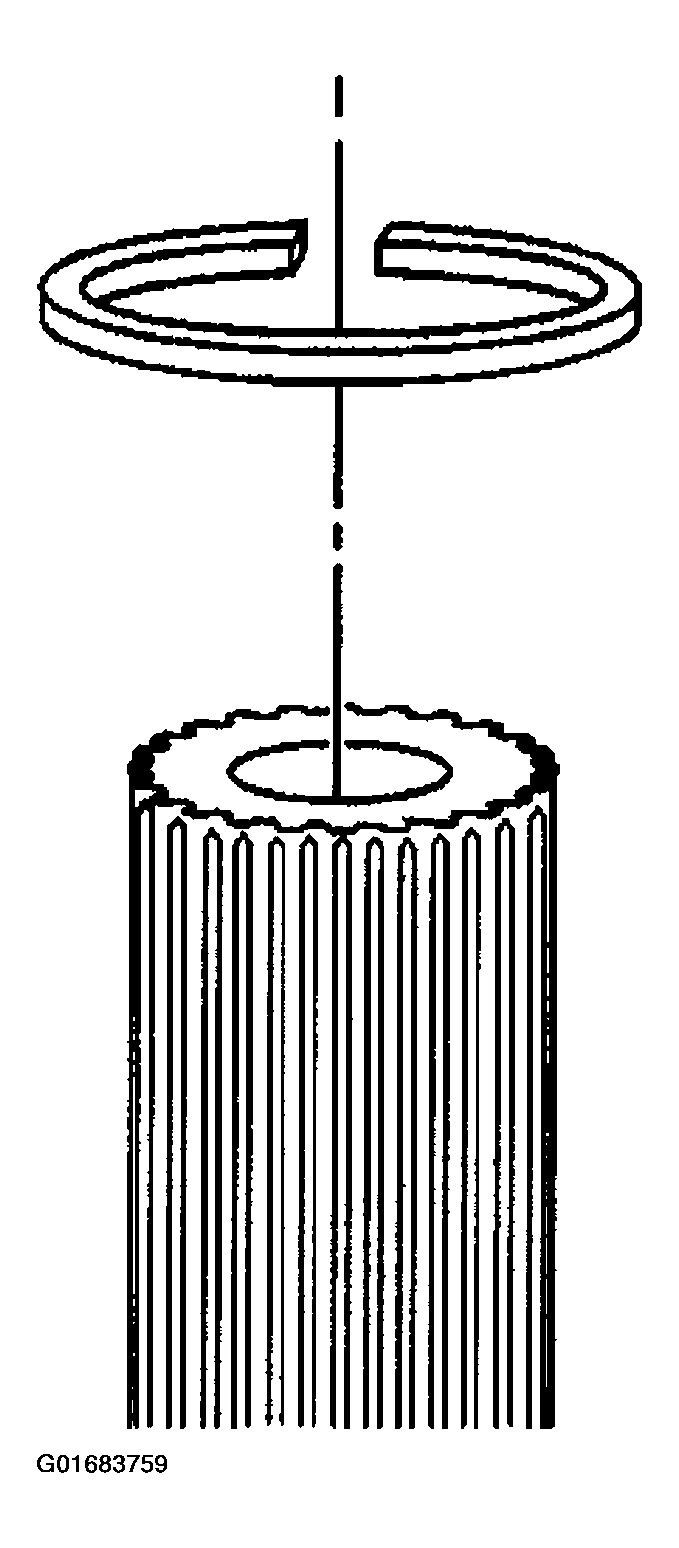

    Fig 14: Installing Inner Drum Retaining Ring
    G01683759

    Important:  When installing the clutch plates, make sure that the inner lip of the backing plate is facing down.

  16. Install the backing plates.
    Fig 15: Installing Backing Plates
    G01683760
  17. Install the clutch pack assembly.

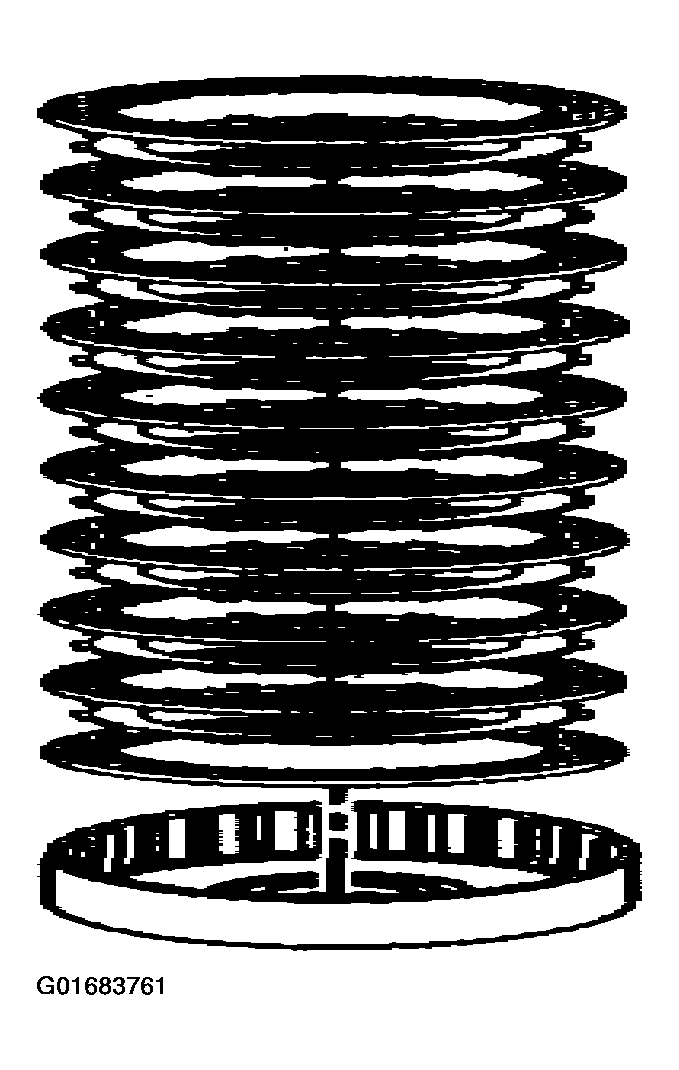

    Fig 16: Installing Clutch Pack Assembly
    G01683761
  18. Adjust the clutch clearance. Refer to Cleaning and Inspection  or Cleaning and Inspection (Clutch Pack Adjustment)  .
  19. Using a press, install the inner bearing in the thrust bearing.
  20. Install the thrust bearing in the outer bearing support.
    Fig 17: Assembling Inner Bearing, Thrust Bearing & Outer Bearing Support
    G01683762
  21. Install the apply plate.
    Fig 18: Installing Apply Plate
    G01683763

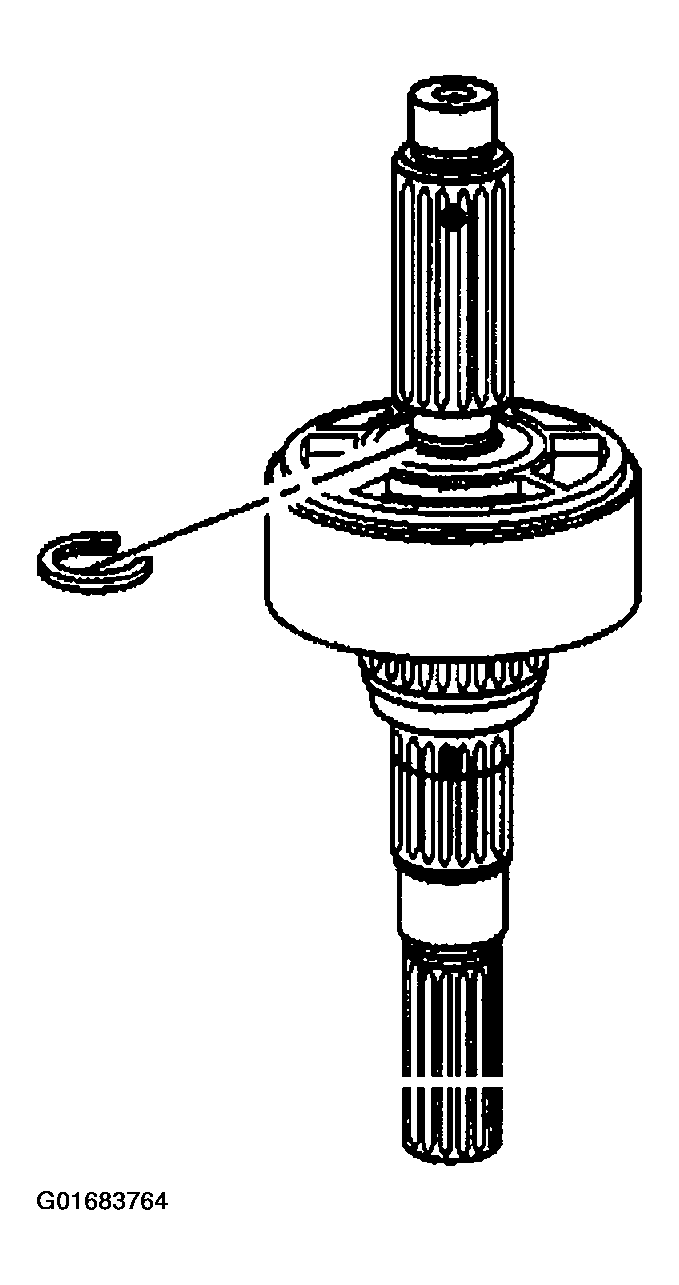

  22. Install the apply plate retaining ring.
    Fig 19: Installing Apply Plate Retaining Ring
    G01683764
  23. Install the mainshaft assembly.

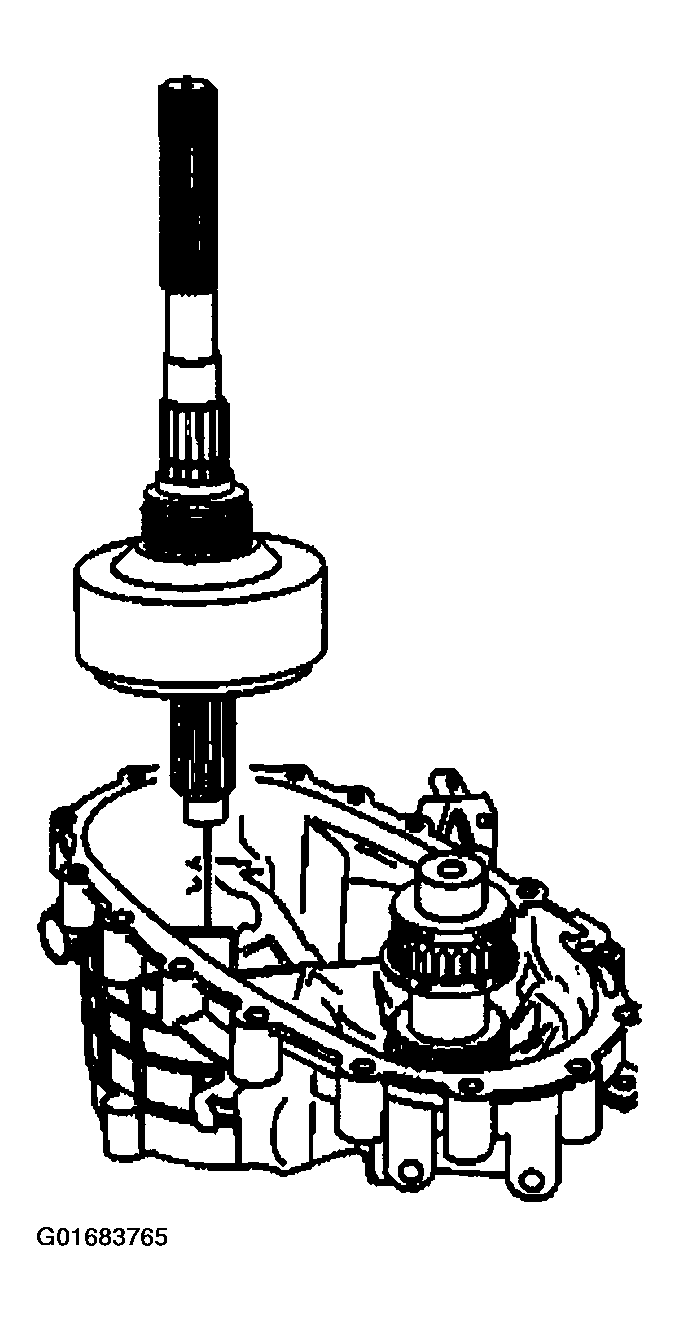

    Fig 20: Installing Mainshaft Assembly
    G01683765

    Important:  Make sure that the relationship marks used to remove the drive chain and sprockets are aligned for the proper installation.

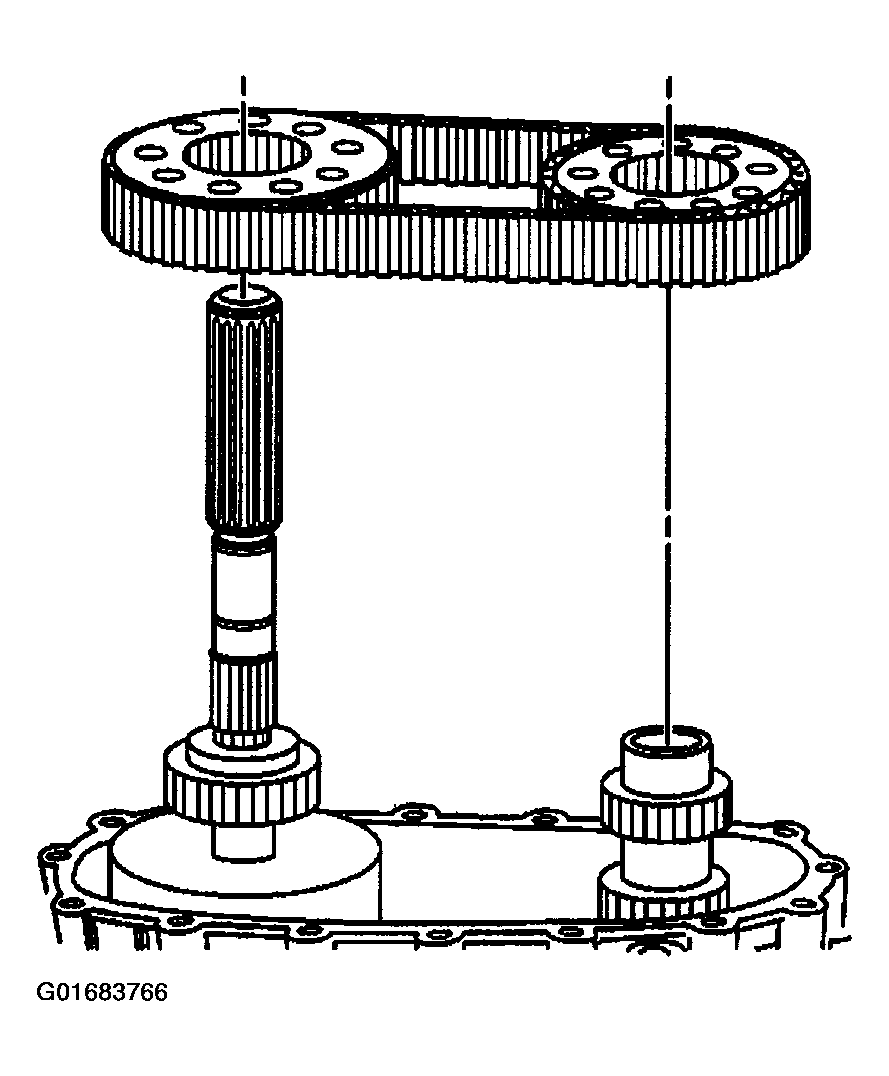

  24. Install the drive chain and sprockets.
    Fig 21: Installing Drive Chain & Sprockets
    G01683766

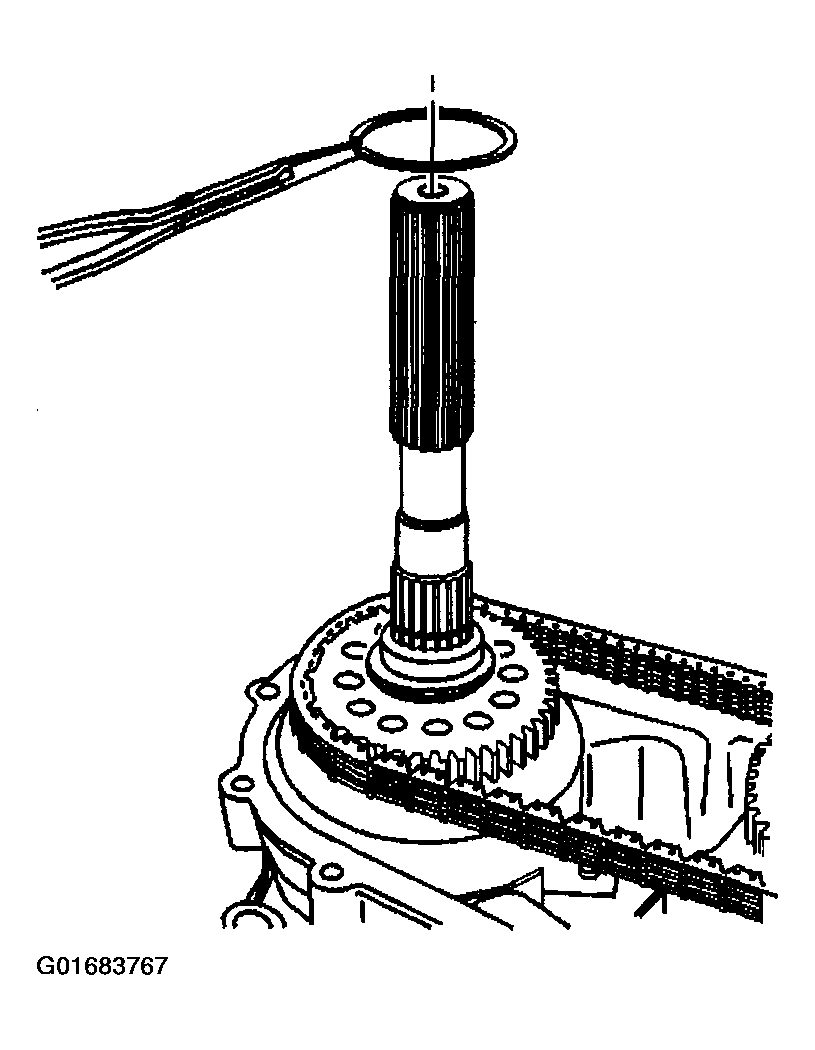

  25. Install the drive sprocket retaining ring.
    Fig 22: Installing Drive Sprocket Retaining Ring
    G01683767
  26. Install the driven sprocket retaining ring.

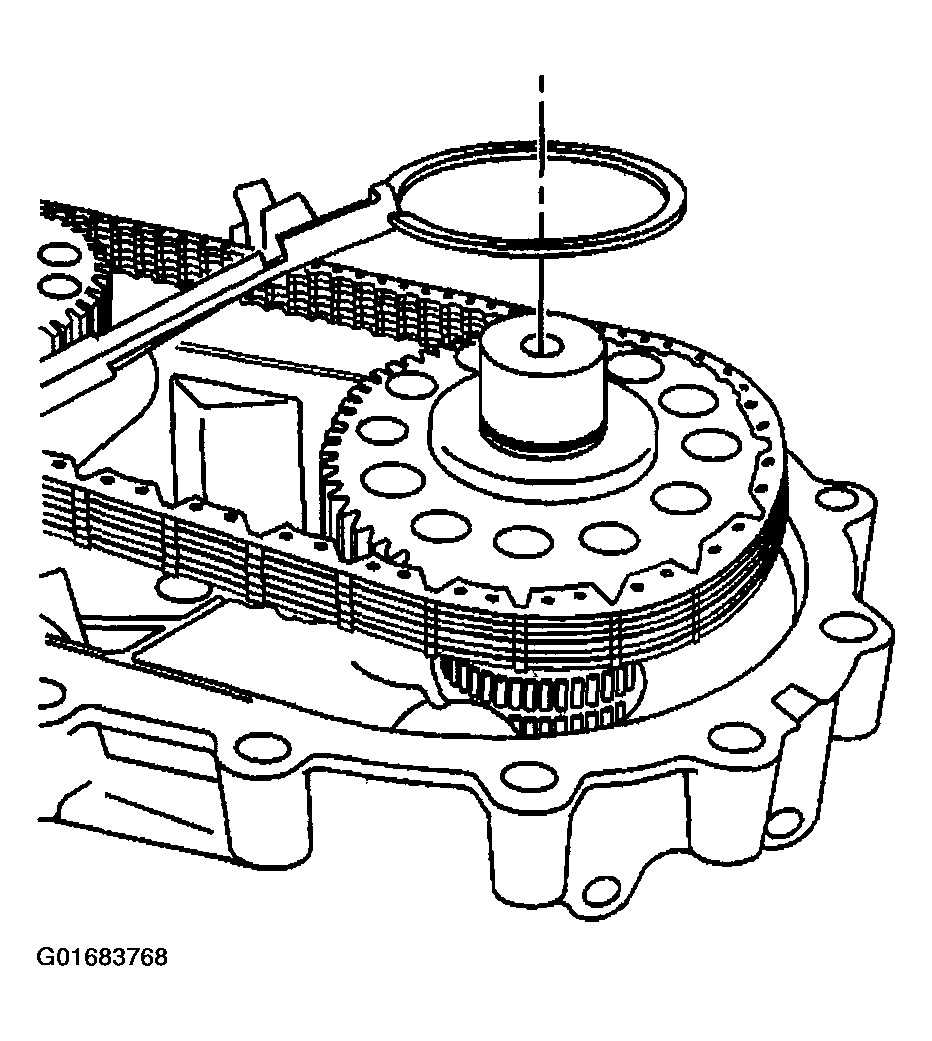

    Fig 23: Installing Driven Sprocket Retaining Ring
    G01683768
  27. Install the oil pump retaining ring.

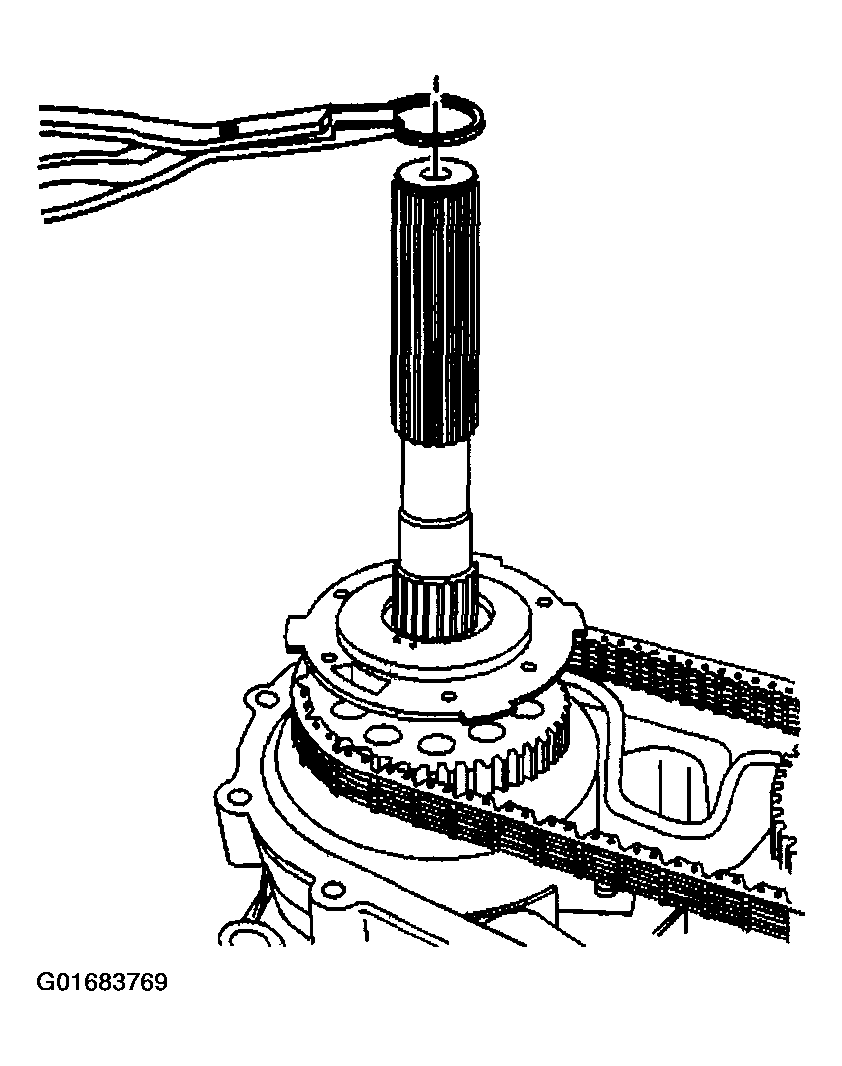

    Fig 24: Installing Oil Pump Retaining Ring
    G01683769
  28. Install the oil pump pick up tube seal.
    Fig 25: Installing Oil Pump Pick Up Tube Seal
    G01683770
  29. Install the oil pump assembly.
    Fig 26: Installing Oil Pump Assembly
    G01683771

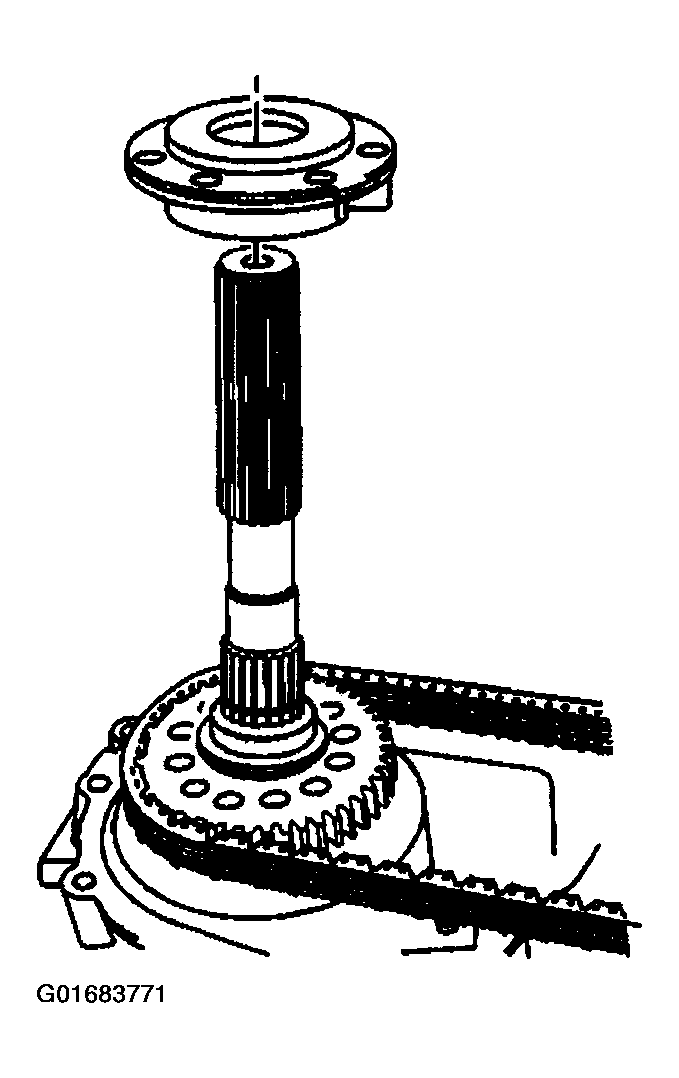

  30. Install the oil pump wave washer.

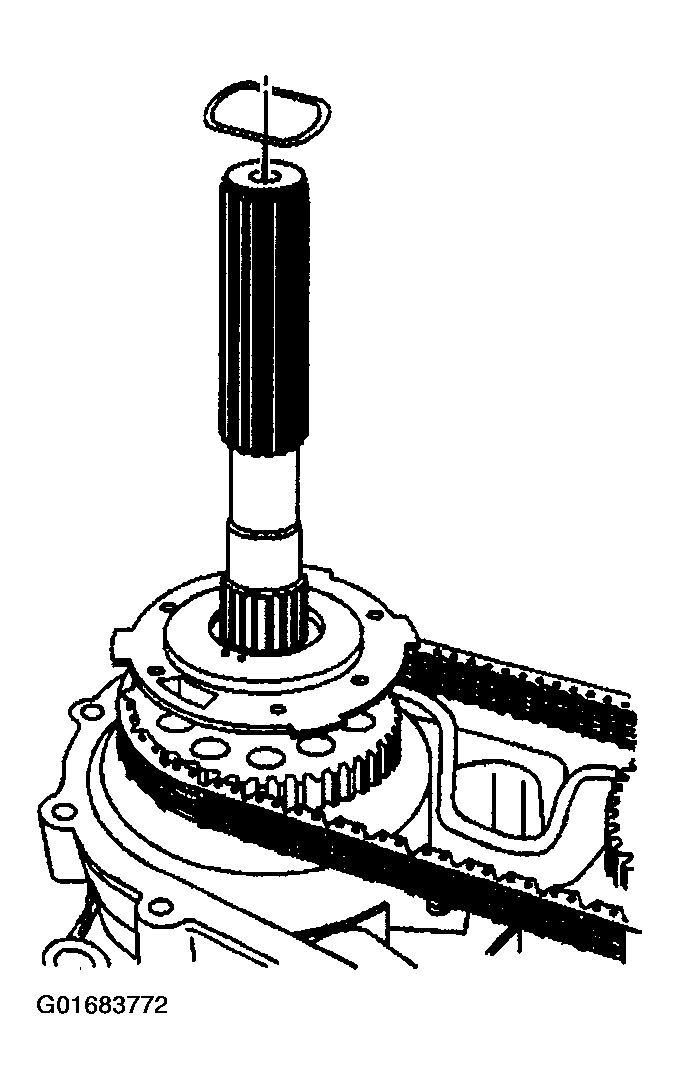

    Fig 27: Installing Oil Pump Wave Washer
    G01683772

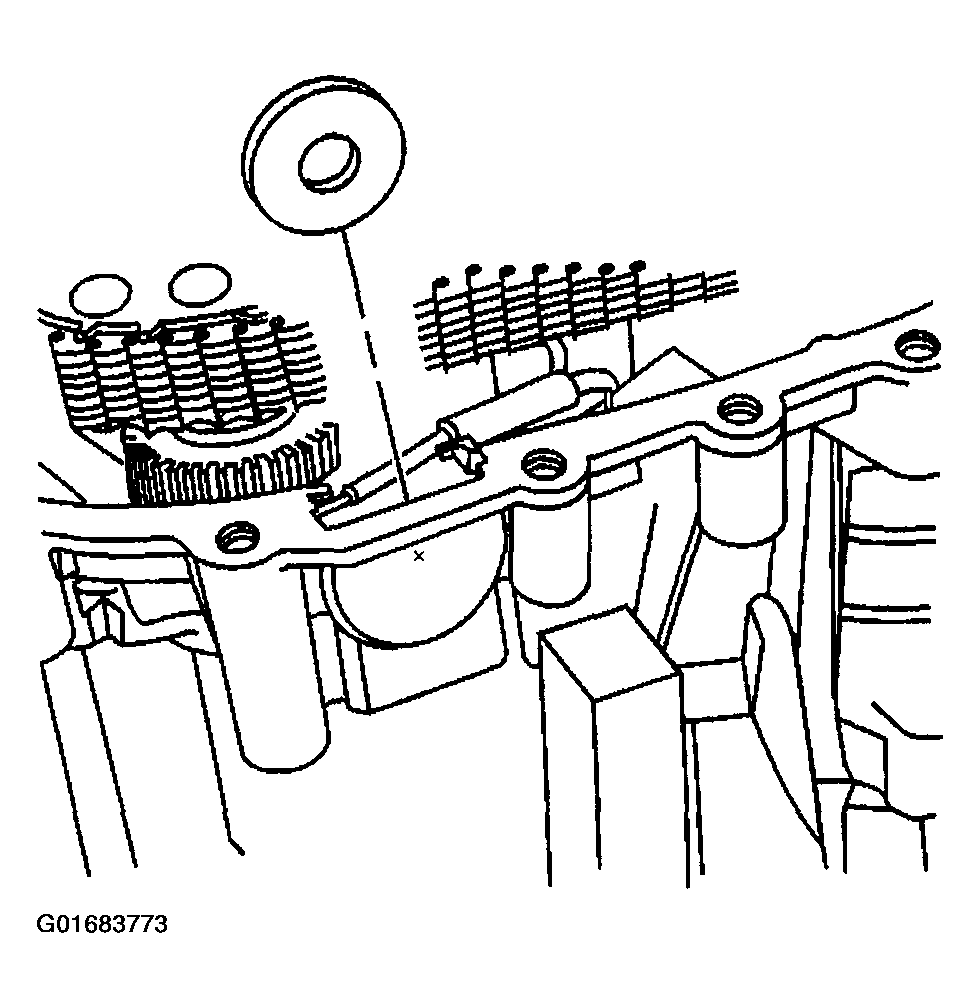

  31. Install the magnet.
    Fig 28: Installing Magnet
    G01683773
  32. Install the tone wheel.
    Fig 29: Installing Tone Wheel
    G01683774

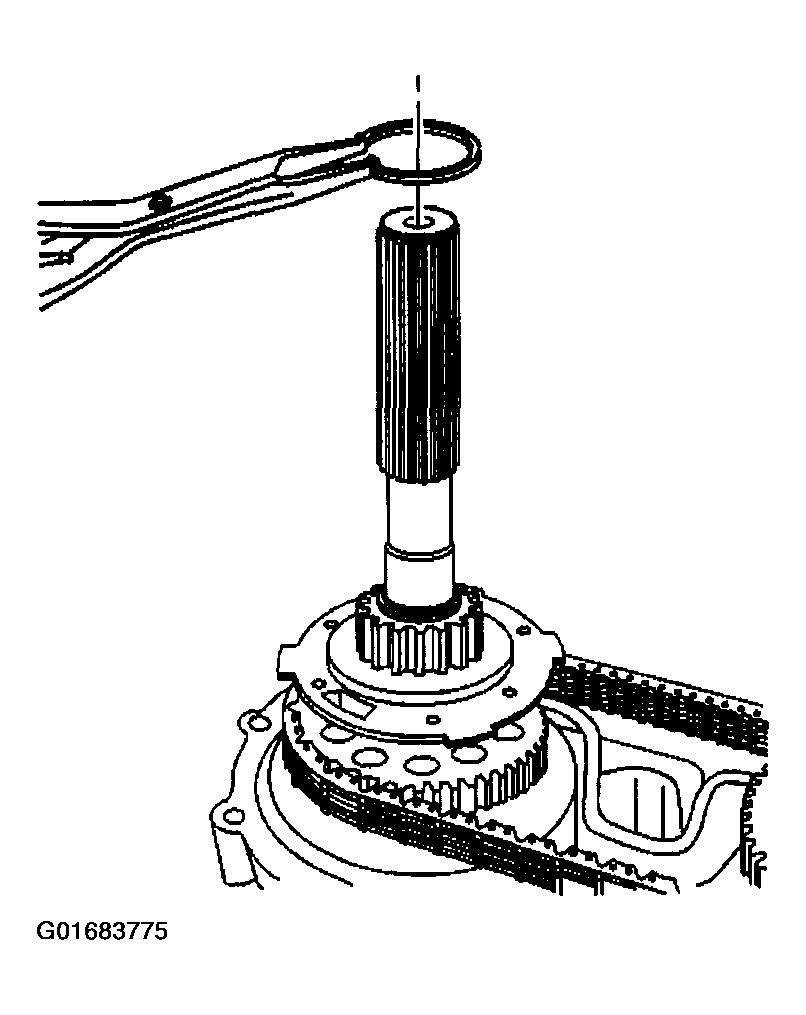

  33. Install the first rear output shaft bearing retaining ring.
    Fig 30: Installing First Rear Output Shaft Bearing Retaining Ring
    G01683775
  34. Install the rear output shaft bearing.

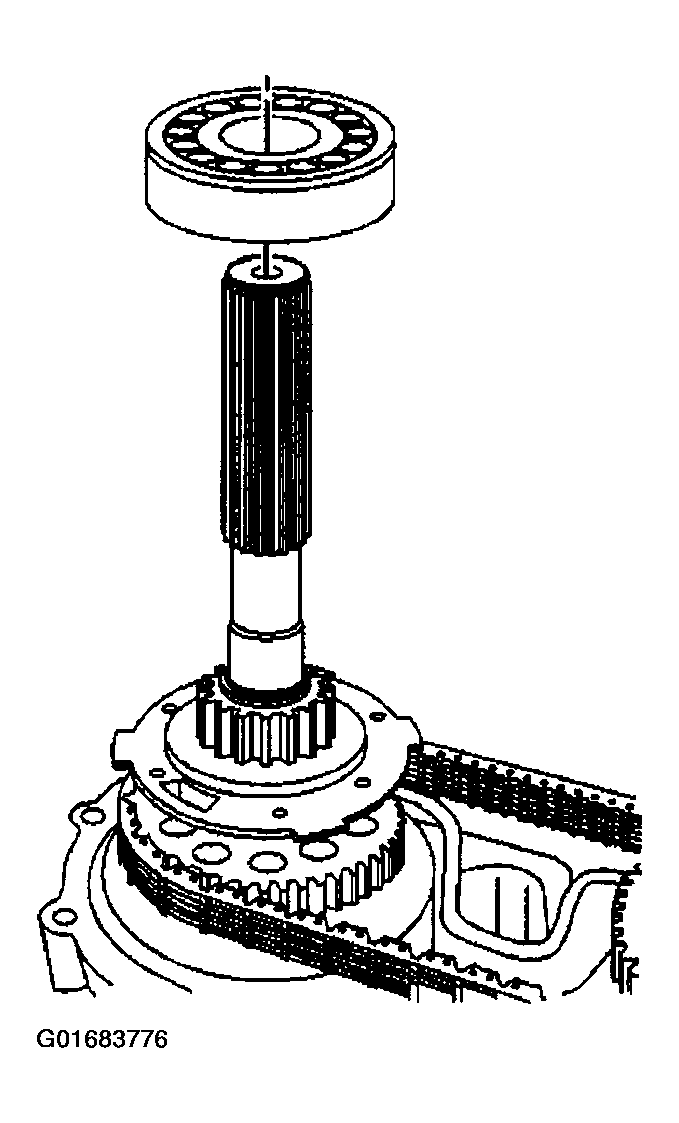

    Fig 31: Installing Rear Output Shaft Bearing
    G01683776

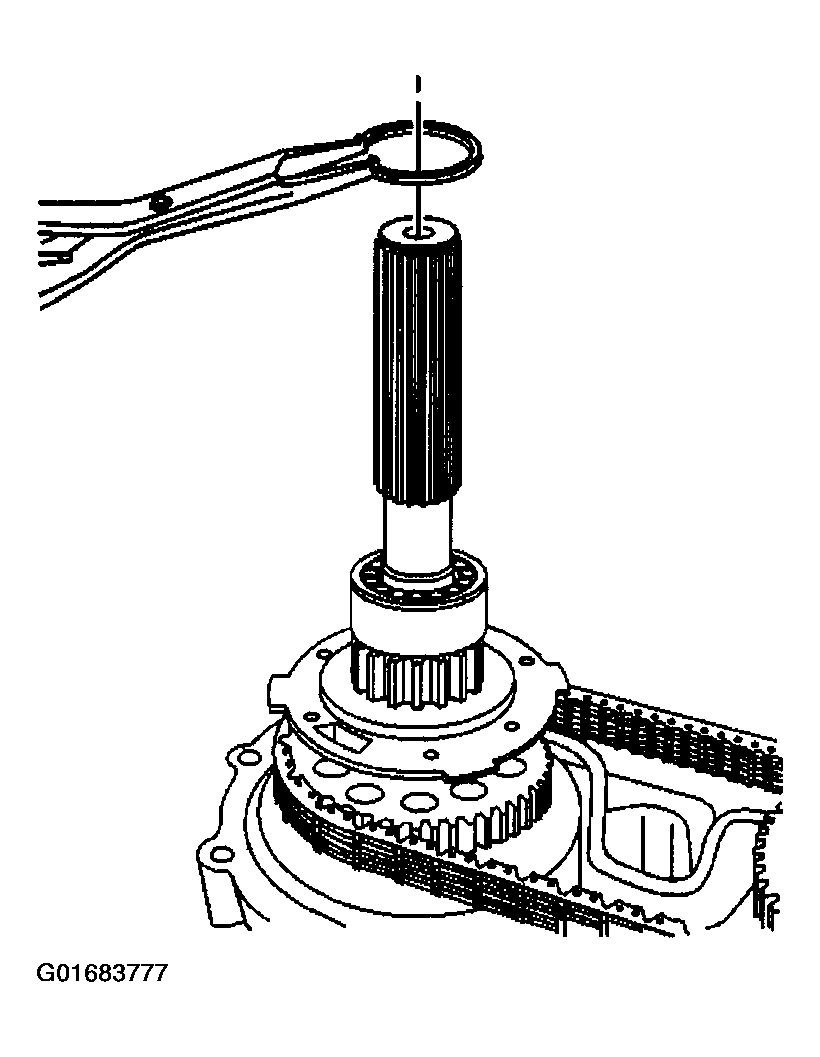

  35. Install the second rear output shaft bearing retaining ring.
    Fig 32: Installing Second Rear Output Shaft Bearing Retaining Ring
    G01683777
  36. Install the oil pump wear sleeve.

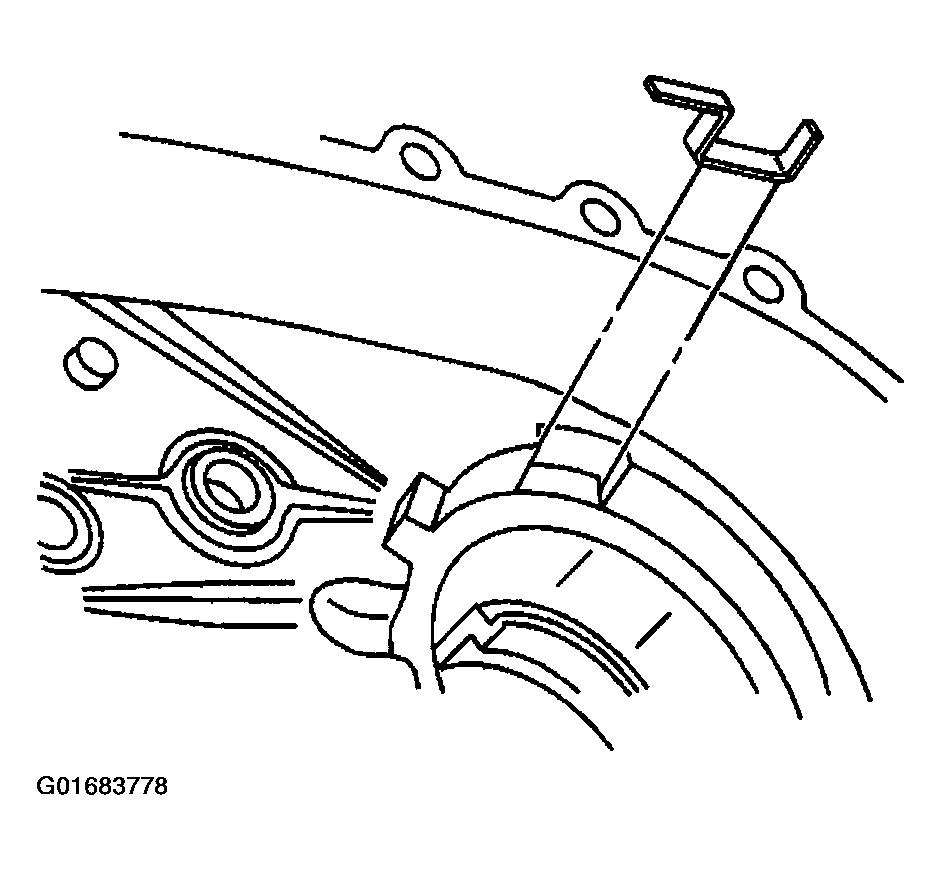

    Fig 33: Installing Oil Pump Wear Sleeve
    G01683778

    Important:  Make sure that the sealing surface on the front case half and the rear case half are free of dirt and cleaning solvent.

  37. Apply a small bead of sealant to the front case half (the bead should not be any larger than an 1/8 of an inch in width).

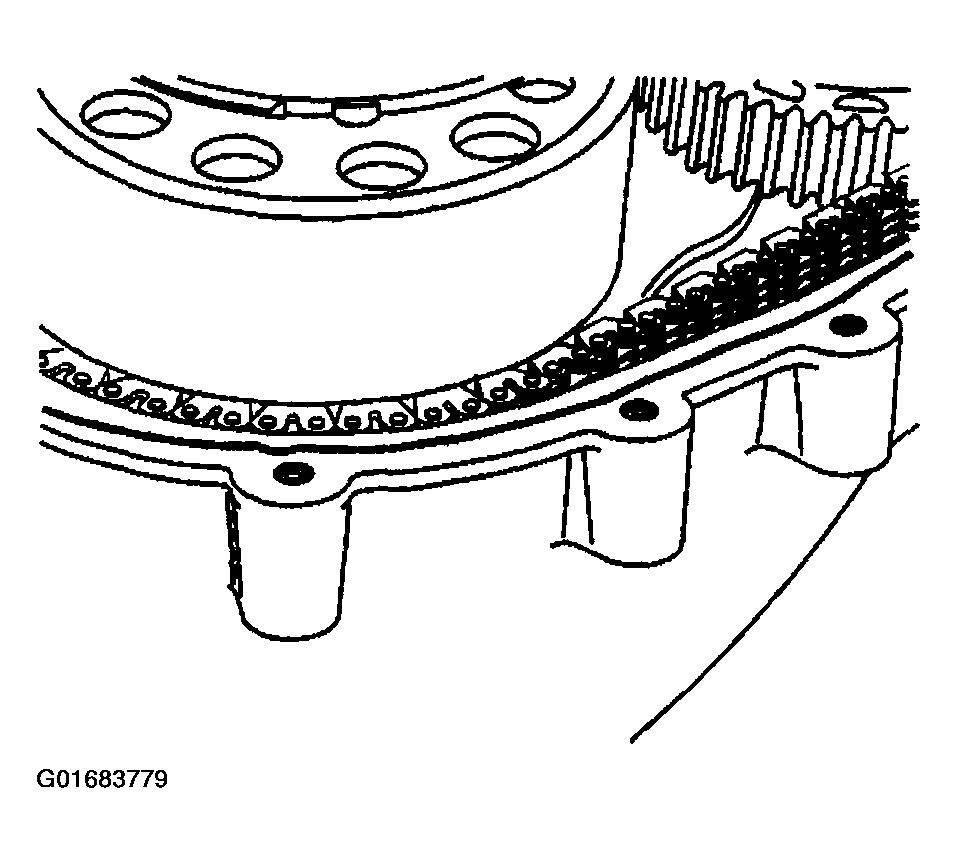

    Fig 34: Cleaning Sealing Surface On Front Case Half
    G01683779

    Important:  Before the rear case half is installed on the mainshaft, make sure that the outer retaining ring for the rear output shaft bearing is in alignment with the access opening.

  38. Insert a pair of snap ring pliers in the access opening.
  39. Using the snap ring pliers, open the outer retaining ring for the rear output shaft bearing.

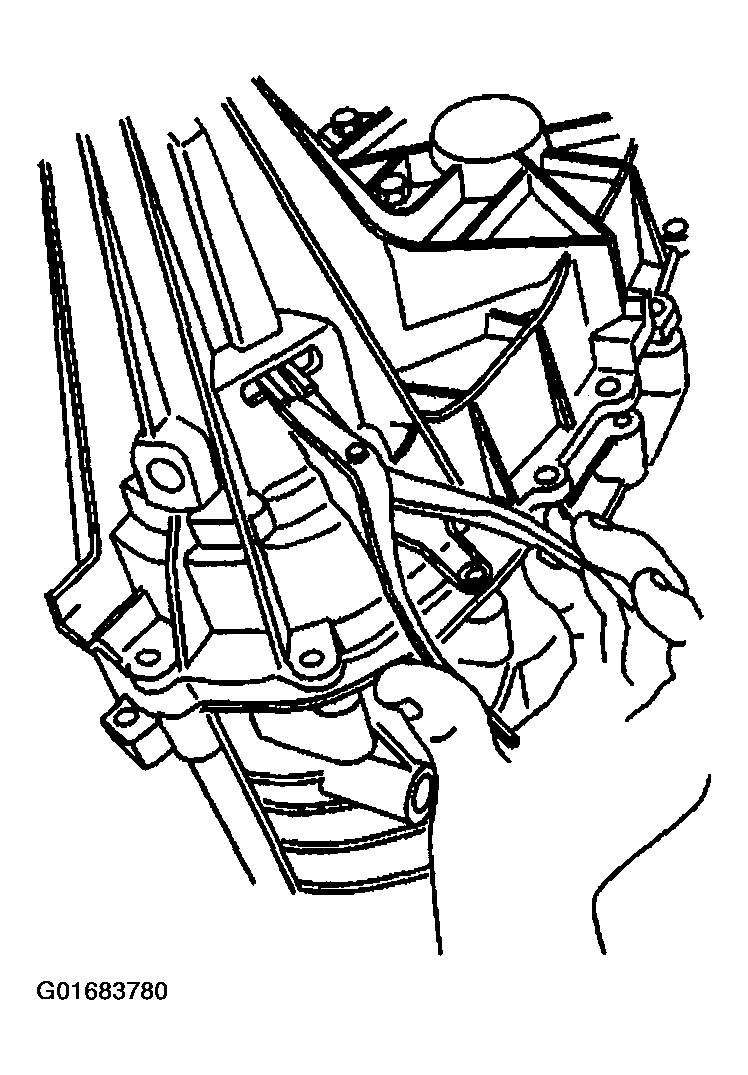

    Fig 35: Opening Outer Retaining Ring For Rear Output Shaft Bearing
    G01683780

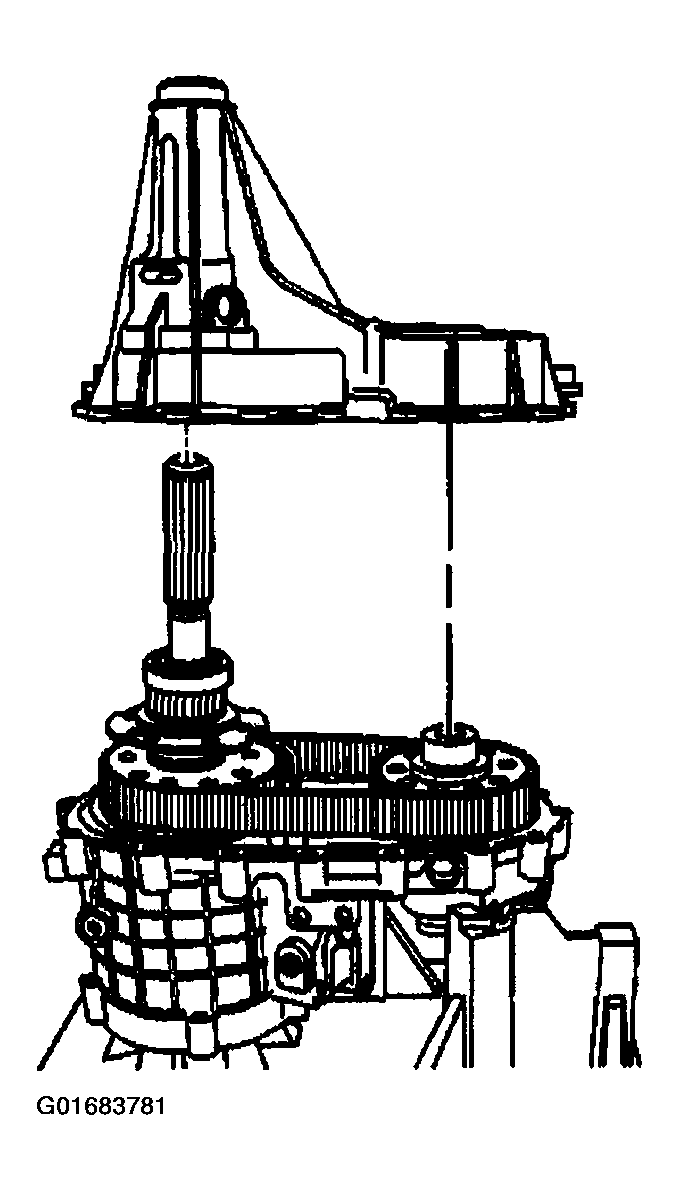

  40. Install the rear case half assembly.
    Fig 36: Installing Rear Case Half Assembly
    G01683781
  41. Install the retaining bolts.

    Tighten

    Tighten the retaining bolts to 30 N.m (21 ft lbs)

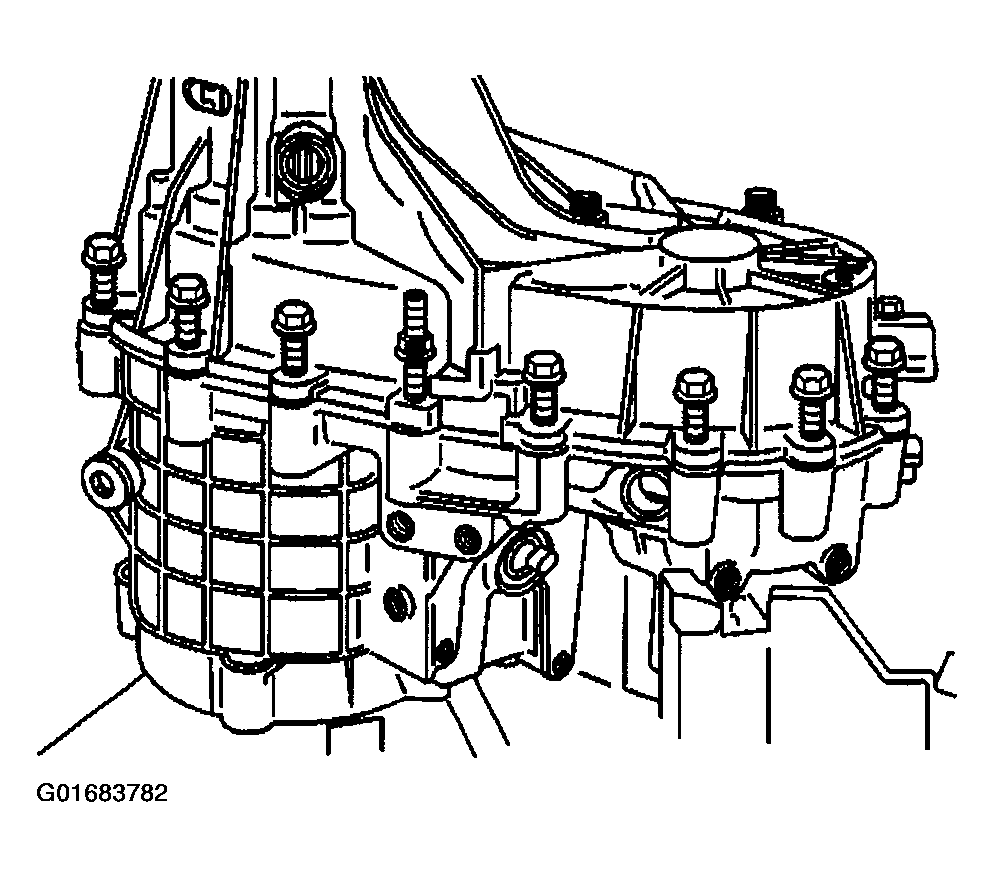

    Fig 37: Installing Rear Case Half Retaining Bolts
    G01683782
  42. Using the J 42738,  install the input shaft seal.

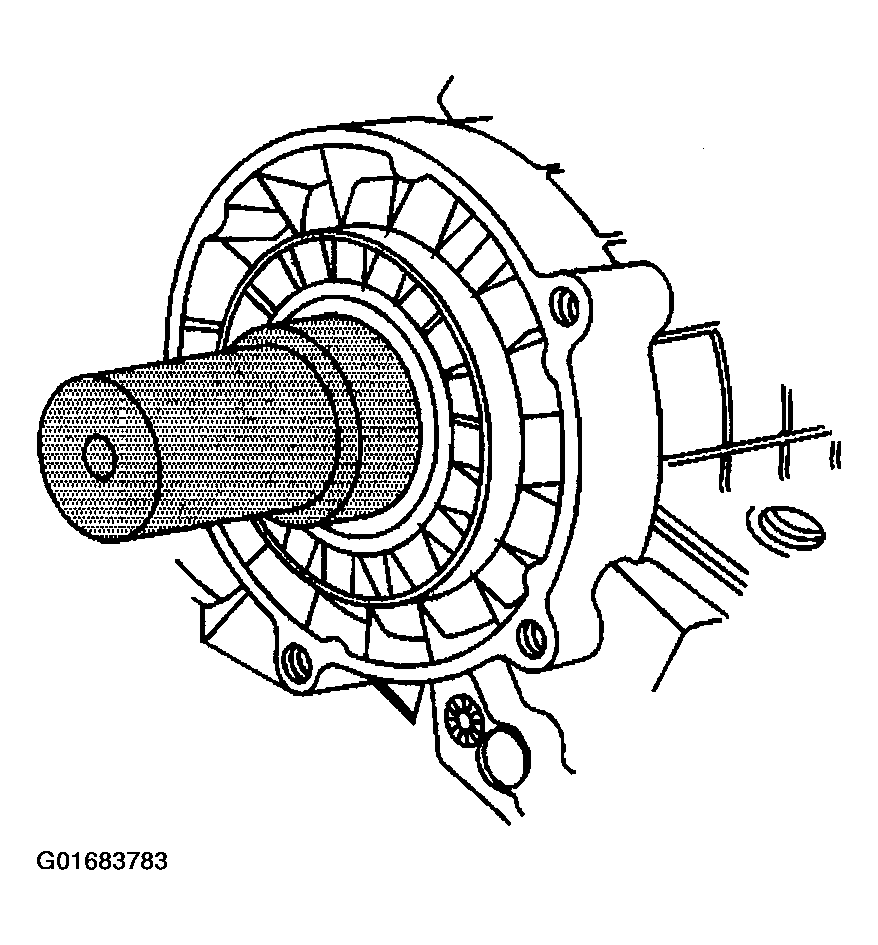

    Fig 38: Installing Input Shaft Seal
    G01683783

    Important:  When installing the rear output shaft seal, make sure that the drain hole is facing down.

  43. Using the J 37668-A,  install the rear output shaft seal.

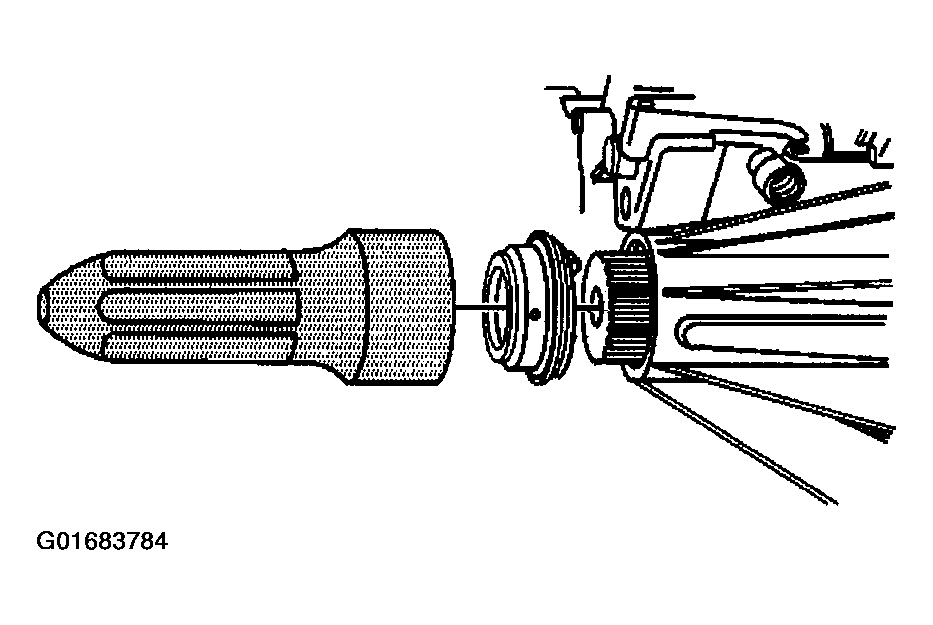

    Fig 39: Installing Rear Output Shaft Seal
    G01683784

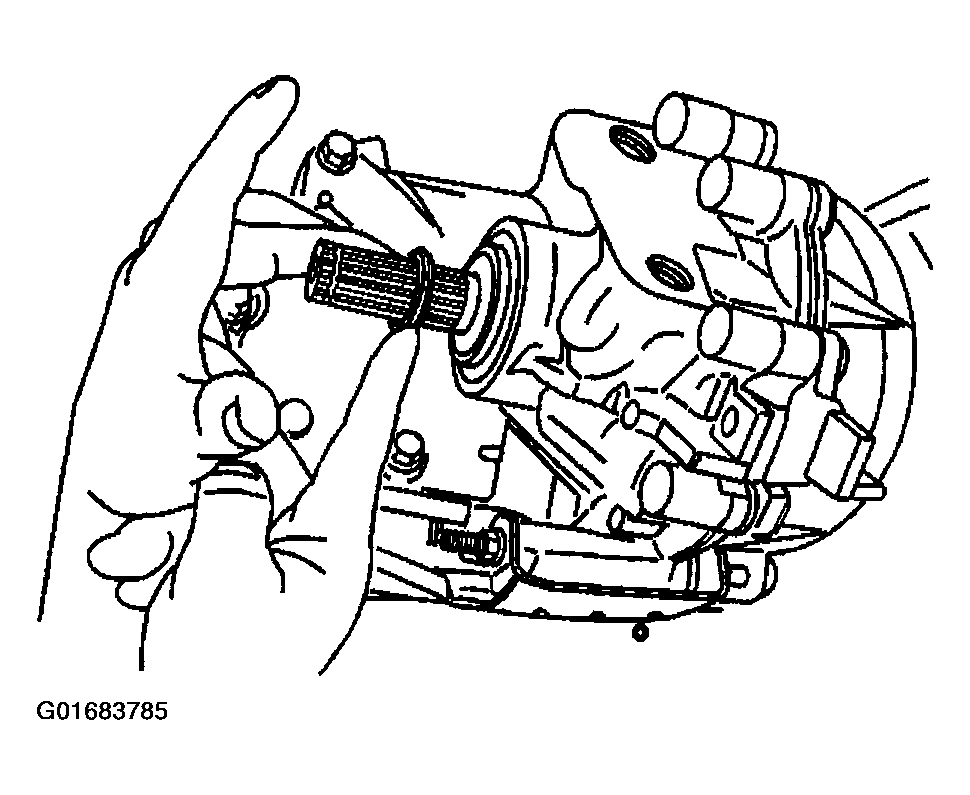

  44. Install the dust seal.
    Fig 40: Installing Dust Seal
    G01683785
  45. Install the J 44636-2  on the front output shaft.

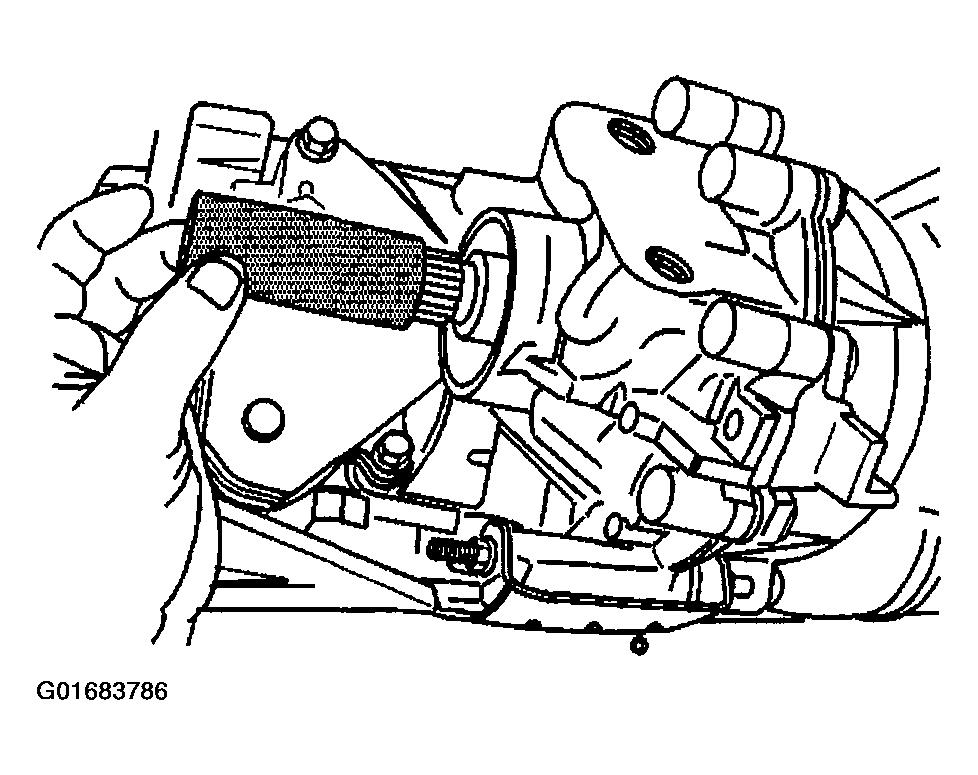

    Fig 41: Installing Seal Protector Onto Front Output Shaft
    G01683786
  46. Install the front output shaft seal on the J 44636-2.
    Fig 42: Installing Front Output Shaft Seal Onto Seal Protector
    G01683787

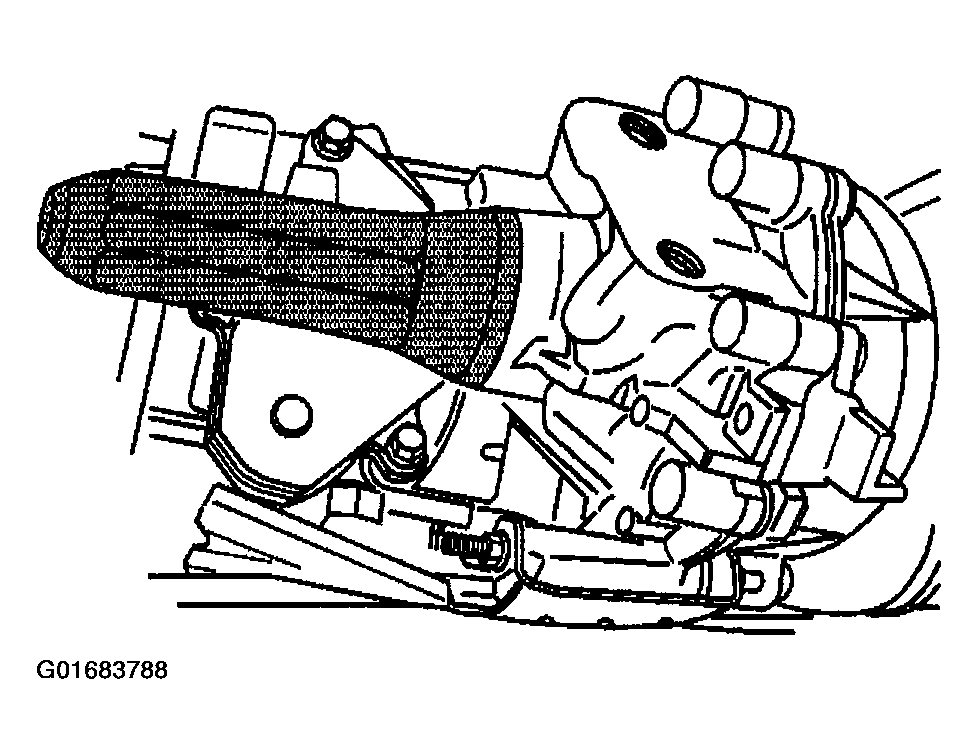

  47. Using the J 44636-1,  install the front output shaft seal.

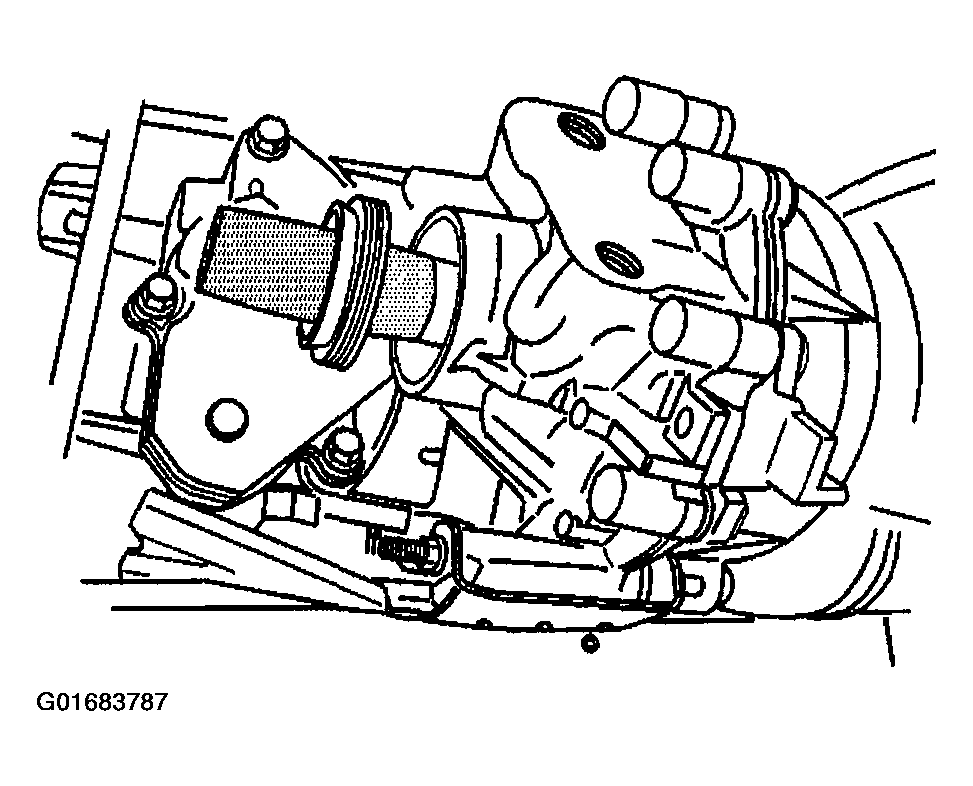

    Fig 43: Installing Front Output Shaft Seal
    G01683788

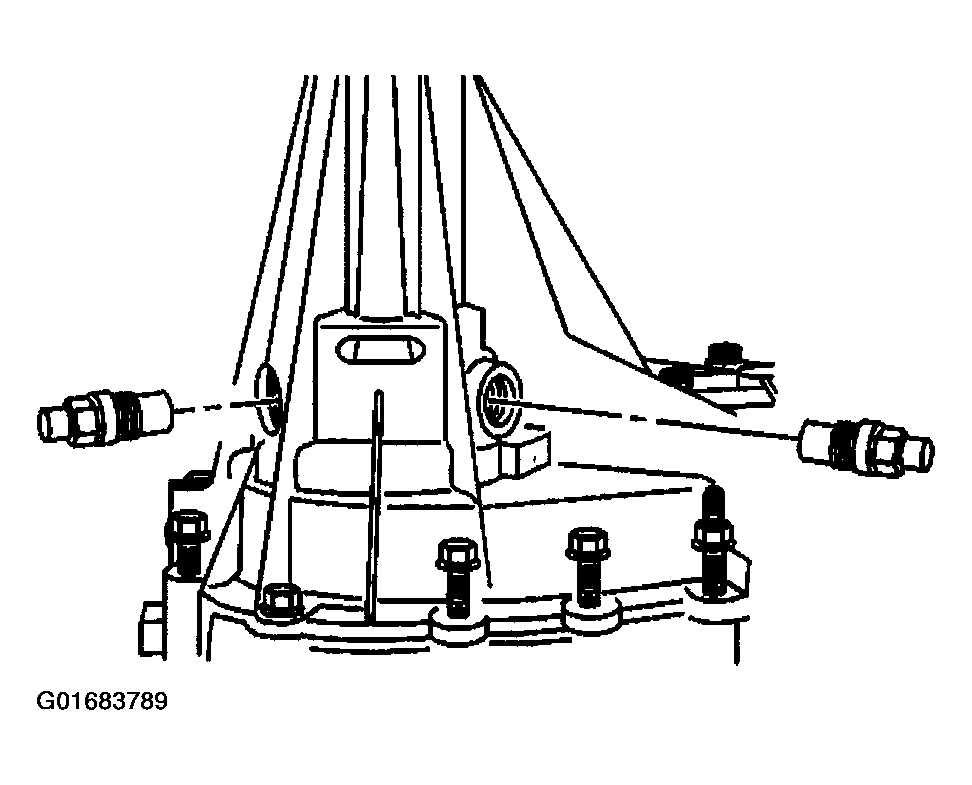

  48. Install the left rear speed sensor.

    Tighten

    Fig 44: Installing Rear Speed Sensors
    G01683789

    Tighten the left rear speed sensor to 15 N.m (11 ft lbs)

  49. Install the right rear speed sensor.

    Tighten

    Tighten the right rear speed sensor to 15 N.m (11 ft lbs)

  50. Install the front speed sensor.

    Tighten

    Tighten the front speed sensor to 15 N.m (11 ft lbs)

  51. Install the vent tube elbow (if needed).

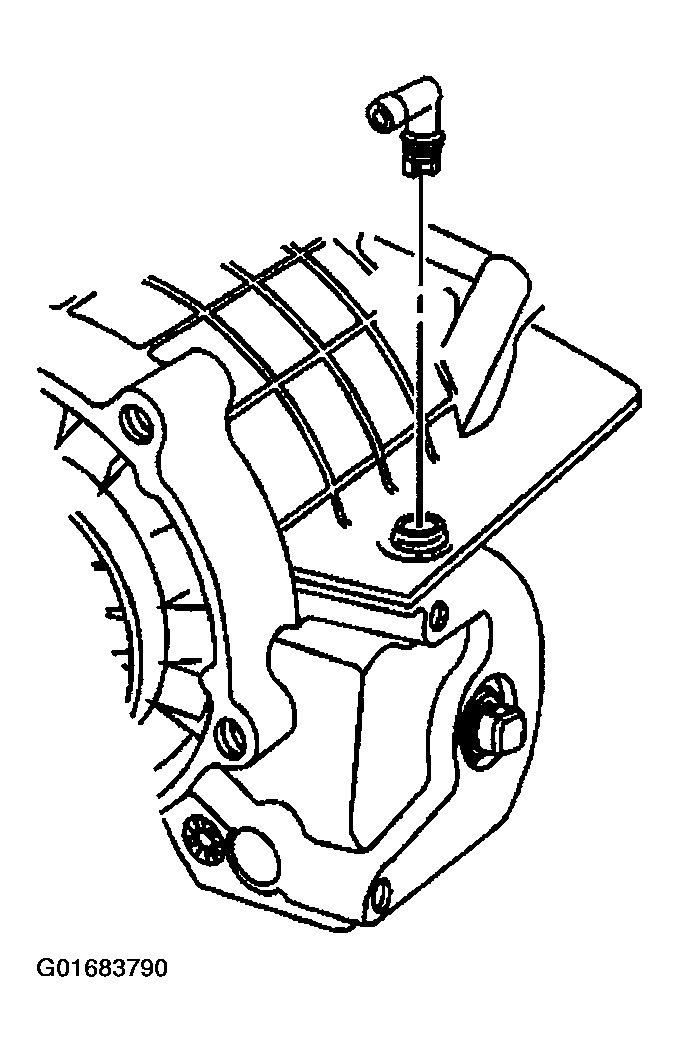

    Fig 45: Installing Vent Tube Elbow
    G01683790

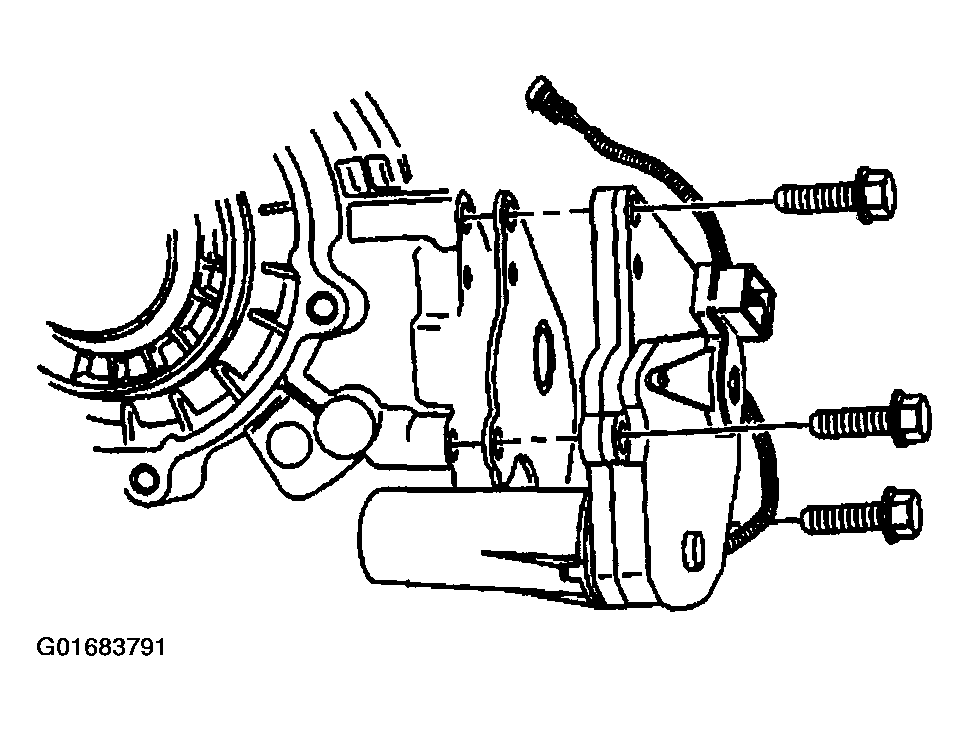

  52. Install the motor/encoder gasket.
  53. Install the motor/encoder.
  54. Install the motor/encoder mounting bolts.

    Tighten

    Tighten the motor/encoder mounting bolts to 20 N.m (14 ft lbs)

    Fig 46: Installing Motor/Encoder & Gasket
    G01683791

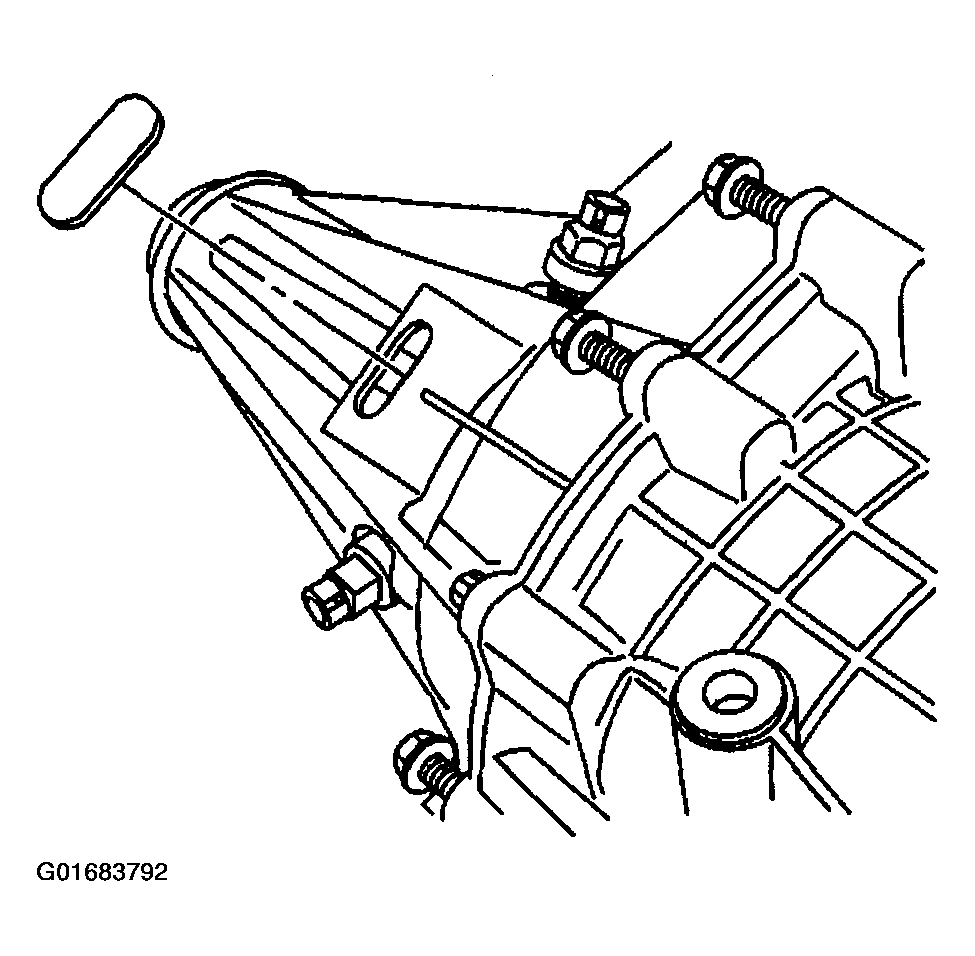

  55. Install the rubber plug.
    Fig 47: Installing Rubber Plug
    G01683792
