Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Partially drain the engine coolant. Refer to Draining and Filling Cooling System .
  2. Position the J 38185  to the clamp in order to remove the surge tank outlet hose (2) from the surge tank (1).
  3. Position the J 38185  to the clamp in order to remove the surge tank outlet hose (2) from the heater pipe (3).
  4. Remove the surge tank outlet hose (2) from vehicle.

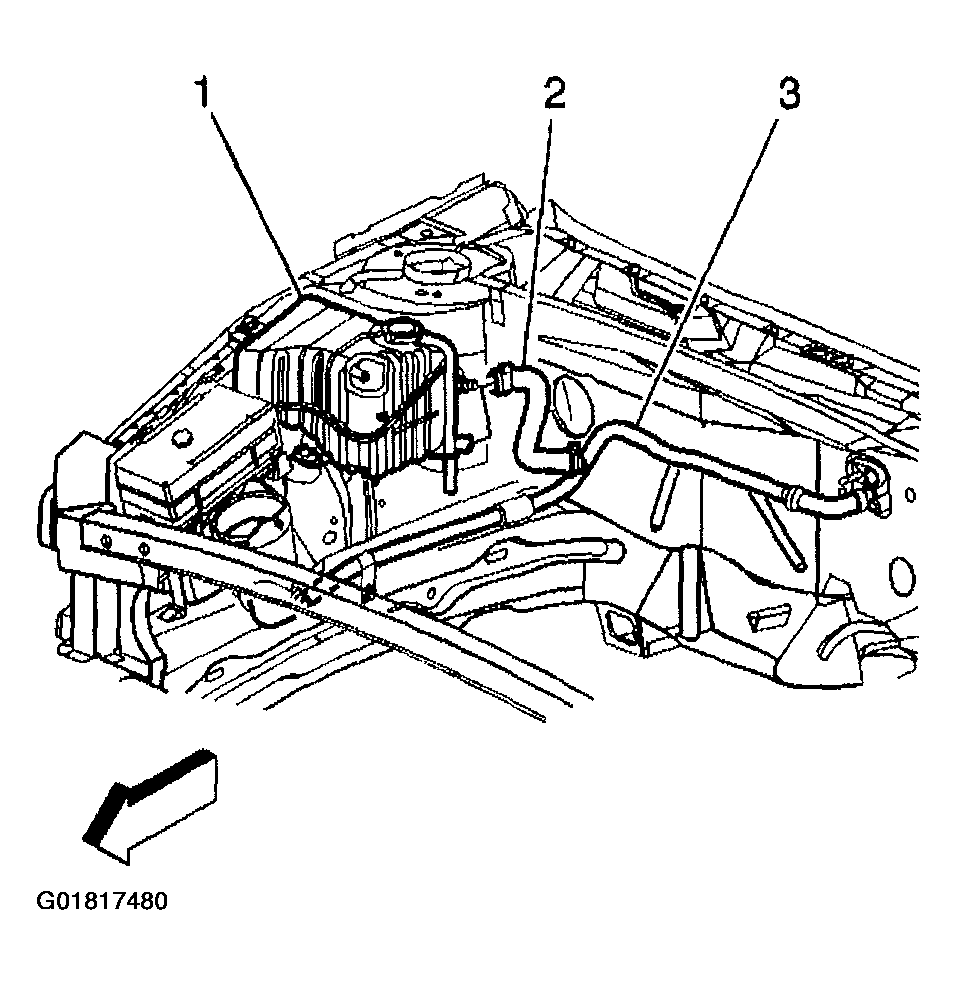

    Fig 1: Removing Surge Tank Outlet Hose
    G01817480Courtesy of GENERAL MOTORS CORP.
