Primary Camshaft Timing Drive Chain Alignment Diagram

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

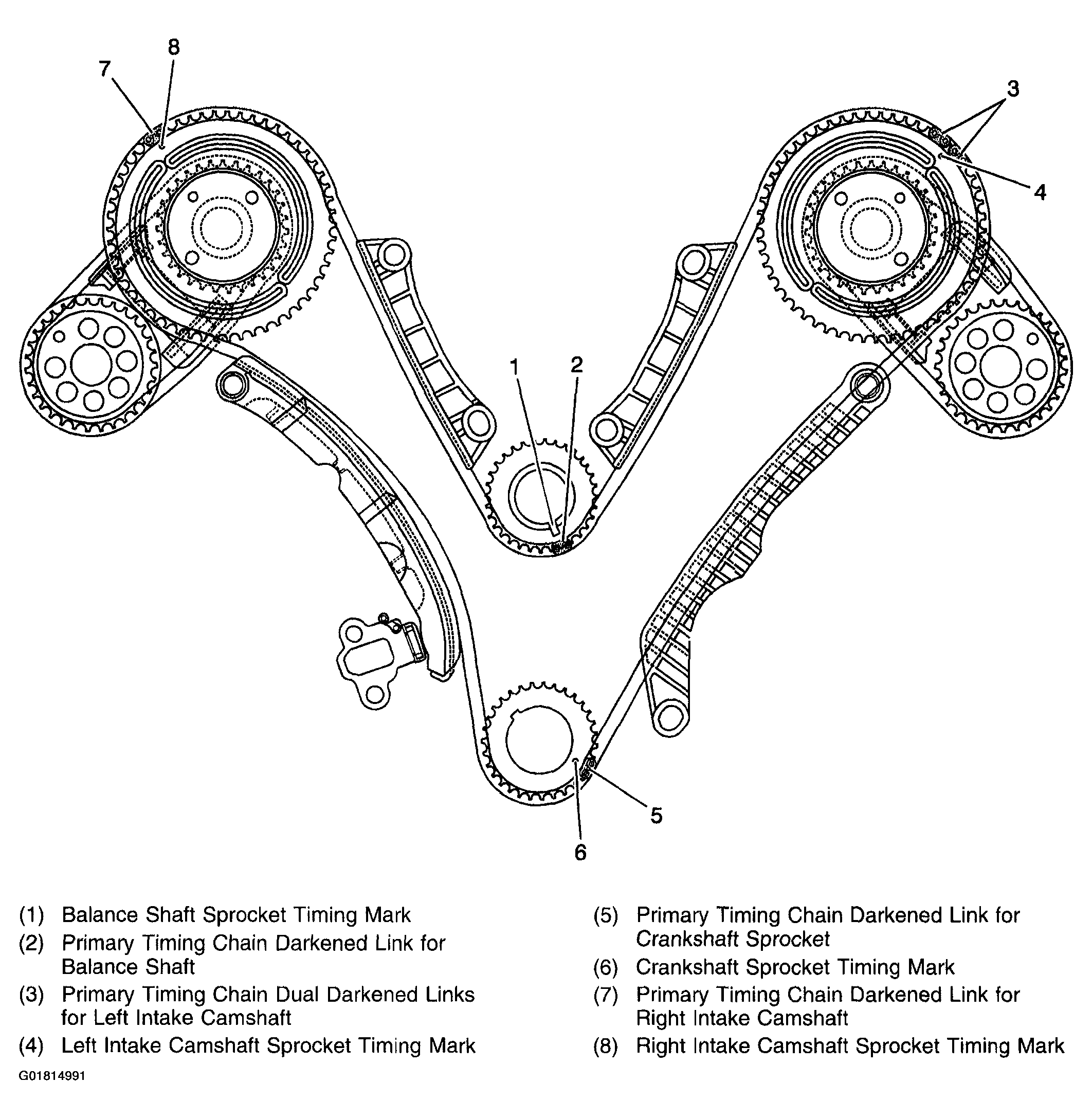

Fig 1: Primary Camshaft Timing Drive Chain Alignment Diagram (LX5 Camshaft Drive System Set At Base Engine Timing)
G01814991Courtesy of GENERAL MOTORS CORP.
