Valve Lifter Removal - Right
WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Ensure each valve lifter is filled with clean engine oil and the valve lifter does not tip over (plunger down) before the installation of the valve lifters. The loss of oil in the valve lifter lower pressure chamber or the dry stroking/cycling of the valve lifter plunger will allow air to travel into the high pressure chamber of the valve lifter. Air in the high pressure chamber of the valve lifter may not be purged causing extensive engine component damage.
Important: Ensure each camshaft follower remains matched to the original stationary hydraulic lash adjuster (SHLAs) and original location the components were assembled in.

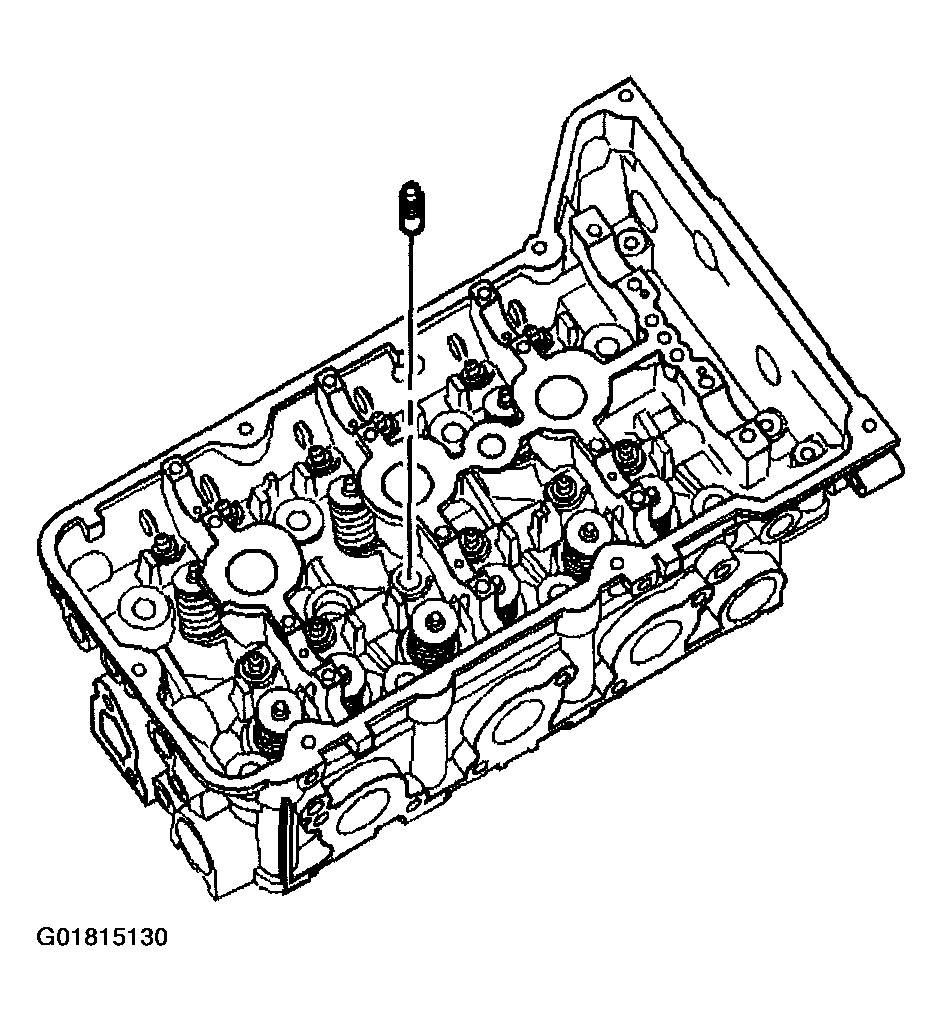

- Remove the stationary hydraulic lash adjusters (SHLAs) from the right cylinder head lifter bores.
- Store the camshafts, followers and SHLAs in a clean, secure location.
