Primary Camshaft Drive Chain Guide Removal - Upper

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper primary camshaft drive chain guide bolts.
  2. Remove the upper primary camshaft drive chain guides.

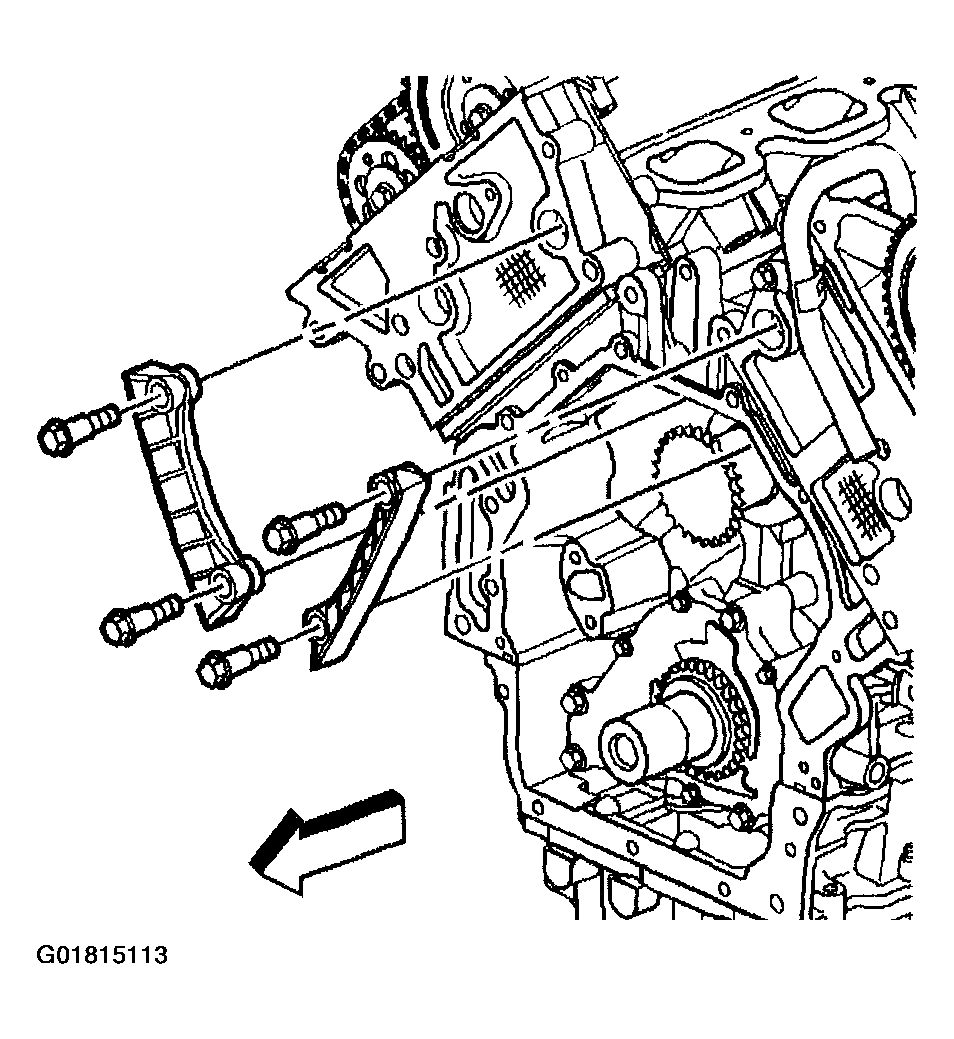

    Fig 1: Removing Upper Primary Camshaft Drive Chain Guides
    G01815113Courtesy of GENERAL MOTORS CORP.
