Primary Camshaft Drive Chain Guide Removal - Lower

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the lower primary camshaft drive chain guide bolts.
  2. Remove the lower primary camshaft drive chain guide.

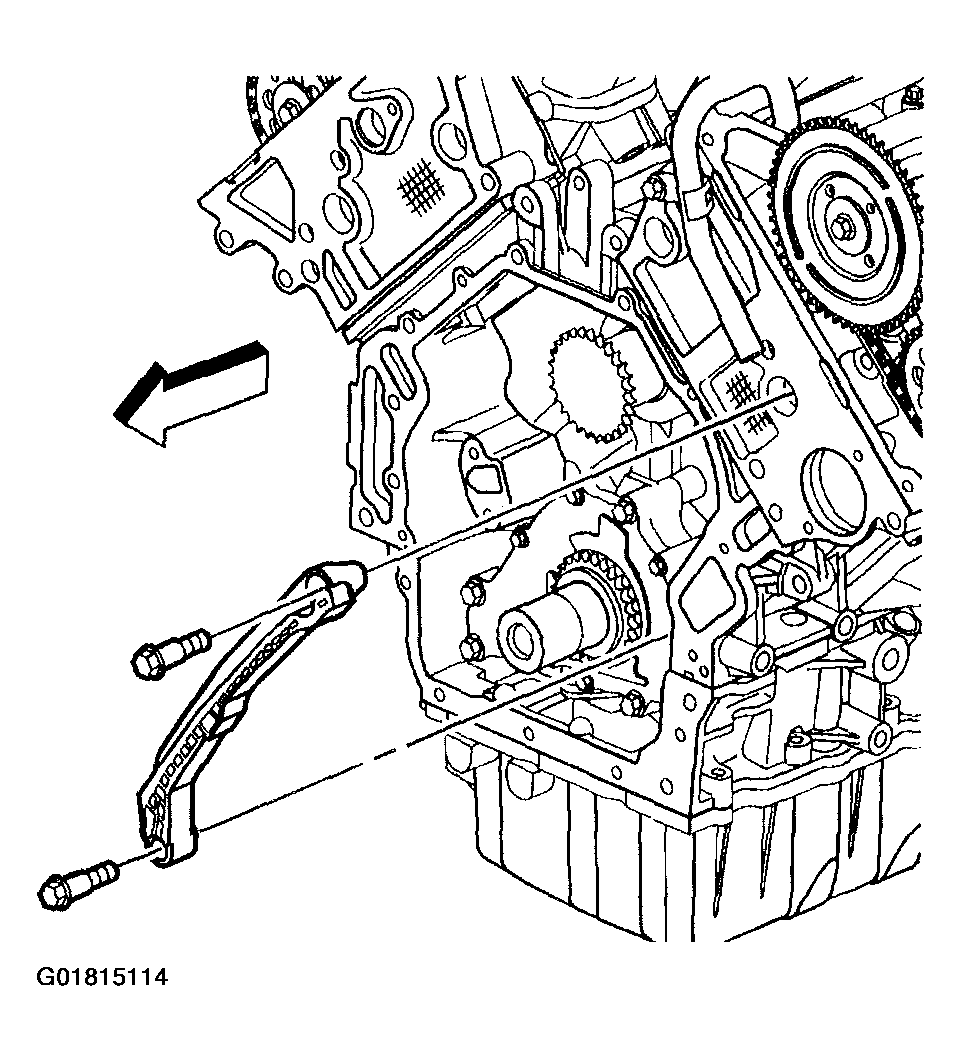

    Fig 1: Removing Lower Primary Camshaft Drive Chain Guide
    G01815114Courtesy of GENERAL MOTORS CORP.
