Tools Required

J 43094  Spark Plug Boot Puller

1. Remove the fuel injector sight shield bracket bolts.
2. Remove the fuel injector sight shield bracket.

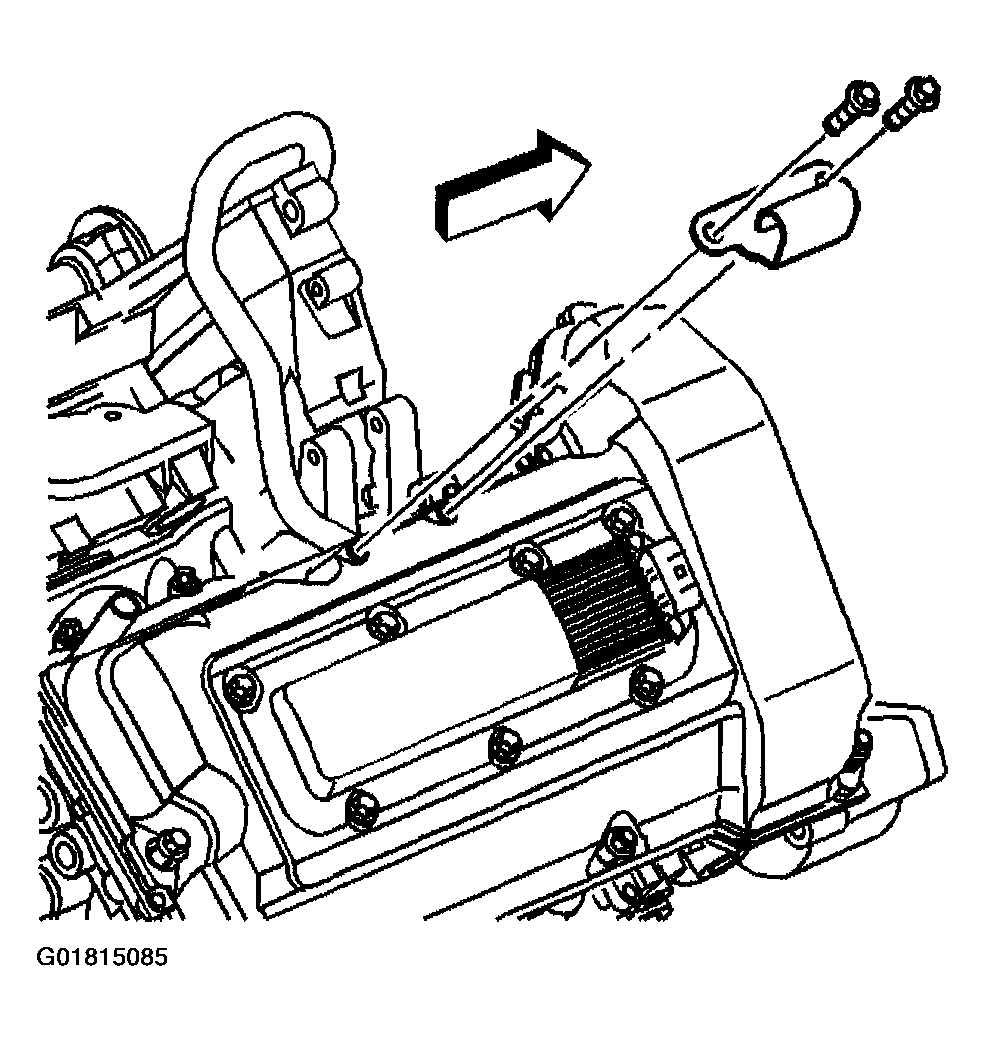

   Fig 1: Removing Fuel Injector Sight Shield Bracket

   Courtesy of GENERAL MOTORS CORP.
3. Remove the ignition coil assembly bolts.
   CAUTION: Do not damage the ignition coil assembly perimeter seal.
4. Lift the ignition coil assembly out of the camshaft cover valley.

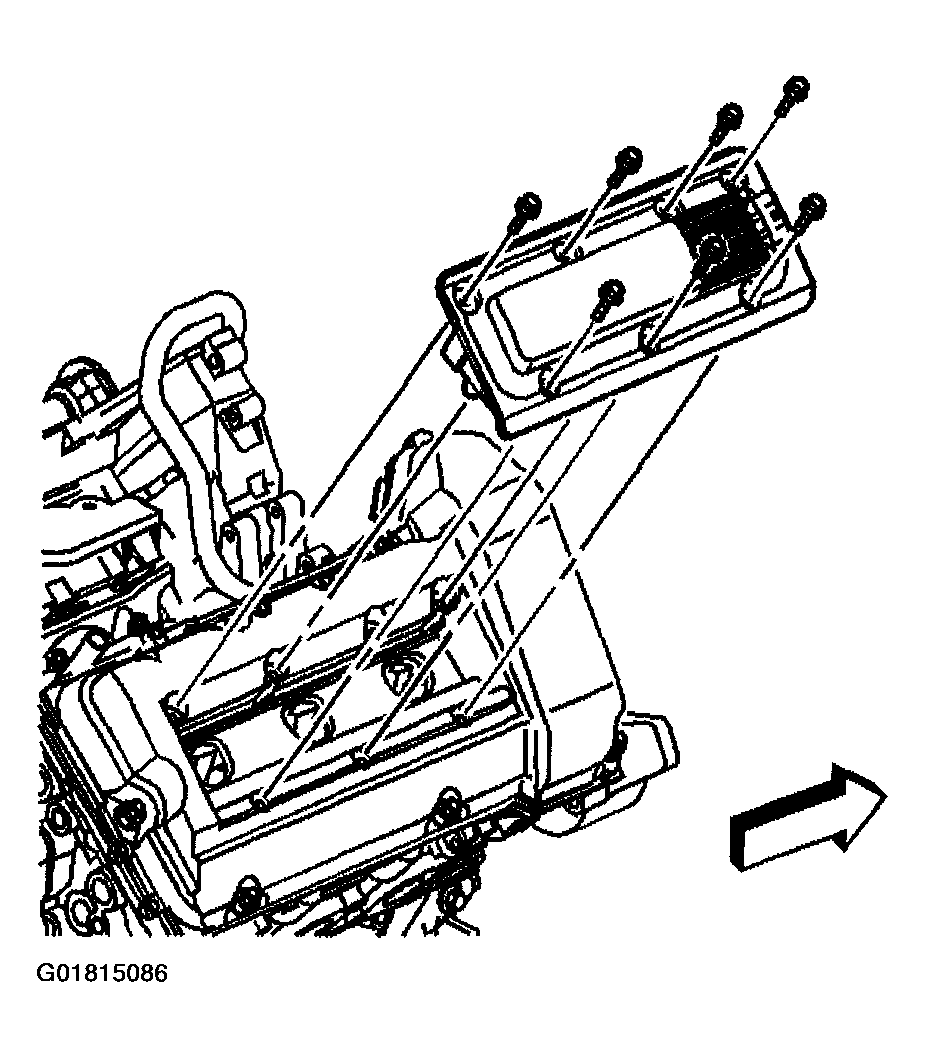

   Fig 2: Removing Ignition Coil Assembly

   Courtesy of GENERAL MOTORS CORP.
   CAUTION: Use only the spark plug boot special removal tool to remove spark plug boots. Prying or using regular pliers could damage the boots.
5. Remove the spark plug boots using the J 43094.

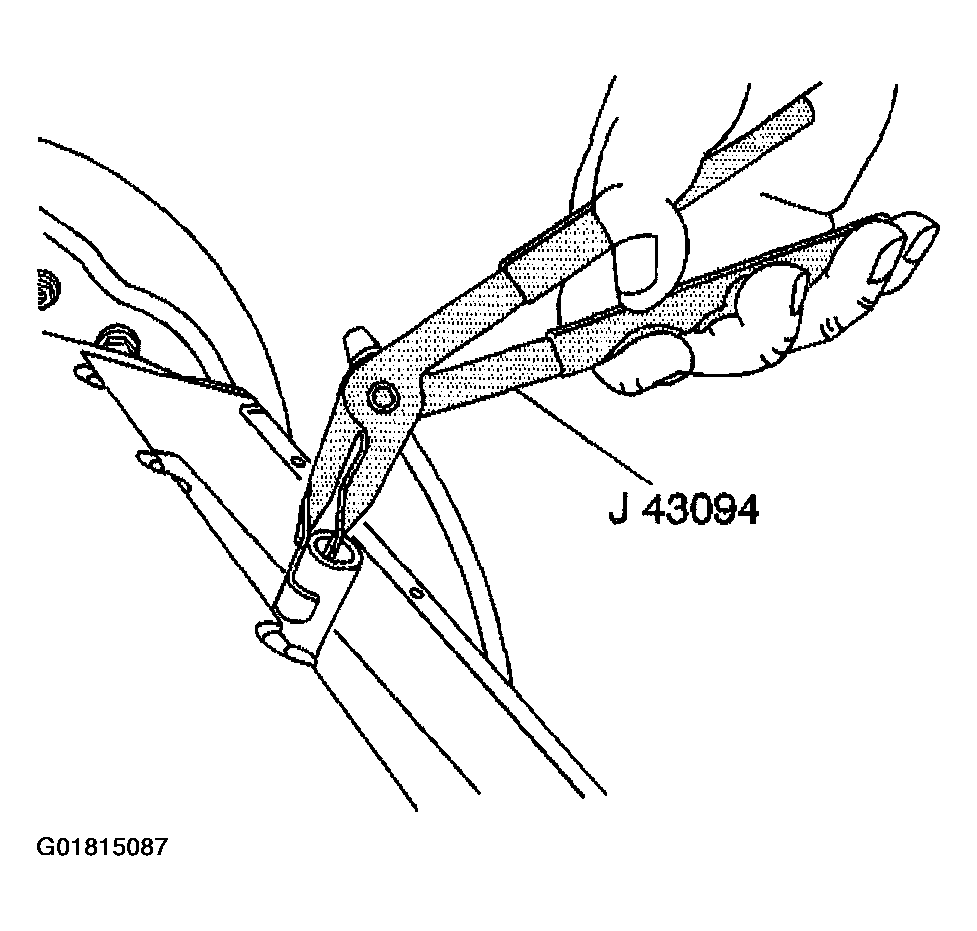

   Fig 3: Removing Spark Plug Boots

   Courtesy of GENERAL MOTORS CORP.
6. Remove the spark plugs.
7. Inspect the spark plugs to gain an understanding of the engines operating characteristics.

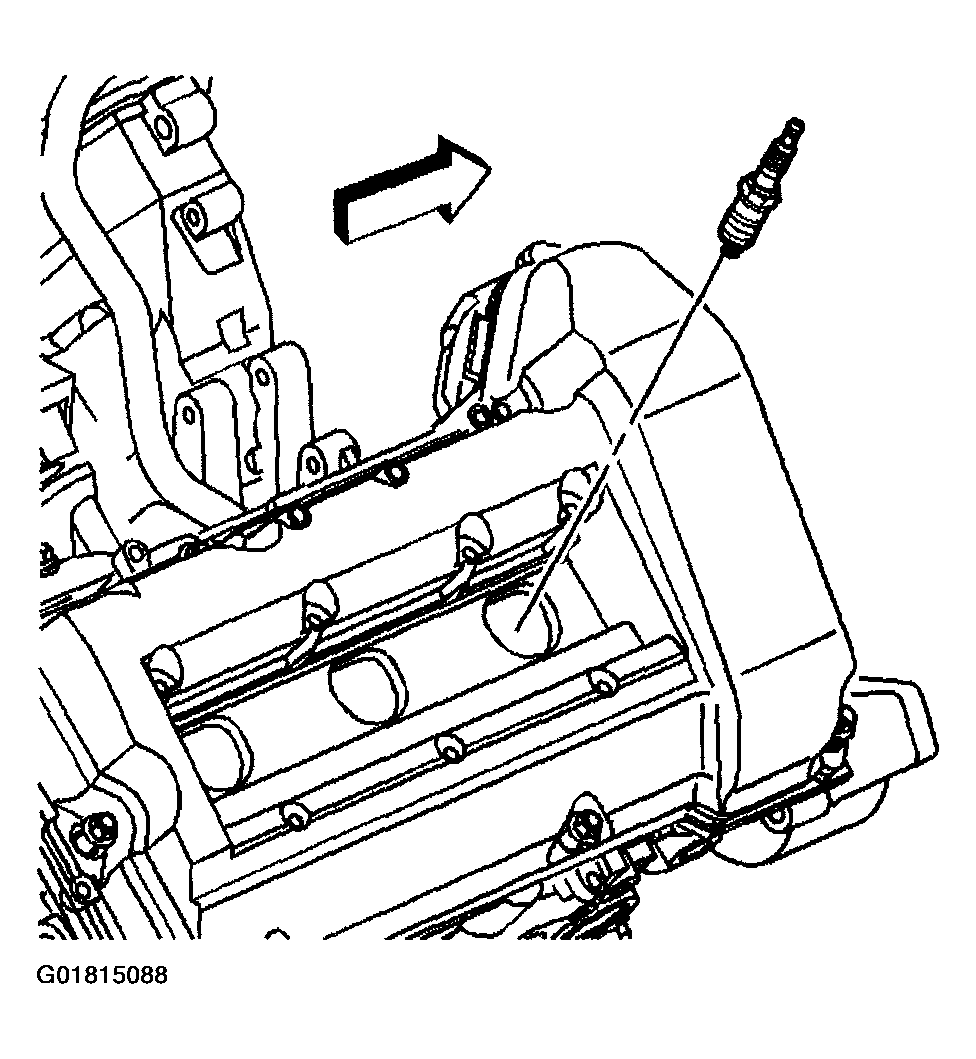

   Fig 4: Removing Spark Plugs

   Courtesy of GENERAL MOTORS CORP.
8. Inspect the ignition coil assembly terminals for excessive pitting or damage. Replace if necessary.
9. Inspect the spark plug boots for cuts, tears or visible damage. Replace if necessary.
10. If all components are acceptable, press the spark plug boots back onto the ignition coil assembly and store in a secure location.

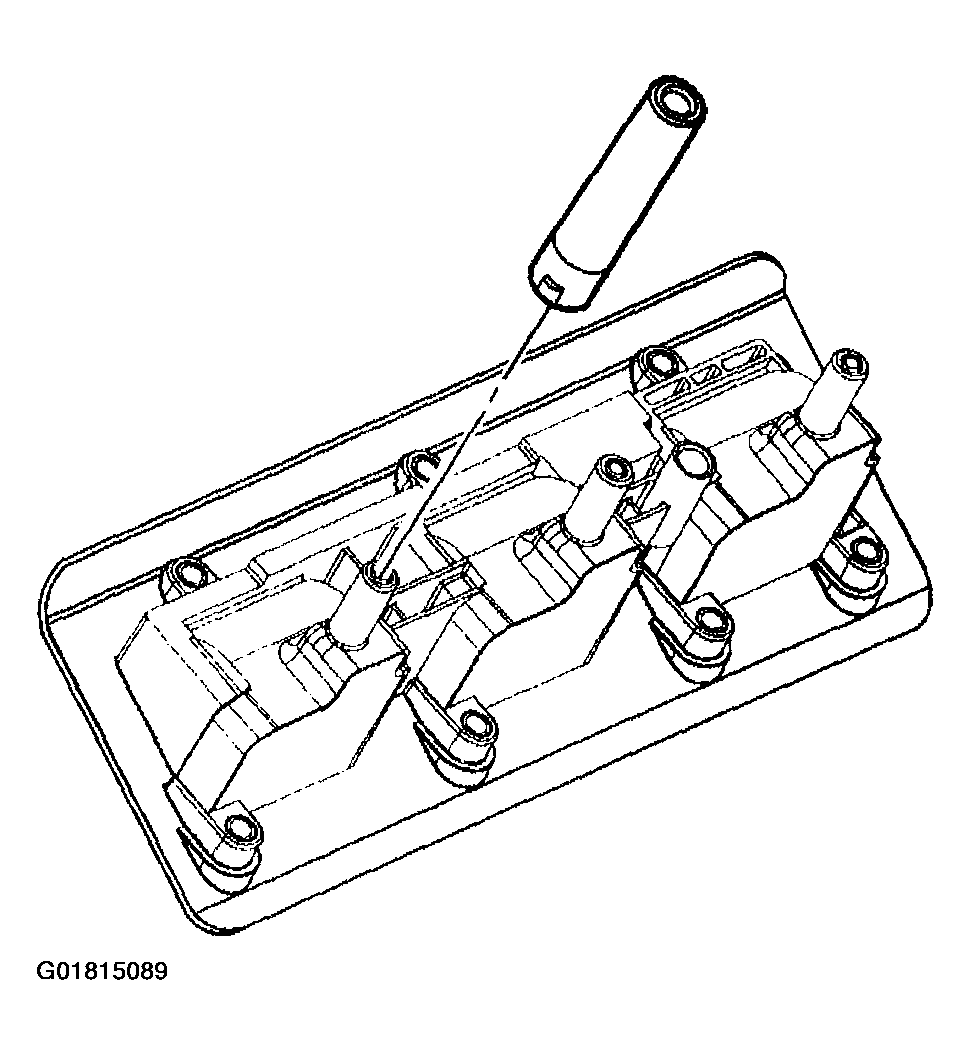

    Fig 5: Installing Spark Plug Boots

    Courtesy of GENERAL MOTORS CORP.
