Exhaust Manifold Removal - Left (with RPO NC1 or NF7)

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the A.I.R. vacuum hose from the throttle body (1).
Disconnect the vacuum tube from the A.I.R. control valve.

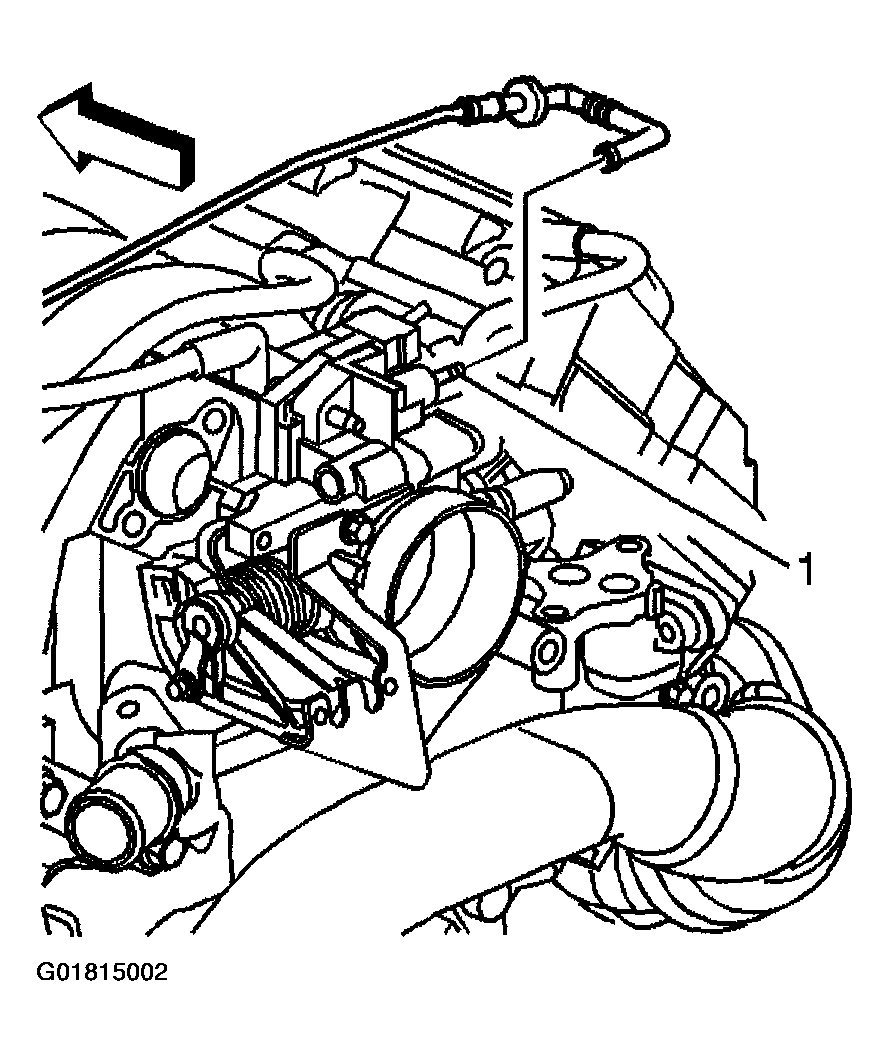

Fig 1: Disconnecting Vacuum Tube From A.I.R. Control Valve
Courtesy of GENERAL MOTORS CORP.
Remove the left A.I.R. control valve pipe bolt and nut to the left A.I.R. manifold.
Remove the left A.I.R. control valve bolt and nut from the torque strut bracket.

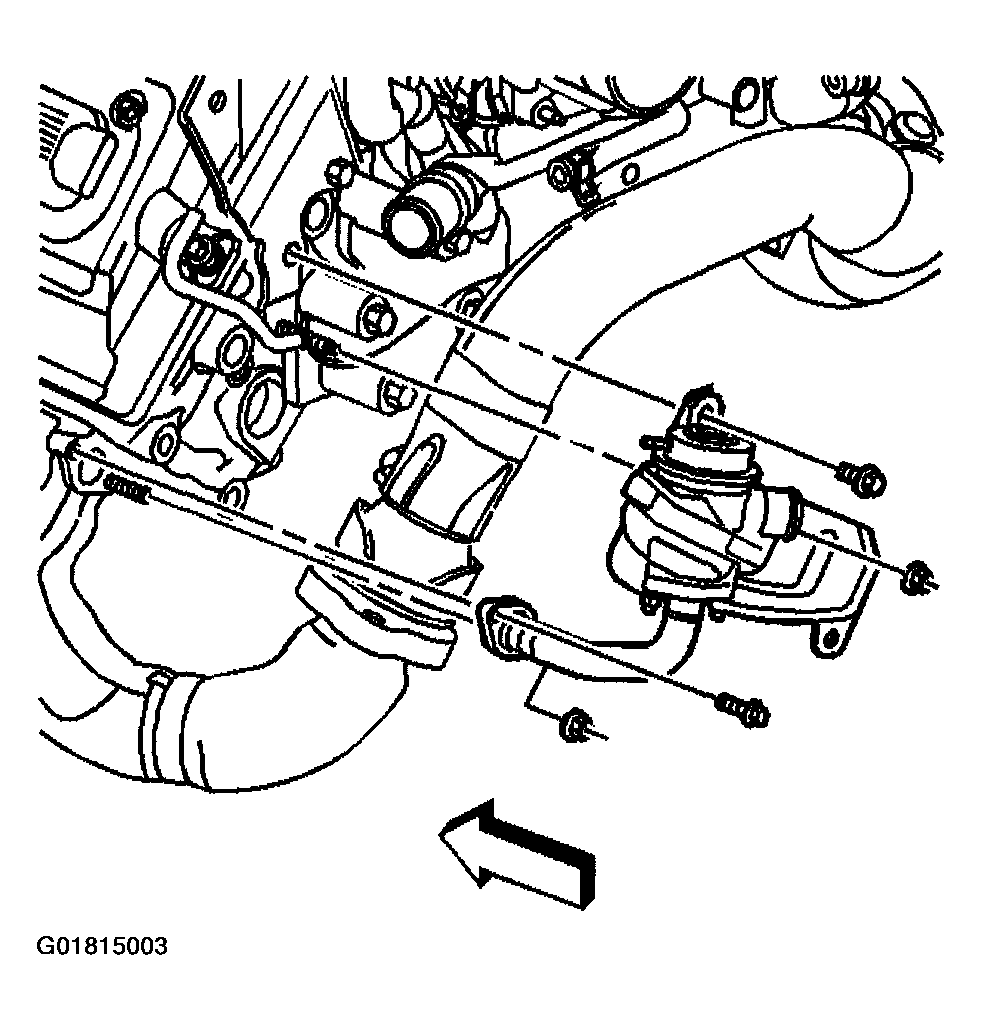

Fig 2: Removing Left A.I.R. Control Valve
Courtesy of GENERAL MOTORS CORP.
Remove the left A.I.R. manifold bolts.
Remove the left A.I.R. manifold.
Remove and discard the A.I.R. manifold gasket.

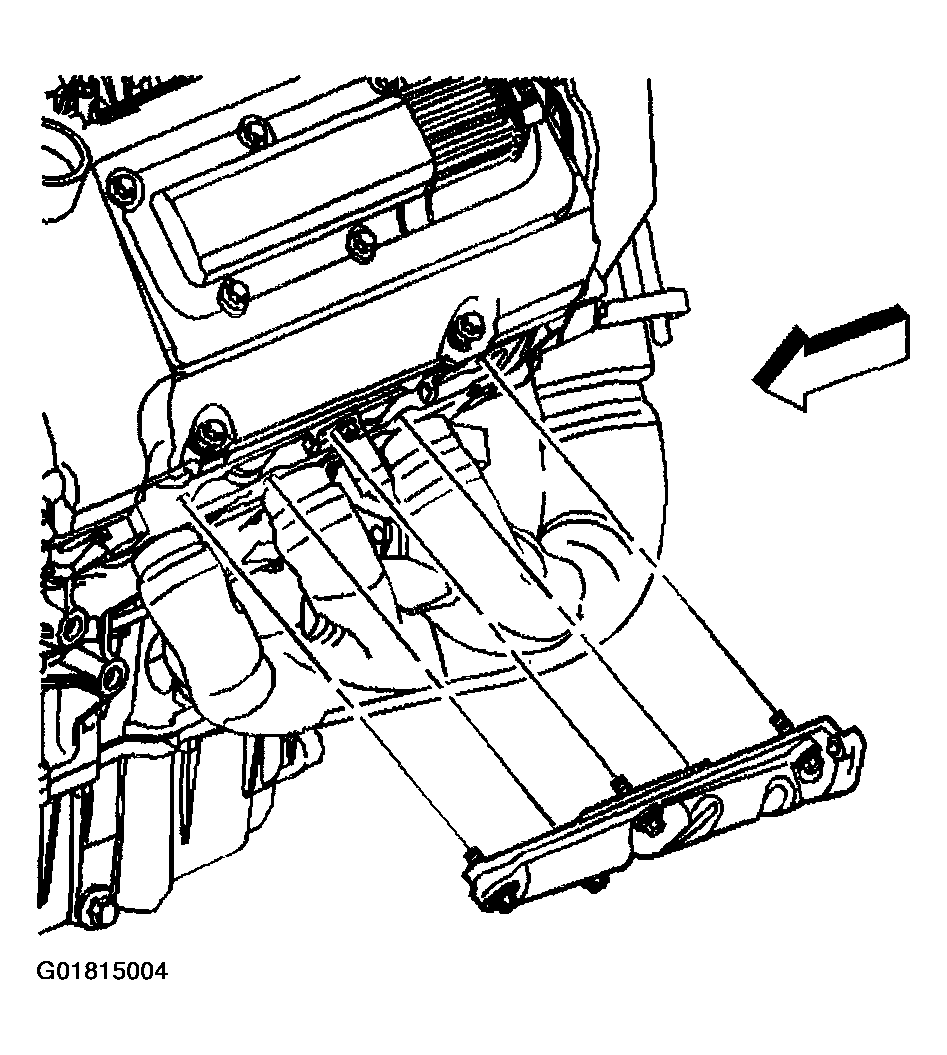

Fig 3: Removing Left A.I.R. Manifold & Gasket
Courtesy of GENERAL MOTORS CORP.
Remove the exhaust manifold heat shield bolts.
Remove the exhaust manifold heat shield.

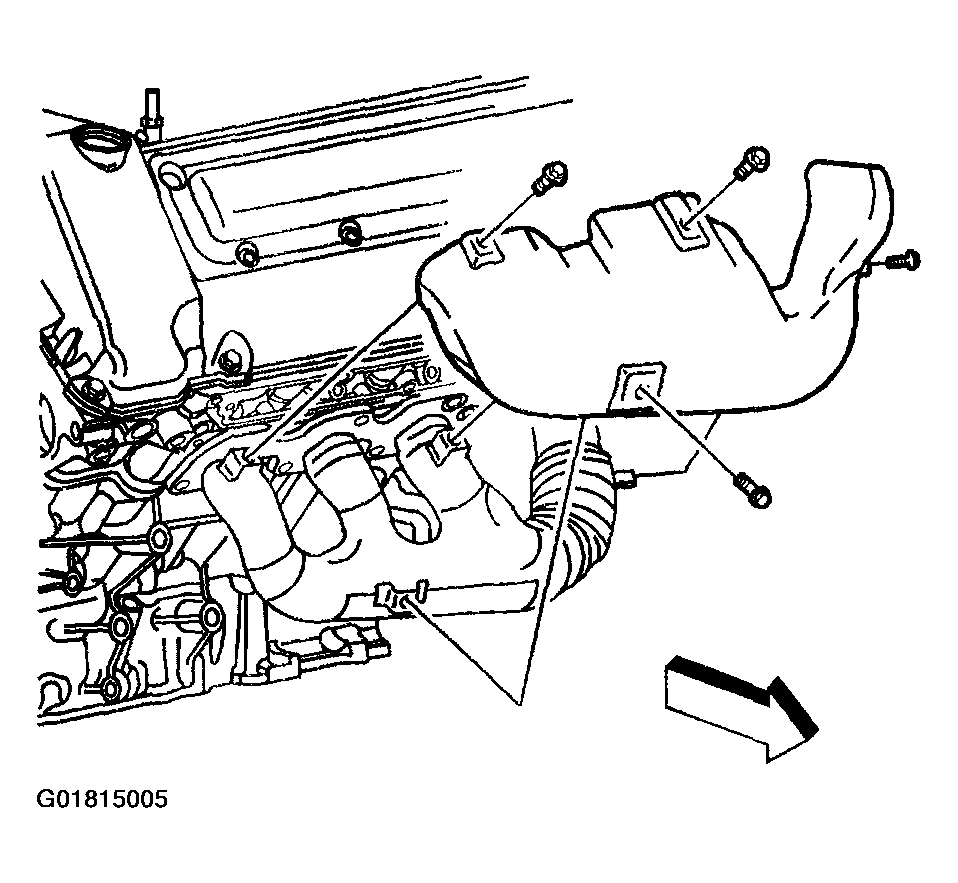

Fig 4: Removing Exhaust Manifold Heat Shield
Courtesy of GENERAL MOTORS CORP.
Loosen the exhaust manifold bolts.

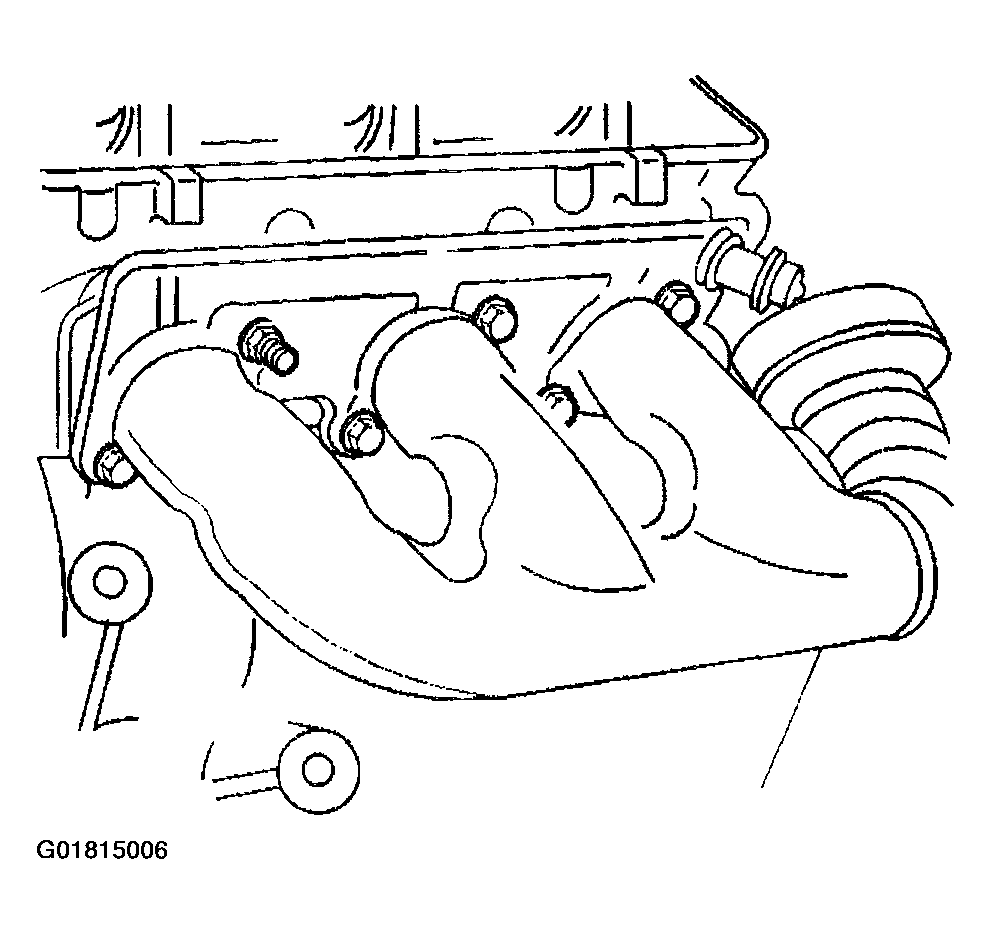

Fig 5: Locating Exhaust Manifold Bolts
Courtesy of GENERAL MOTORS CORP.
Remove the left exhaust manifold to crossover pipe flange bolts.
Remove the left exhaust manifold bolts.
Important: DO NOT reuse the exhaust manifold gasket or flange gasket.
Remove the left exhaust manifold.
Remove the left exhaust manifold gasket and flange gasket.

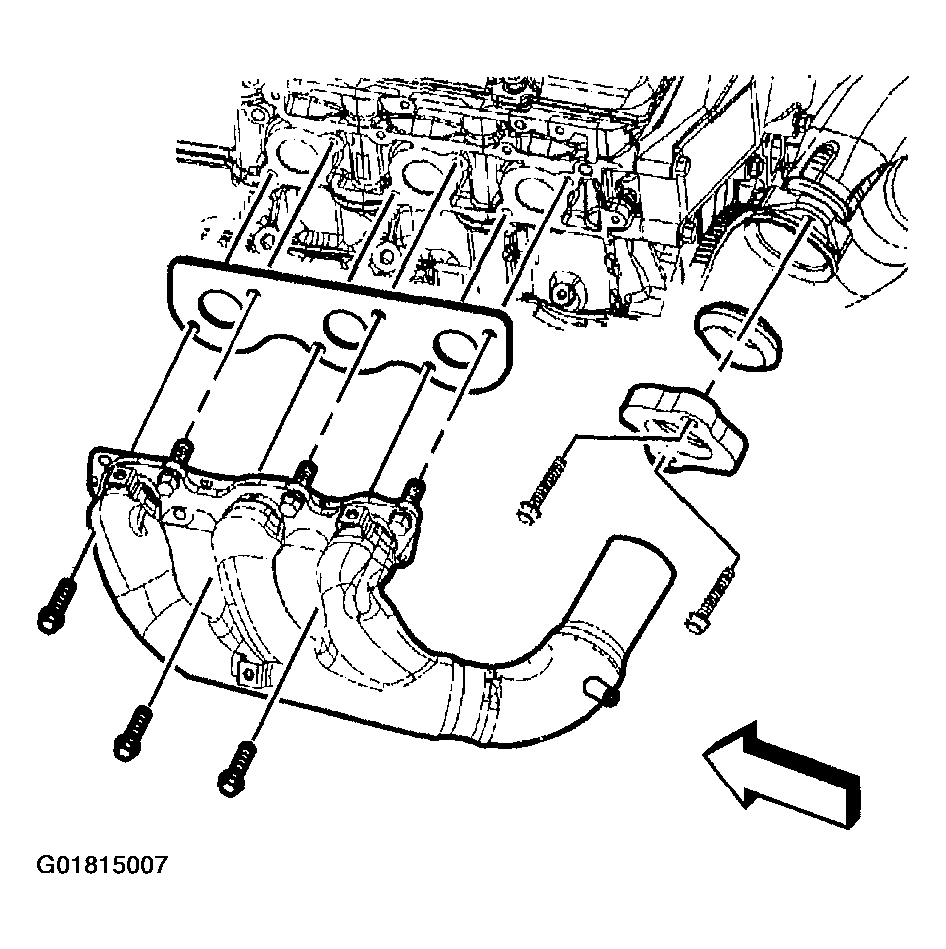

Fig 6: Removing Left Exhaust Manifold & Gasket
Courtesy of GENERAL MOTORS CORP.
Remove the left engine coolant heater bolt.
Remove the left engine coolant heater.

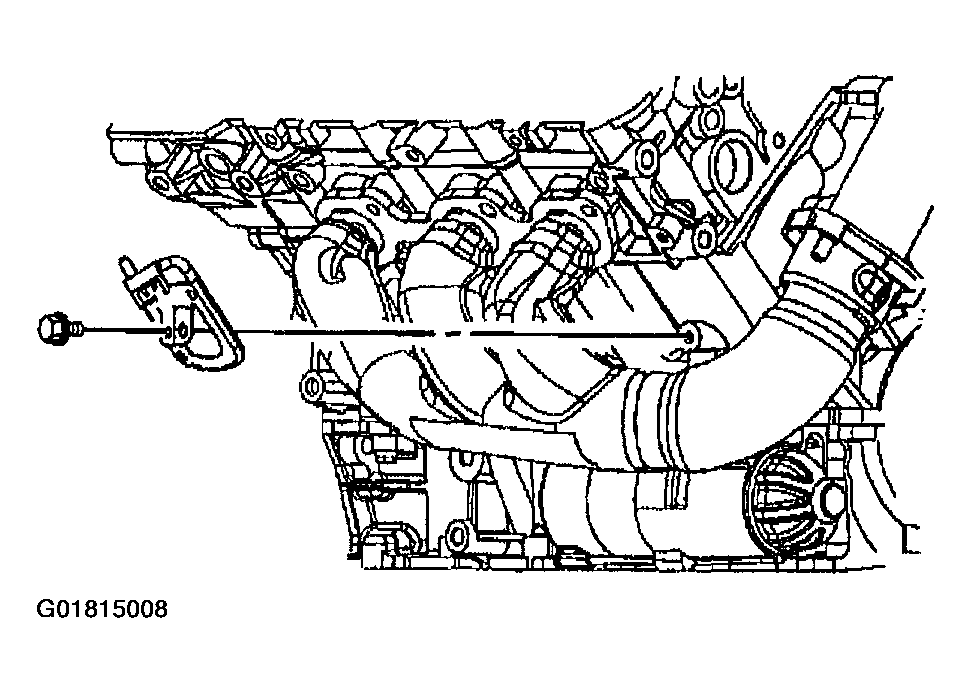

Fig 7: Removing Left Engine Coolant Heater
Courtesy of GENERAL MOTORS CORP.
