Crankshaft Removal

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the lower crankcase.

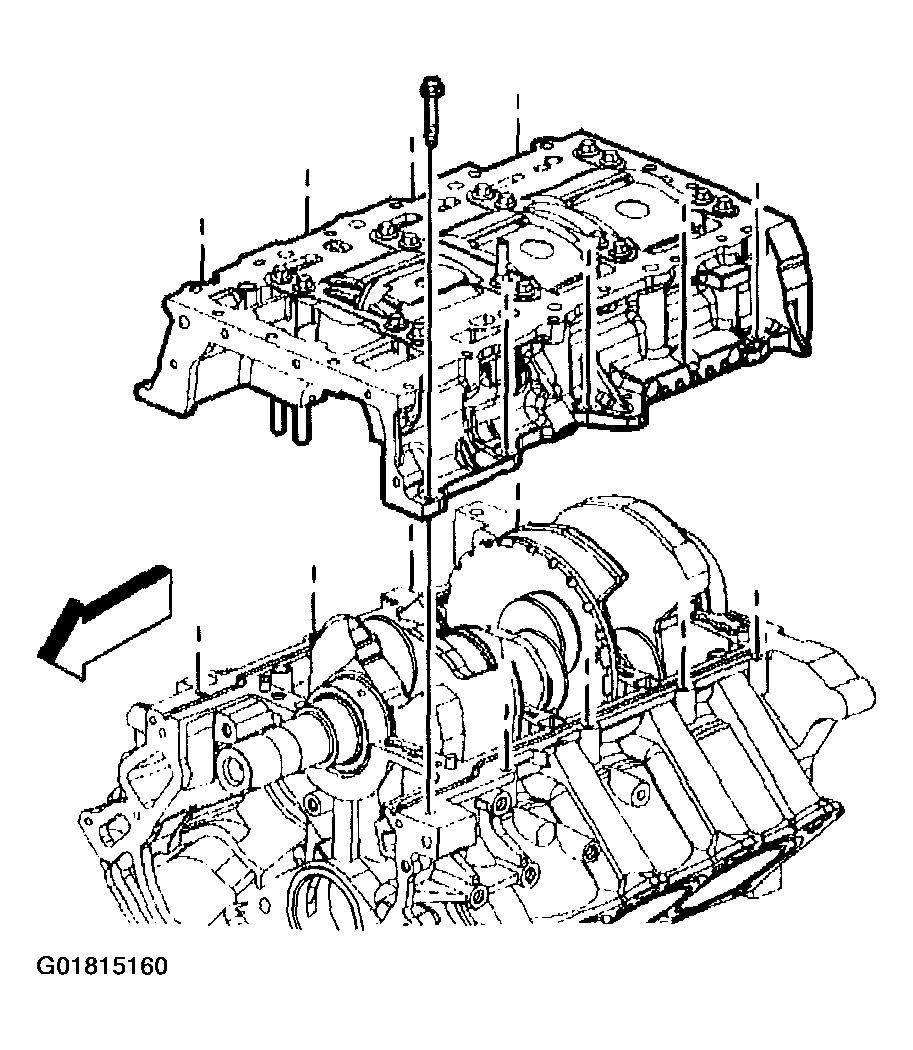

    Fig 1: Installing Lower Crankcase
    G01815160Courtesy of GENERAL MOTORS CORP.
  2. Using two hands, lift the crankshaft straight up from the engine block.
  3. Place the crankshaft in a secure place.

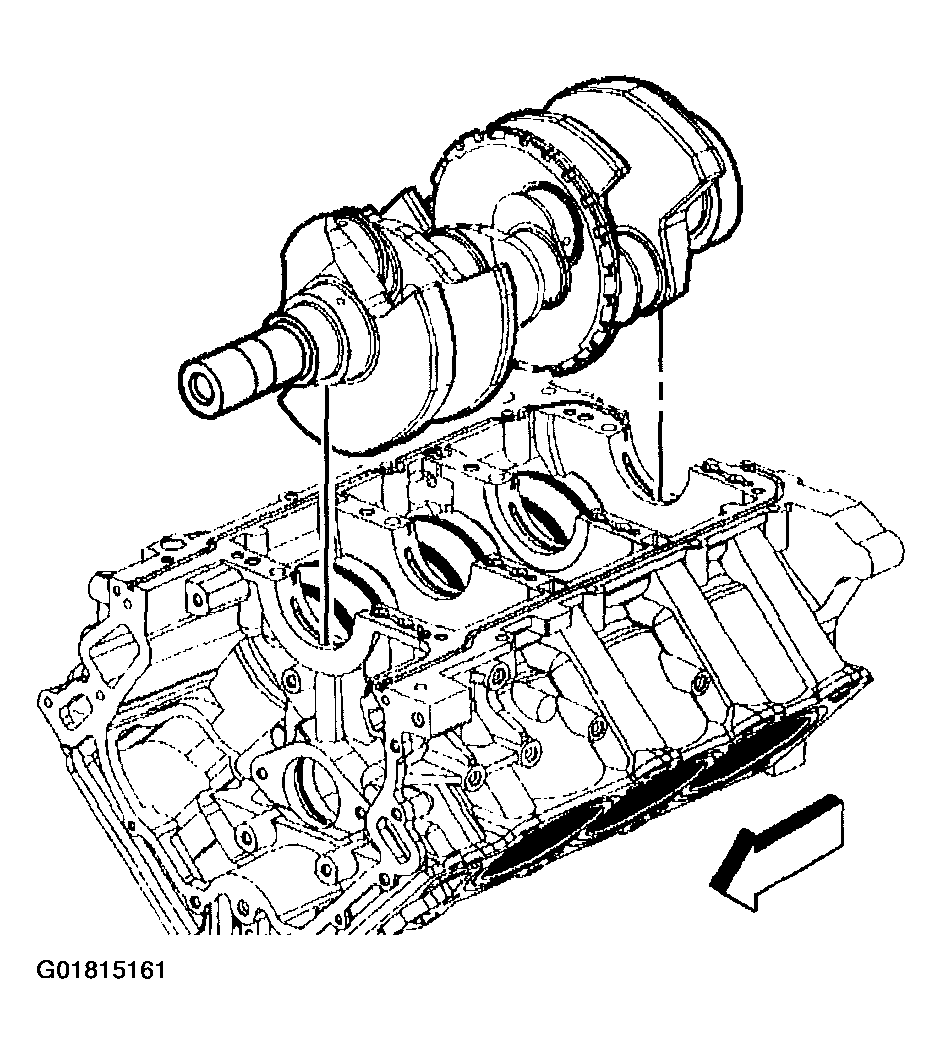

    Fig 2: Removing Crankshaft
    G01815161Courtesy of GENERAL MOTORS CORP.
  4. Remove the crankshaft sprocket drive pin (1) from the nose of the crankshaft.

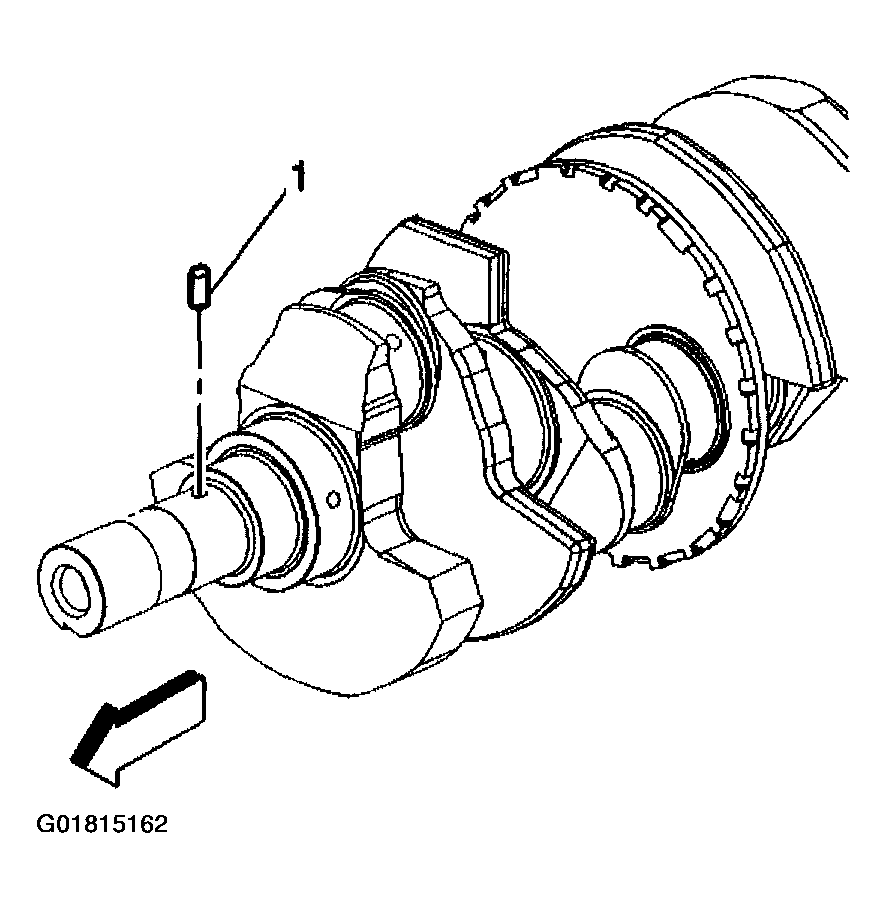

    Fig 3: Removing Crankshaft Sprocket Drive Pin
    G01815162Courtesy of GENERAL MOTORS CORP.
