Tools Required

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the J 43442.
    Fig 1: Installing J 43442
    G01815538Courtesy of GENERAL MOTORS CORP.

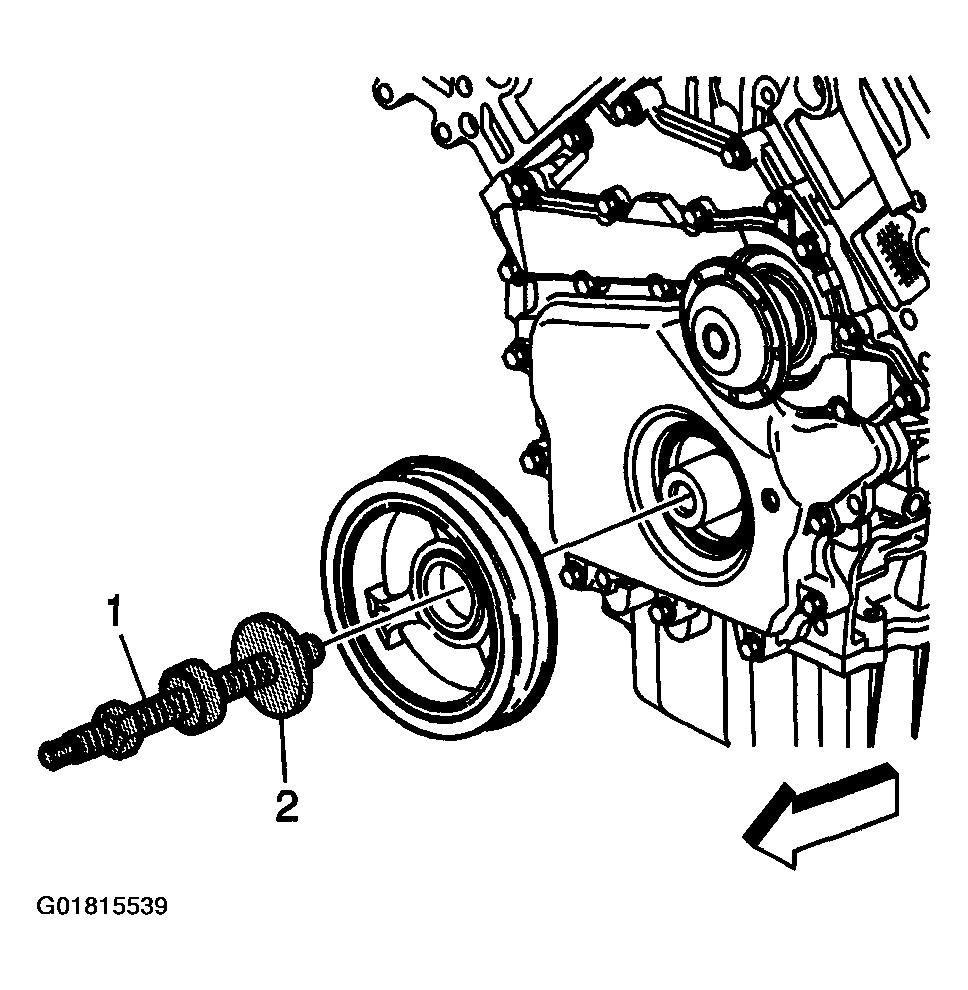

  2. Use the J 42041  (1), nut, bearing and washer J 42041-2 (2) to install the crankshaft balancer.
    Fig 2: Installing Crankshaft Balancer
    G01815539Courtesy of GENERAL MOTORS CORP.

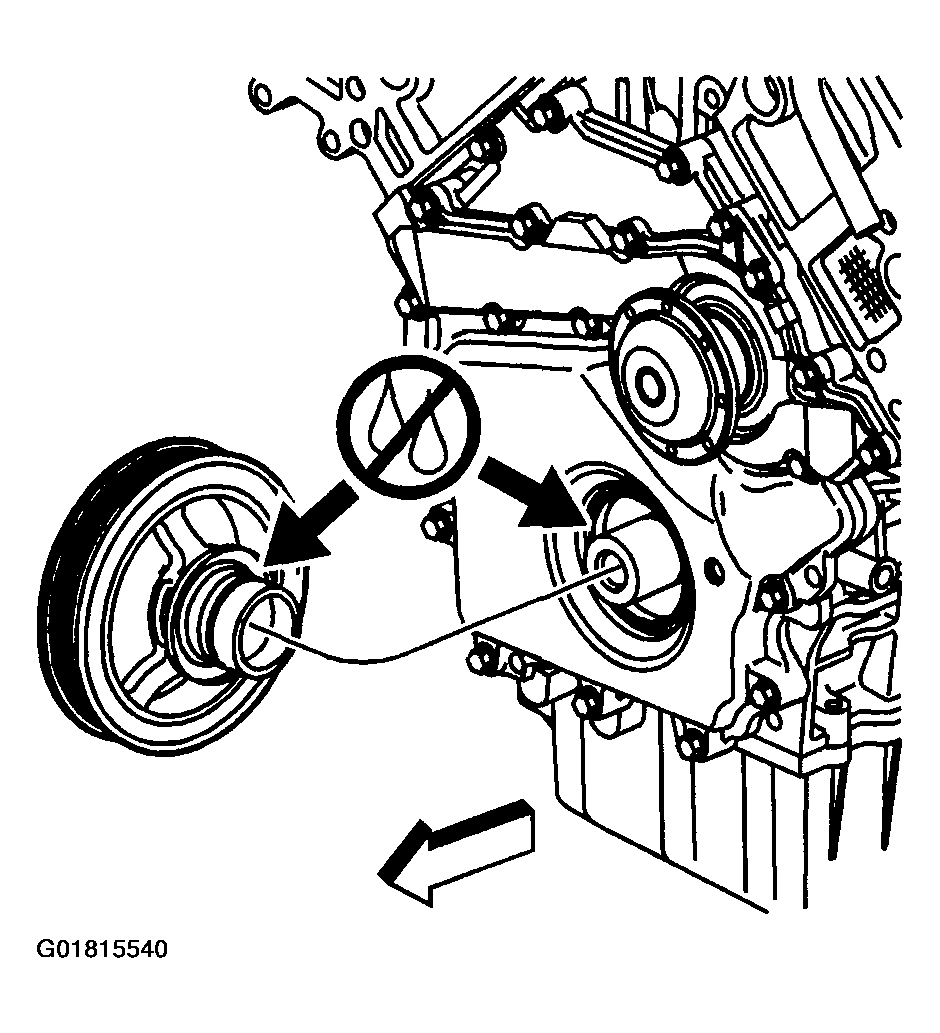

    Important:  Do not lubricate the crankshaft front oil seal or crankshaft balancer sealing surfaces. The crankshaft balancer is installed into a dry seal.

  3. Place the crankshaft balancer in position on the crankshaft.
    Fig 3: Identifying Non-Lubricated Areas On Crankshaft Front Oil Seal & Balancer Sealing Surfaces
    G01815540Courtesy of GENERAL MOTORS CORP.

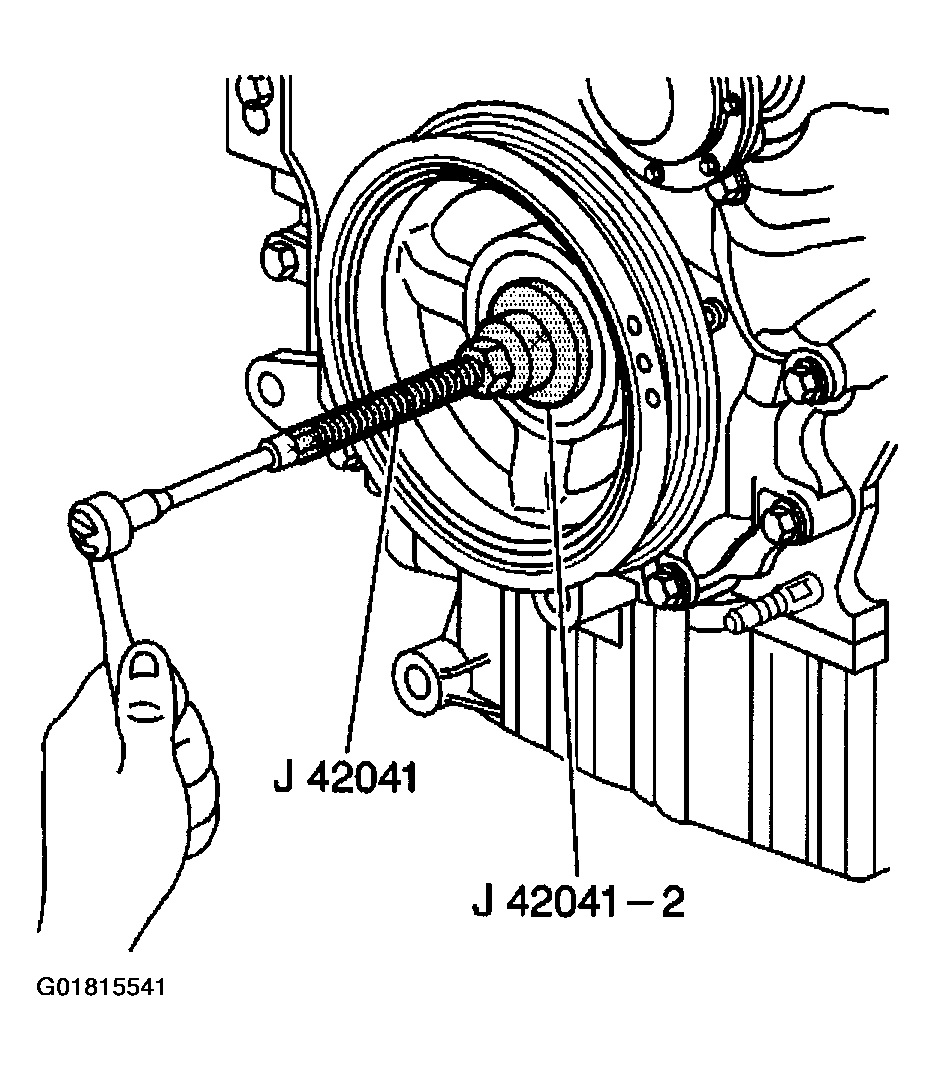

  4. Thread the J 42041  in the crankshaft. Make sure you engage at least ten threads of the J 42041  before pressing the crankshaft balancer in place.
    Fig 4: Pressing Crankshaft Balancer In
    G01815541Courtesy of GENERAL MOTORS CORP.
  5. Push the crankshaft balancer into position by tightening the nut on the J 42041  until the large washer bottoms out on the crankshaft end.

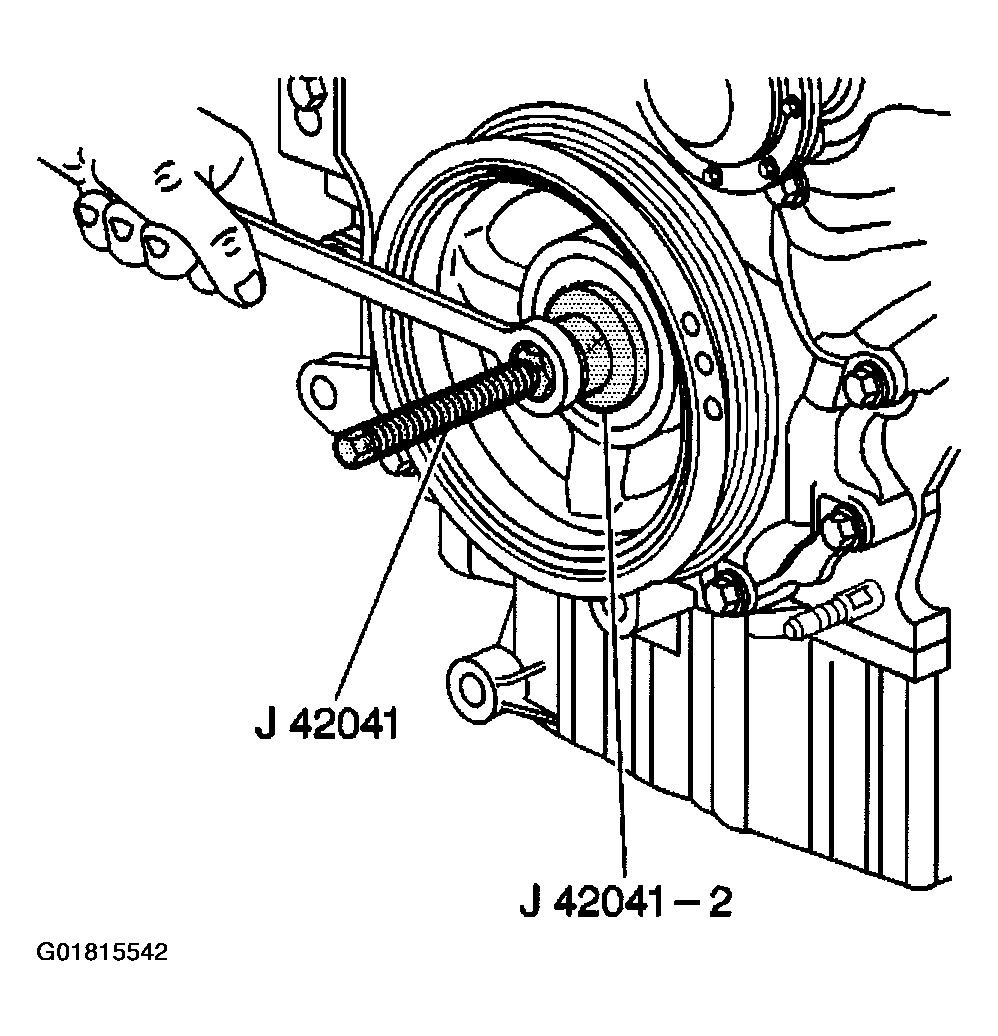

  6. Remove the J 42041.
    Fig 5: Removing J 42041
    G01815542Courtesy of GENERAL MOTORS CORP.

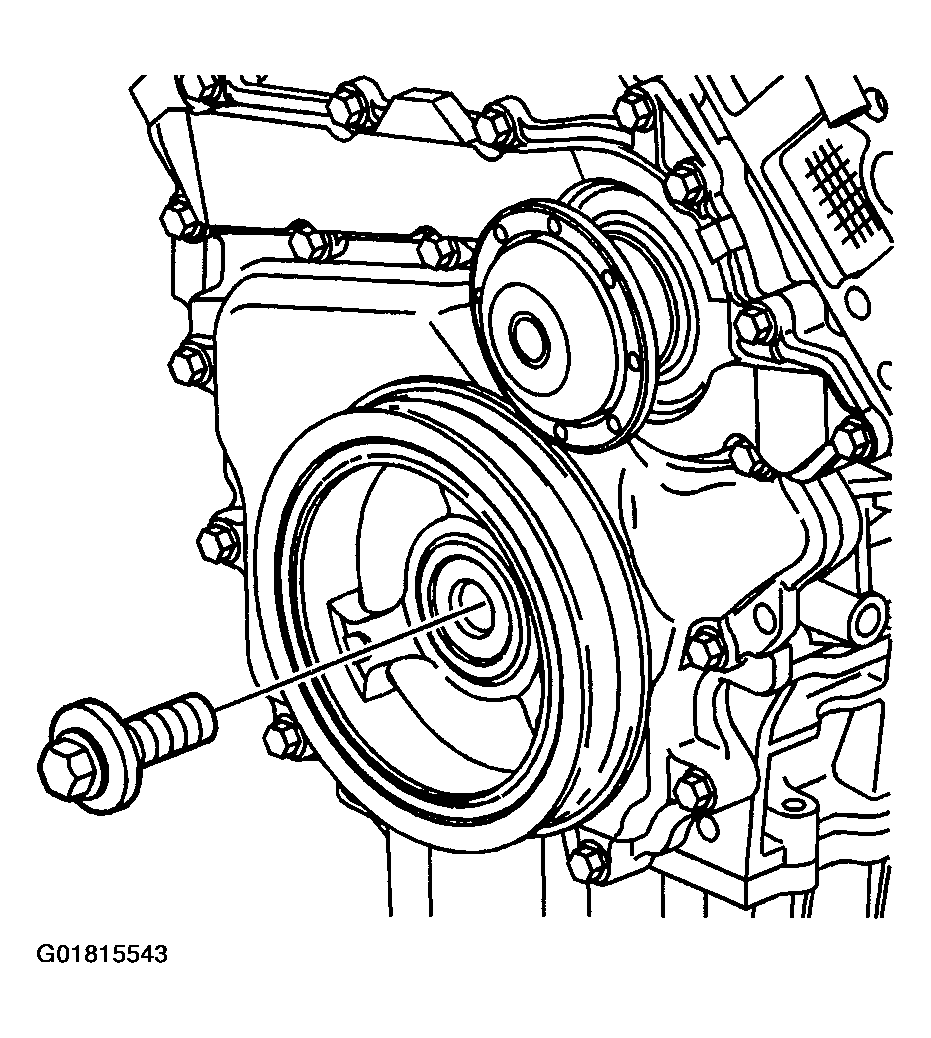

  7. Install the crankshaft balancer bolt.
    Fig 6: Installing Crankshaft Balancer Bolt
    G01815543Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to in FASTENER NOTICE .

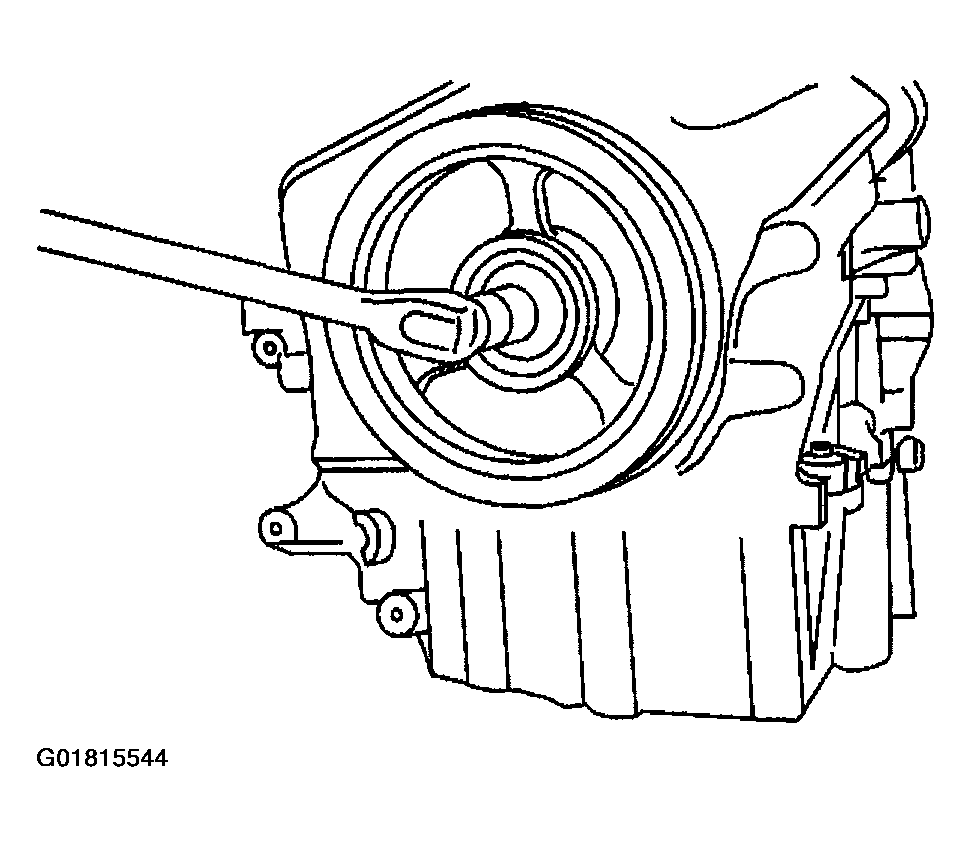

  8. Tighten the crankshaft balancer bolt.

    Tighten

    1. 8.1. Tighten the crankshaft balancer bolt to 50 N.m (37 ft lbs).
    2. 8.2. Tighten the crankshaft balancer bolt an additional 120 degrees using the J 36660-A.
    Fig 7: Tightening Crankshaft Balancer Bolt
    G01815544Courtesy of GENERAL MOTORS CORP.

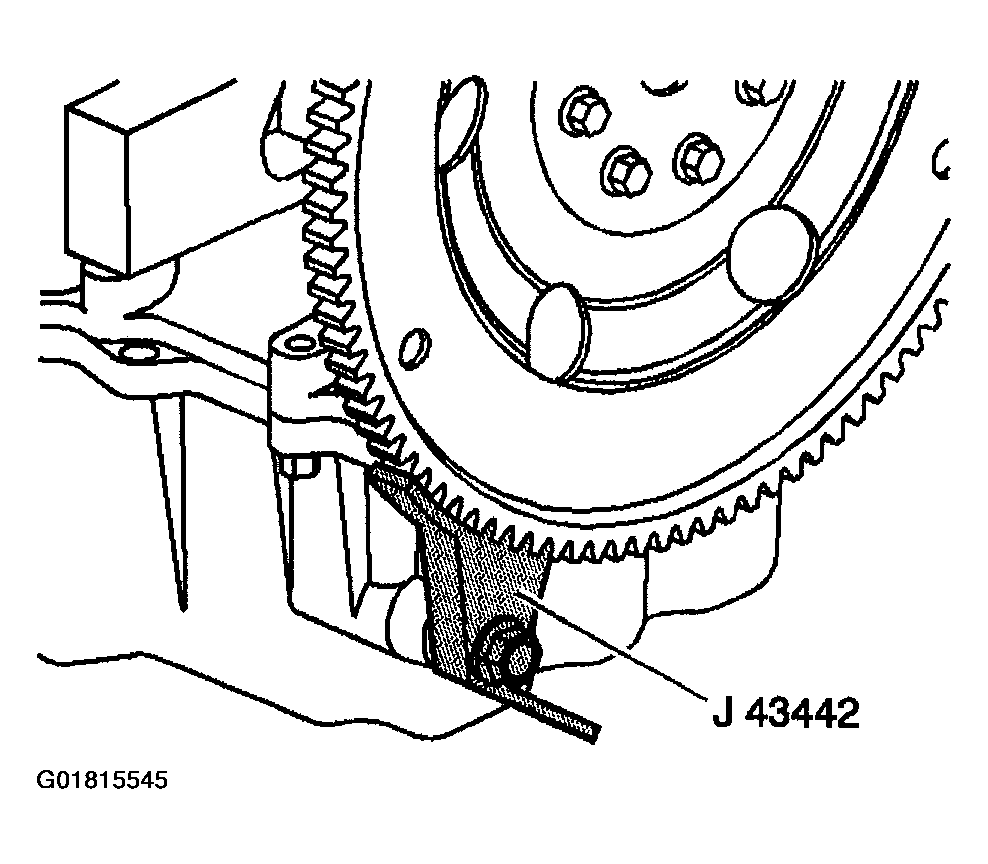

  9. Remove the J 43442.
    Fig 8: Removing J 43442
    G01815545Courtesy of GENERAL MOTORS CORP.

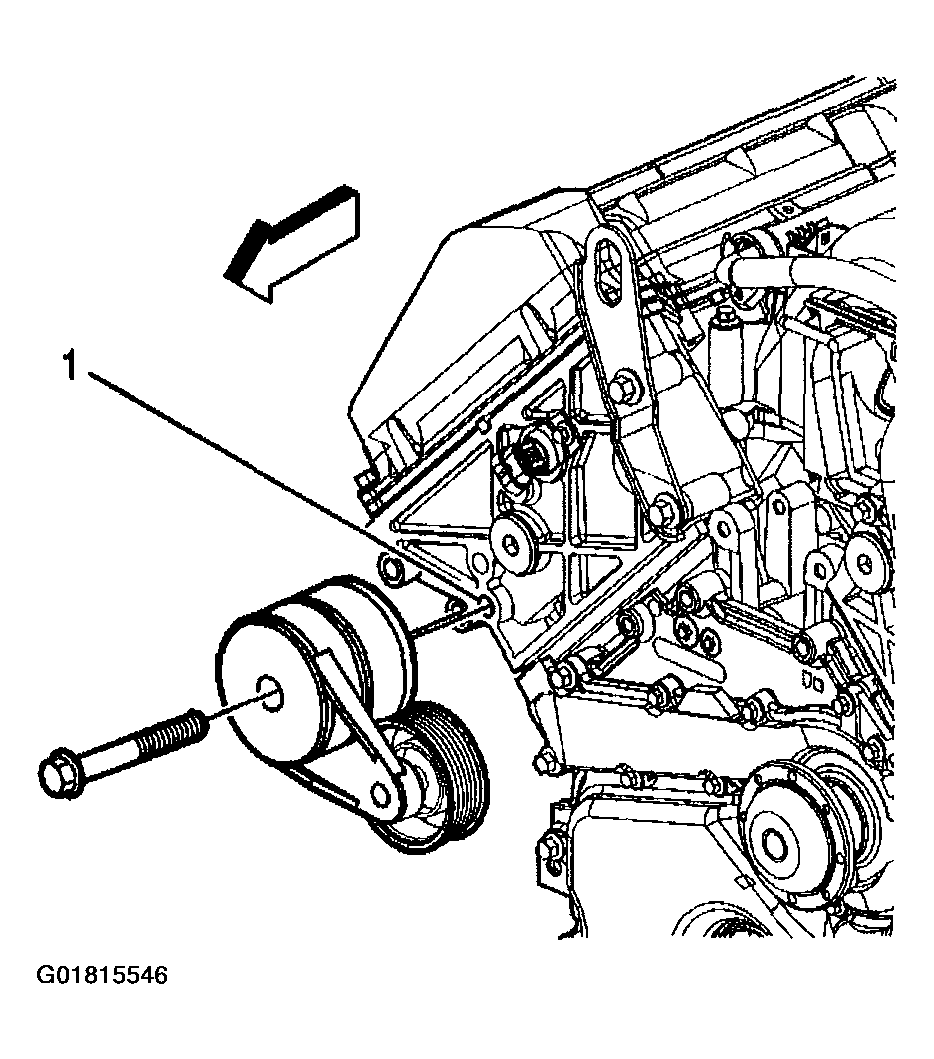

  10. Install the drive belt tensioner. Be sure to locate the tensioner anchor pin in the cylinder head recess (1).
  11. Install the drive belt tensioner bolt.

    Tighten

    Tighten the drive belt tensioner bolt to 50 N.m (37 ft lbs).

    Fig 9: Installing Drive Belt Tensioner
    G01815546Courtesy of GENERAL MOTORS CORP.
