Tools Required

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the camshaft cover bolts.
  2. Lift the camshaft cover off the cylinder head evenly.
  3. Rotate the crankshaft in order to place the number one cylinder at TDC using the J 43032.

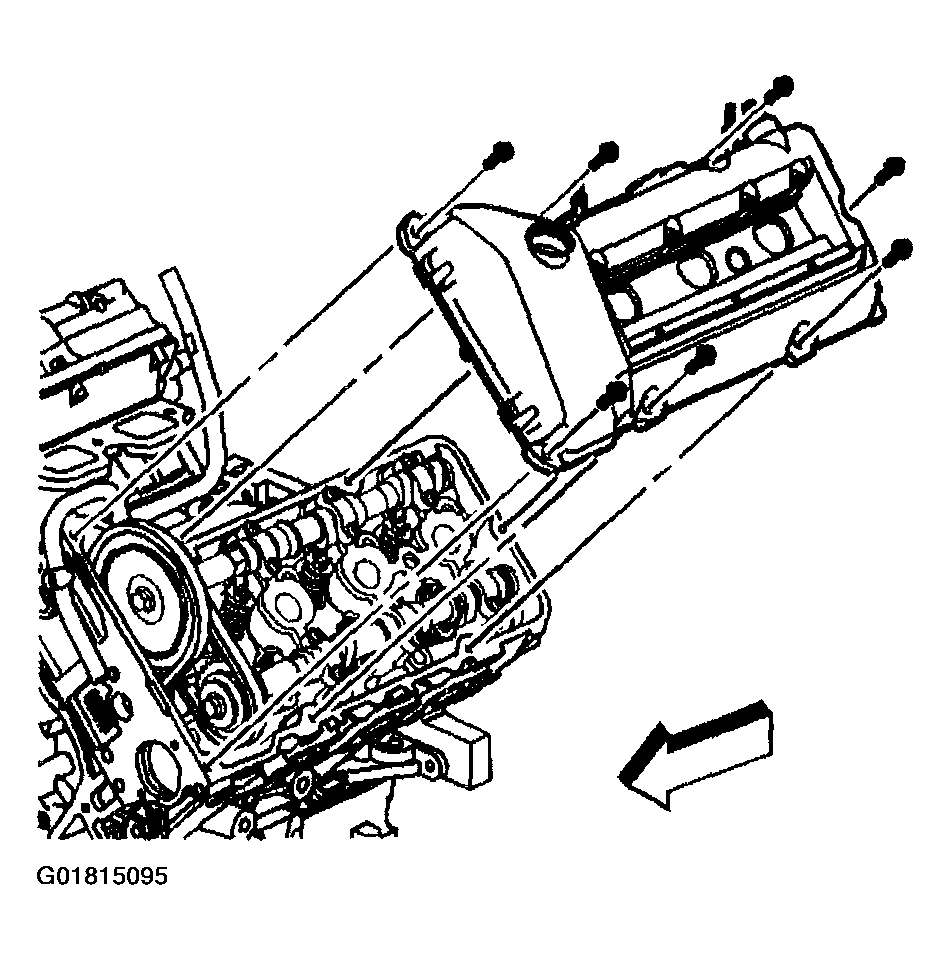

    Fig 1: Removing Camshaft Cover
    G01815095Courtesy of GENERAL MOTORS CORP.
    CAUTION: The camshaft holding tools must be installed on the camshafts to prevent camshaft rotation. When performing service to the valve train and/or timing components, valve spring pressure can cause the camshafts to rotate unexpectedly and can cause personal injury.
  4. Install the J 42038  onto the ends of the camshaft. Rotate the engine to align the camshafts with the tool using the hex in the camshaft and an open end wrench.

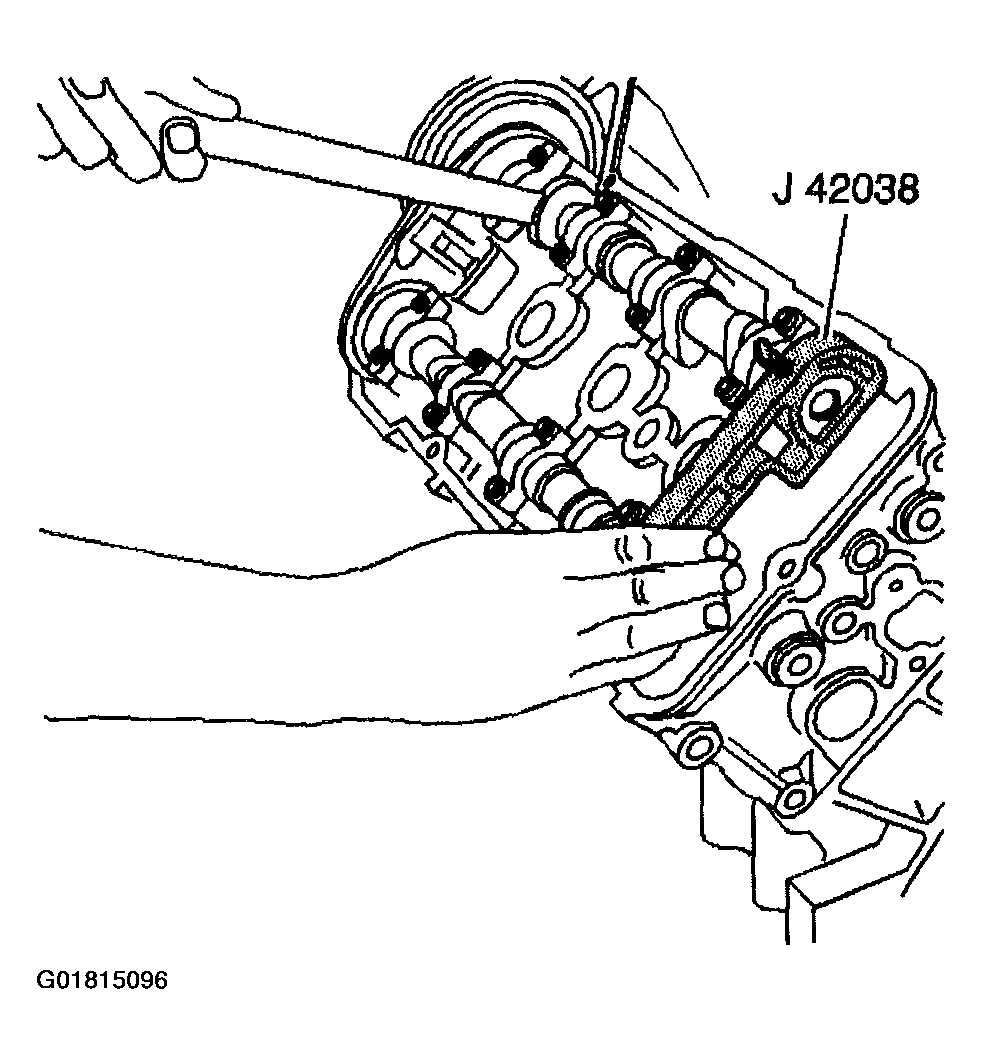

    Fig 2: Installing J 42038
    G01815096Courtesy of GENERAL MOTORS CORP.
  5. When installed properly, the J 42038  will be fully seated on the camshaft ends with the camshaft flats parallel to the cam cover sealing surface.

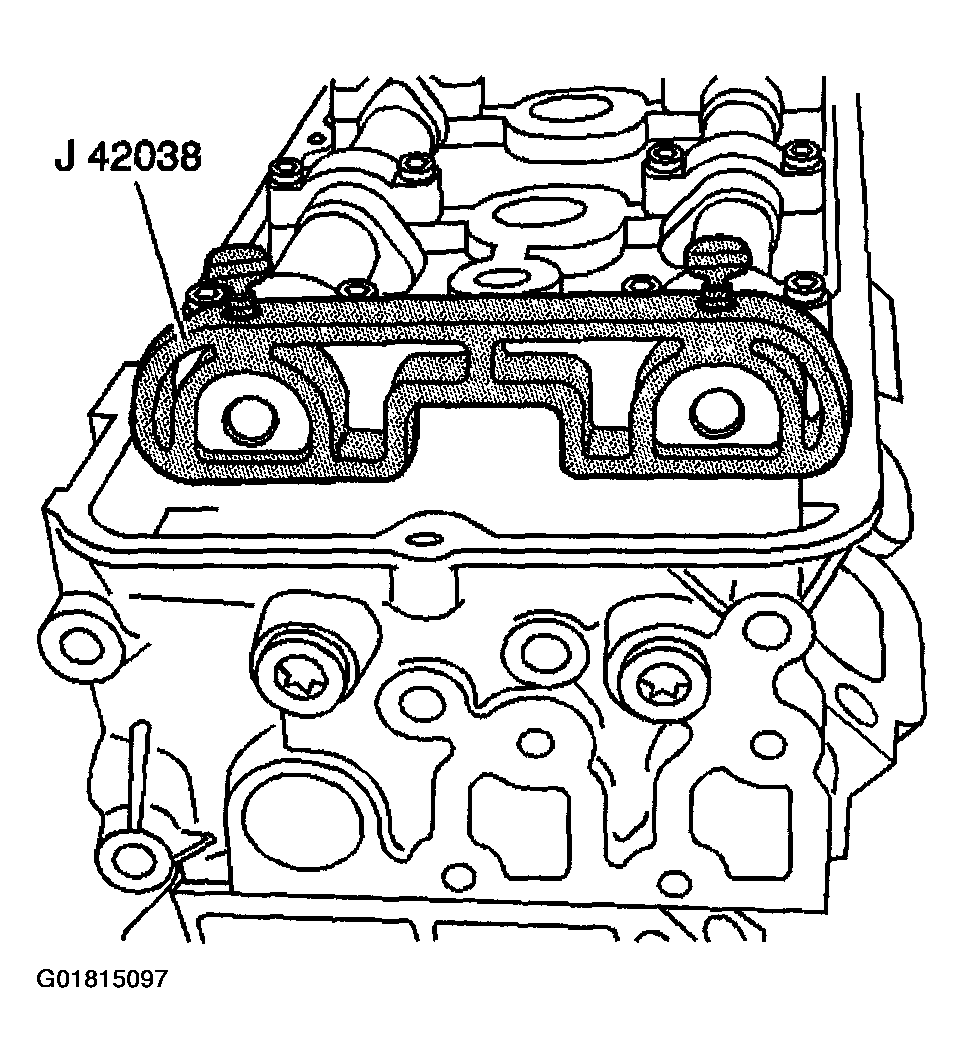

    Fig 3: Identifying J 42038
    G01815097Courtesy of GENERAL MOTORS CORP.
