Camshaft Cover Assemble

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install into the left camshaft cover the following:
    • The fuel injector sight shield studs (1)
    • The PCV valve grommet (2)
    • The PCV valve (3)

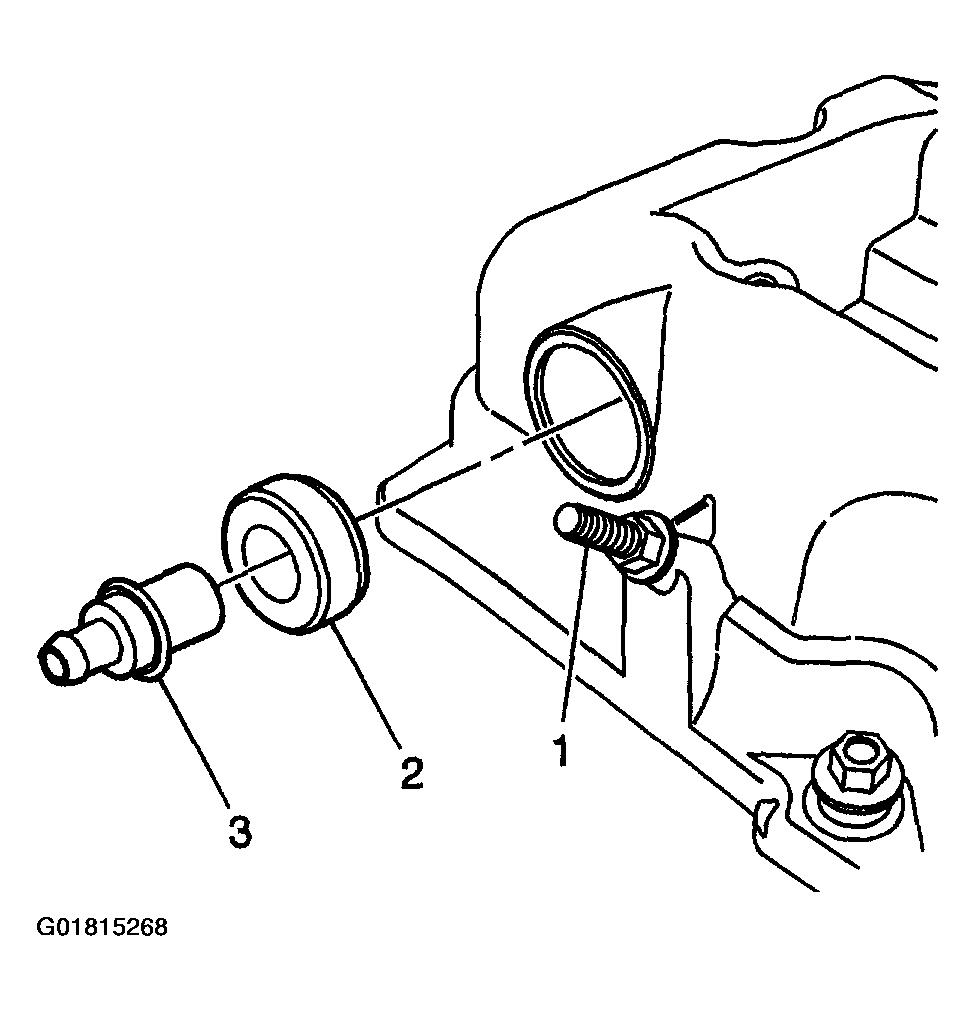

    Fig 1: Installing Fuel Injector Sight Shield Studs, PCV Valve & Grommet
    G01815268Courtesy of GENERAL MOTORS CORP.
  2. Install the camshaft cover bolt grommets.
  3. Install the camshaft cover bolts.
    Fig 2: Installing Camshaft Cover Bolt
    G01815269Courtesy of GENERAL MOTORS CORP.
  4. Install the NEW ignition module ground/RFI spring port seal.
  5. Install the NEW spark plug port seals.
  6. Install the NEW camshaft cover gasket.

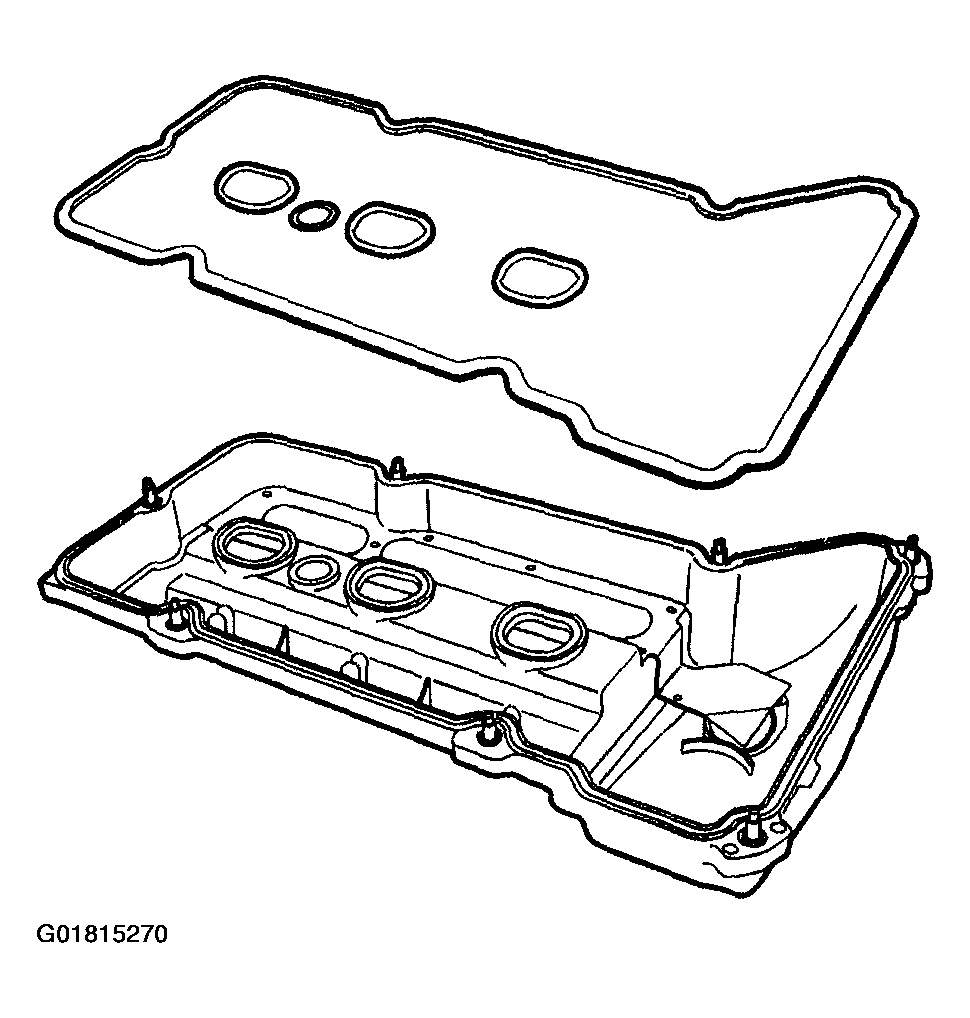

    Fig 3: Installing Camshaft Cover Gasket
    G01815270Courtesy of GENERAL MOTORS CORP.
