Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle.
  2. Remove the tire and wheel.
  3. Remove the brake rotor. Refer to BRAKE ROTOR .

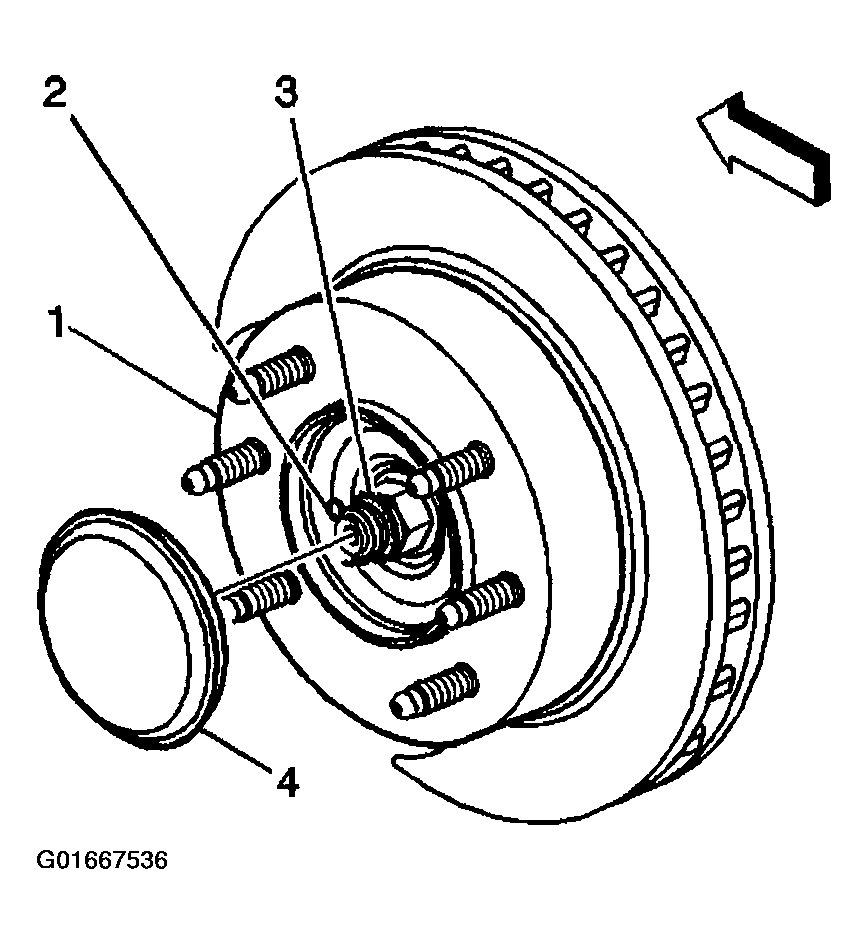

    Fig 1: Axle Nut Dust Cover
    G01667536Courtesy of GENERAL MOTORS CORP.
  4. Remove the axle nut dust cover (4).
  5. Remove the cotter pin (2) and retainer (3) from the wheel drive shaft nut.
  6. Remove the wheel drive shaft retaining nut.
  7. Remove the wheel hub and bearing retaining bolts.

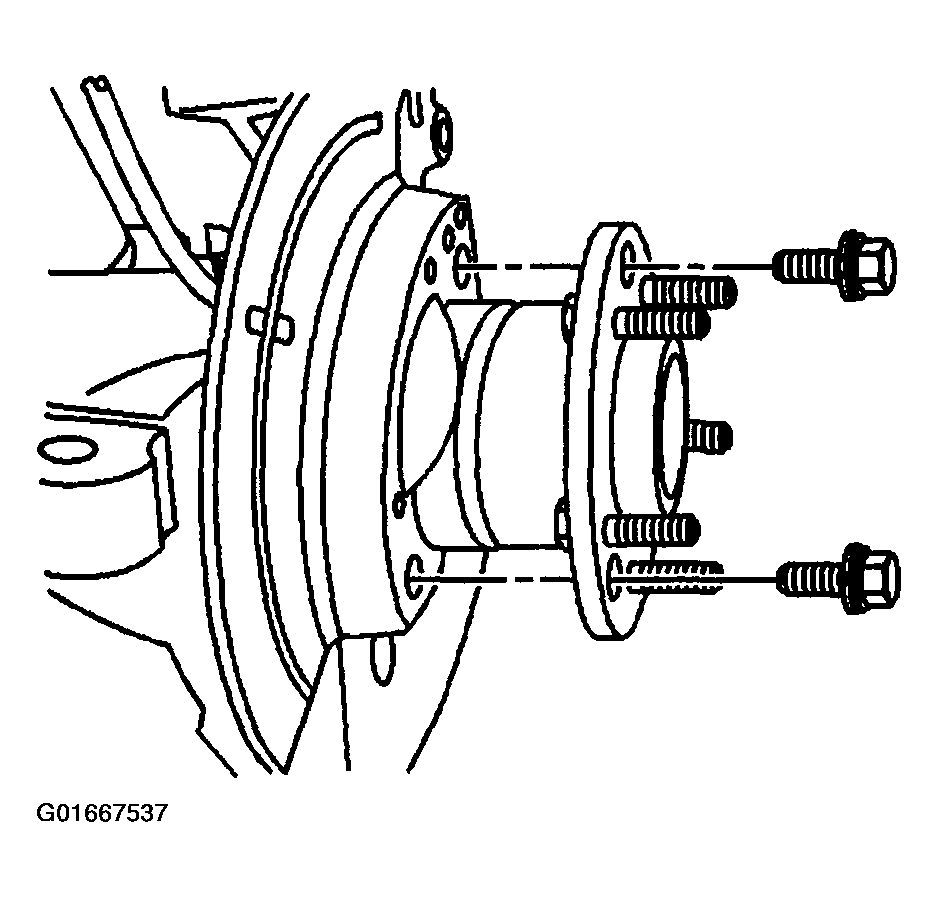

    Fig 2: Wheel Hub & Bearing Retaining Bolts
    G01667537Courtesy of GENERAL MOTORS CORP.
  8. Separate the wheel drive shaft from the wheel hub and bearing using J 45859  (2) or equivalent.

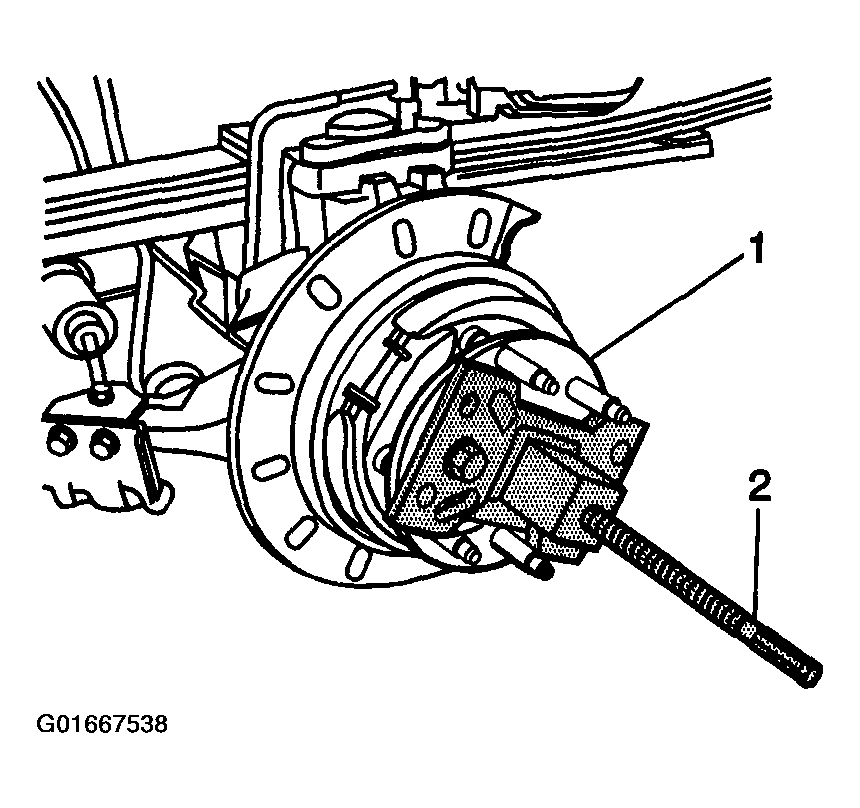

    Fig 3: Separating Wheel Drive Shaft From Wheel Hub & Bearing
    G01667538Courtesy of GENERAL MOTORS CORP.
  9. Remove the wheel hub and bearing (1) from the vehicle.
