Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle.
  2. Remove the tire and wheel.
  3. Remove the tie rod bracket (2) retaining bolts (1) from the steering knuckle.

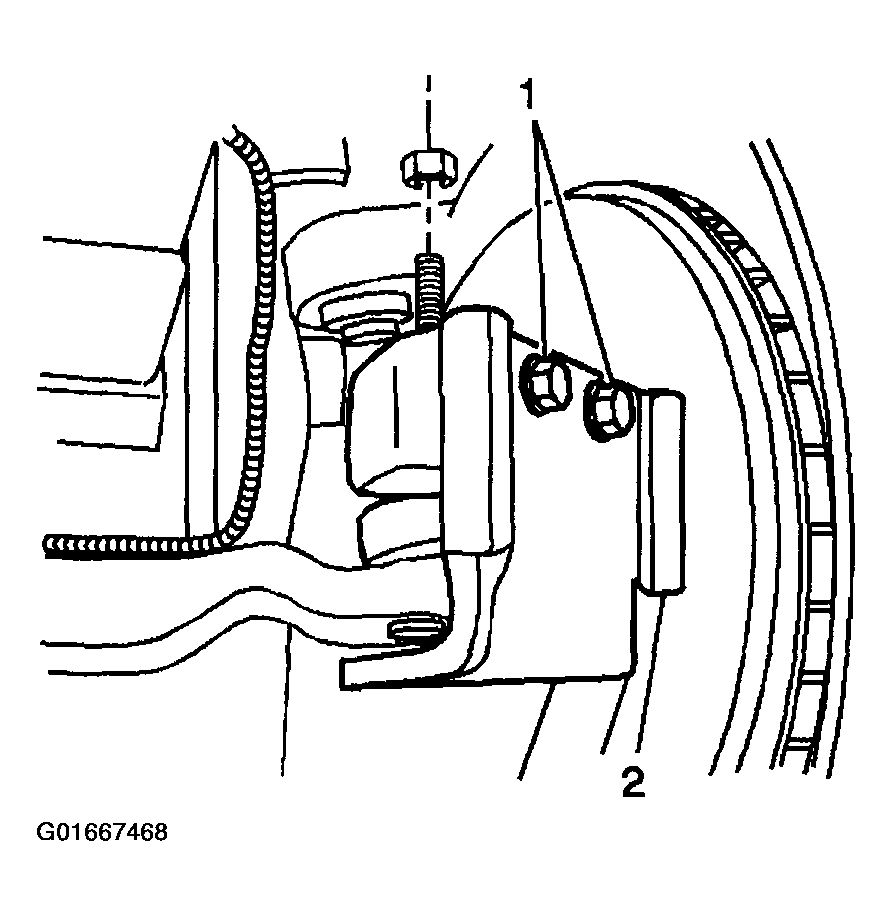

    Fig 1: Tie Rod Bracket Retaining Bolt
    G01667468Courtesy of GENERAL MOTORS CORP.
  4. Loosen the tie rod jam nut (1).

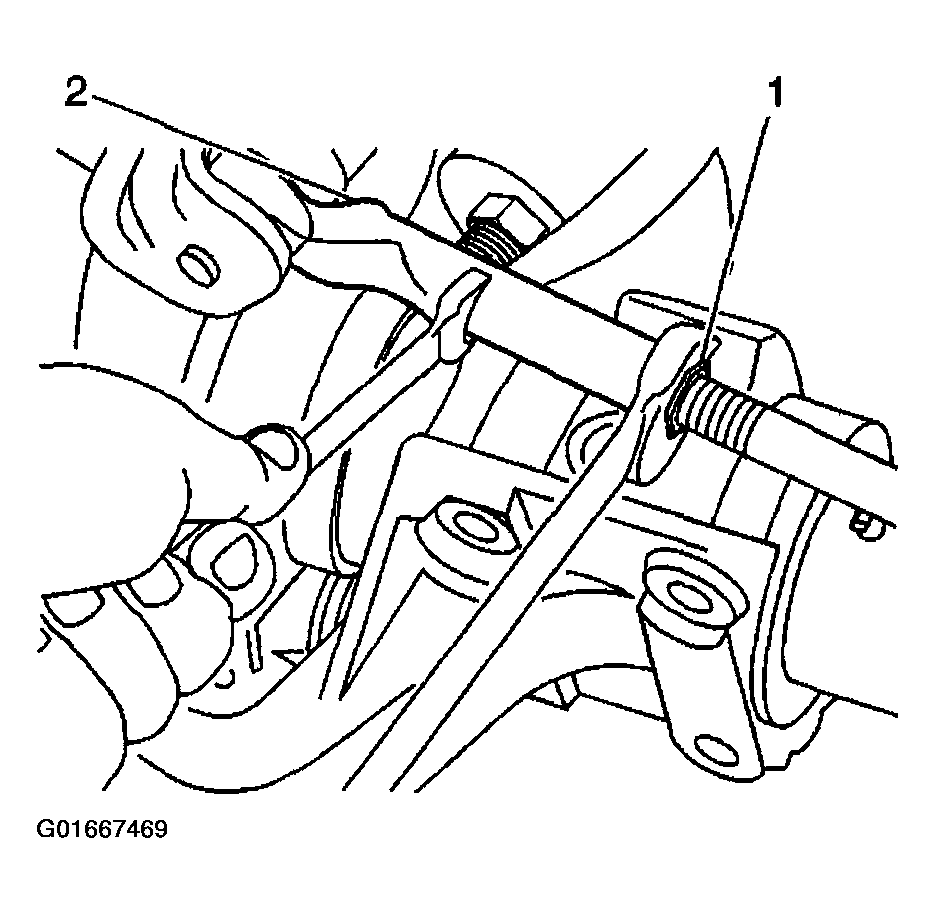

    Fig 2: Tie Rod Jam Nut
    G01667469Courtesy of GENERAL MOTORS CORP.
  5. Remove the nut retaining the outer tie rod end to the steering knuckle.
  6. Using the J 24319-B  (1), remove the outer tie rod end from the steering knuckle.
  7. Remove the outer tie rod end from the inner tie rod.

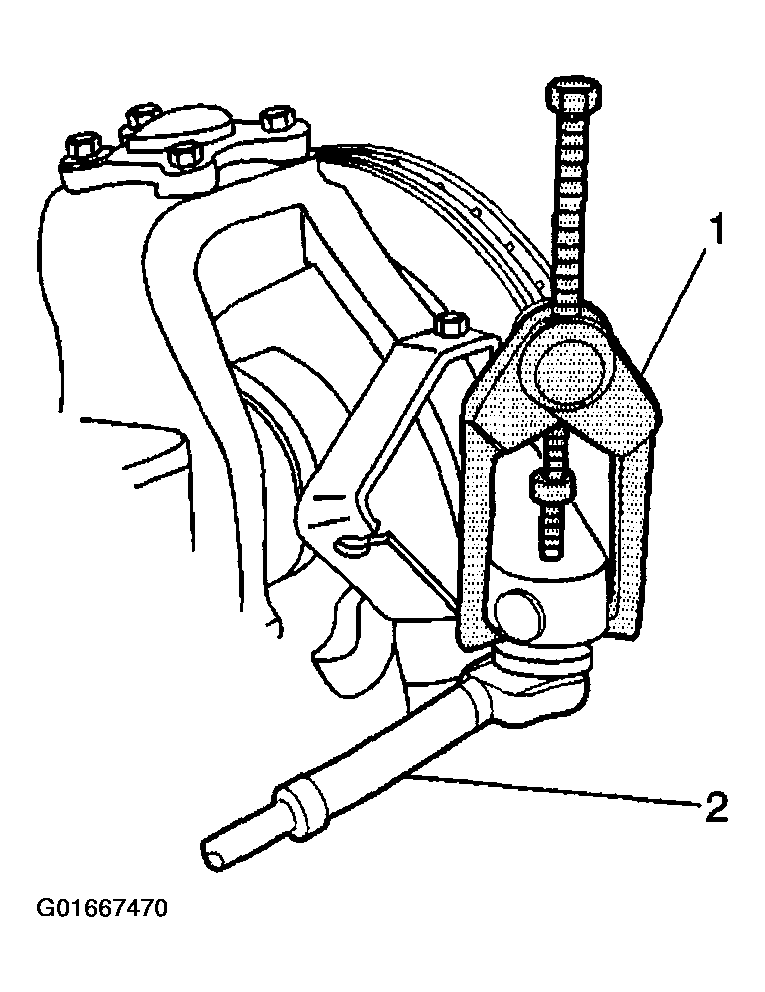

    Fig 3: Outer Tie Rod End
    G01667470Courtesy of GENERAL MOTORS CORP.
