Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle.
  2. Remove the outer tie rod from the vehicle. Refer to Rear Wheel Steering Tie Rod End Replacement - Outer .
  3. Remove the tie rod jam nut (2) from the inner tie rod.
    Fig 1: Tie Rod Jam Nut
    G01667476Courtesy of GENERAL MOTORS CORP.
  4. Remove the outer clamp (1) retaining the boot (2) to the steering gear.

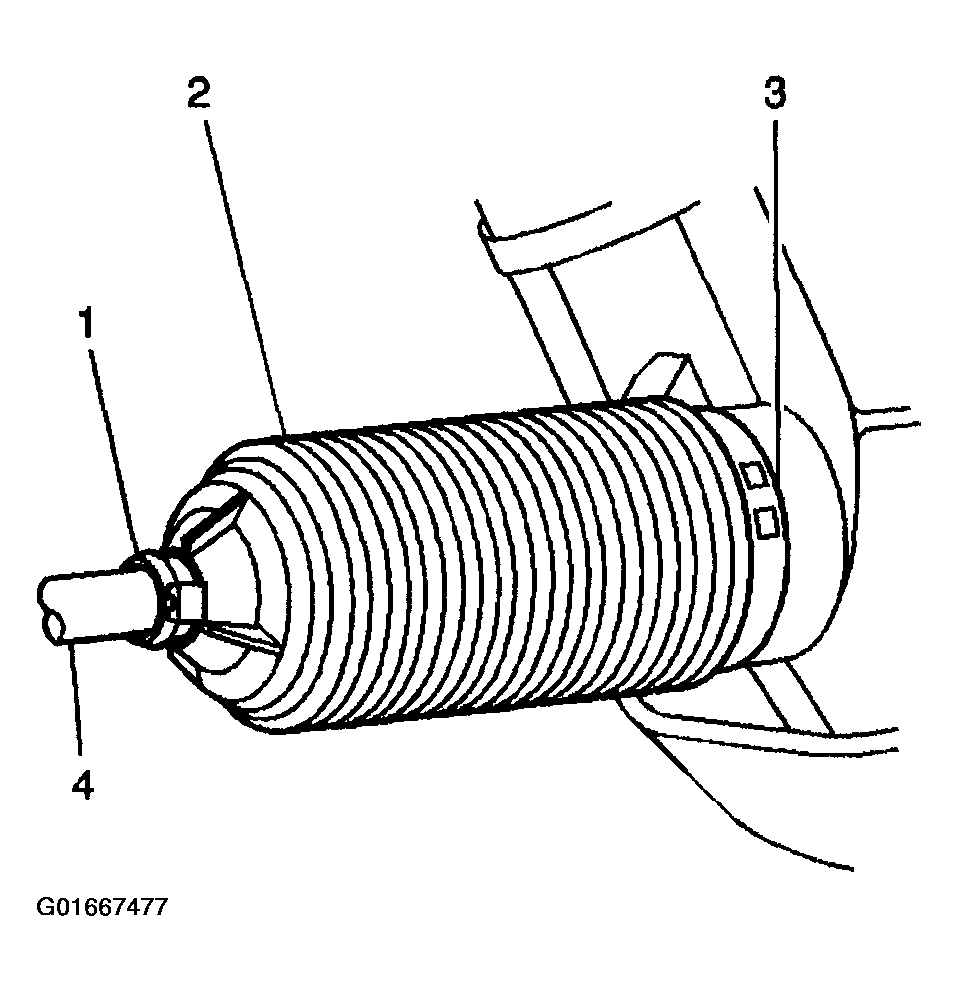

    Fig 2: Boot
    G01667477Courtesy of GENERAL MOTORS CORP.
  5. Remove the inner clamp (1) retaining the boot to the steering gear.

    Important:  Check the boot for damage by using a light and flexing the boot to inspect for wear. If the boot is damaged replace the steering gear actuator. Refer to Steering Gear Actuator & Cover Replacement .

  6. Remove the boot from the steering gear.

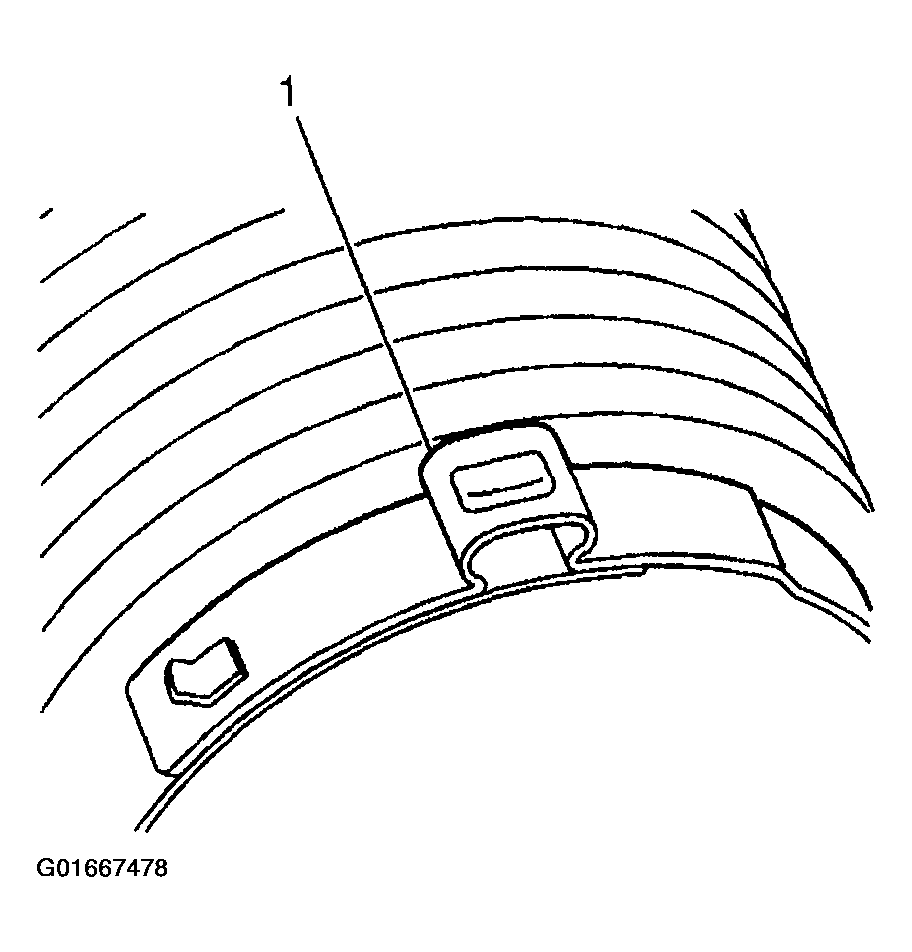

    Fig 3: Inner Boot Clamp
    G01667478Courtesy of GENERAL MOTORS CORP.
