Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the steering wheel shroud. Refer to Steering Wheel Shroud Replacement .

    Important:  Note the steering wheel wiring harness routing during removal to insure proper installation.

  2. Disconnect the steering wheel wiring harness from the control switch.
  3. Remove the steering wheel wiring harness from the steering wheel.

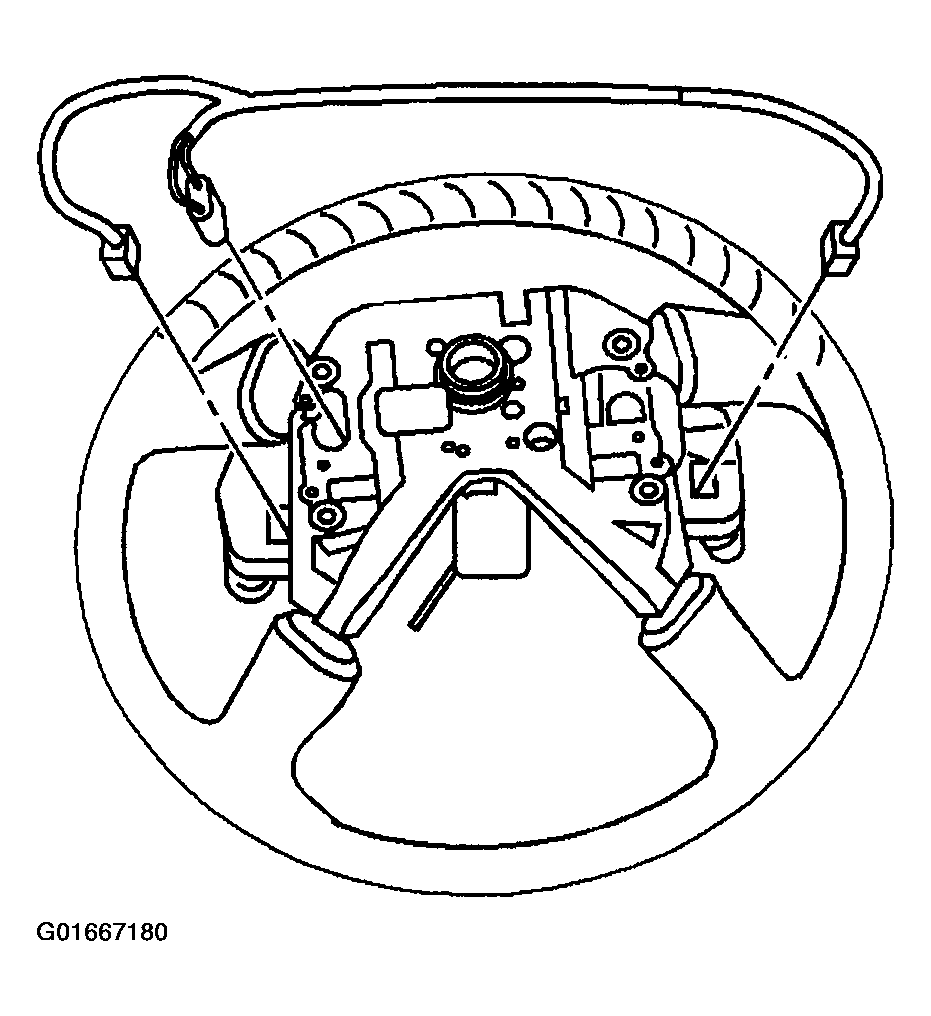

    Fig 1: Steering Wheel Wiring Harness
    G01667180Courtesy of GENERAL MOTORS CORP.
