Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the 2 TORX® head screws from the lower column cover.
  2. Remove the lower column cover.
  3. Roll back the seal on the shift lever (1) until the TORX® head screw (2) is exposed.

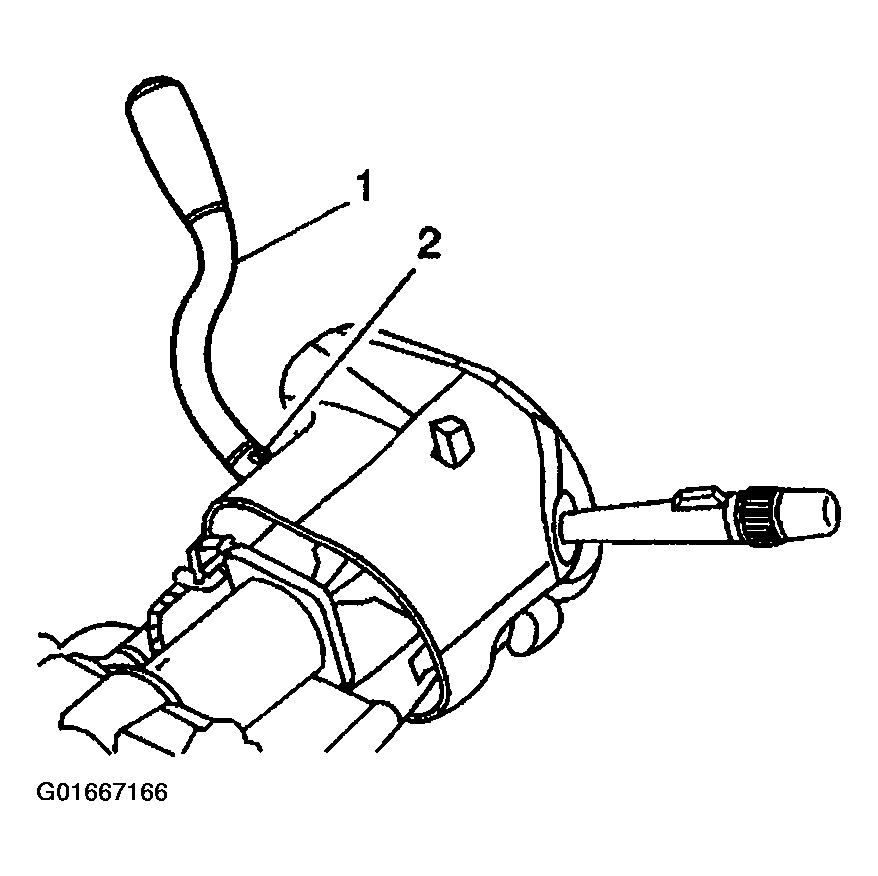

    4. Fig 1: Shift Lever
    G01667166Courtesy of GENERAL MOTORS CORP.
  4. Remove the TORX® head screw (2).
  5. Remove the knee bolster.
  6. Remove the nuts (1) from the knee bolster deflector bracket

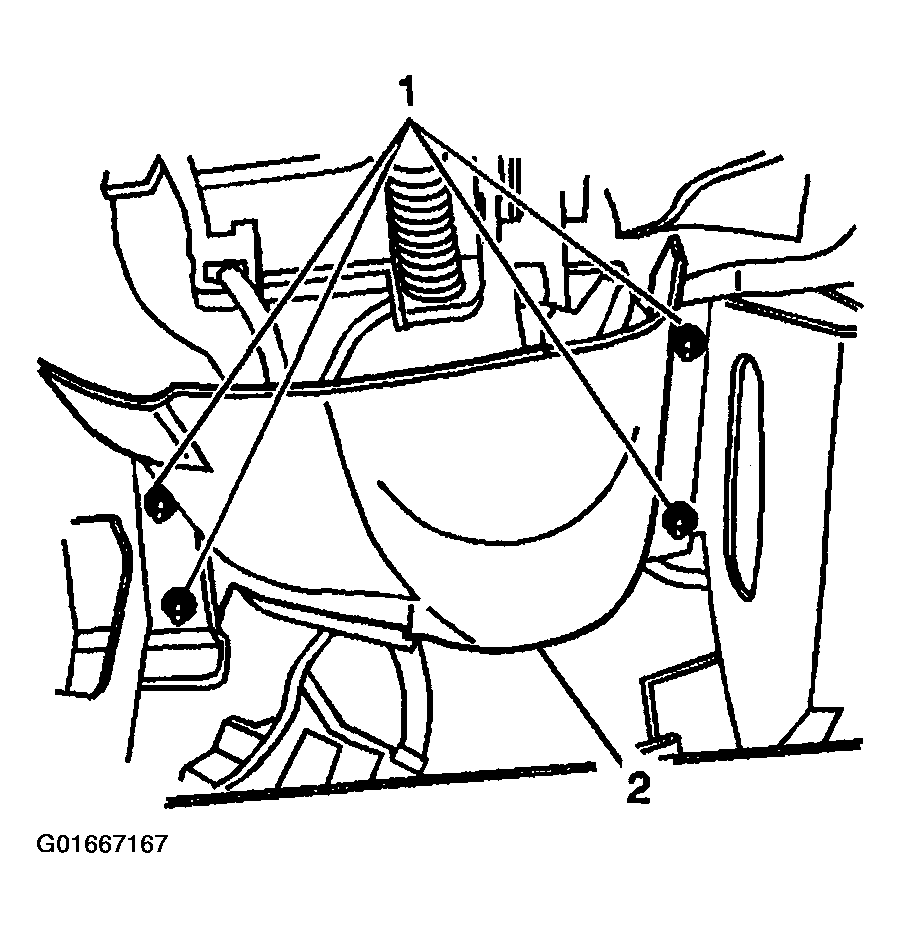

    Fig 2: Knee Bolster Deflector Bracket
    G01667167Courtesy of GENERAL MOTORS CORP.
    NOTE: During removal of the steering column the wire harness retaining clip must be removed and reinstalled after installing the steering column or damage may occur to the wire harness.
  7. Remove the wiring harness retaining pin (4) from the instrument panel.
  8. Remove the wire straps and open the harness insulation to gain access to the electrical wiring.

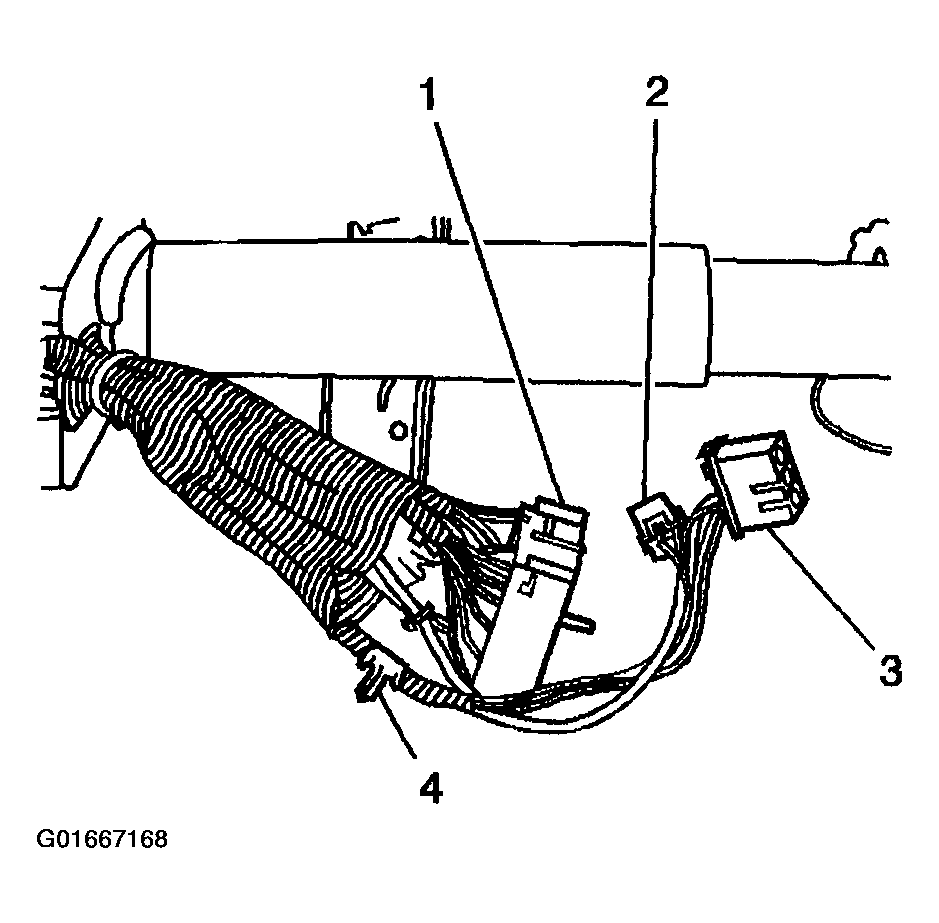

    9. Fig 3: Steering Column Electrical Connector
    G01667168Courtesy of GENERAL MOTORS CORP.
  9. Remove the wiring from the electrical connector.
  10. Remove the shift lever (1).
