Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the supplemental inflatable restraint (SIR) system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Remove the steering column trim covers. Refer to Steering Column Trim Covers Replacement - On Vehicle .
  3. Turn the ignition lock cylinder to the START position.
  4. Using an awl, insert the tip into the ignition lock cylinder access hole (1).

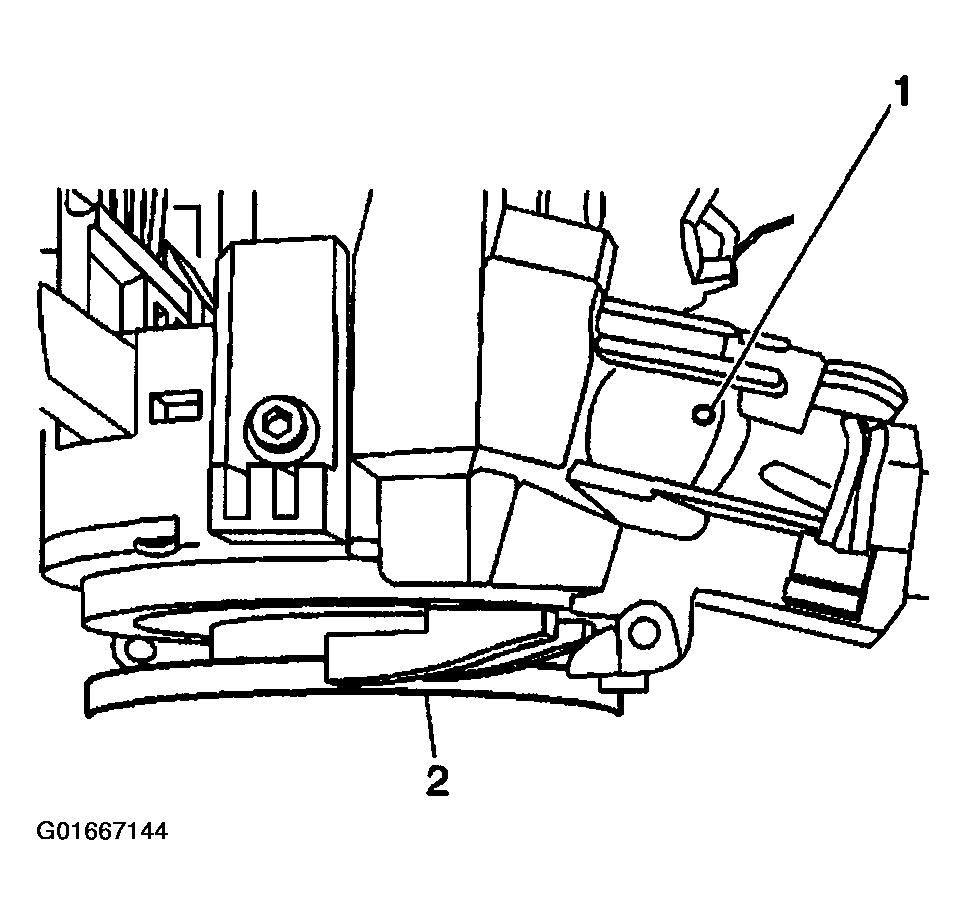

    5. Fig 1: Ignition Lock Cylinder Access Hole
    G01667144Courtesy of GENERAL MOTORS CORP.
  5. Push down and hold the ignition lock cylinder retaining pin.
  6. Release the ignition lock cylinder to the RUN position.
  7. Remove the ignition lock cylinder by pulling the ignition lock cylinder away from the steering column.

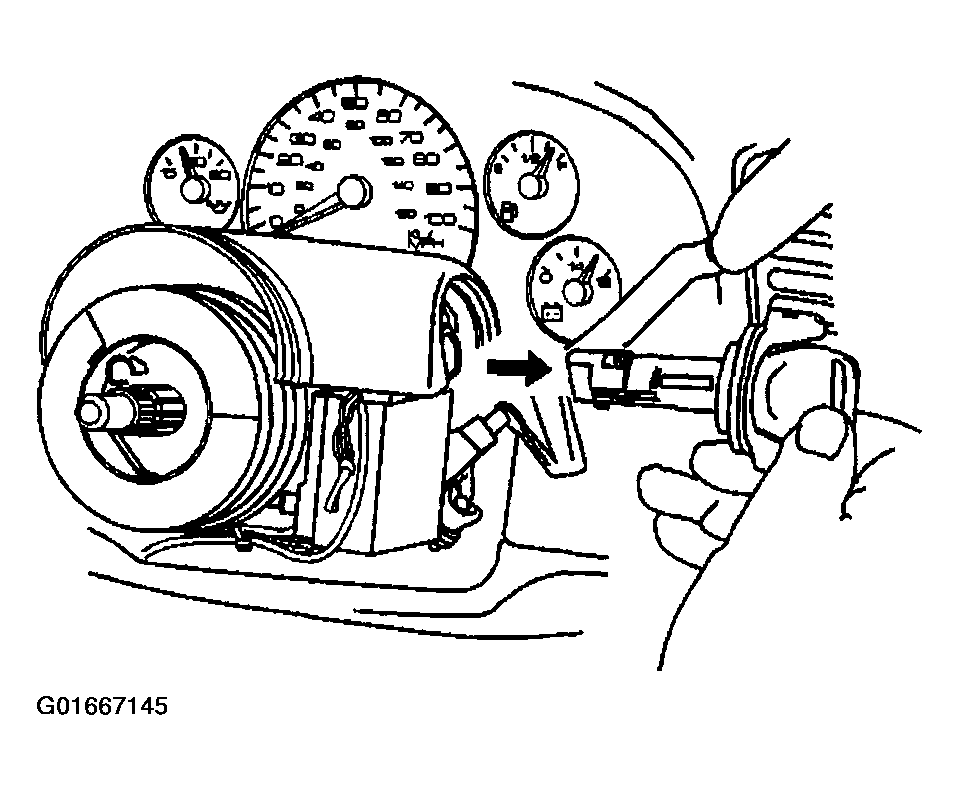

    Fig 2: Ignition Lock Cylinder
    G01667145Courtesy of GENERAL MOTORS CORP.
