Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Remove the inflatable Restraint Steering Wheel module. Refer to AIR BAG MODULES .
  3. Remove the horn plunger from the steering column by pressing inward to the stop and rotating horn plunger 90 degrees.

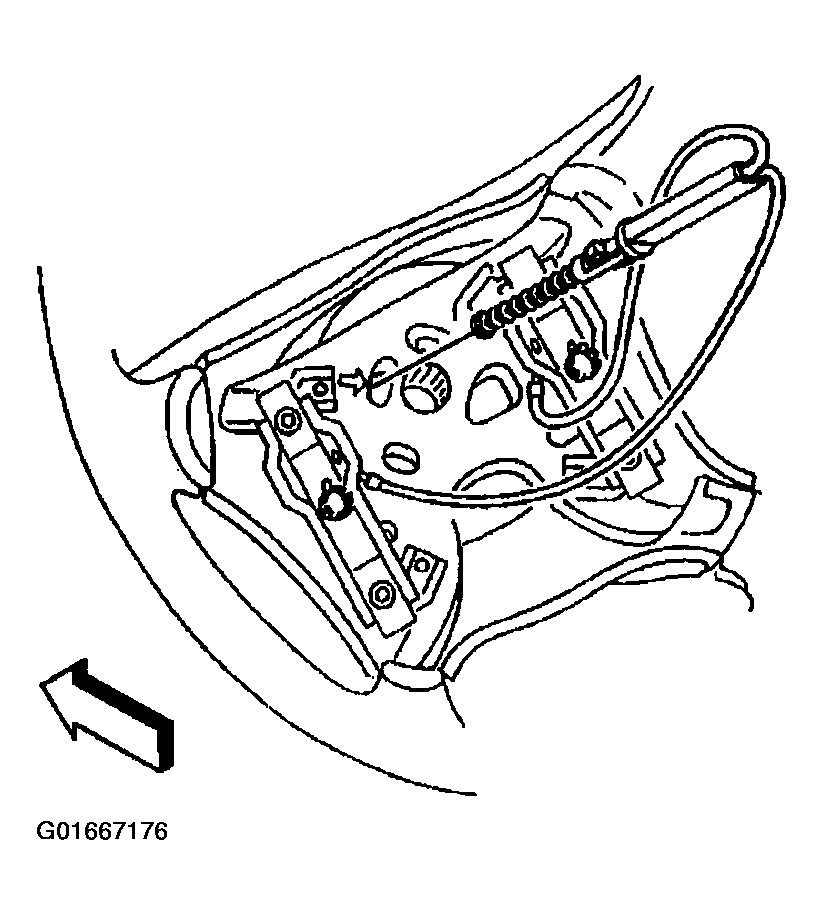

    Fig 1: Horn Plunger
    G01667176Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the horn contact plate (2) captured screws (1,4) from the steering wheel (3).
  5. Remove the horn switch (2) from the steering wheel (3).

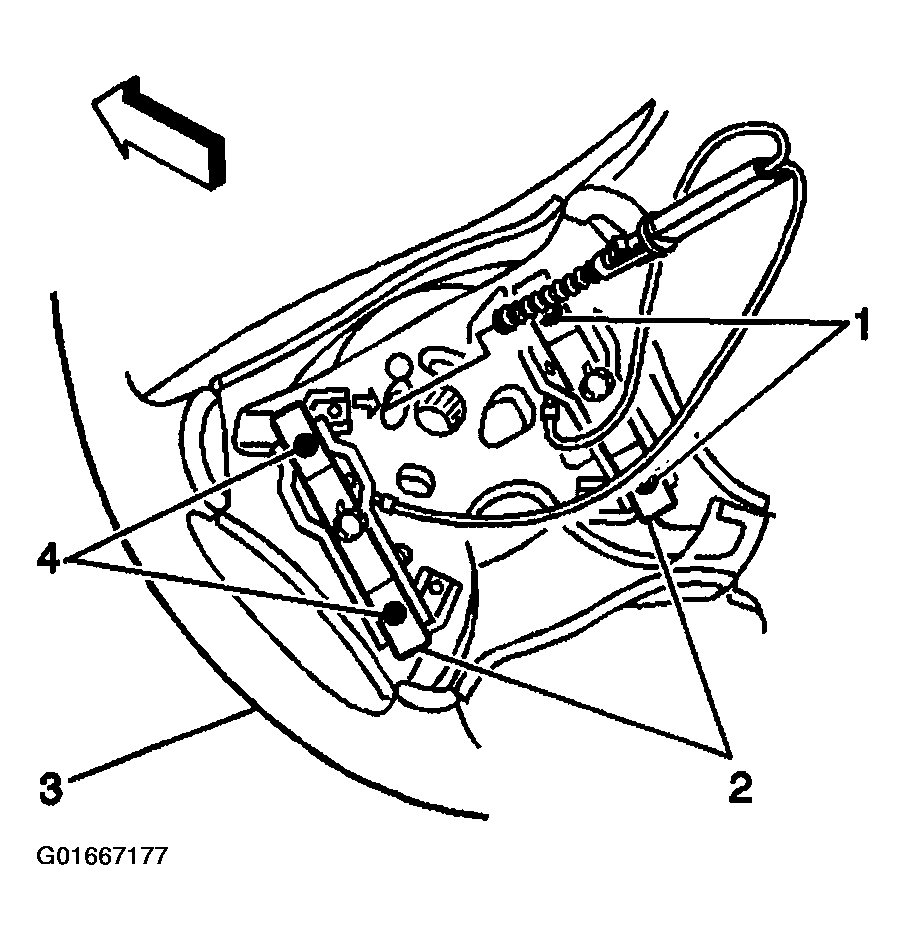

    Fig 2: Horn Contact Plate & Horn Switch
    G01667177Courtesy of GENERAL MOTORS CORP.
