Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drive belt. Refer to DRIVE BELT REPLACEMENT in Engine Mechanical-3.5L.
  2. Install J 25034-C  to the power steering pulley.
  3. Using J 25034-C  remove the power steering pump pulley.

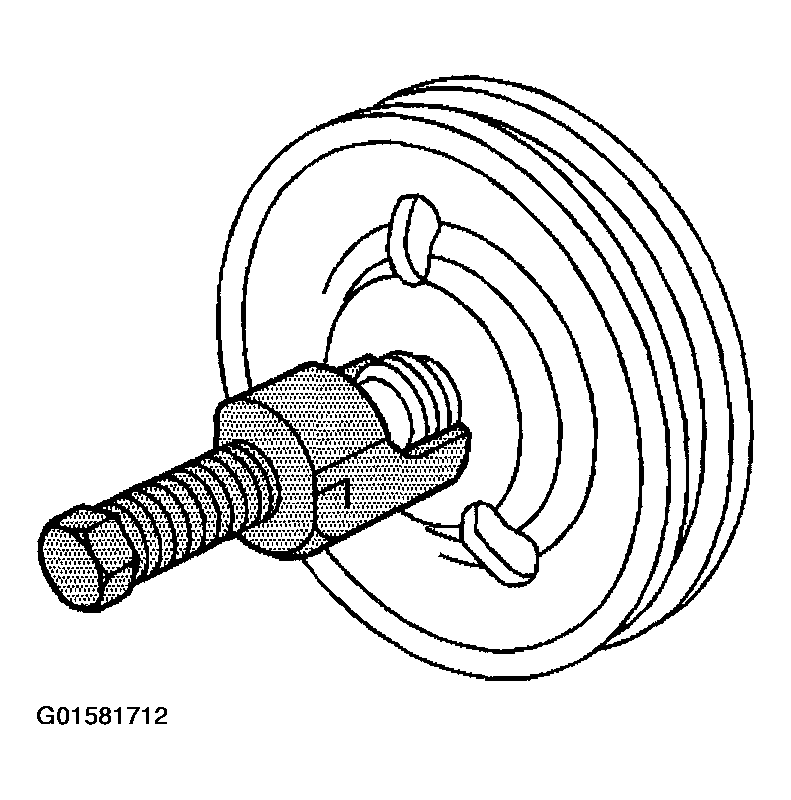

    Fig 1: Removing Power Steering Pump Pulley
    G01581712Courtesy of GENERAL MOTORS CORP.
