Test Description

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

6. Perform the Steering Position Sensor Test in order to verify if the steering wheel position sensor (SWPS) is operating properly.

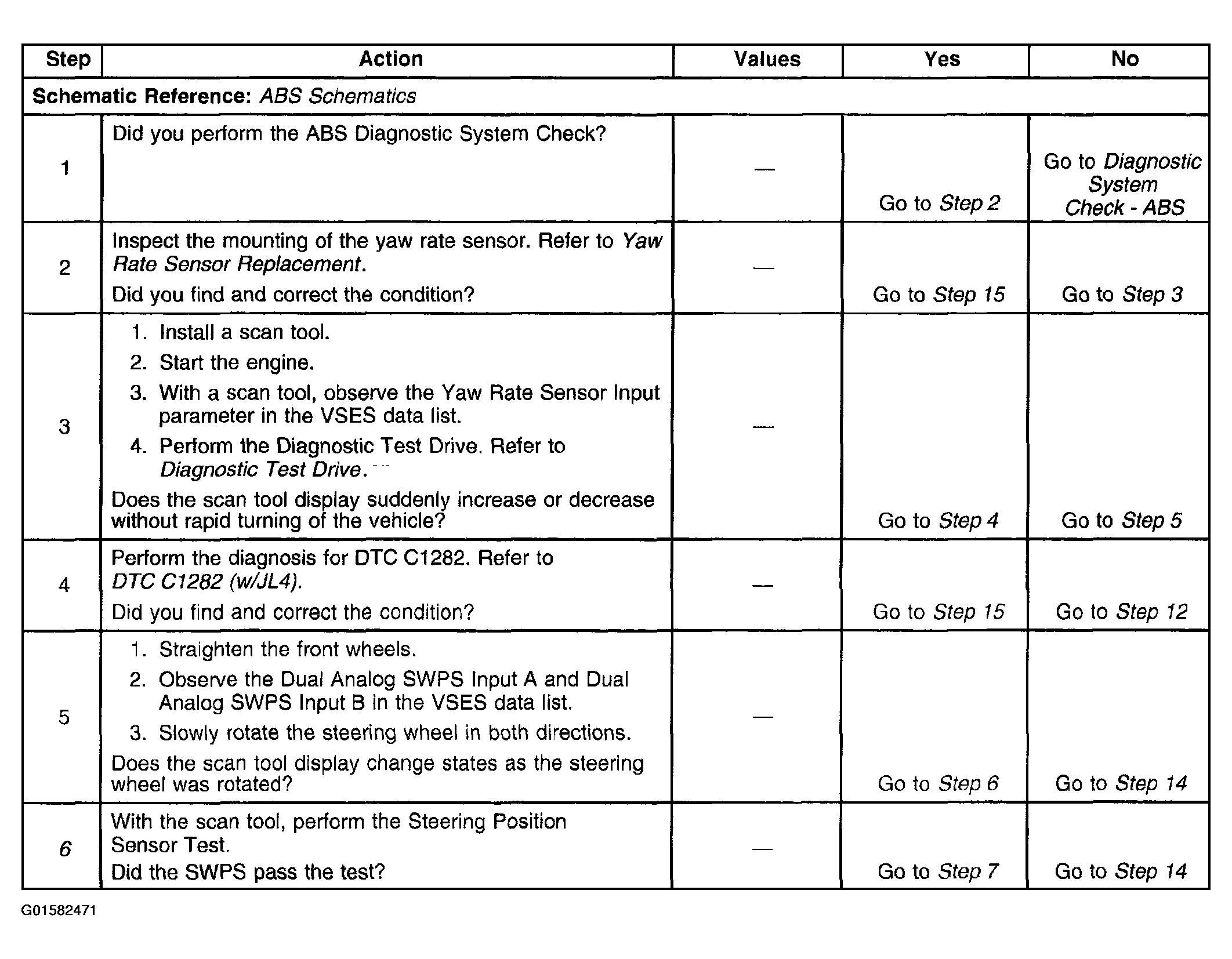

Fig 1: Vehicle Stability Enhancement System Unwanted Activation (w/JL4) (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

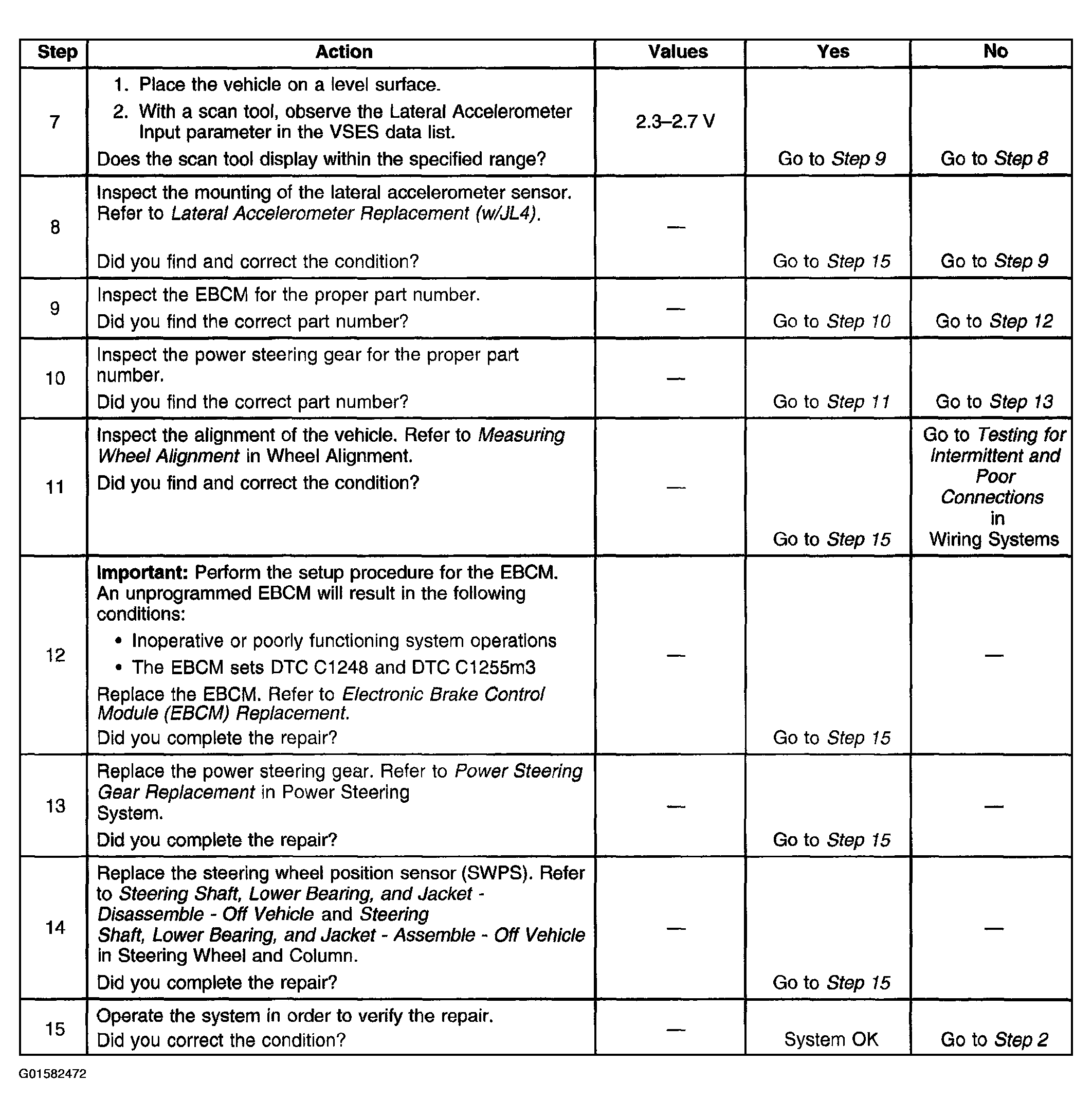

Fig 2: Vehicle Stability Enhancement System Unwanted Activation (w/JL4) (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
