Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Monte Carlo and 2002 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the upper trim cover (2) to the steering column.
  2. Install the steering column upper trim cover screws. Tighten the screws to 1.5 N.m (13 in lbs).

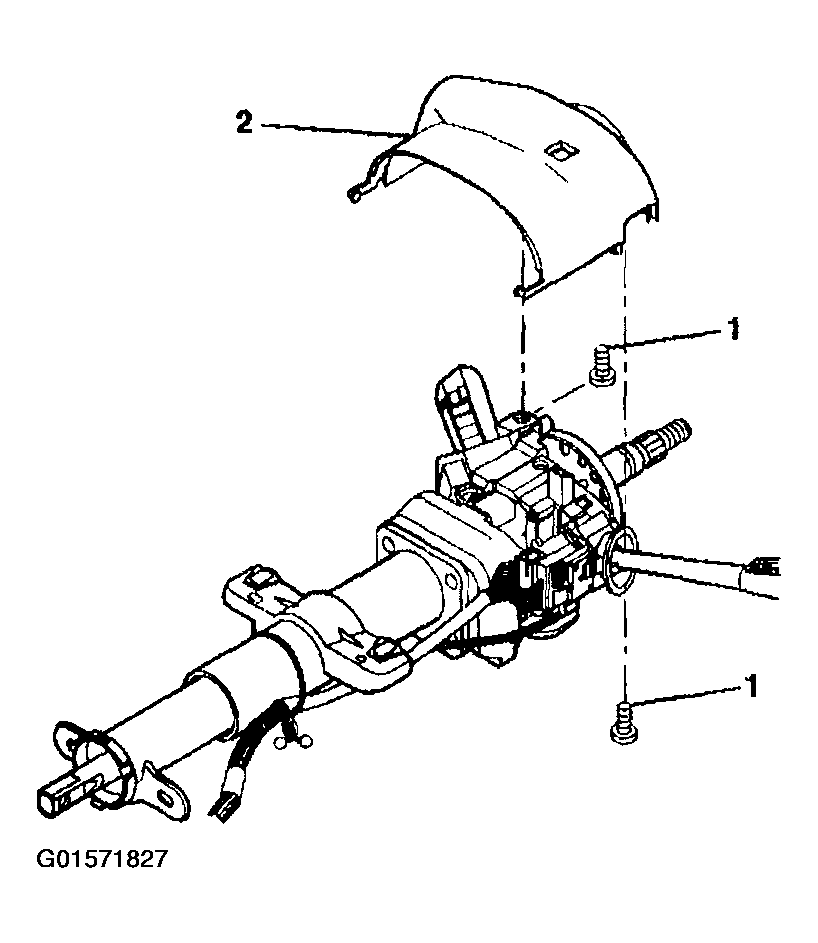

    Fig 1: Upper Trim Cover
    G01571827Courtesy of GENERAL MOTORS CORP.
  3. Match the tab slots on the lower trim cover with the locking tabs on the upper trim cover.
  4. Tilt the lower trim cover up and slide the lower trim cover until the locking tabs snap into the tab slots.

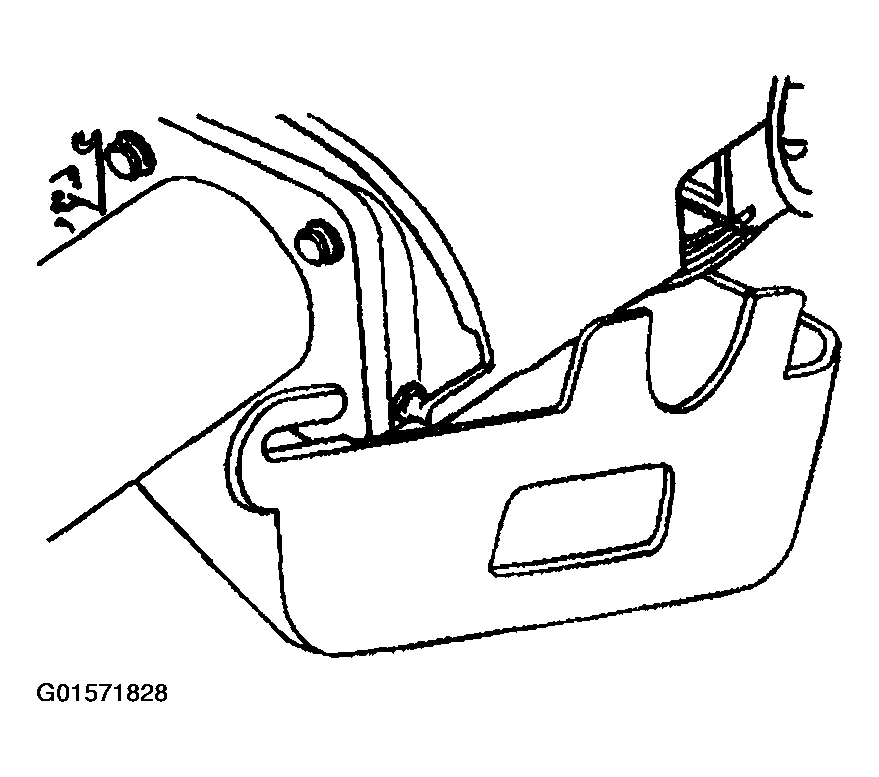

    Fig 2: Lower Trim
    G01571828Courtesy of GENERAL MOTORS CORP.
  5. Install the steering column lower trim cover screws. Tighten the screws to 3.5 N.m (31 in lbs).
  6. Install the tilt lever. Refer to Tilt Lever Replacement - On Vehicle .
  7. Install the steering wheel. Refer to Steering Wheel Replacement .
  8. Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
