Trim Covers, Shift Lever Seal - Assemble - Off Vehicle

Tools Required: J 41352  Modular Column Holding Fixture

1. Install the upper trim cover (2) onto the steering column.
   CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
2. Screw the 2 TORX® head screws (1) into the upper trim cover (2).

   Tighten

   Tighten the screws to 1.5 N.m (13 lb in).

   Fig 1: Installing Upper Trim Cover Onto Steering Column

   Courtesy of GENERAL MOTORS CORP.

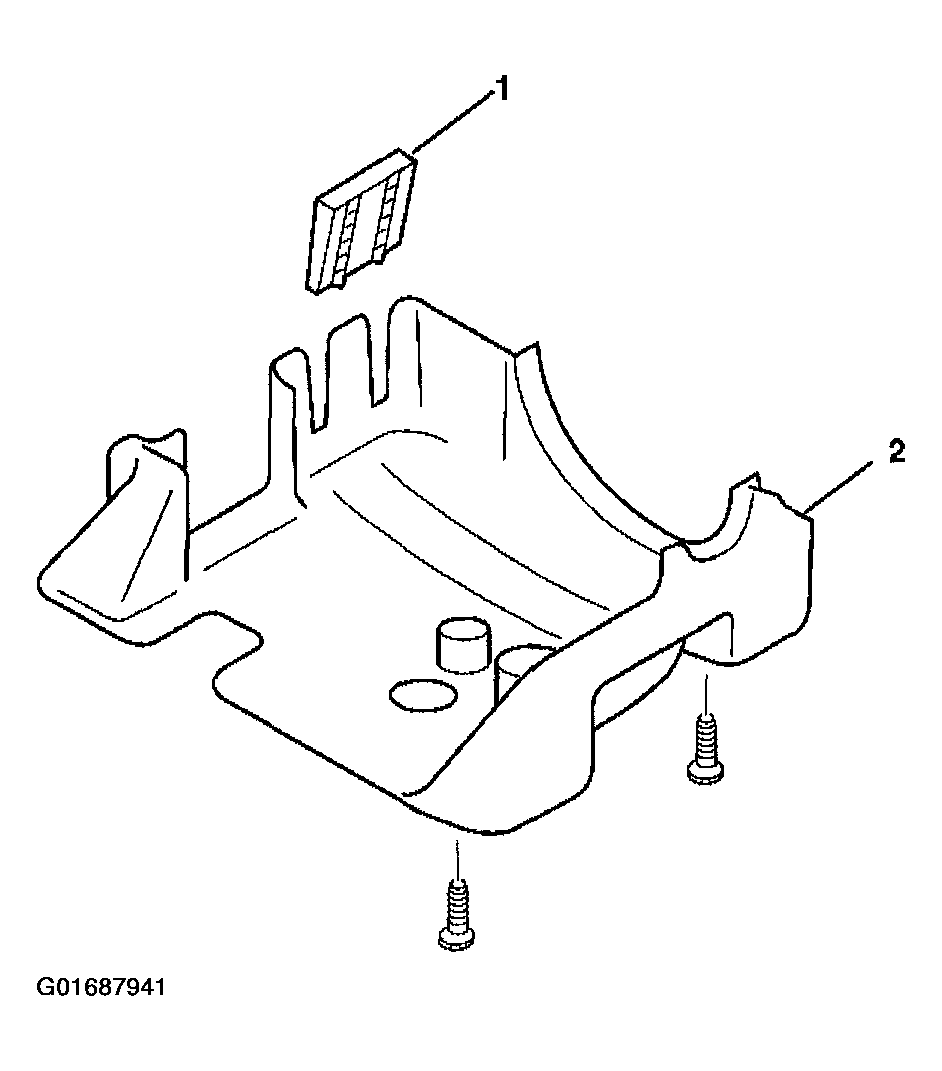

3. Install the trim cover protector (1) onto the lower trim cover (2).
   Fig 2: Installing Trim Cover Protector

   Courtesy of GENERAL MOTORS CORP.

   Important:  The shift lever seal must be seated in the trim covers.

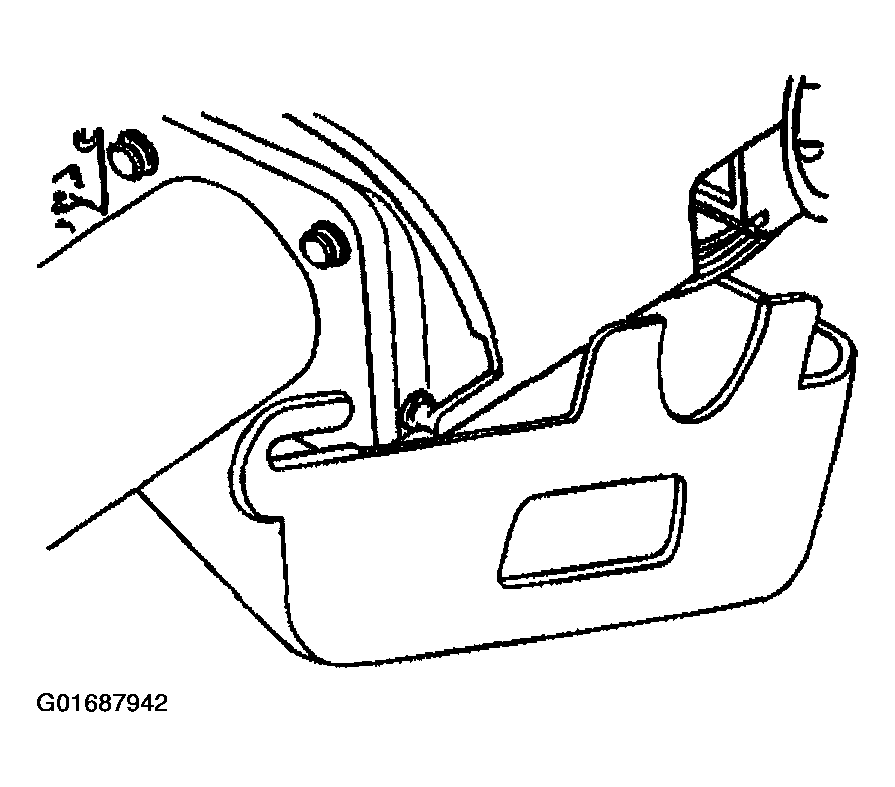

4. Install the lower trim cover onto the upper trim cover.
5. Match the tab slots on the lower trim cover with the locking tabs on the upper trim cover.
6. Tilt the lower trim cover up.
7. Slide the lower trim cover forward until the locking tabs snap into the tab slots.
   Fig 3: Installing Lower Trim Cover

   Courtesy of GENERAL MOTORS CORP.

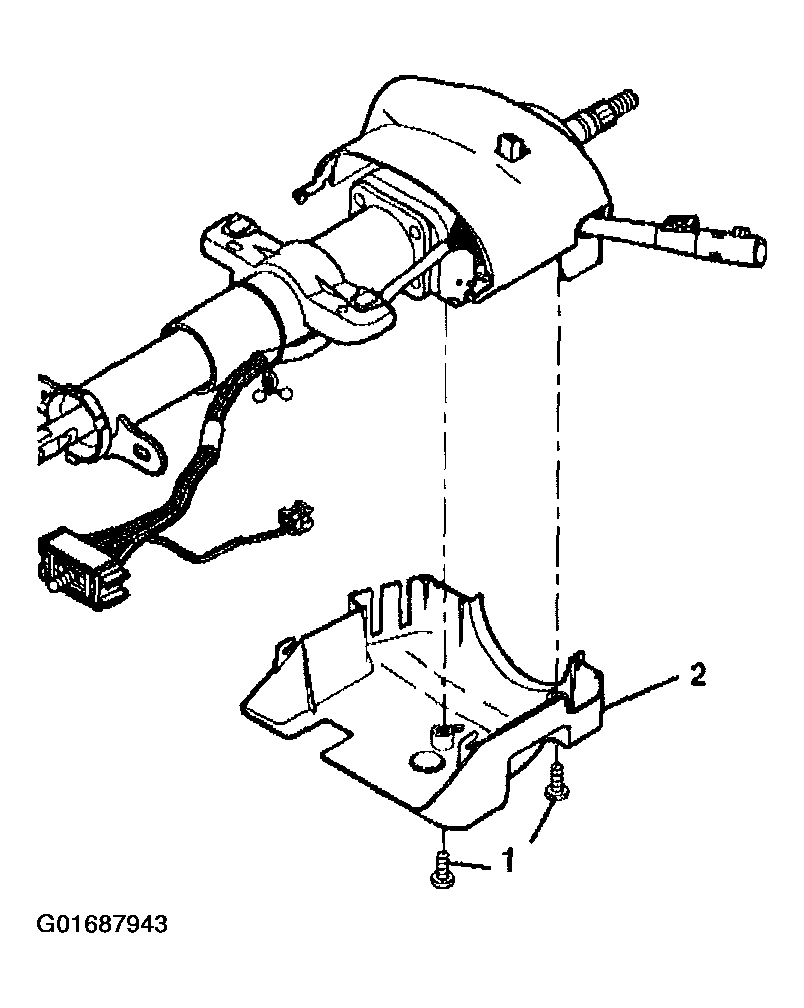

8. Screw the 2 pan head tapping screws (1) into the lower trim cover (2).

   Tighten

   Tighten the screws to 3.5 N.m (31 lb in).

   Fig 4: Installing Screws Onto Lower Trim Cover

   Courtesy of GENERAL MOTORS CORP.
   WARNING: Improper routing of the wire harness assembly may damage the inflatable restraint steering wheel module coil. This may result in a malfunction of the coil, which may cause personal injury.

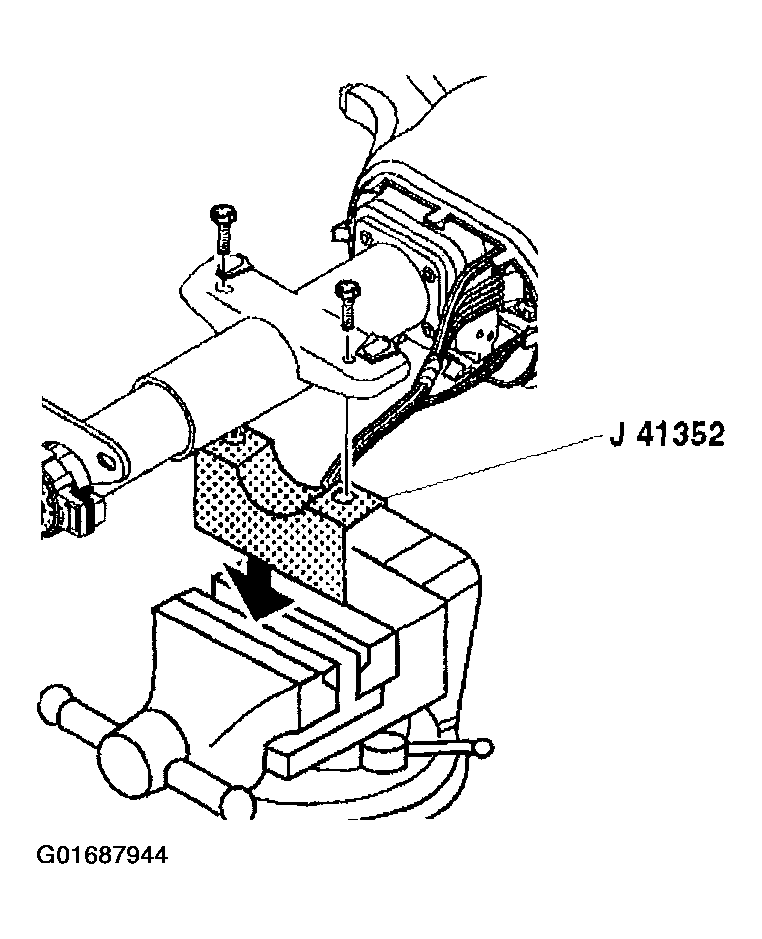

9. Remove the steering column and J 41352  from the vise.
10. Install the steering column into the vehicle. Refer to Steering Column Replacement .
11. Install the steering wheel onto the steering column.

    Refer to Steering Wheel Replacement .

12. Install the tilt lever. Refer to Tilt Lever Replacement - On Vehicle .
13. Enable the inflatable restraint steering wheel module. Refer to ACTIVATING SYSTEM .
    Fig 5: Installing Steering Column

    Courtesy of GENERAL MOTORS CORP.
