Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Locate the relay. Refer to the ELECTRICAL COMPONENT LOCATOR to locate the relay in the vehicle.
  2. Remove any fasteners which hold the relay in place.
  3. Remove any connector position assurance (CPA) devices or secondary locks.

    Important:  Use care when removing a relay in a wiring harness when the relay is secured by fasteners or tape.

  4. Separate the relay (1) from the wire harness connector (2).

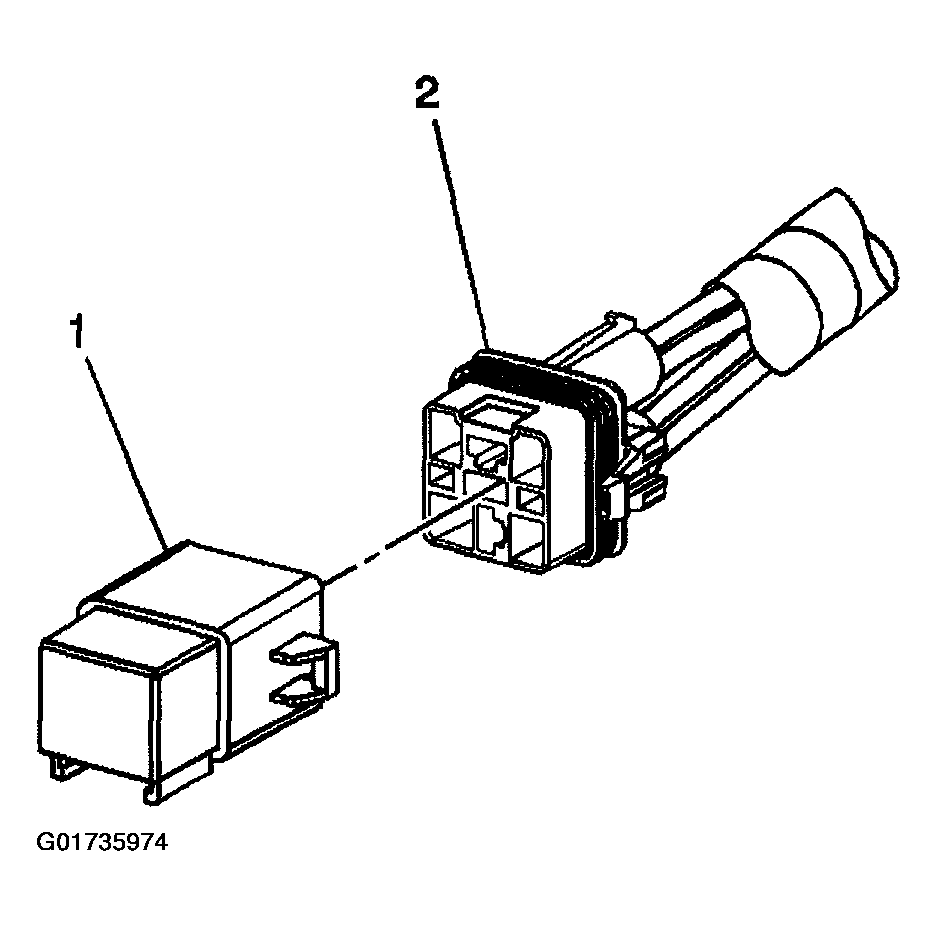

    Fig 1: Separating Relay From Wire Harness Connector
    G01735974Courtesy of GENERAL MOTORS CORP.
