Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front headliner from the vehicle. Refer to HEADLINER REPLACEMENT - FRONT .
  2. Remove the rear headliner from the vehicle. Refer to HEADLINER REPLACEMENT - REAR .
  3. Remove the push-nuts (2) from the speaker grille retaining-plate.
  4. Remove the retaining plate (1) from the speaker grille (4).
  5. Remove the screws that are retaining the speaker (3) to the speaker grille.
  6. Remove the speaker.

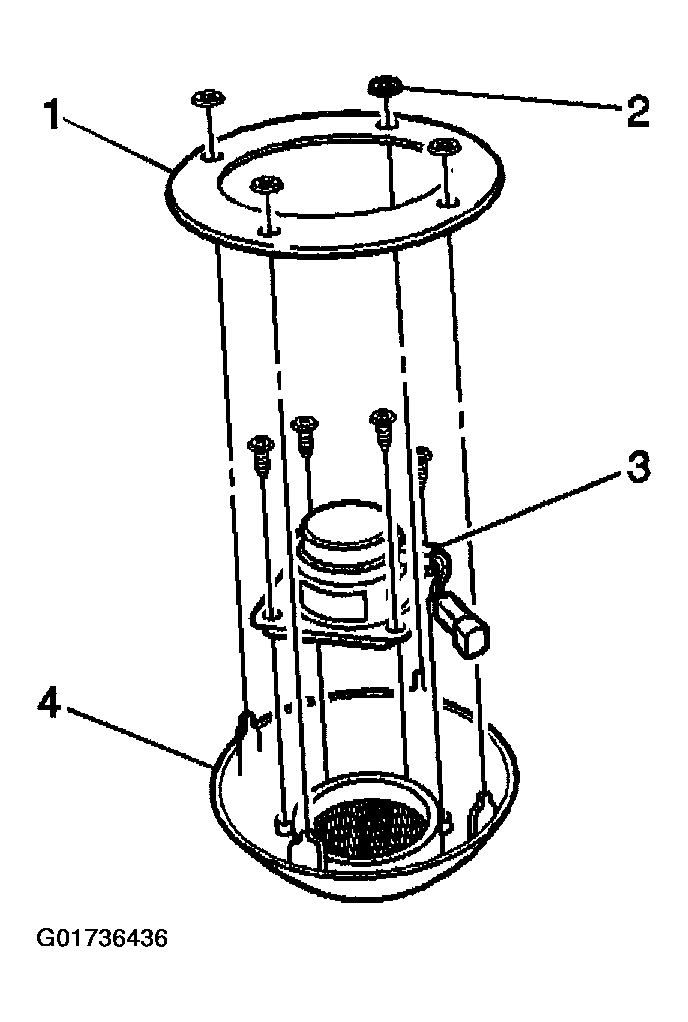

Fig 1: Removing Speaker Grille Components
G01736436Courtesy of GENERAL MOTORS CORP.
