Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right body side-trim panel. Refer to TRIM PANEL REPLACEMENT - RIGHT BODY SIDE .
  2. Disconnect the electrical connectors from the amplifiers.
  3. Remove the screws from the 100-watt amplifiers (2).
  4. Remove the screws that retain the 100-watt amplifiers (1) to the mounting bracket (4).
  5. Remove the amplifiers from the mounting bracket.

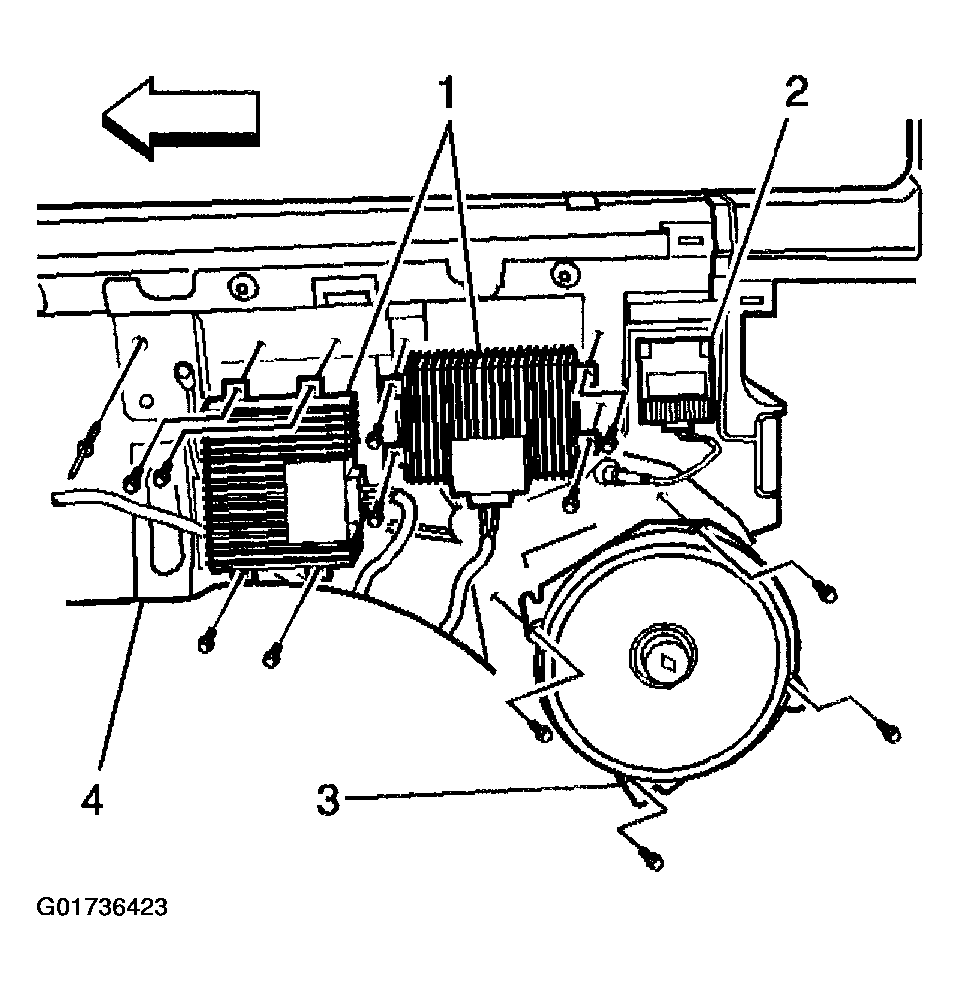

    Fig 1: Removing Screws From 100-Watt Amplifiers
    G01736423Courtesy of GENERAL MOTORS CORP.
