Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the 100-watt amplifier to the front lower speaker, if removed.
  2. Install the front lower speaker (1) to the vehicle.
    CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  3. Install the nuts that retain the front lower speaker mounting bracket (2) to the passenger seat riser.

    Tighten

    Tighten the front lower speaker mounting bracket nuts to 30 N.m (22 lbs ft).

  4. Install the passenger seat to the vehicle. Refer to SEAT REPLACEMENT - BUCKET (ALL EXCEPT LUXURY) or SEAT REPLACEMENT - BUCKET (LUXURY Y91) .
  5. Connect the electrical connectors to the front lower speaker.

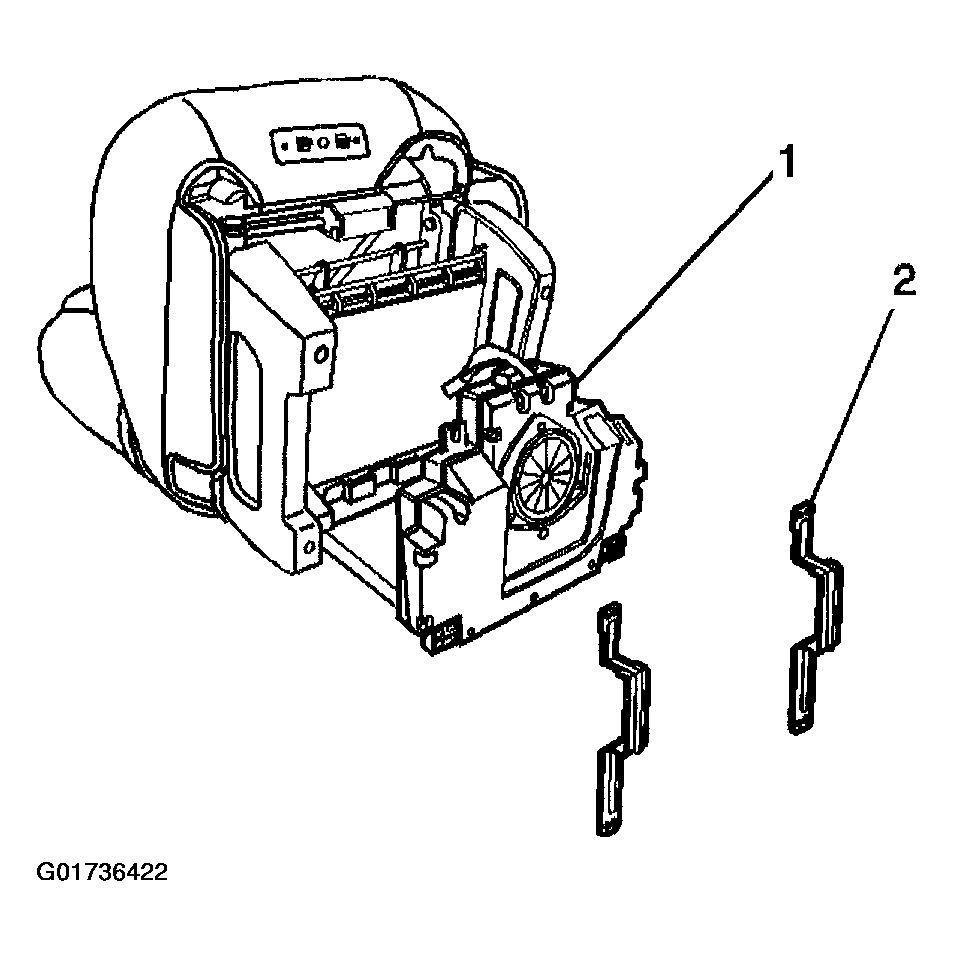

    Fig 1: Installing Front Lower Speaker & Components
    G01736422Courtesy of GENERAL MOTORS CORP.
