Video Display Is Poor Or Blank But Backlighting Is On (Rear Display)

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

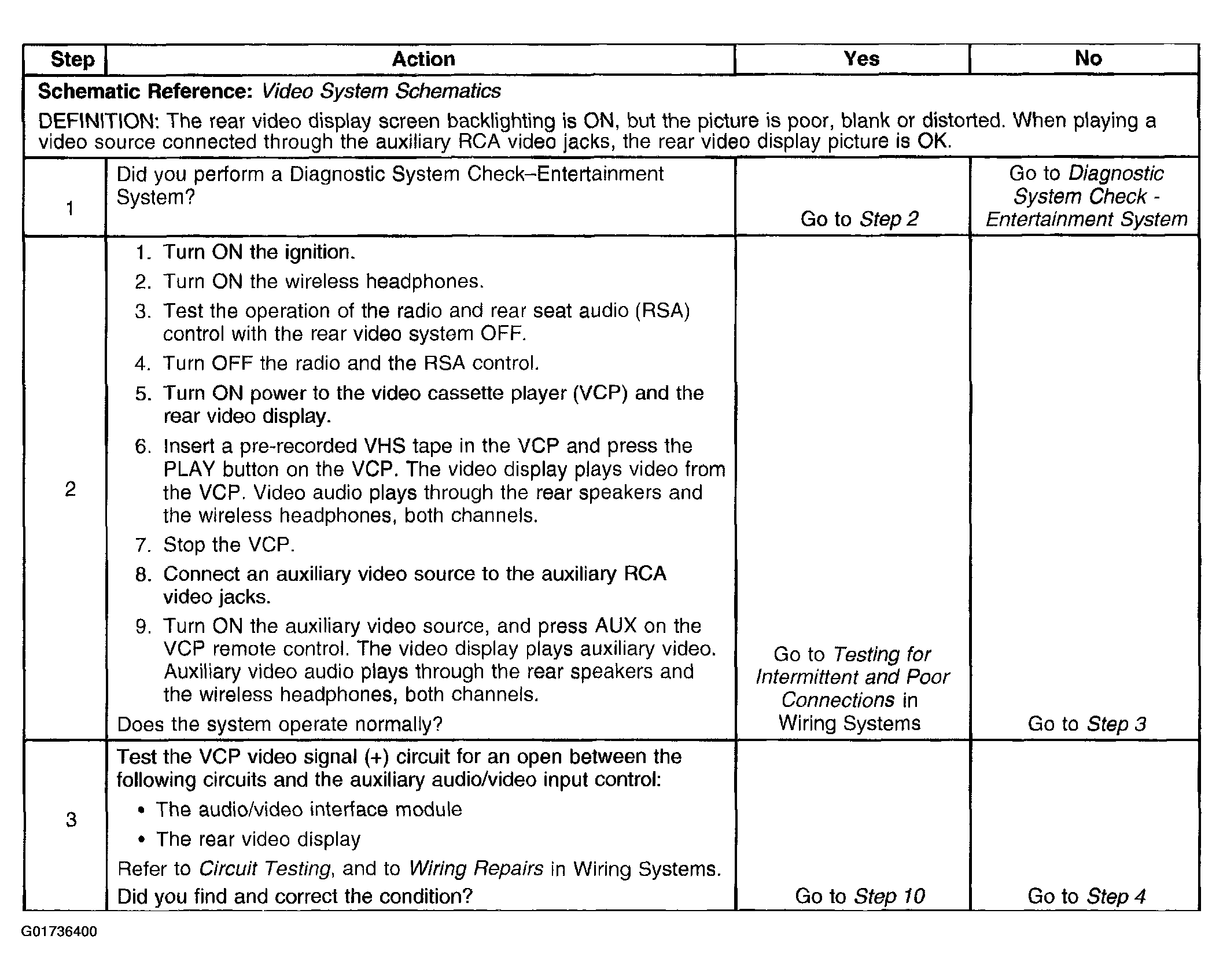

Fig 1: Video Display Is Poor Or Blank But Backlighting Is On (Rear Display) (1 Of 2)
G01736400Courtesy of GENERAL MOTORS CORP.

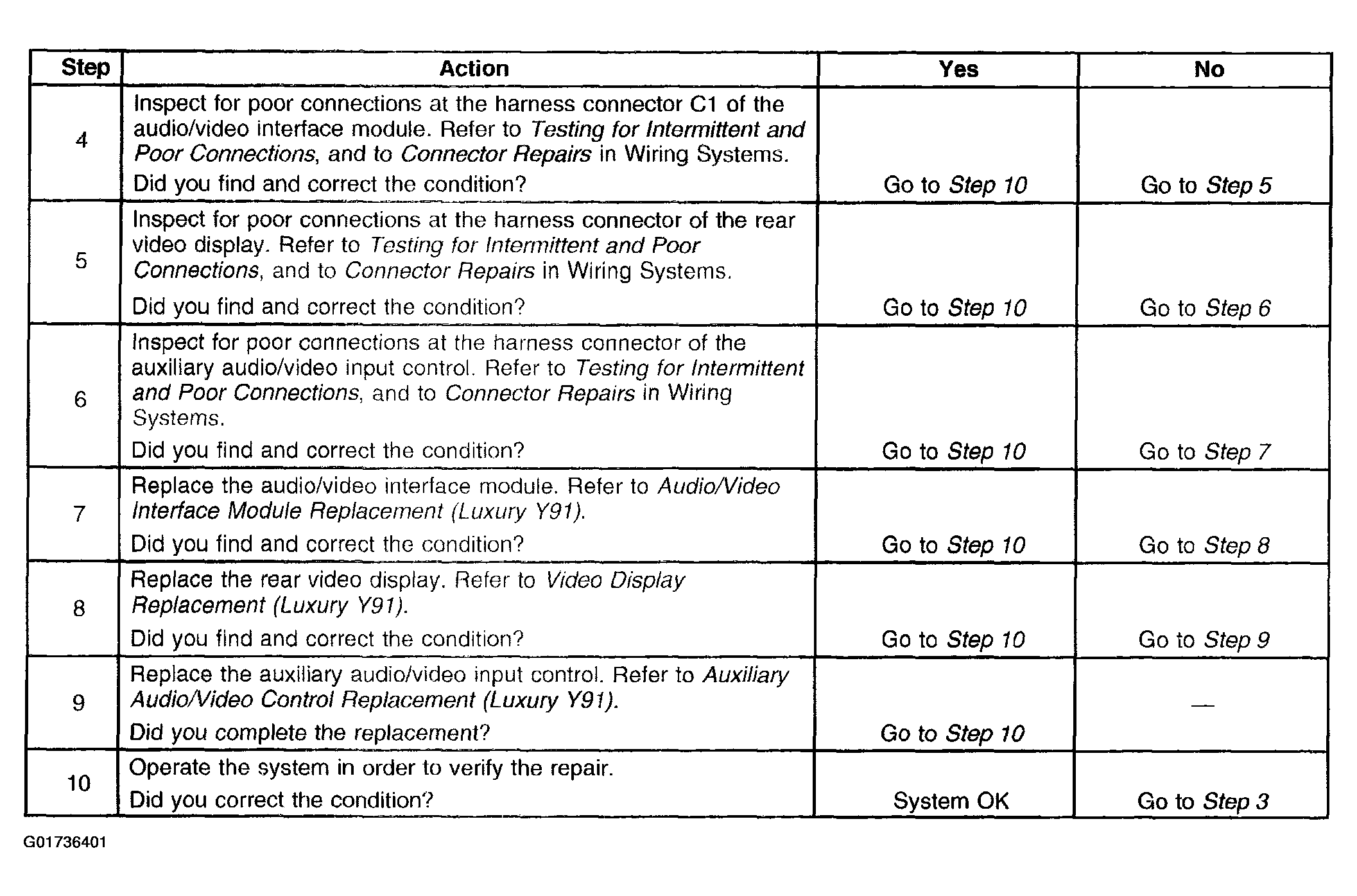

Fig 2: Video Display Is Poor Or Blank But Backlighting Is On (Rear Display) (2 Of 2)
G01736401Courtesy of GENERAL MOTORS CORP.
