Radio Display Inoperative, No Sound From Speakers

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

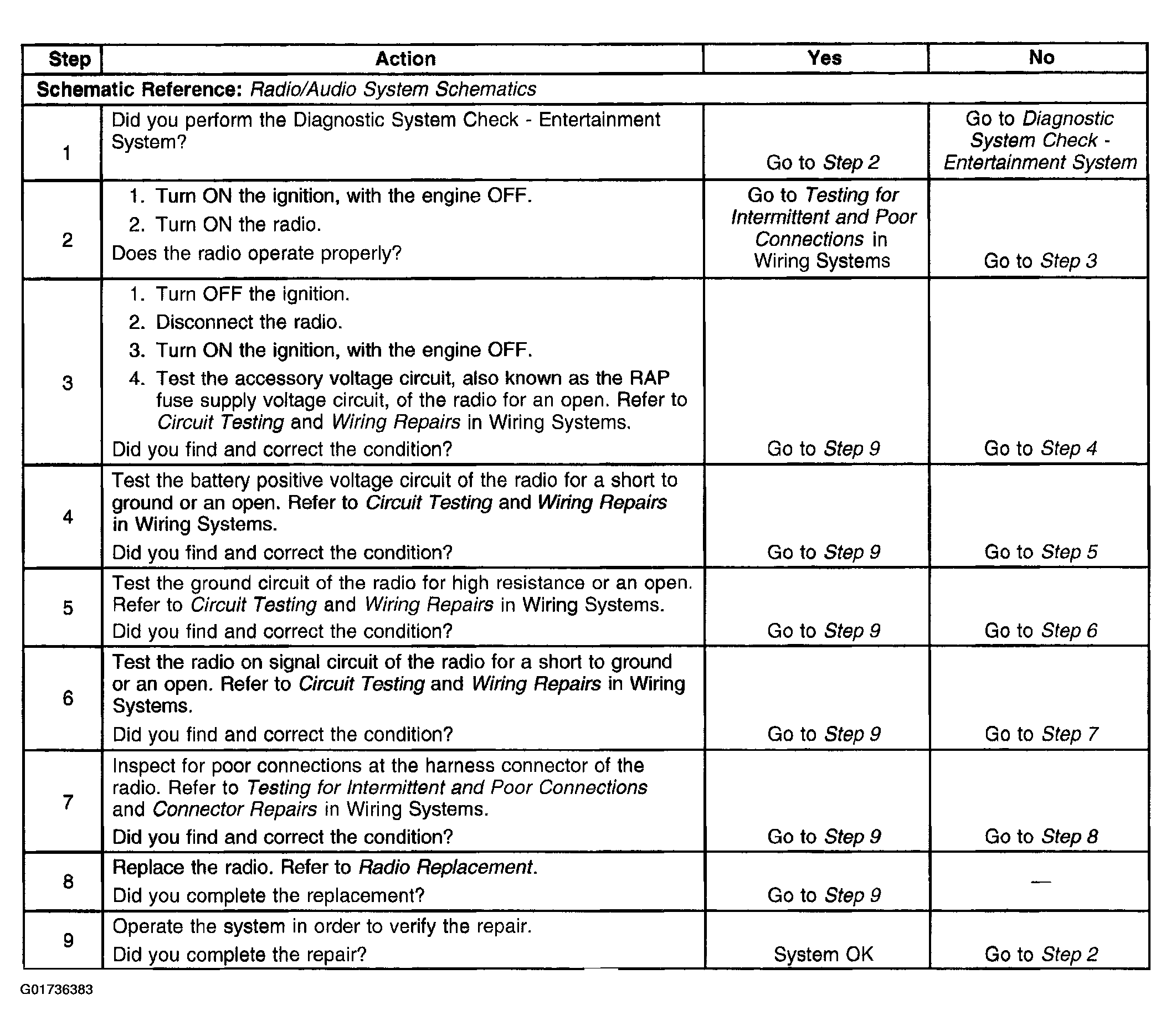

Fig 1: Radio Display Inoperative, No Sound From Speakers
G01736383Courtesy of GENERAL MOTORS CORP.
