Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat belt retractor to the vehicle.
    CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  2. Install the seat belt retractor retaining bolts to the vehicle.

    Tighten

    • Tighten the seat belt retractor upper retaining bolt to 52 N.m (38 ft lbs).
    • Tighten the seat belt retractor lower retaining bolt to 10 N.m (89 in lbs).
  3. Install the rear corner garnish molding. Refer to GARNISH MOLDING REPLACEMENT - REAR CORNER .
  4. Secure the seat belt escutcheon to the rear corner garnish molding.

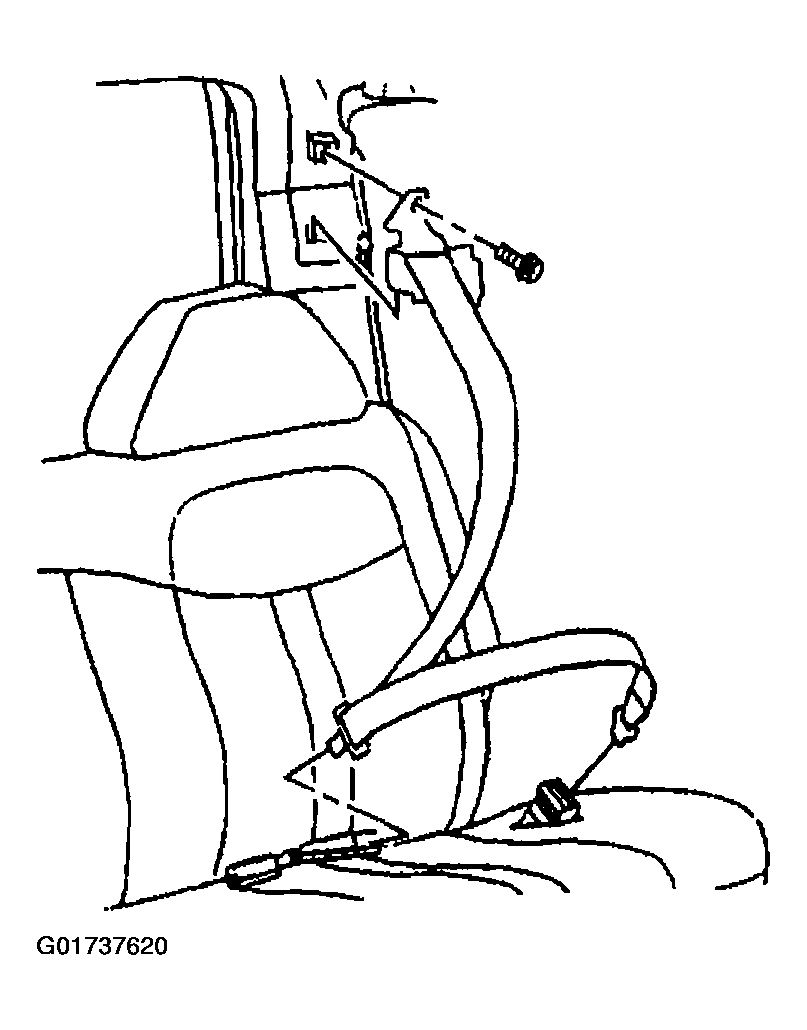

    Fig 1: Installing Seat Belt Retractor (No. 4 Left Rear)
    G01737620Courtesy of GENERAL MOTORS CORP.
